46pins Crimping Rectangular Connector
46pins Crimping Rectangular Connector
46pins Crimping Rectangular Connector
46pins Crimping Rectangular Connector
46pins Crimping Rectangular Connector
46pins Crimping Rectangular Connector
46pins Crimping Rectangular Connector
46pins Crimping Rectangular Connector
Specifications
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Model Number :
HEE-032-MC/HEE-032-FC
Brand Name :
ZJHK
Delivery Time :
5~7 work days
Price :
$3.47/$3.25/$3.03
Operating Temperature :
-40~125℃
Contact Material :
Copper Alloy
OEM :
Provided
Matching Housings :
H16B
Payment Terms :
T/T
Place of Origin :
China
Number Of Contacts :
32
Material :
Polycarbonate
MOQ :
5pcs/30pcs/50pcs
Product name :
Heavy Duty Connector
Description
46pins Crimping Rectangular Connector
46pins Crimping Rectangular Connector

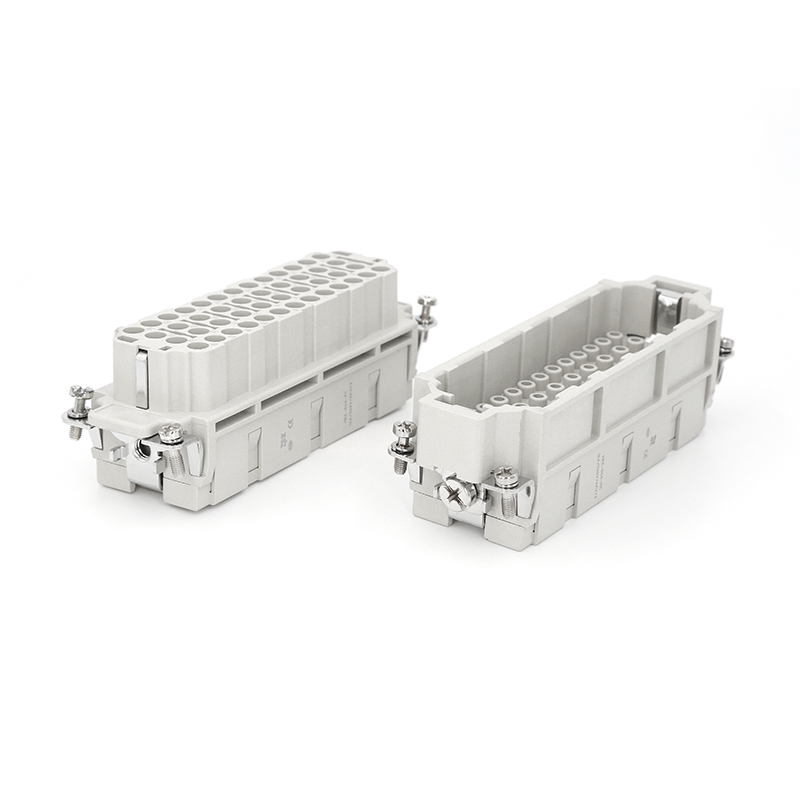

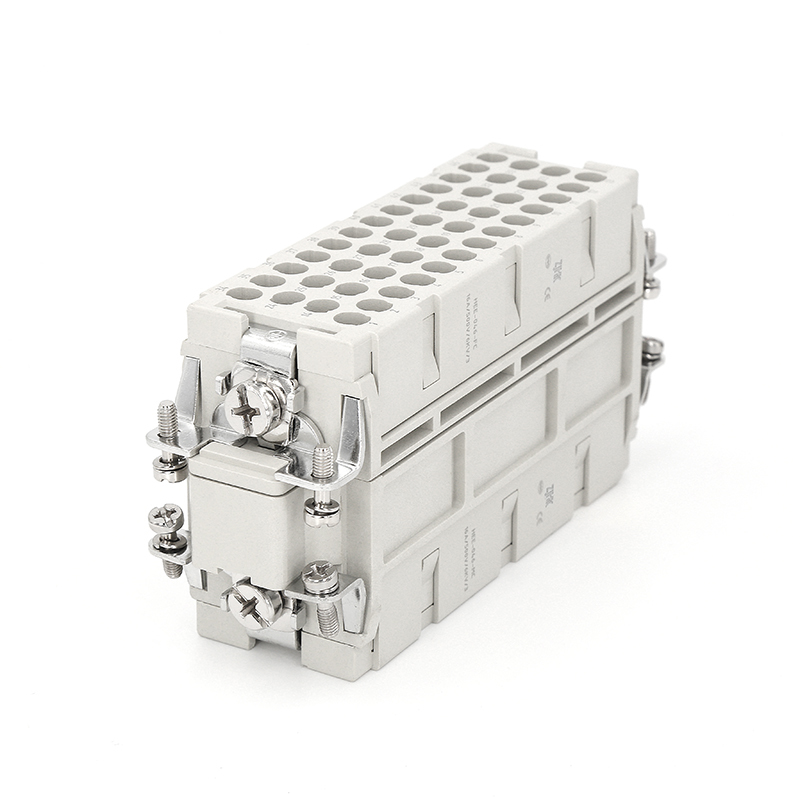

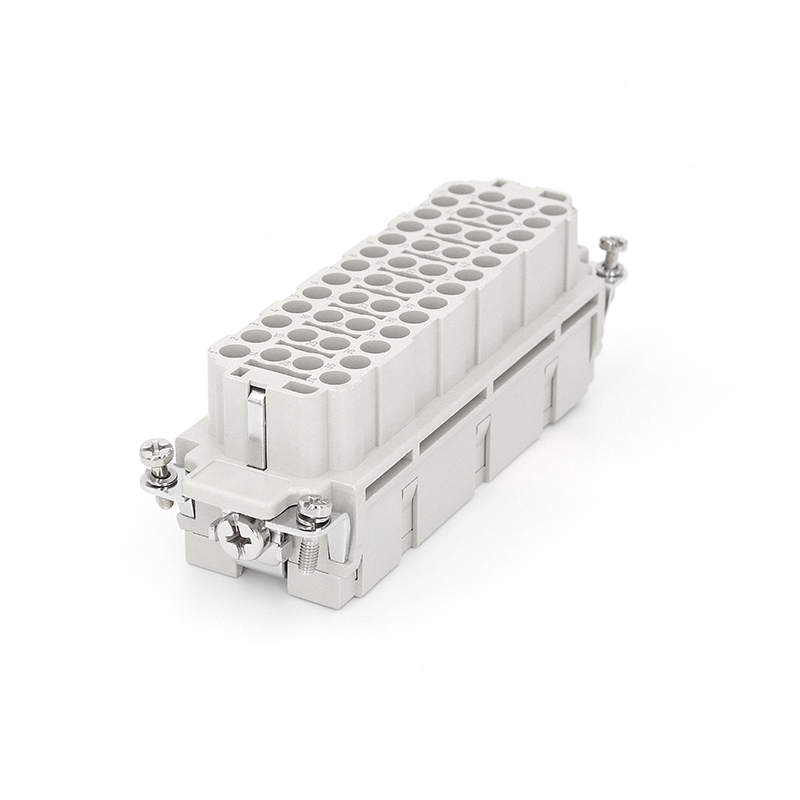

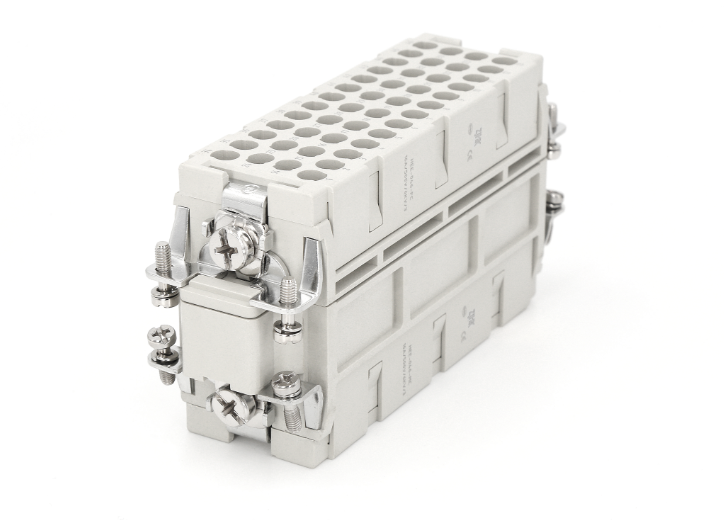

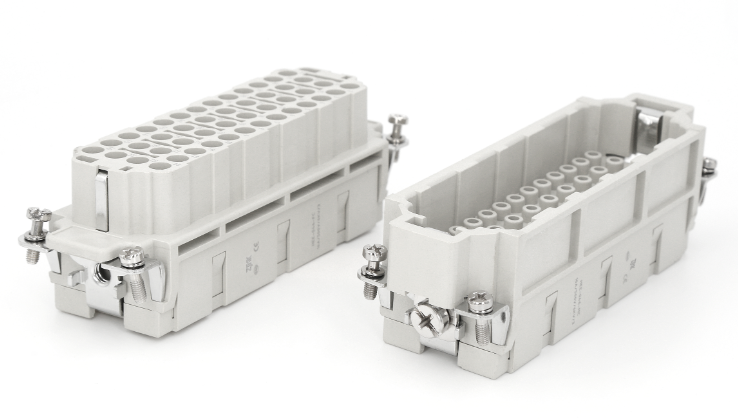

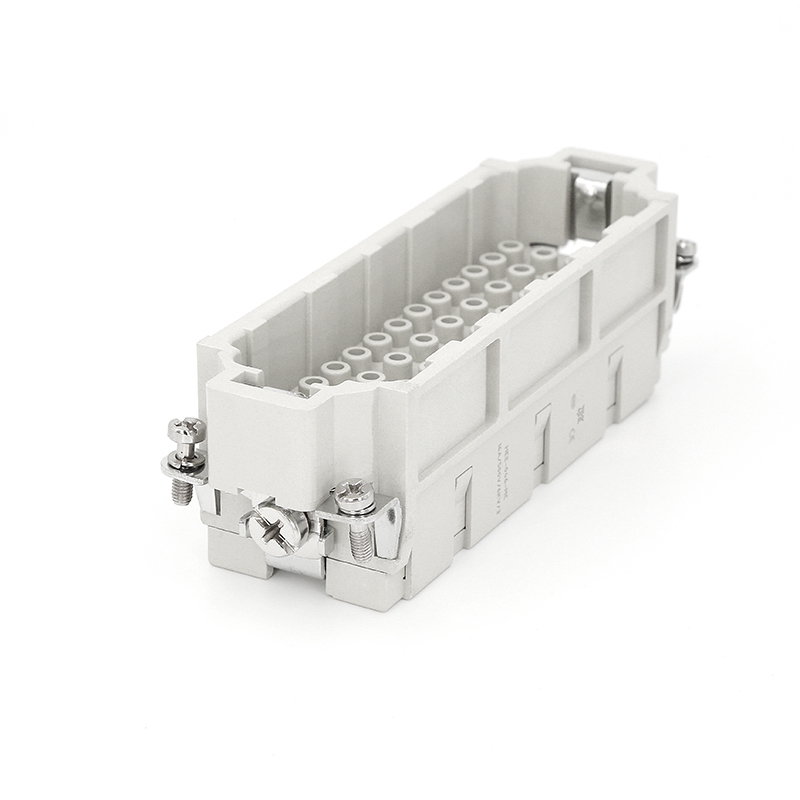

The HEE-032-MC and HEE-032-FC are high-density inserts designed for applications where multiple circuits need to be handled within a relatively compact connector size. The MC and FC versions are the male and female counterparts, providing a secure mating connection for industrial equipment and control systems.

Technical Specifications
Contacts Number 32+PE
Rated Current 16A
Rated Voltage 500V
Termination Method Crimp termination
Gender Male and Female
Limiting Temperature -40 ... +125 °C
Mating Cycles ≥ 500
Material of Inserts Polycarbonate
Matching Housings H16B
Series High Density
Product Drawings

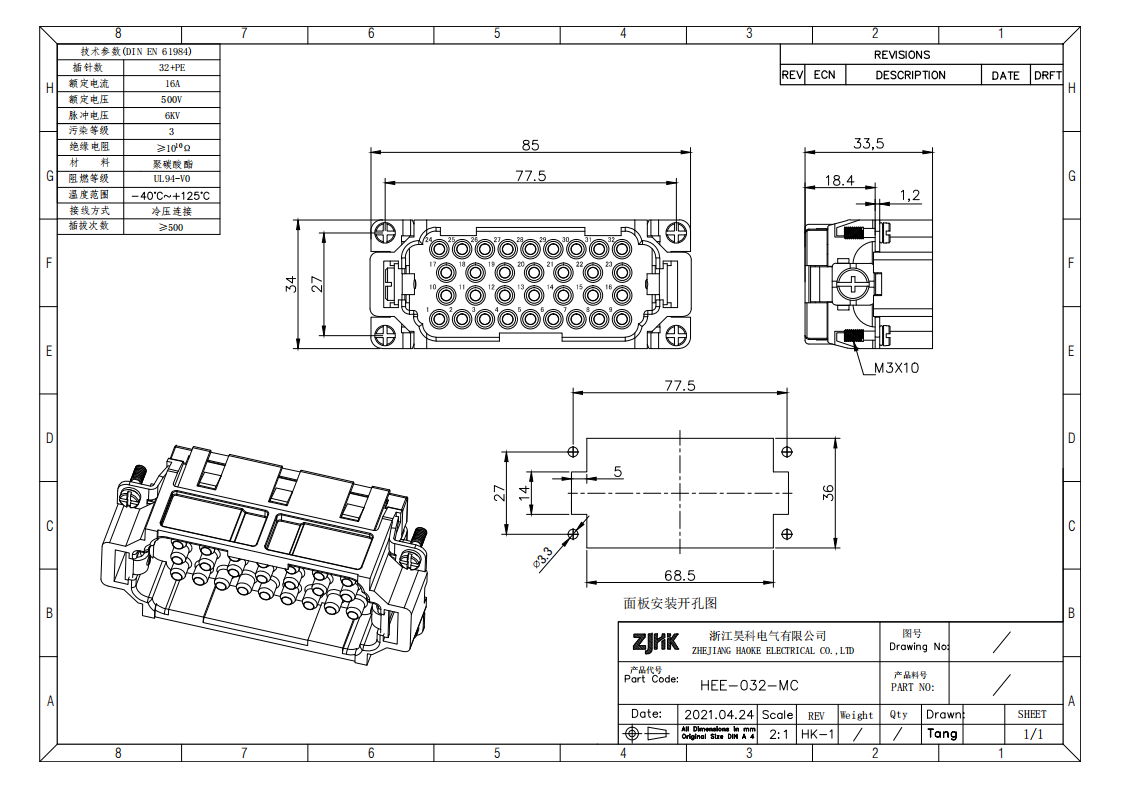

HEE-032-MC
46pins Crimping Rectangular Connector

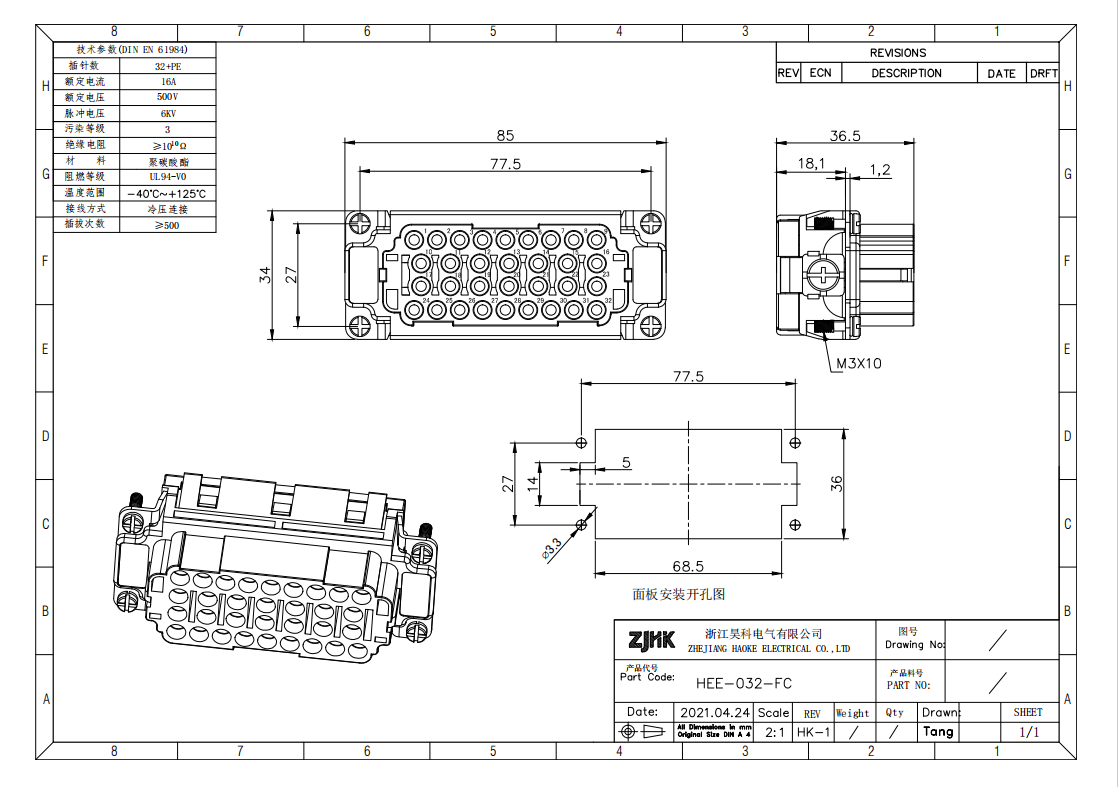

HEE-032-FC
46pins Crimping Rectangular Connector
Product Overview
46pins Crimping Rectangular Connector

With 32 contacts, the HEE-032 series is well suited to applications involving multiple signal or control circuits. The compact contact arrangement helps save installation space and keeps wiring more organized. The inserts can be combined with matching heavy-duty connector housings and are suitable for industrial automation, machinery, control cabinets, production equipment, and other multi-circuit connection applications.

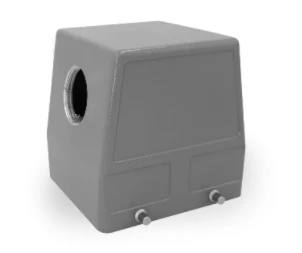

Compatible Housings and Hoods
46pins Crimping Rectangular Connector
Size: 32B
Side Entry
Bolts No.: 4

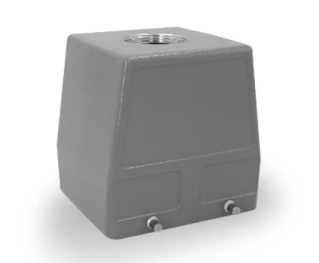

46pins Crimping Rectangular Connector
Size: 32B
Top Entry
Bolts No.: 4

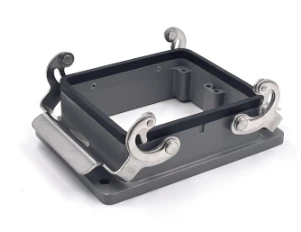

46pins Crimping Rectangular Connector
Size: 32B
Bulkhead Mounting
Lever No.: 2
46pins Crimping Rectangular Connector
Size: 32B
Surface Mounting
Lever No.: 2
