64 Pin High Density Crimping Heavy Duty Connector
64 Pin High Density Crimping Heavy Duty Connector
64 Pin High Density Crimping Heavy Duty Connector
64 Pin High Density Crimping Heavy Duty Connector
64 Pin High Density Crimping Heavy Duty Connector
64 Pin High Density Crimping Heavy Duty Connector
Specifications
Payment Terms :
T/T
Housing Material :
Die Cast Aluminium
Housing Model :
H32B Series
Wire Connection :
Crimp
Model Number :
HEE-064-MC/HEE-064-FC
MOQ :
5pcs/30pcs/50pcs
Current Rating :
16A per pin
Price :
$6.93/$6.5/$6.07
Voltage Rating :
500V
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Delivery Time :
5~7 work days
Number Of Contacts :
32
Brand Name :
ZJHK
Operating Temperature :
-40~125℃
Place of Origin :
China
Description
64 Pin High Density Crimping Heavy Duty Connector
64 Pin High Density Crimping Heavy Duty Connector
The HEEE-064-MC and HEEE-064-FC are high-density crimp inserts designed for 24B heavy-duty connector systems. With 64 contacts + PE and a rated capacity of 16A / 500V, they are ideal for equipment requiring multiple circuits in limited installation space. The MC and FC versions are matching male and female inserts, while the crimp termination ensures practical wiring and easy maintenance.
Product Specifications
Specifications DIN EN 60 664, DIN EN 61 984
Termination Method Crimping Terminal
Gender Male and Female
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6kV
Rated Voltage (UL/CSA) 600V
Material Polycarbonate
Operating Temperature -40℃ to +125℃
Product Drawings

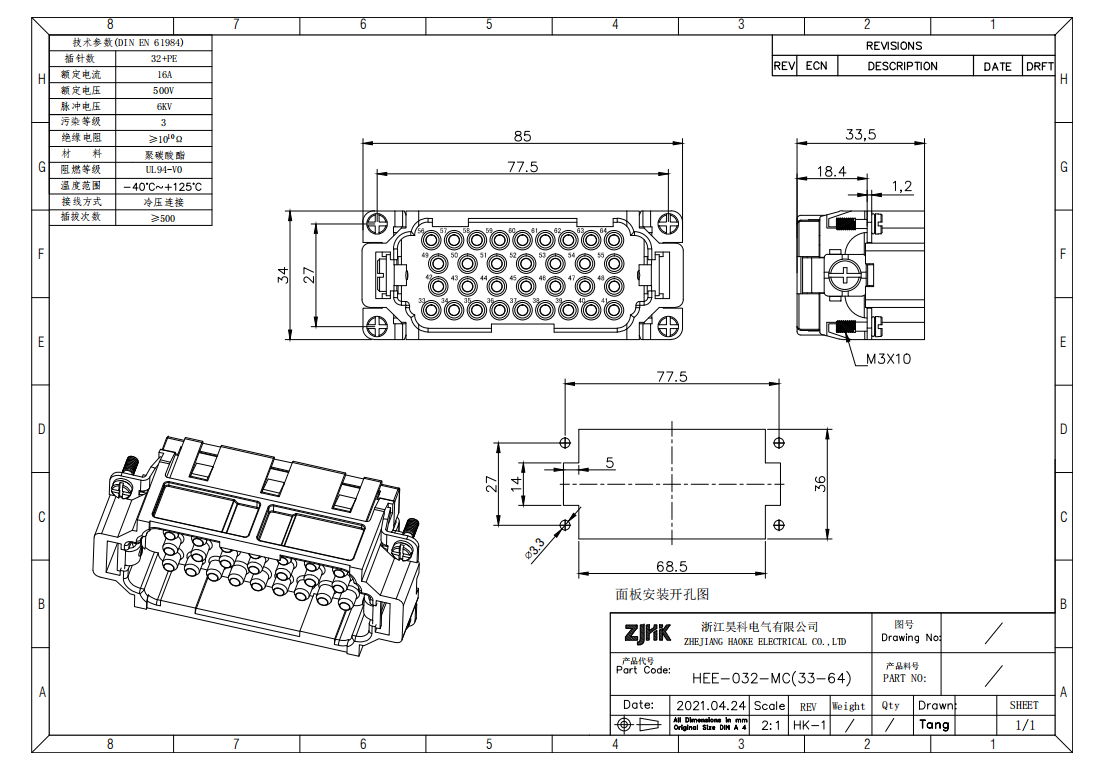

HEE-032-MC (33-64)
64 Pin High Density Crimping Heavy Duty Connector

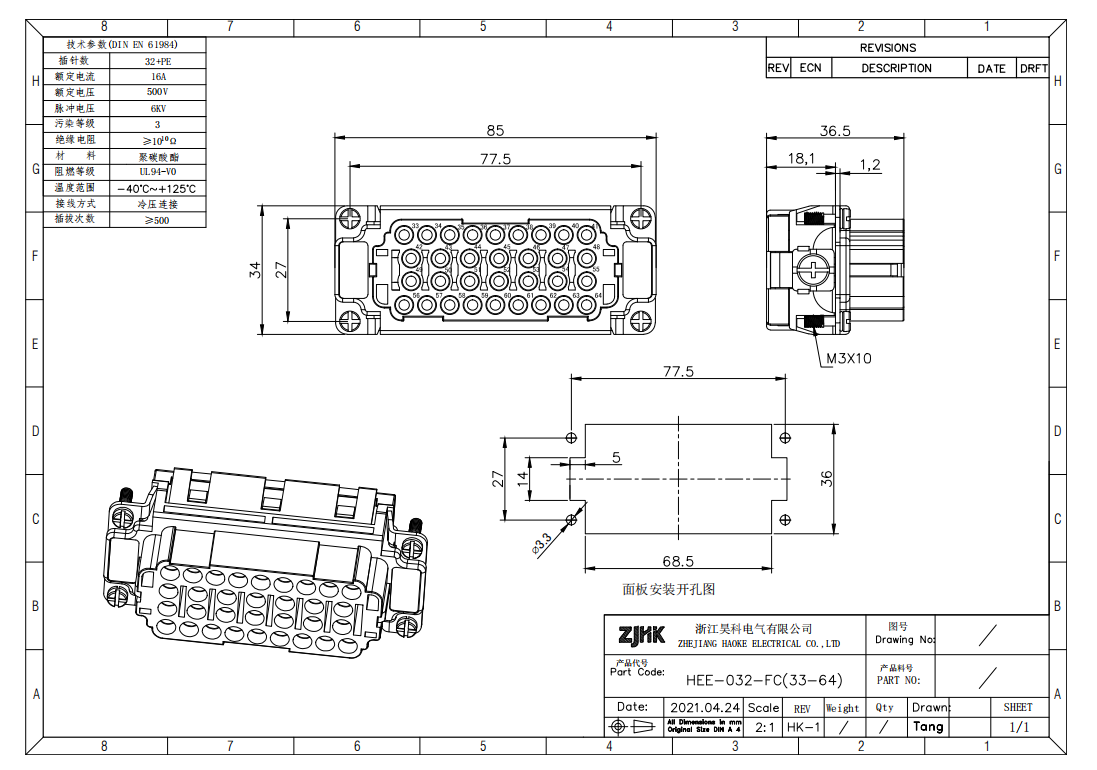

HEE-032-FC (33-64)
64 Pin High Density Crimping Heavy Duty Connector

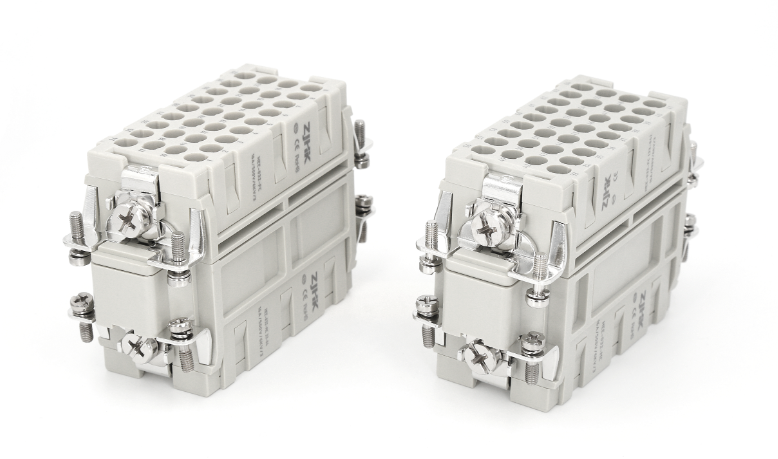

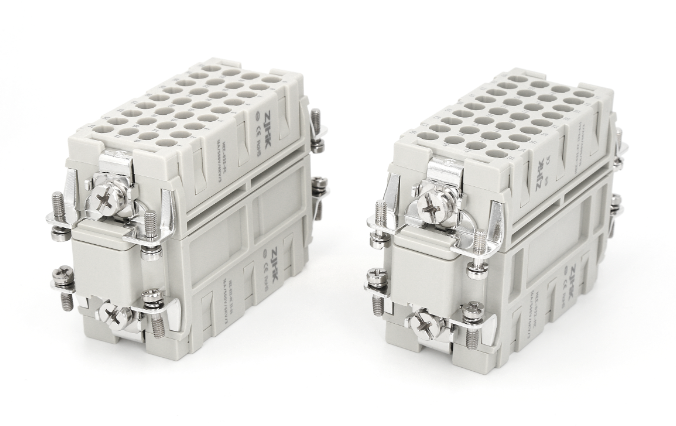

Product Overview
64 Pin High Density Crimping Heavy Duty Connector
These inserts utilize PC insulating material and copper-alloy contacts with silver or gold plating options, providing excellent insulation combined with stable electrical contact performance. Suitable for industrial automation, machinery, control cabinets, and other applications with high-density wiring requirements.
Matching Contacts
64 Pin High Density Crimping Heavy Duty Connector 64 Pin High Density Crimping Heavy Duty Connector 64 Pin High Density Crimping Heavy Duty Connector 64 Pin High Density Crimping Heavy Duty Connector
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Material: Copper, Silver
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Male
Material: Copper, Silver
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Female
Material: Copper, Gold
Rated Current: 16A
Wire Gauge: 0.14-4mm²
Gender: Female
Material: Copper, Gold
Professional Team
64 Pin High Density Crimping Heavy Duty Connector
At ZJHK, we maintain a professional and well-coordinated team covering R&D, production, quality control, purchasing, sales, and technical support. Our departments work closely together to ensure efficient communication and smooth handling of every order. We prioritize team building and employee activities, fostering a positive working environment where team members support each other and grow together.
