46Pin Modular Crimping Heavy Duty Connectors
46Pin Modular Crimping Heavy Duty Connectors
46Pin Modular Crimping Heavy Duty Connectors
46Pin Modular Crimping Heavy Duty Connectors
46Pin Modular Crimping Heavy Duty Connectors
46Pin Modular Crimping Heavy Duty Connectors
46Pin Modular Crimping Heavy Duty Connectors
46Pin Modular Crimping Heavy Duty Connectors
Specifications
Payment Terms :
T/T
Material :
Aluminum Alloy
Contacts No :
46 + PE
OEM :
Provided
Model Number :
HEE-046-MC/HEE-046-FC
MOQ :
5pcs/30pcs/50pcs
Connector Type :
Ultra- High Density Connector
Matching Housings :
H24B
Price :
$3.47/$3.25/$3.03
Durability :
500 Times Cycle
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Delivery Time :
5~7 work days
Package :
Indivisual Packing in Box
Brand Name :
ZJHK
Voltage Rating :
500V
Place of Origin :
China
Description
46Pin Modular Crimping Heavy Duty Connectors

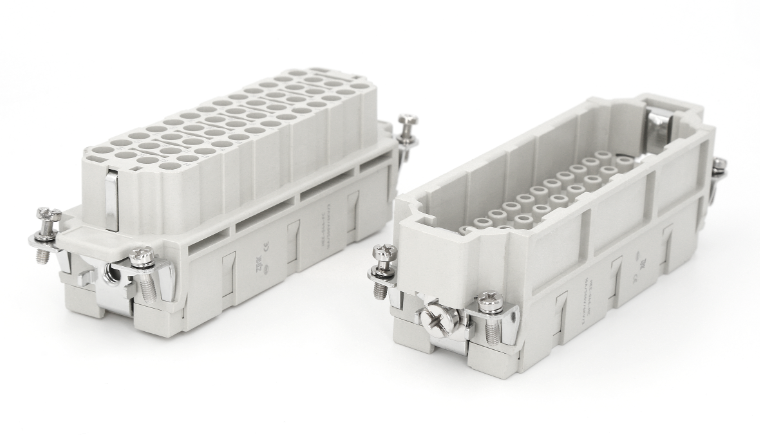

This high-density insert is designed for industrial applications where multiple circuits need to be connected in a limited space. The male and female inserts are designed to work together, providing a compact and organized connection solution. Its multi-contact layout helps reduce wiring space while keeping connections clear and easy to manage.
46Pin Modular Crimping Heavy Duty Connectors
Technical Parameters
Parameter Specification
Contacts No. 46
Rated Current 16A
Rated Voltage 500V
Material PC, Copper Alloy
Color Grey
Connector Method Crimping
Gender Female/Male
Limiting Temperature -40...+125℃
Flammability UL 94 V0
Degree of Protection IP65

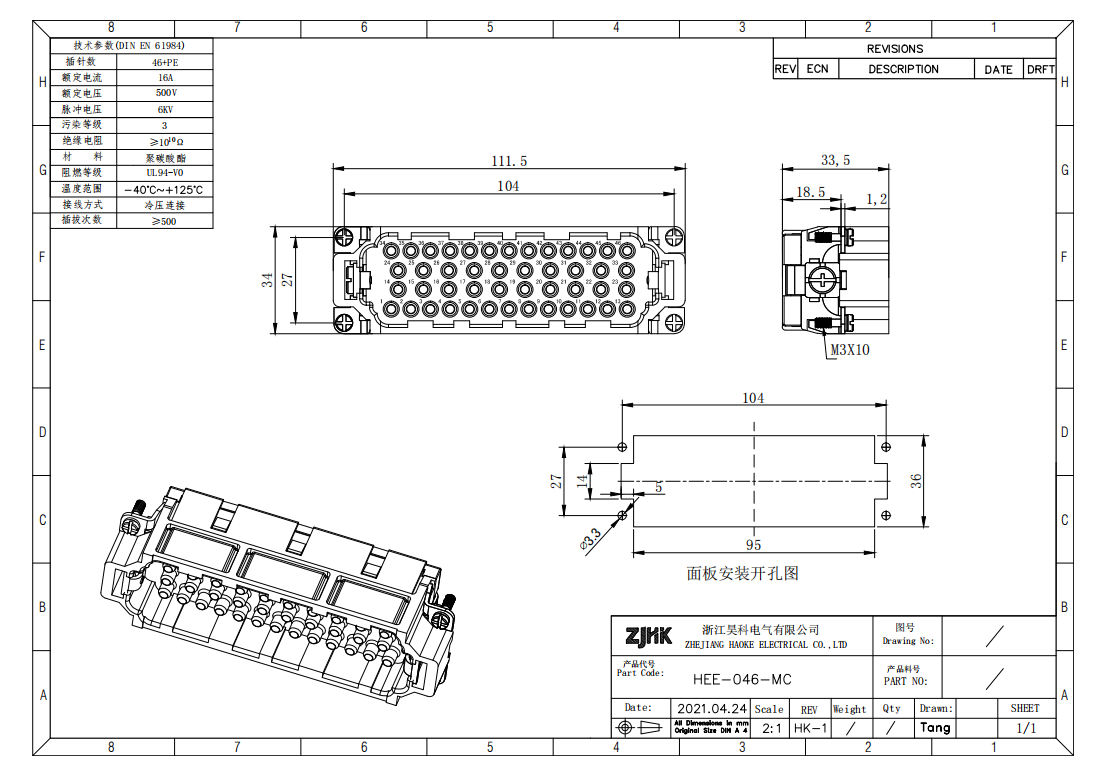

Products Drawings
HEE-046-MC
46Pin Modular Crimping Heavy Duty Connectors

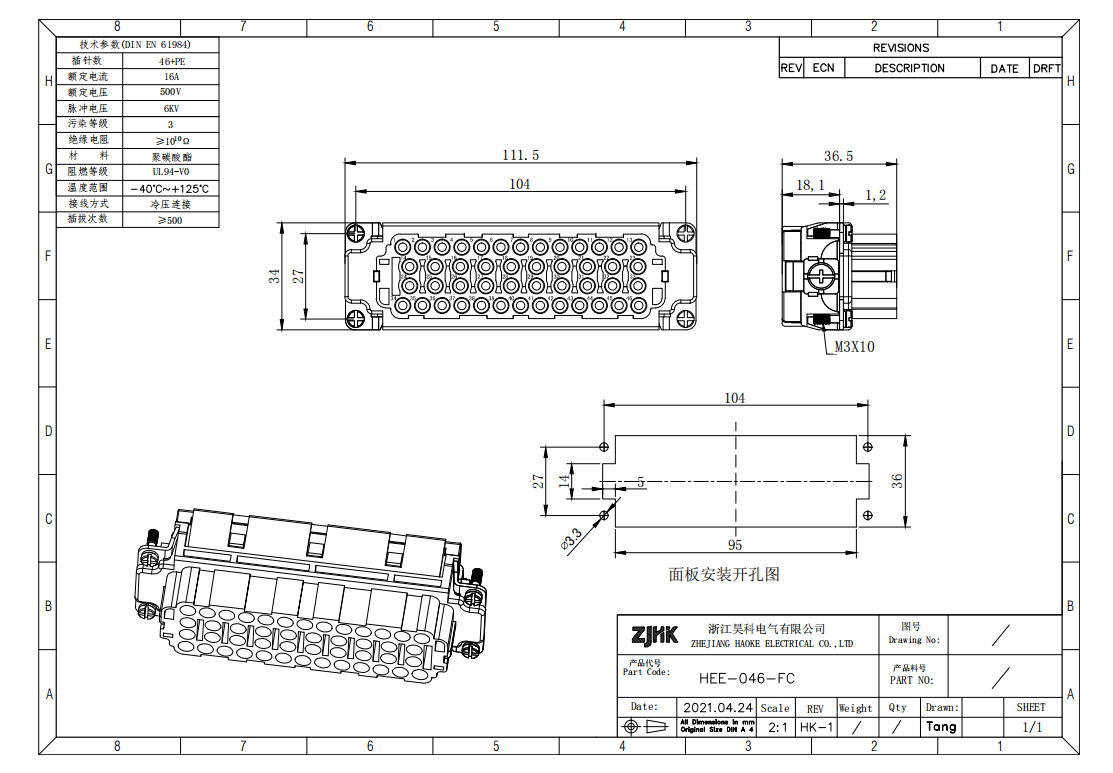

HEE-046-FC
46Pin Modular Crimping Heavy Duty Connectors

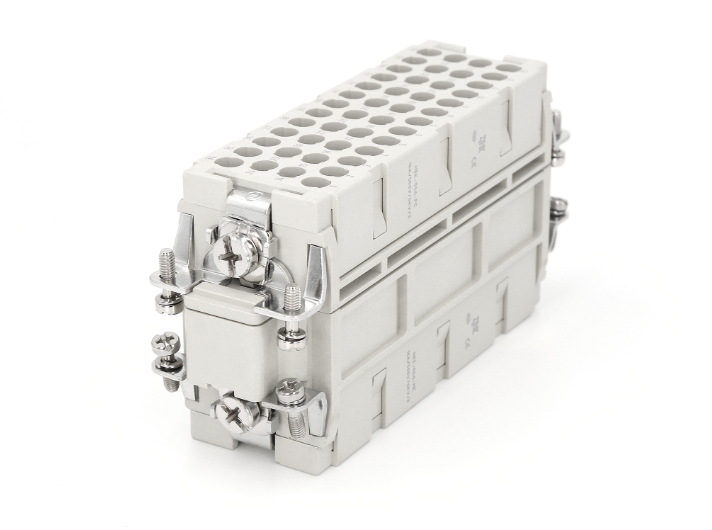

Products Overview
46Pin Modular Crimping Heavy Duty Connectors
With a sturdy insulating body and reliable contacts, it is suitable for industrial automation, machinery, control cabinets, testing equipment, and other applications requiring high-density connections.

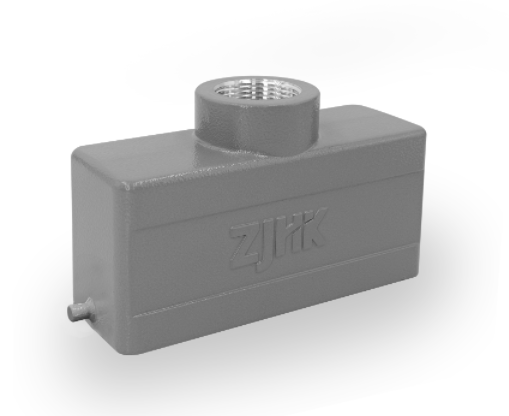

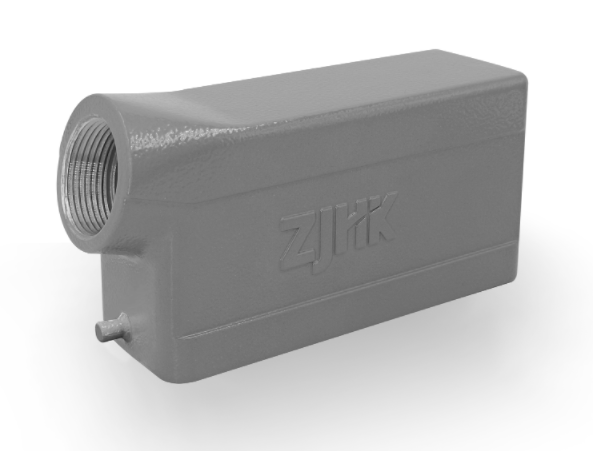

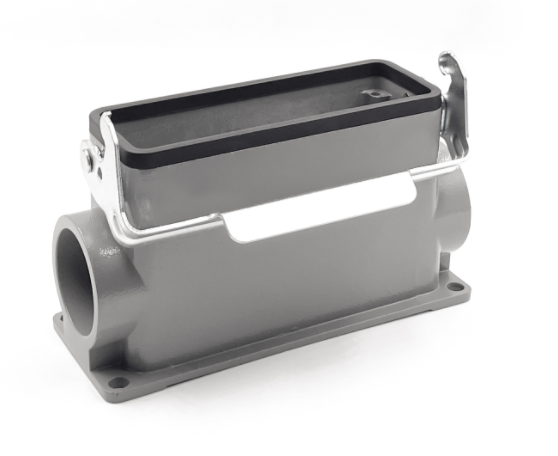

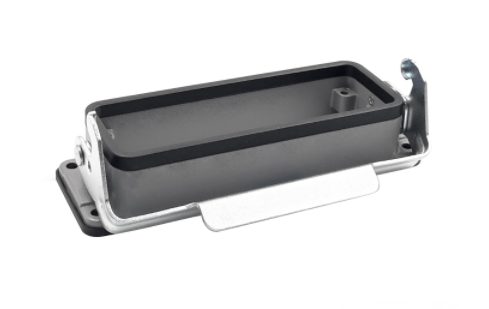

Compatible Hoods And Housings
46Pin Modular Crimping Heavy Duty Connectors
Size: 24B, Side Entry, Bolts Number: 2, Aluminium Die cast
46Pin Modular Crimping Heavy Duty Connectors
Size: 24B, Side Entry, Bolts Number: 2, Aluminium Die cast
46Pin Modular Crimping Heavy Duty Connectors
Size: 24B, Side Entry, Bolts Number: 2, Aluminium Die cast
46Pin Modular Crimping Heavy Duty Connectors
Size: 24B, Side Entry, Bolts Number: 2, Aluminium Die cast
Applications
46Pin Modular Crimping Heavy Duty Connectors
Modular heavy-duty connectors are gradually becoming an important development direction for electrical connections in rail transit. Their flexibility and integration capabilities not only improve system design efficiency but also facilitate later maintenance. As rail transit systems continue to upgrade, the performance requirements for connectors will become increasingly stringent, and manufacturing companies like Zhejiang Haoke are continuously providing the industry with more stable and practical connection solutions.
Packaging And Delivery
46Pin Modular Crimping Heavy Duty Connectors
46Pin Modular Crimping Heavy Duty Connectors
ZJHK has relatively standardized packaging and shipping procedures, focusing primarily on protecting products and ensuring delivery efficiency. Products undergo inspection before shipment to ensure they are in good condition before entering the packaging stage. Generally, each product is individually packaged and labeled for easy identification of model and quantity, then packed together in boxes to minimize the risk of damage or mixing during transportation.
Regarding shipping, the company supports multiple transportation methods, allowing customers to choose international express (such as FedEx and UPS) or dedicated channels such as sea freight and air freight according to their needs. For regular orders, shipment can generally be arranged within one week after order confirmation. For frequently used models that are in stock, the shipping speed will be even faster. Overall, Haoke focuses on doing the basics well, with a clear process from packaging to shipping, ensuring product safety and making it as hassle-free as possible for customers receiving their goods.
