40pin Crimping Terminal 16A Heavy Duty Connector
40pin Crimping Terminal 16A Heavy Duty Connector
40pin Crimping Terminal 16A Heavy Duty Connector
40pin Crimping Terminal 16A Heavy Duty Connector
40pin Crimping Terminal 16A Heavy Duty Connector
40pin Crimping Terminal 16A Heavy Duty Connector
Specifications
Voltage Rating :
500V
Order Number :
09320403001/09320403101
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Pincount :
40
Delivery Time :
5~7 work days
Package :
Indivisual Packing in Box
Brand Name :
ZJHK
MOQ :
5pcs/30pcs/50pcs
Price :
$5.33/$5/$4.67
Current Rating :
16A per contact
Place of Origin :
China
Application :
Industrial Automation, Machinery
Payment Terms :
T/T
Model Number :
HEEE-040-MC/HEEE-040-FC
Wire Connection :
Crimp
Description
40pin Crimping Terminal 16A Heavy Duty Connector
40pin Crimping Terminal 16A Heavy Duty Connector

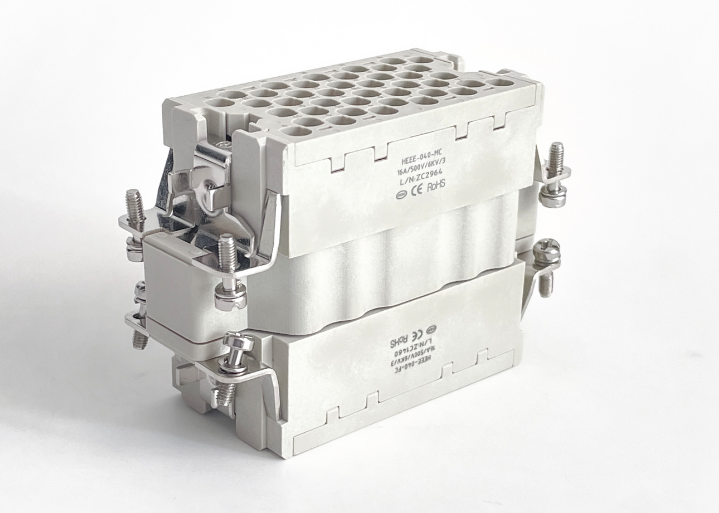

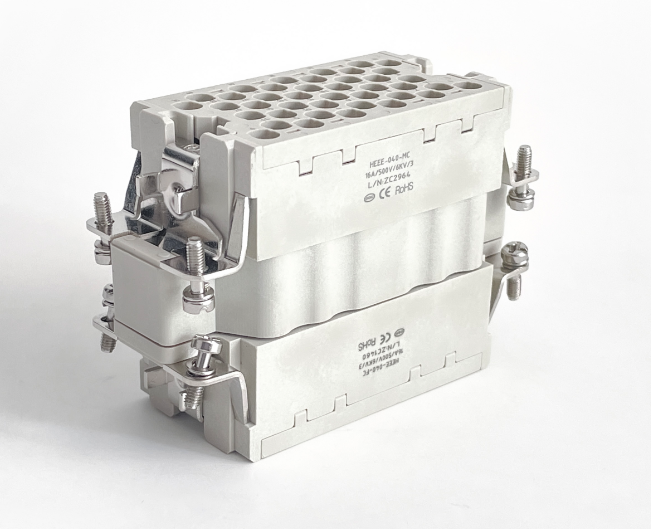

The HEEE-040-MC and HEEE-040-FC are 40-contact crimp inserts designed for compact, high-density industrial connections. The MC and FC versions work as a male and female mating pair, making them suitable for applications where multiple circuits need to be arranged within limited installation space.

Specifications
Part Number 09320403001/09320403101
Series HEEE High Density Connectors
Gender Male and Female
Mating Cycle (Mechanical Working Life) ≥ 500
Matching Housings 16B
Rated Current 16A
Rated Voltage 500V
Working Temperature Range -40℃~125℃
Number of Contacts 40
Pollution Degree 3
Product Drawings

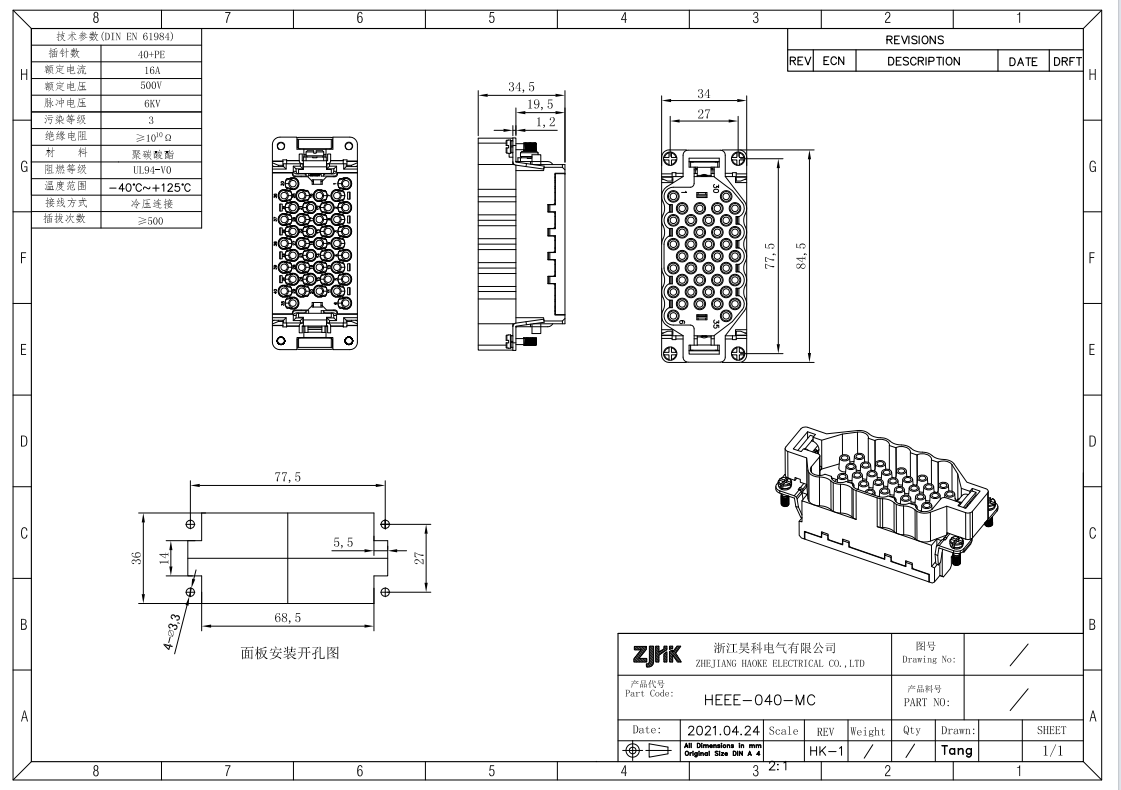

HEEE-040-MC
40pin Crimping Terminal 16A Heavy Duty Connector

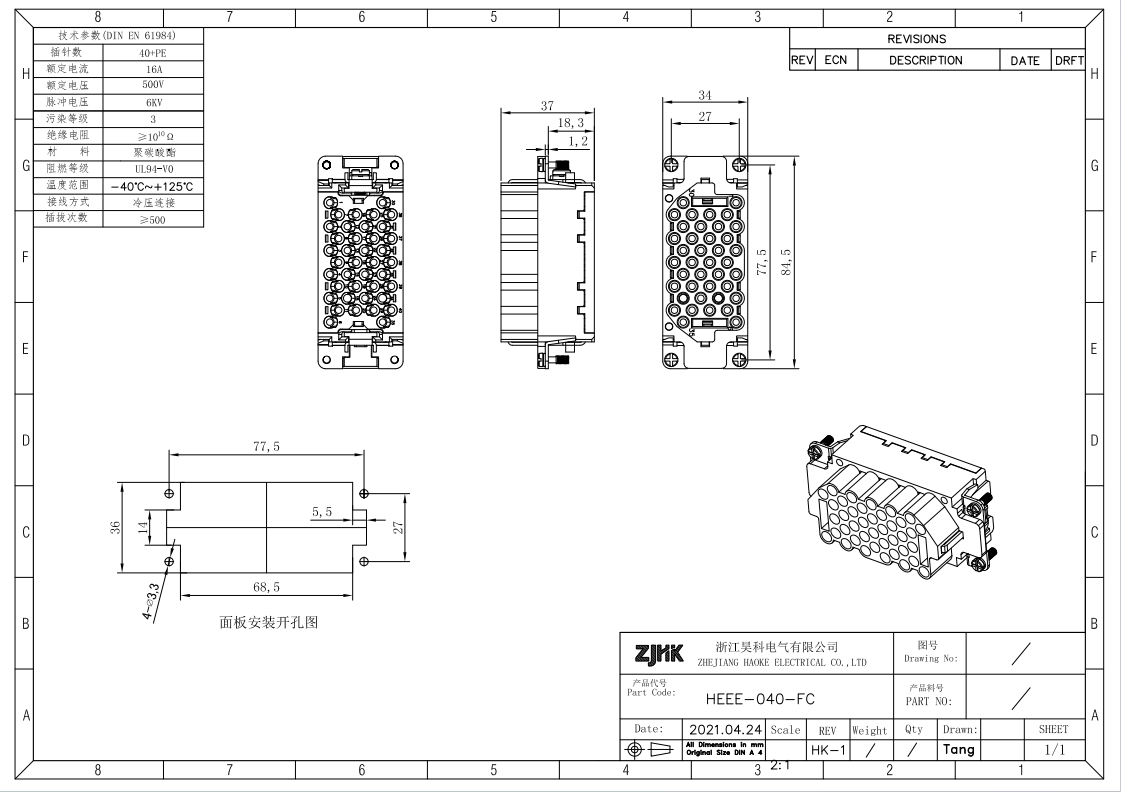

HEEE-040-FC
40pin Crimping Terminal 16A Heavy Duty Connector
Product Overview
40pin Crimping Terminal 16A Heavy Duty Connector

With a 16A rated current and 500V rated voltage, the inserts can handle both power and signal transmission, while the crimp connection provides a practical way to assemble and maintain the wiring. They are suitable for use with 16B series hoods and housings and can be used in industrial automation, machinery, control cabinets and other equipment requiring high-density wiring.

Matching Contacts
40pin Crimping Terminal 16A Heavy Duty Connector
CESM
40pin Crimping Terminal 16A Heavy Duty Connector
CESF
40pin Crimping Terminal 16A Heavy Duty Connector
CEGM
40pin Crimping Terminal 16A Heavy Duty Connector
CEGF
Compatible Housings
40pin Crimping Terminal 16A Heavy Duty Connector

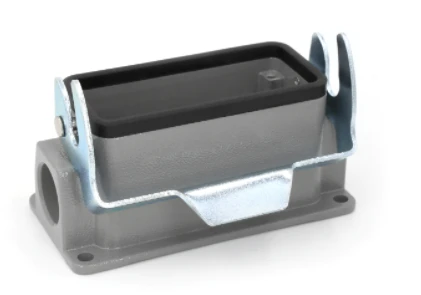

H16B-SE-2B
40pin Crimping Terminal 16A Heavy Duty Connector

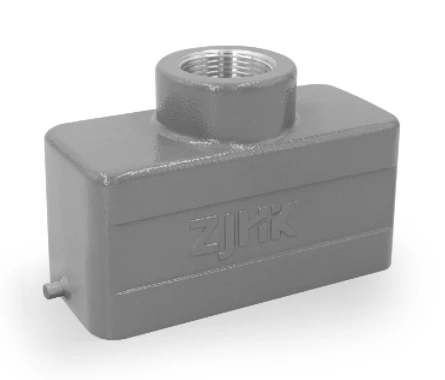

H16B-TE-2B
40pin Crimping Terminal 16A Heavy Duty Connector

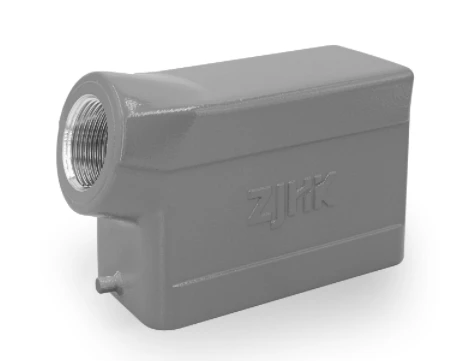

H16B-BK-1L
40pin Crimping Terminal 16A Heavy Duty Connector

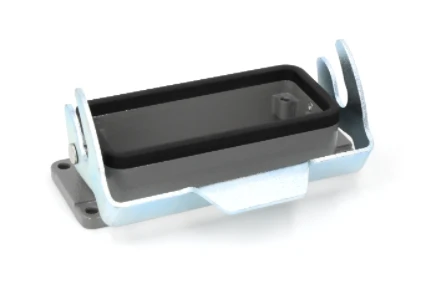

H16B-SF-1L
Application Scenarios
40pin Crimping Terminal 16A Heavy Duty Connector

With the continuous development of industrial automation and intelligent manufacturing, the requirements for connection systems are becoming increasingly demanding. Traditional fixed connection solutions are gradually losing their flexibility when faced with complex wiring, multi-functional integration, and equipment upgrades. In contrast, modular connectors, due to their free combination and easy expansion capabilities, are being adopted by more and more industries.

The modular direct-plug series launched by (ZJHK) is developed based on this trend, aiming to improve connection efficiency while providing more flexible connection solutions for industrial equipment.
