40pins Heavy Duty Connector 10A 09210403001
40pins Heavy Duty Connector 10A 09210403001
40pins Heavy Duty Connector 10A 09210403001
40pins Heavy Duty Connector 10A 09210403001
40pins Heavy Duty Connector 10A 09210403001
40pins Heavy Duty Connector 10A 09210403001
40pins Heavy Duty Connector 10A 09210403001
40pins Heavy Duty Connector 10A 09210403001
Specifications
Poles :
40
Limiting Temperature :
-40 °C... +125 °C
Rated Current :
10A
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Color :
Light Grey
Brand Name :
ZJHK
OEM :
Provided
Delivery Time :
5~7 work days
MOQ :
5pcs/30pcs/50pcs
Material Of Seal :
NBR
Model Number :
HD-040-MC/HD-040-FC
Matching Housings :
16B
Place of Origin :
China
Voltage rating :
250V
Payment Terms :
T/T
Price :
$3.33/$3.13/$2.92
Description
40pins Heavy Duty Connector 10A 09210403001
40pins Heavy Duty Connector 10A 09210403001
The HD-040-MC and HD-040-FC are 40-pin high-density ferrules from the Haoke HD series, available in male and female configurations. Designed for use with 16A housings, these connectors are rated for 10A current and 250V voltage, making them ideal for multi-channel signal transmission applications.
This model utilizes cold-press connection technology, requiring specialized cold-press pliers for installation. During wiring, the cold-press pins are first crimped onto the wire before insertion into the ferrule. While this involves an additional pressing step compared to spring contacts, it provides superior connection reliability.
Technical Specifications
ParameterSpecification
ModelHD-040-MC/HD-040-FC
Part Number09210403001/09210403101
GenderMale and Female
Current Rating10A
Voltage Rating250V
Number of Contacts40
Termination MethodCrimp termination
Conductor Cross-section0.14 ... 2.5 mm²
Limiting Temperature-40 ... +125 °C
Material (Insert)Polycarbonate (PC)
Country of OriginChina
Note: Please order crimp contacts separately.
Product Drawings

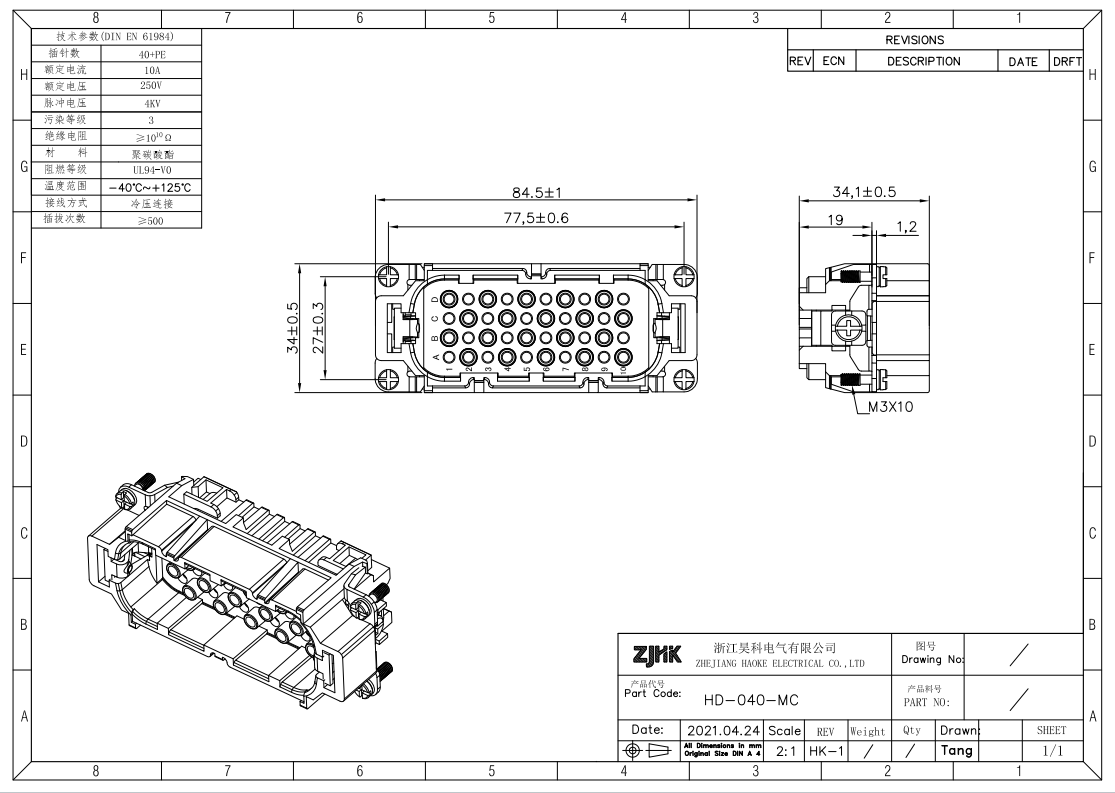

HD-040-MC
40pins Heavy Duty Connector 10A 09210403001

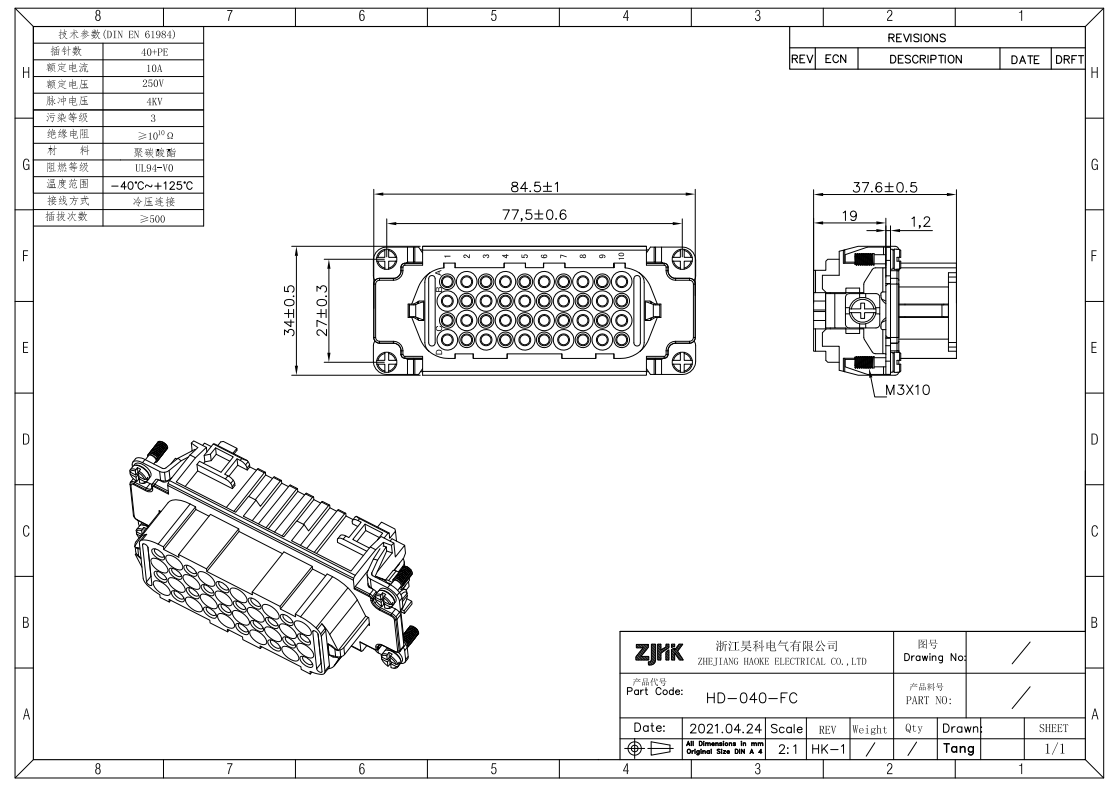

HD-040-FC
40pins Heavy Duty Connector 10A 09210403001

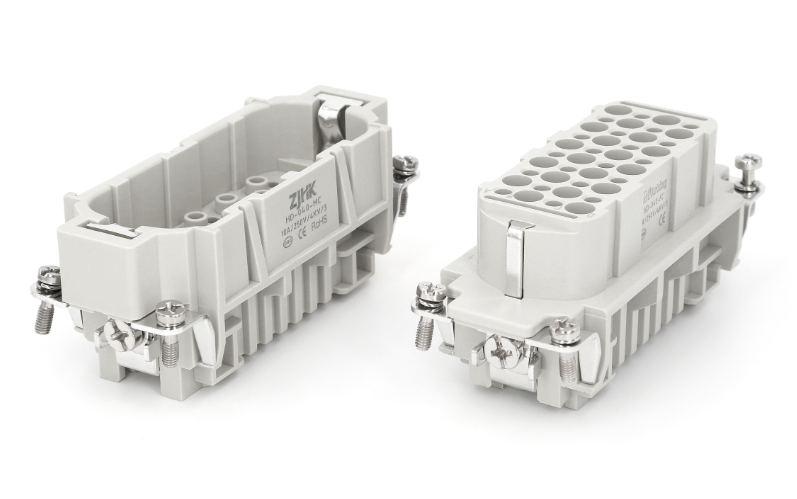

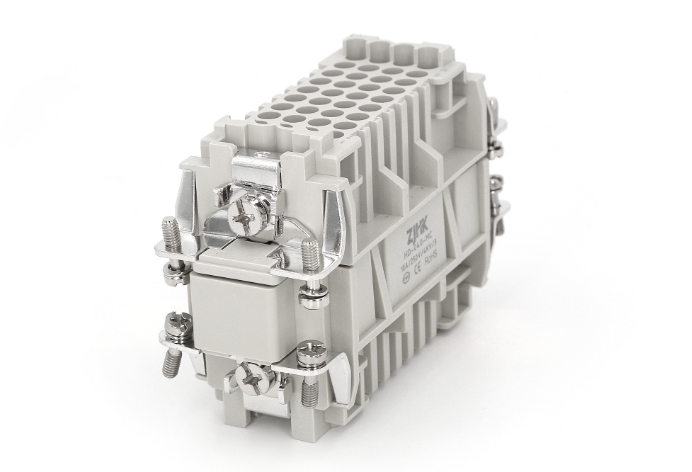

Product Overview
40pins Heavy Duty Connector 10A 09210403001
With 40 pins, this product features a high-density configuration that saves considerable internal space compared to similar products. The ferrule body is constructed from flame-retardant V0-grade polycarbonate, while the pins are gold- or silver-plated copper alloy with contact resistance ≤3mΩ, ensuring stable and reliable signal transmission.
The operating temperature range of -40℃ to +125℃ makes this product suitable for demanding applications involving multiple signal connections, such as automation equipment, control cabinets, and industrial instruments. For applications requiring on-site wiring harness pre-fabrication, the cold-pressing method offers greater convenience than spring clips—wires can be pre-pressed into pins for direct insertion during installation.
Compatible Housings
40pins Heavy Duty Connector 10A 09210403001

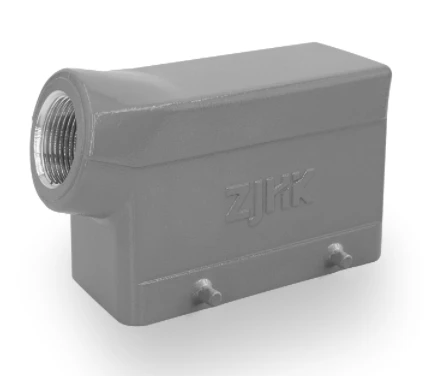

H16B-SE-4B
Side Entry
40pins Heavy Duty Connector 10A 09210403001

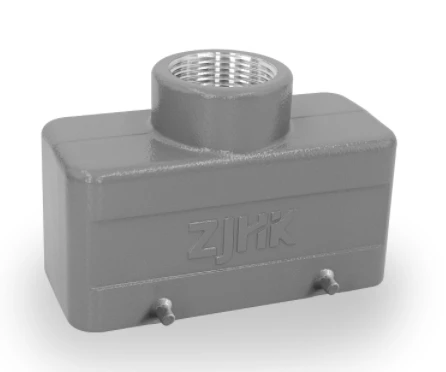

H16B-TE-4B
Top Entry
40pins Heavy Duty Connector 10A 09210403001

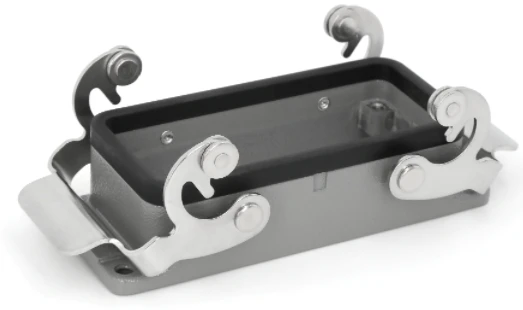

H16B-BK-2L/S
Bulkhead Mounting
40pins Heavy Duty Connector 10A 09210403001

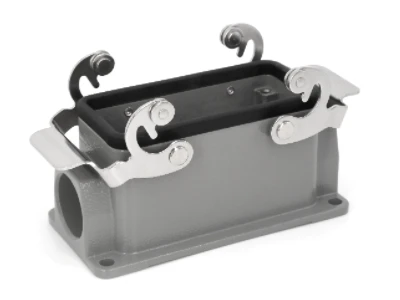

H16B-SF-2L/S
Surface Mounting
About Haoke Electric
40pins Heavy Duty Connector 10A 09210403001
Haoke Electric Co., Ltd. was formally established with a focus on the development and manufacture of heavy-duty connectors. The HAOKE® connector made its convincing market debut soon after and has since set a globally recognized standard, remaining the backbone of the Technology Group throughout its evolution.
Frequently Asked Questions
  • Free Samples: We provide small products for quality checking—customers only pay express fees.
  • Insert Materials: We use imported materials for injection molding to guarantee product quality.
  • Global Representation: We have signed agency agreements with customers in Korea and Northern Italy.
  • Harting Compatibility: Our HDC connectors perfectly match Harting counterparts—male parts match female parts and vice versa.
  • Harting Part Number Matching: Our order numbers are identical to HARTING's to facilitate easy matching and replacement for existing customers.
