Crimping Terminal 15pin Insert 09210153001
Crimping Terminal 15pin Insert 09210153001
Crimping Terminal 15pin Insert 09210153001
Crimping Terminal 15pin Insert 09210153001
Crimping Terminal 15pin Insert 09210153001
Crimping Terminal 15pin Insert 09210153001
Crimping Terminal 15pin Insert 09210153001
Crimping Terminal 15pin Insert 09210153001
Specifications
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Poles :
15
Price :
$2.4/$2.25/$2.1
Current Rating :
10A
Connection Method :
Crimping
Product Name :
Heavy Duty Connector
Brand Name :
ZJHK
Gender :
Male/Female
Matching Housings :
10A
Package :
Indivisual Packing in Box
Durability :
500 Times cycles
Place of Origin :
China
MOQ :
5pcs/30pcs/50pcs
Payment Terms :
T/T
Delivery Time :
5~7 work days
Model Number :
HD-015-MC/HD-015-FC
Material Of Seal :
NBR
Description

Crimping Terminal 15pin Insert 09210153001

Crimping Terminal 15pin Insert 09210153001

The HD-015-MC and HD-015-FC are male and female 15-position crimp inserts designed for compact industrial connection systems. With a 10A rated current and 250V rated voltage, they provide a practical solution for equipment requiring multiple circuits in a limited space. The inserts use polycarbonate insulation and copper-alloy contacts, with silver or gold plating available for the contact surface.


Technical Details

Models HD-015-MC/HD-015-FC
Part Number 09210153001/09210153101
Gender Male and Female
Rating Cycle (Mechanical Working Life) ≥ 500
Size 10A
Working Temperature Range -40℃~125℃
Termination Method Crimp Terminal, Order Crimp Contacts Separately
Number of Contacts 15+PE
Power Contact Rated Current 10A
Power Contact Rated Voltage Acc. to EN61 984 250V


Products Drawings

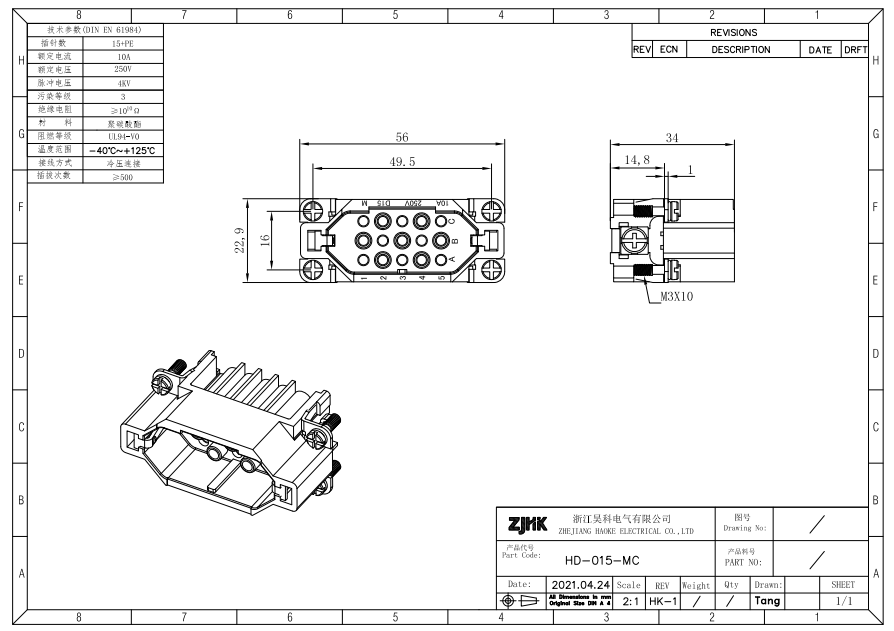

HD-015-MC

Crimping Terminal 15pin Insert 09210153001

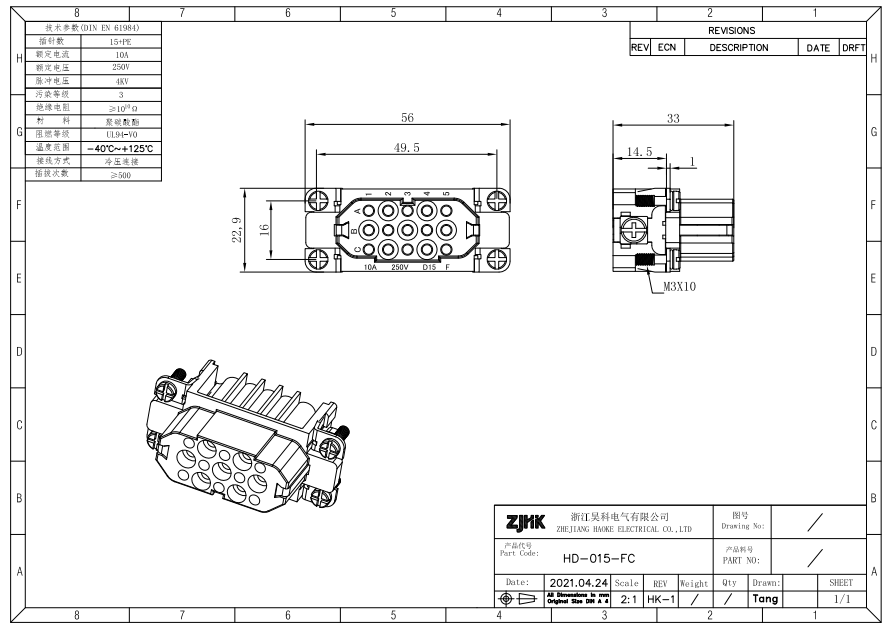

HD-015-FC

Crimping Terminal 15pin Insert 09210153001

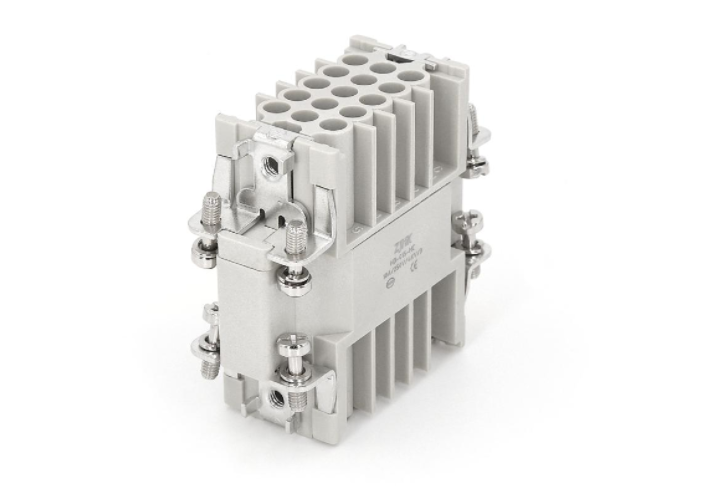

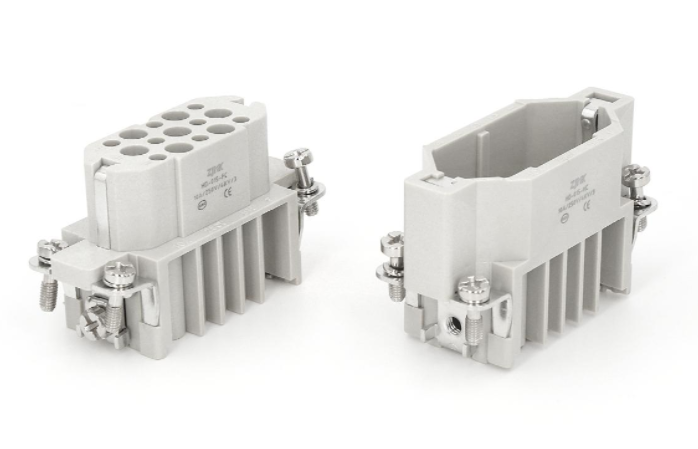

Products Overview

Crimping Terminal 15pin Insert 09210153001

Crimp termination makes wiring relatively quick and convenient, while the 15-contact layout helps keep multiple circuits organized. They are suitable for H10A hoods and housings and can be used in machinery, automation equipment, control cabinets and other industrial applications.

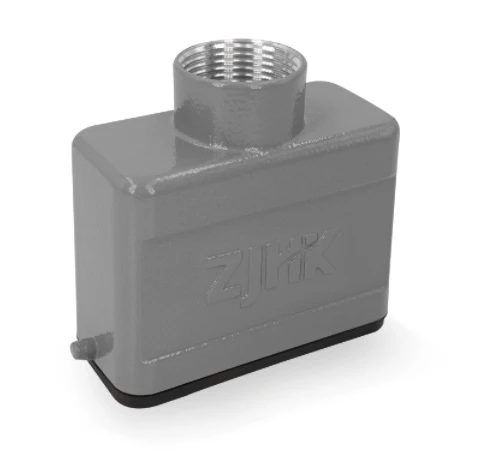

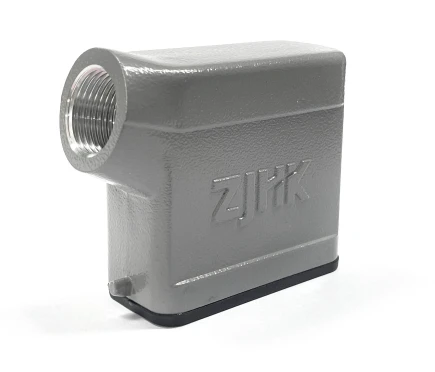

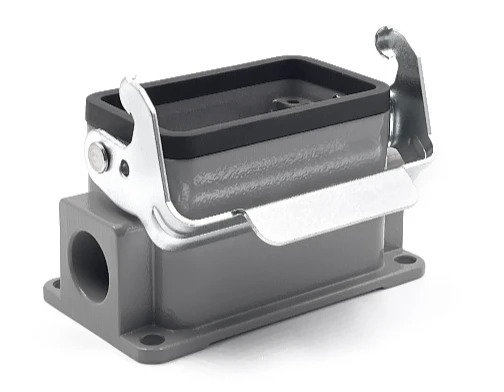

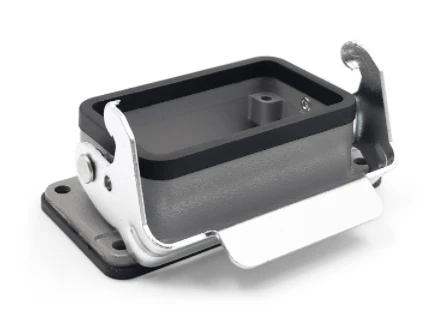

Compatible Hoods and Housings

Crimping Terminal 15pin Insert 09210153001

Crimping Terminal 15pin Insert 09210153001Crimping Terminal 15pin Insert 09210153001Crimping Terminal 15pin Insert 09210153001

H10A-SE-2B H10A-TE-2B H10A-BK-1L H10A-SF-1L

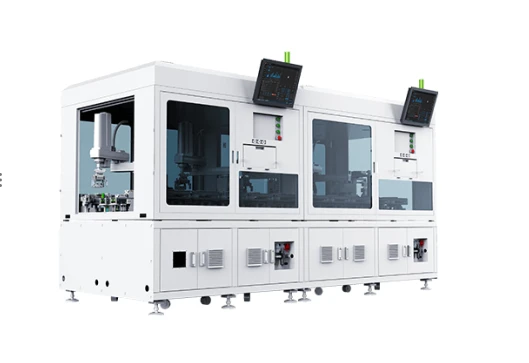

Applications

Crimping Terminal 15pin Insert 09210153001

In a complete battery testing system, connectors, although not the most conspicuous components, play a crucial role in connecting the internal components and between different devices. Especially when the testing equipment needs to replace test modules, adjust wiring, or undergo maintenance, the ease of connection directly impacts on-site operational efficiency.


Certifications

Good performance with authoritive certifications.

Crimping Terminal 15pin Insert 09210153001

Crimping Terminal 15pin Insert 09210153001Crimping Terminal 15pin Insert 09210153001
