64Pins Crimping Terminal 10A Connectors

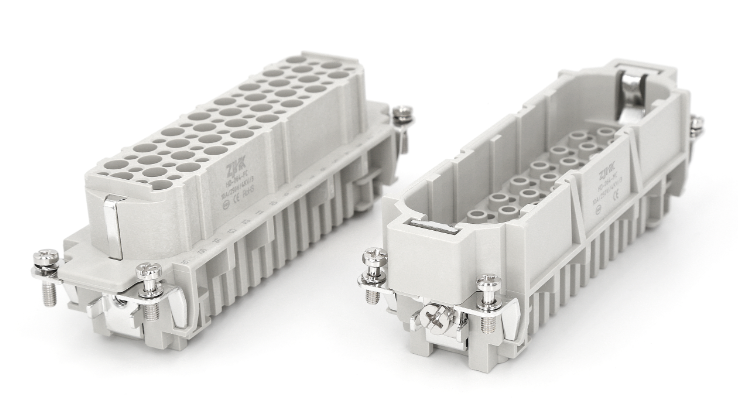

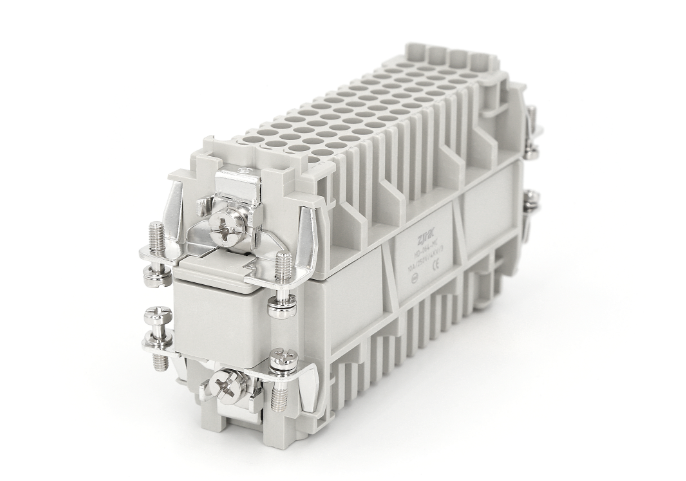

HD-064-MC/FC are 64-contact high-density crimp inserts designed for compact industrial connection systems. Rated at 10A and 250V, they are compatible with 24B hoods and housings and support crimp termination for wires from 0.14 to 2.5 mm².

Technical Details

Products Drawings

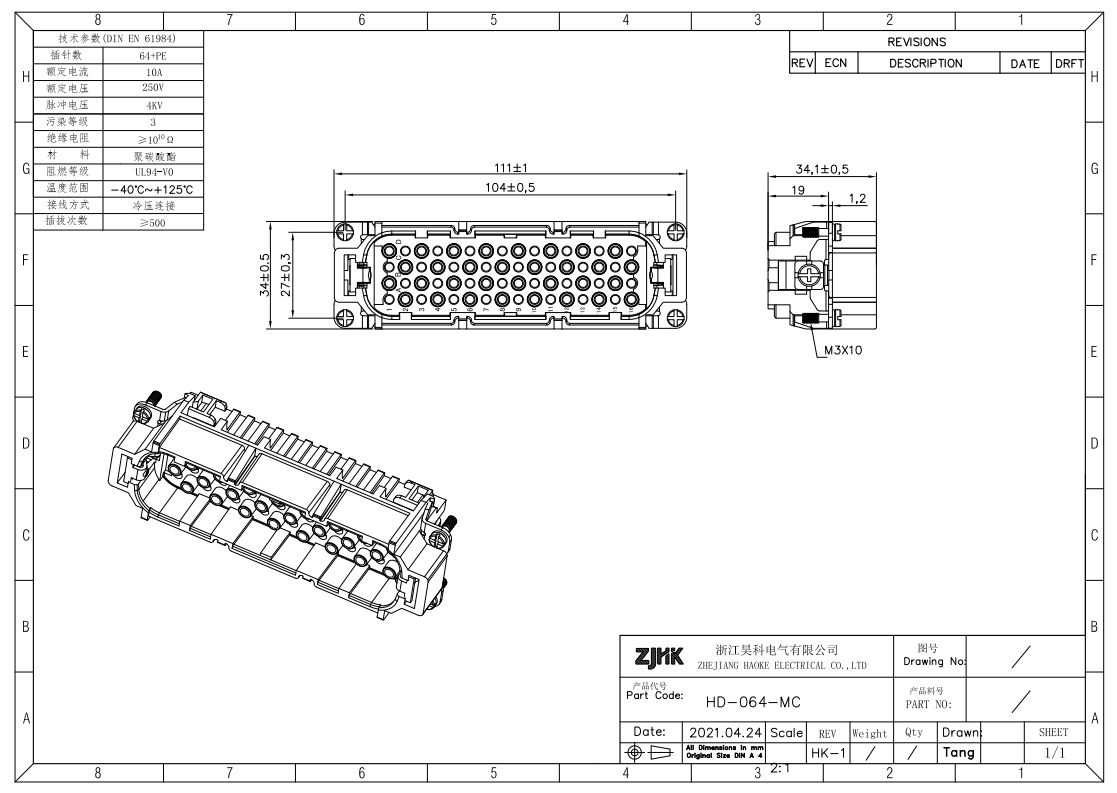

HD-064-MC

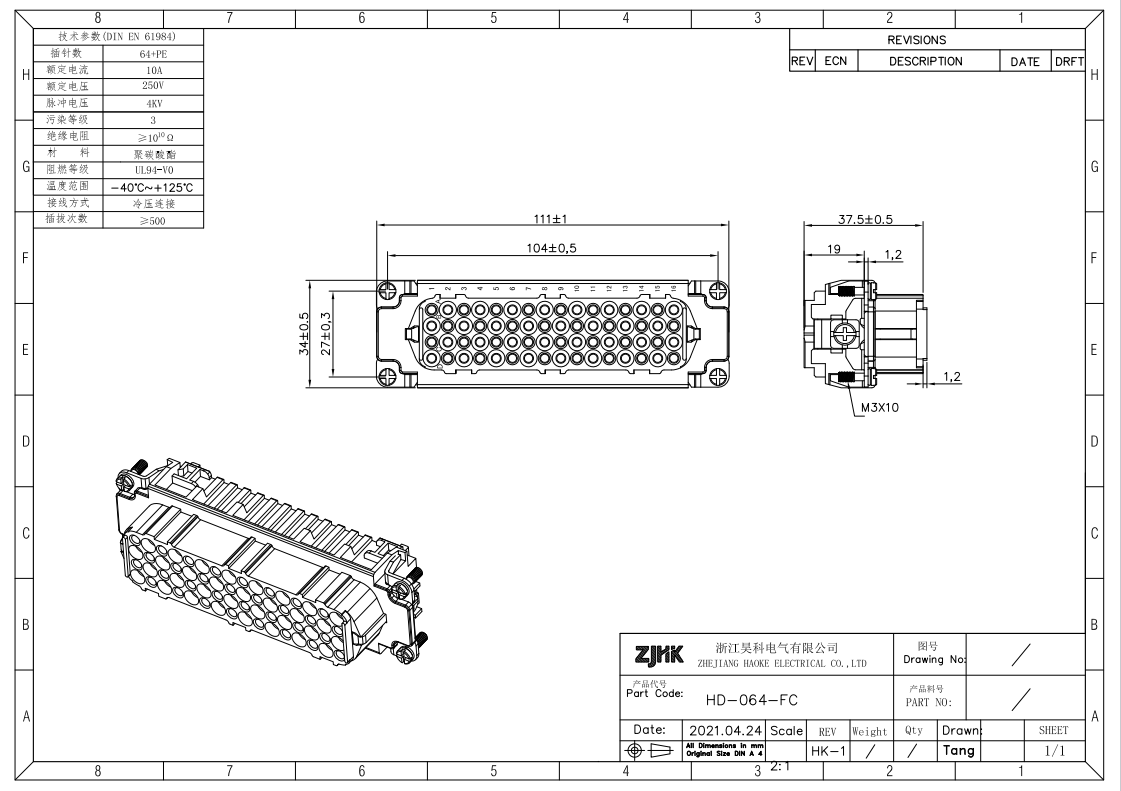

HD-064-FC

Products Overview

The inserts use polycarbonate insulation and copper-alloy contacts, with silver or gold plating available. With 64 contacts in a compact 24B format, they are suitable for applications requiring multiple power, control or signal circuits in limited space. The crimp connection also makes wiring efficient and convenient for installation and maintenance.

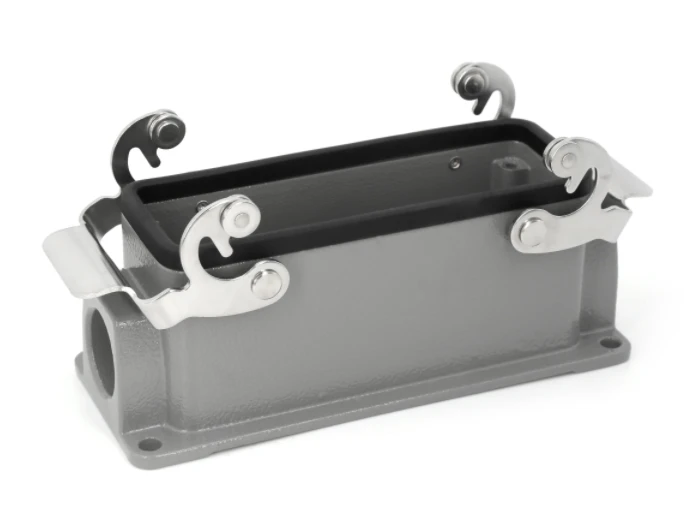

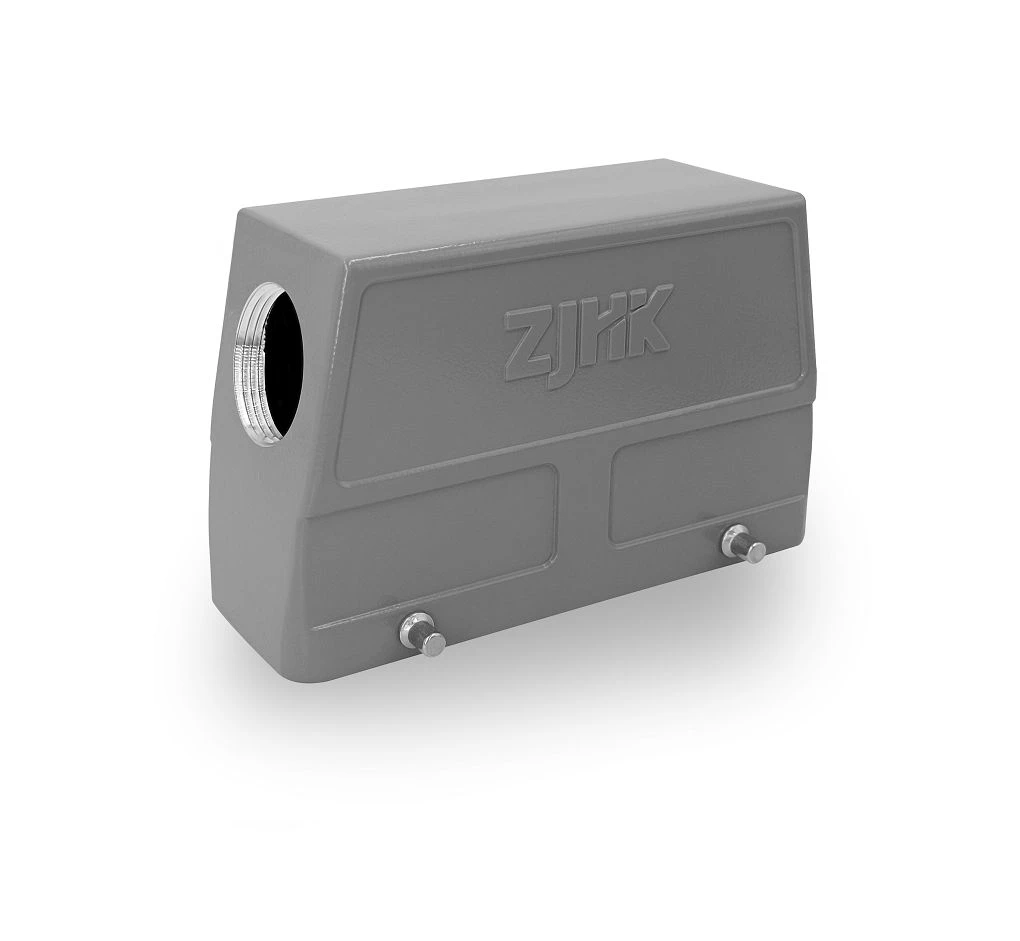

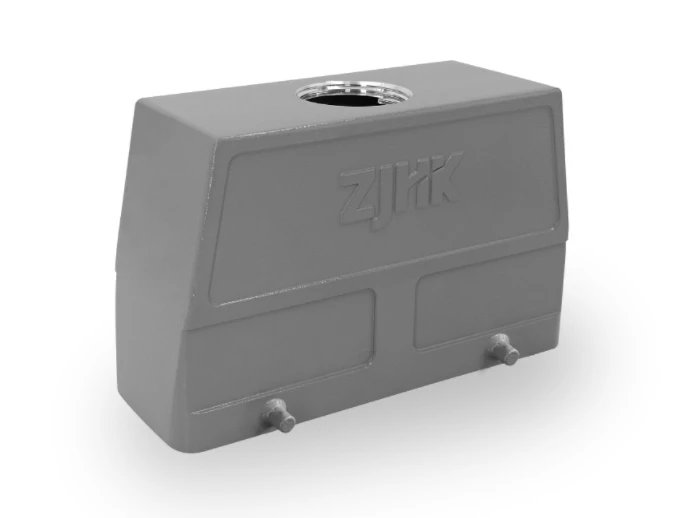

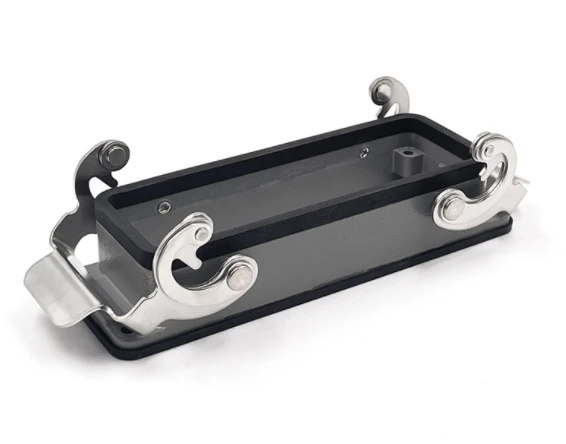

Compatible Hoods and Housings

H24B-SEH-4B H24B-TEH-4B H24B-SF-2L/S H24B-BK-2L/S

Alluminium Die-Cast Alluminium Die-Cast Alluminium Die-Cast Alluminium Die-Cast

Side Entry Top Entry Surface Mounting Bulkhead Mounting

High Construction High Construction Stainless Levers Stainless Levers

4Bolts 4Bolts 2Levers 2Levers
