25pos Crimping 10A Ultra-high Density Inserts
25pos Crimping 10A Ultra-high Density Inserts
25pos Crimping 10A Ultra-high Density Inserts
25pos Crimping 10A Ultra-high Density Inserts
25pos Crimping 10A Ultra-high Density Inserts
25pos Crimping 10A Ultra-high Density Inserts
25pos Crimping 10A Ultra-high Density Inserts
25pos Crimping 10A Ultra-high Density Inserts
Specifications
Payment Terms :
T/T
Voltage rating :
250V
Brand Name :
ZJHK
Order Number :
09210253001& 09210253101
Model Number :
HD-025-MC/HD-025-FC
Degree Of Protection :
IP65
MOQ :
5pcs/30pcs/50pcs
Housing :
H16A Series
Price :
$2.67/$2.5/$2.33
Housings :
Metal
Delivery Time :
5~7 work days
Mating Cycles :
≥ 500
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Operating Temperature :
-45~125℃
Place of Origin :
China
Numbers Of Contacts :
25
Description

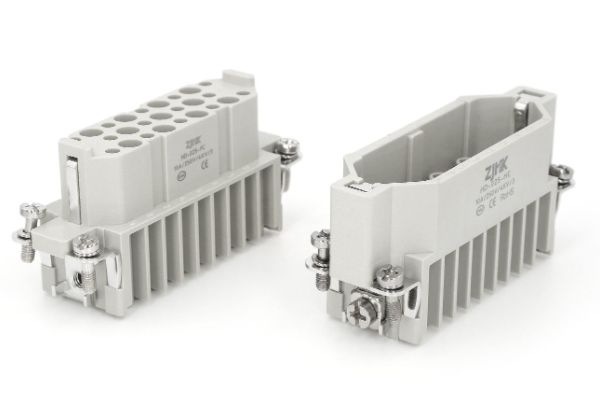

25-Position Crimping 10A Ultra-High Density Inserts
HD-025-MC/FC are 25-contact high-density crimp inserts designed for industrial applications where multiple circuits need to be connected in a compact space. Rated at 10A and 250V, they use PC insulation and copper-alloy contacts with silver or gold plating options.
25pos Crimping 10A Ultra-high Density Inserts
Product Specifications
Category Inserts
Series Ultra-High Density
Termination Method Crimping Terminal
Gender Male/Female
Size 16A
Contacts 25+PE
Rated Voltage 250V
Rated Current 10A
Protection Degree IP65
Material PC
Contact Material
The contacts are made of copper alloy, which offers an optimal balance of electrical conductivity, mechanical strength, and contact stability. Copper alloy is specifically chosen for industrial connector contacts because it efficiently carries current while maintaining the mechanical properties required for repeated mating and crimping operations.
Product Drawings

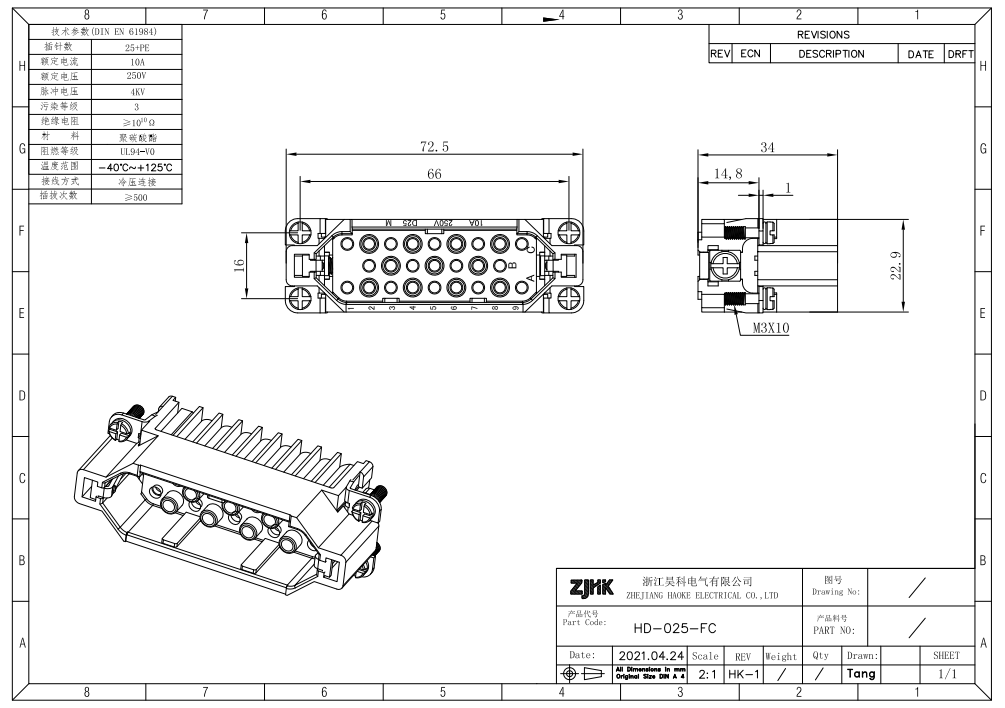

HD-025-MC
25pos Crimping 10A Ultra-high Density Inserts

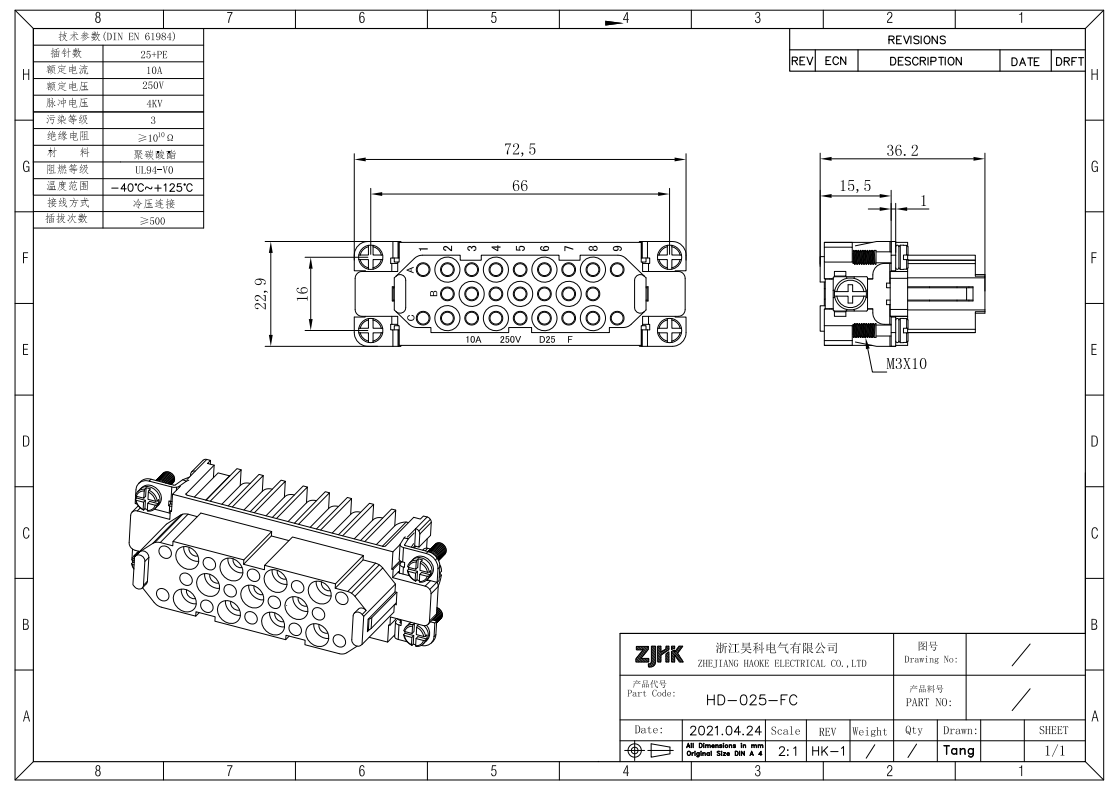

HD-025-FC
25pos Crimping 10A Ultra-high Density Inserts
Matching Contacts
25pos Crimping 10A Ultra-high Density Inserts 25pos Crimping 10A Ultra-high Density Inserts 25pos Crimping 10A Ultra-high Density Inserts 25pos Crimping 10A Ultra-high Density Inserts
CDSM
Copper alloy with silver plated
Rated Current: 10A
Wire Gauge: 0.14~2.5mm²
Gender: Male
CDSF
Copper alloy with silver plated
Rated Current: 10A
Wire Gauge: 0.14~2.5mm²
Gender: Female
CDGM
Copper alloy with gold plated
Rated Current: 10A
Wire Gauge: 0.14~2.5mm²
Gender: Male
CDGF
Copper alloy with gold plated
Rated Current: 10A
Wire Gauge: 0.14~2.5mm²
Gender: Female
Testing Equipment
25pos Crimping 10A Ultra-high Density Inserts
Skyray Instrument
25pos Crimping 10A Ultra-high Density Inserts
EDXRF Spectrometer
25pos Crimping 10A Ultra-high Density Inserts
Temperature Testing Bed
Company Profile
25pos Crimping 10A Ultra-high Density Inserts
Zhejiang Haoke Electric Co. Ltd is a professional manufacturer of heavy-duty industrial connectors. We offer reliable and cost-effective solutions for industrial automation, machinery, control cabinets, and other applications. With stable quality, flexible product options, and competitive pricing, our products are widely used in European and international markets.
