50pos High Density 10A Crimping Inserts
50pos High Density 10A Crimping Inserts
50pos High Density 10A Crimping Inserts
50pos High Density 10A Crimping Inserts
50pos High Density 10A Crimping Inserts
50pos High Density 10A Crimping Inserts
Specifications
Model Number :
HD-050-MC/HD-050-FC
Contacts Nos :
50 + PE
Voltage :
250V
Connection Method :
Crimping
Brand Name :
ZJHK
Price :
$5.33/$5.0/$4.67
Connector Type :
Ultra- High Density Connector
Package :
Indivisual Packing in Box
Housing :
H32A Series
Certification :
UL,COC,CE,UKCA,SGS,EAC,RoHS
Delivery Time :
5~7 work days
Oem :
Provided
Place of Origin :
China
Protection :
IP65
Rated Current :
10A
MOQ :
5pcs/30pcs/50pcs
Material :
PC
Payment Terms :
T/T
Description
50pos High Density 10A Crimping Inserts

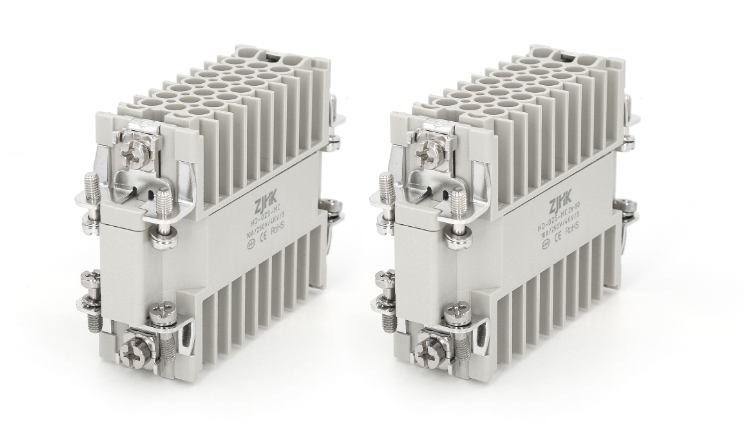

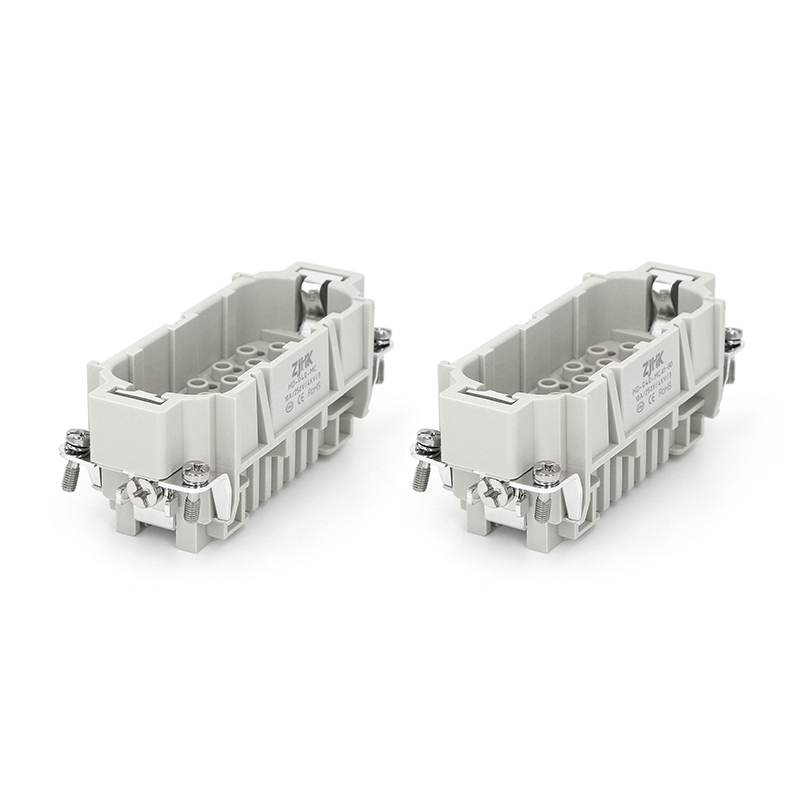

50pos High Density 10A Crimping Inserts HD-050-MC/FC are 50-contact ultra-high-density crimp inserts designed for industrial applications requiring multiple circuits in a compact space. Rated at 10A and 250V, they support 0.14-2.5 mm² wires and are compatible with H32A hoods and housings. The inserts feature PC insulation and copper-alloy contacts with silver or gold plating options.
Technical Specifications
Series HD High Density
Descriptions Heavy Duty Power Connector Insert
Gender Male and Female
Mating Cycle (Mechanical Working Life) ≥ 500
Size 32A
Working Temperature Range -40℃~125℃
Termination Method Crimp Terminal, Order Crimp Contacts Separately
Number of Contacts 25*2
Rated Voltage 250V
Rated Current 16A
Product Drawings
HD-025-MC
50pos High Density 10A Crimping Inserts

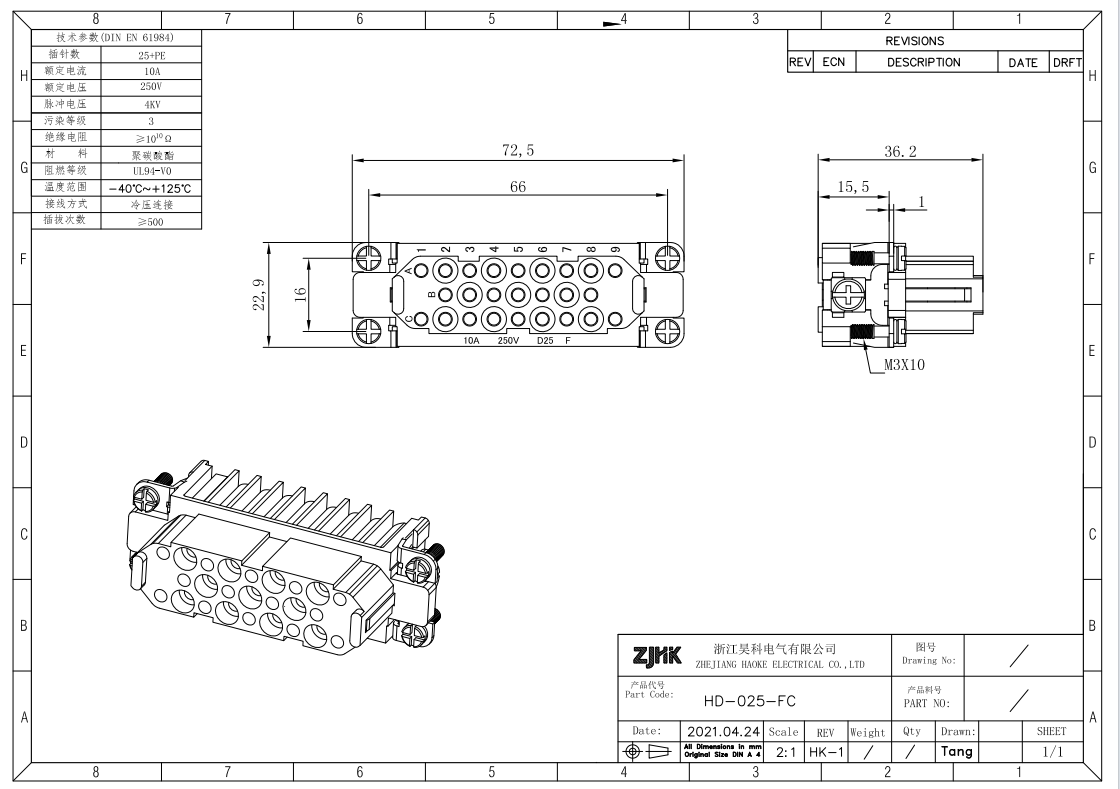

HD-025-FC
50pos High Density 10A Crimping Inserts

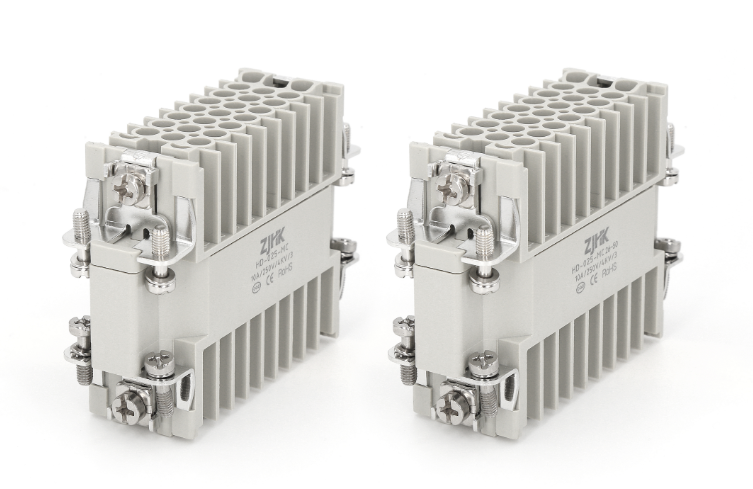

Product Overview
50pos High Density 10A Crimping Inserts
The inserts feature PC insulation and copper-alloy contacts with silver or gold plating options. Crimp termination allows quick and reliable wiring, making them suitable for industrial machinery, automation equipment, control cabinets and other applications with high-density wiring requirements.
Quality Testing Equipment
50pos High Density 10A Crimping Inserts

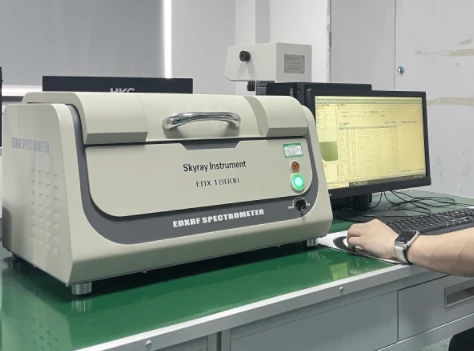

Skyray Instrument
50pos High Density 10A Crimping Inserts

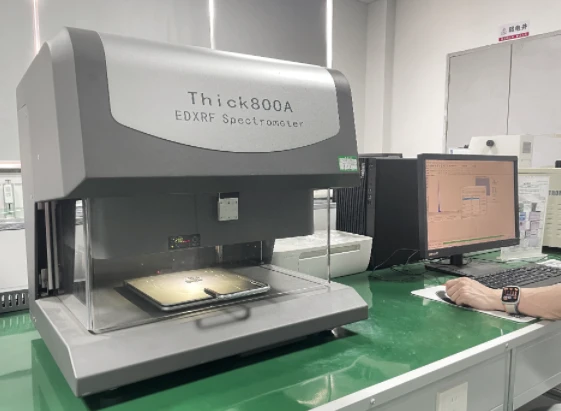

EDXRF Spectrometer
50pos High Density 10A Crimping Inserts

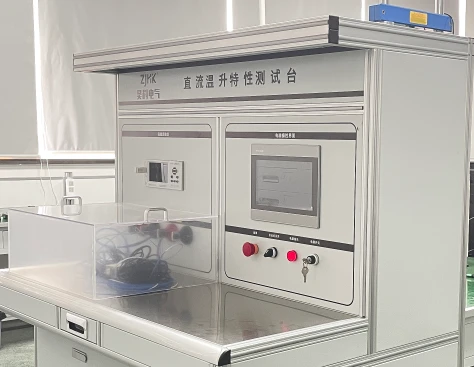

Temperature Testing Machine
Industrial Applications
50pos High Density 10A Crimping Inserts
Battery Testing Equipment
Battery testing equipment typically includes a test cabinet, control module, test modules, wiring harnesses, and various auxiliary devices, resulting in relatively complex internal wiring. As the equipment's functionality increases, the number of connection points and wiring also increases. Therefore, connectors must meet corresponding electrical requirements while considering factors such as installation space, wiring density, connection methods, and future maintenance.
Team Collaboration
50pos High Density 10A Crimping Inserts
At ZJHK, teamwork is fundamental to our daily operations. Our R&D, production, quality, and sales teams maintain close communication, share ideas, and support each other throughout every project. We organize regular team-building activities and employee events to foster connections beyond daily work responsibilities. Through collaborative efforts and mutual understanding, we build stronger teams and provide more efficient customer support.
Company Profile
50pos High Density 10A Crimping Inserts

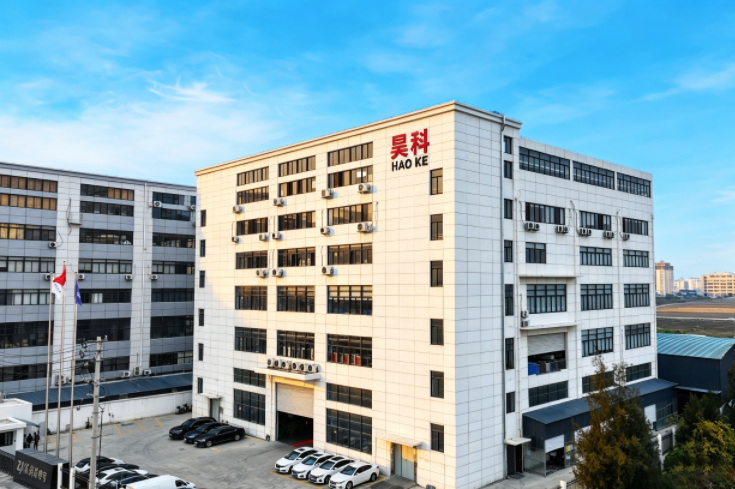

Zhejiang Haoke Electric Co., Ltd. (ZJHK) specializes in the research, development, design, and production of heavy-duty connectors. Since establishment, we have focused exclusively on this field, developing comprehensive product lines including HA, HE, HEE, HD, HDD, HSB, HK, HQ, and HM series with thousands of possible combinations for diverse electrical and signal connection requirements. Our products serve industrial automation, hot runner molds, rail transportation, equipment manufacturing, industrial system connections, and information control systems. With an experienced technical team, in-house mold development capabilities, and annual production capacity of approximately 1.5 million sets, ZJHK provides both standard products and customized solutions. We continuously improve product quality, production efficiency, and technical support to build lasting partnerships with customers worldwide.
