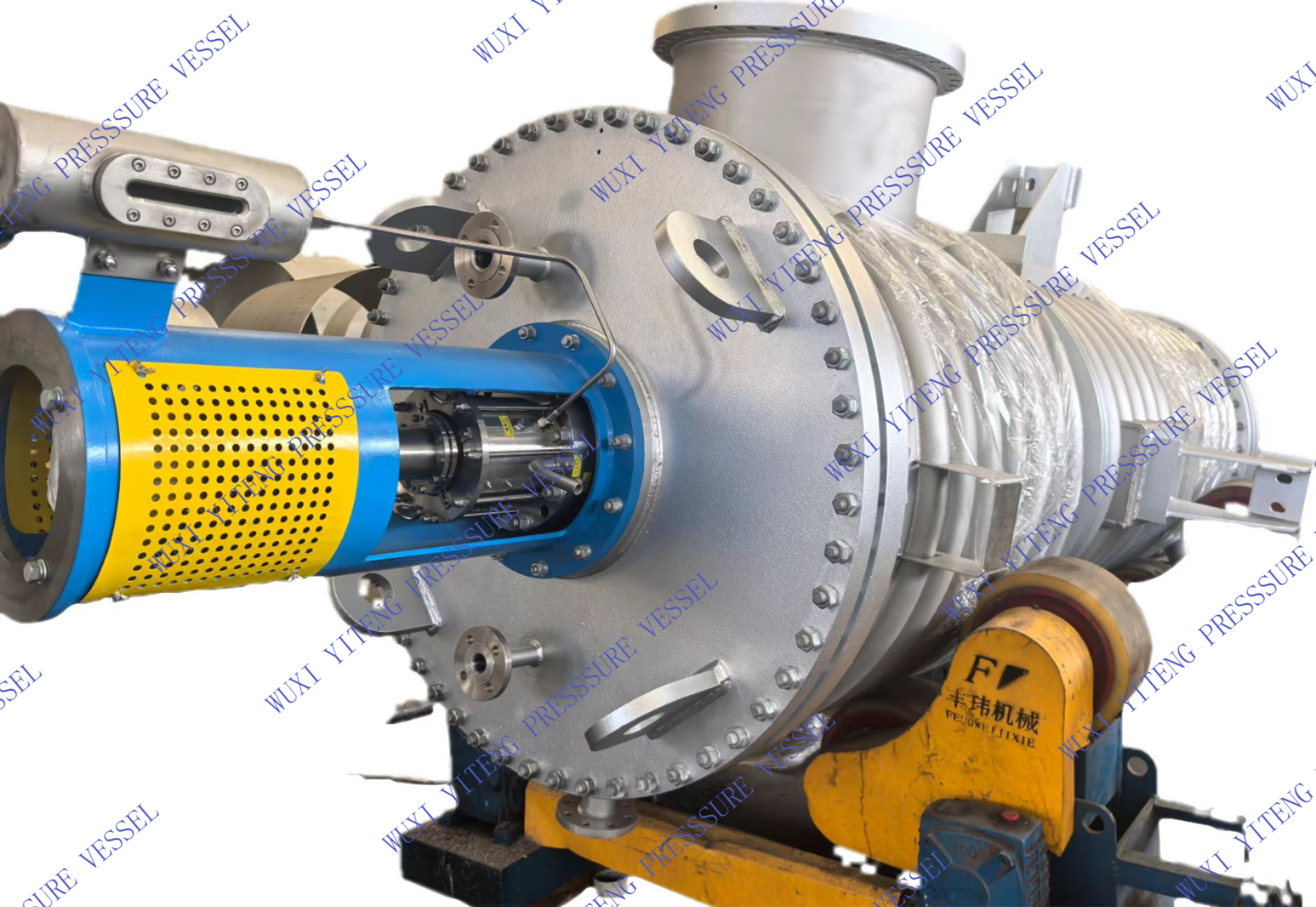

Continuous Falling Film Evaporator System 5-5500kg/H Food Beverage Industry
Continuous Falling Film Evaporator System 5-5500kg/H Food Beverage Industry
Specifications
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Supply Ability :
6000sets/Year
Payment Terms :
L/C,T/T
Price :
Negotiation
Usage :
Dairy, Food, Beverage, Pharmacy, Cosmetic, etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Description

Continuous Falling Film Evaporator System

Product Description

Wuxi Yiteng Pressure Vessel Co., Ltd. designs and manufactures customized Continuous Falling Film Evaporator Systems for large-scale industrial concentration processes.

The falling film evaporation technology allows liquid materials to flow downward as a thin film along the heating tubes while evaporation occurs efficiently under controlled conditions.

The system is widely used where customers require:

✓ Large processing capacity
✓ Continuous operation
✓ Low energy consumption
✓ Stable product quality
✓ Automated production

Type tubes Optional:
Plain/Finned/Threaded/Corrugated tube

Product parameter

Parameter Typical Value/Range Remarks
Evaporation Capacity 5～5500 kg/h Evaporation efficiency depends on material properties and heat transfer temperature difference
Operating Pressure 0.1~4.0 MPa (1~40 bar) up to 5 MPa
Operating Temperature 50-300°C High-temperature series with maximum operating temperature up to 350°C
Heat Transfer Area 0.1-100m² Custom designs available for the full range
Viscosity Range 1-100000cP Specialized wiper design required for high-viscosity materials

Working Principle

The feed liquid is evenly distributed into the top of the evaporation tubes.

During operation:

  1. Material enters the top distribution system
  2. Liquid flows downward as a thin film
  3. Heating medium transfers energy through tube walls
  4. Water or solvent evaporates rapidly
  5. Vapor is separated and condensed
  6. Concentrated product is continuously discharged

The falling film design provides excellent heat transfer efficiency with short residence time.

Main Advantages

1. Large Capacity Continuous Processing

Designed for industrial production:

Advantages:

✔ High throughput
✔ Continuous operation
✔ Stable concentration performance
✔ Suitable for large factories

2. Energy Saving Evaporation Technology

Compared with traditional evaporation systems:

Benefits:

✓ Lower steam consumption
✓ Higher heat utilization efficiency
✓ Multi-effect configuration available
✓ Reduced operating cost

3. Gentle Product Treatment

The short residence time helps protect product quality.

Suitable for:

  • Heat-sensitive liquids
  • Nutritional products
  • Pharmaceutical solutions
  • Biological materials

Application Industries

Food & Beverage Industry

Applications:

  • Milk concentration
  • Juice concentration
  • Sugar solution concentration
  • Food ingredient processing

Dairy Industry

Applications:

  • Milk powder production
  • Whey concentration
  • Dairy ingredient processing

Chemical Industry

Applications:

  • Chemical solution concentration
  • Salt solution processing
  • Organic liquid concentration

Pharmaceutical Industry

Applications:

  • Extract concentration
  • Solvent removal
  • Pharmaceutical liquid processing

Bio-fermentation Industry

Applications:

  • Fermentation broth concentration
  • Biological product recovery
  • Nutrient concentration

✔ Large-scale industrial evaporation experience

✔ Energy-saving process design

✔ Customized complete system solution

✔ Professional stainless steel manufacturing

✔ Suitable for global EPC projects

✔ Factory direct supply

FAQ

Q1: What industries use falling film evaporators?

A:
They are widely used in food, dairy, pharmaceutical, chemical and fermentation industries.

Q2: Is falling film evaporation suitable for large production?

A:
Yes. It is designed for continuous large-capacity industrial concentration.

Q3: Can the system be customized?

A:
Yes. Capacity, number of effects, materials and automation level can be customized.
