Industrial Short Path Distillation Equipment For High Purity Separation
Industrial Short Path Distillation Equipment For High Purity Separation
Specifications
Supply Ability :
6000sets/Year
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
Price :
Negotiation
Usage :
Pharmaceutical, Fine Chemical, Food & Beverage, Biotechnology, New Energy Materials etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
T/T,L/C
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Description

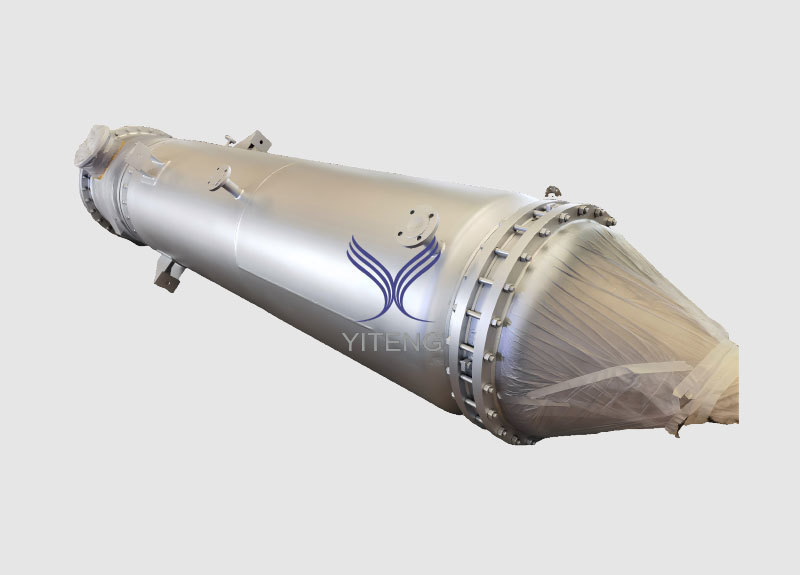

Industrial Short Path Distillation Equipment For High Purity Separation
Product Description

Wuxi Yiteng Pressure Vessel Co., Ltd. designs and manufactures customized Short Path Distillation Equipment for high purity separation and molecular purification applications.

Short path distillation is an advanced vacuum separation technology designed for materials requiring:

✓ Extremely low evaporation temperature
✓ High purity separation
✓ Minimal thermal exposure
✓ High recovery efficiency
✓ Continuous processing capability

The system is especially suitable for valuable heat-sensitive compounds where conventional distillation methods cannot achieve desired results.

Core Structure:Internal condenser at center
Operating Pressure:Ultra-high vacuum 0.001 mbar
Viscosity:Low, limited by rotor design

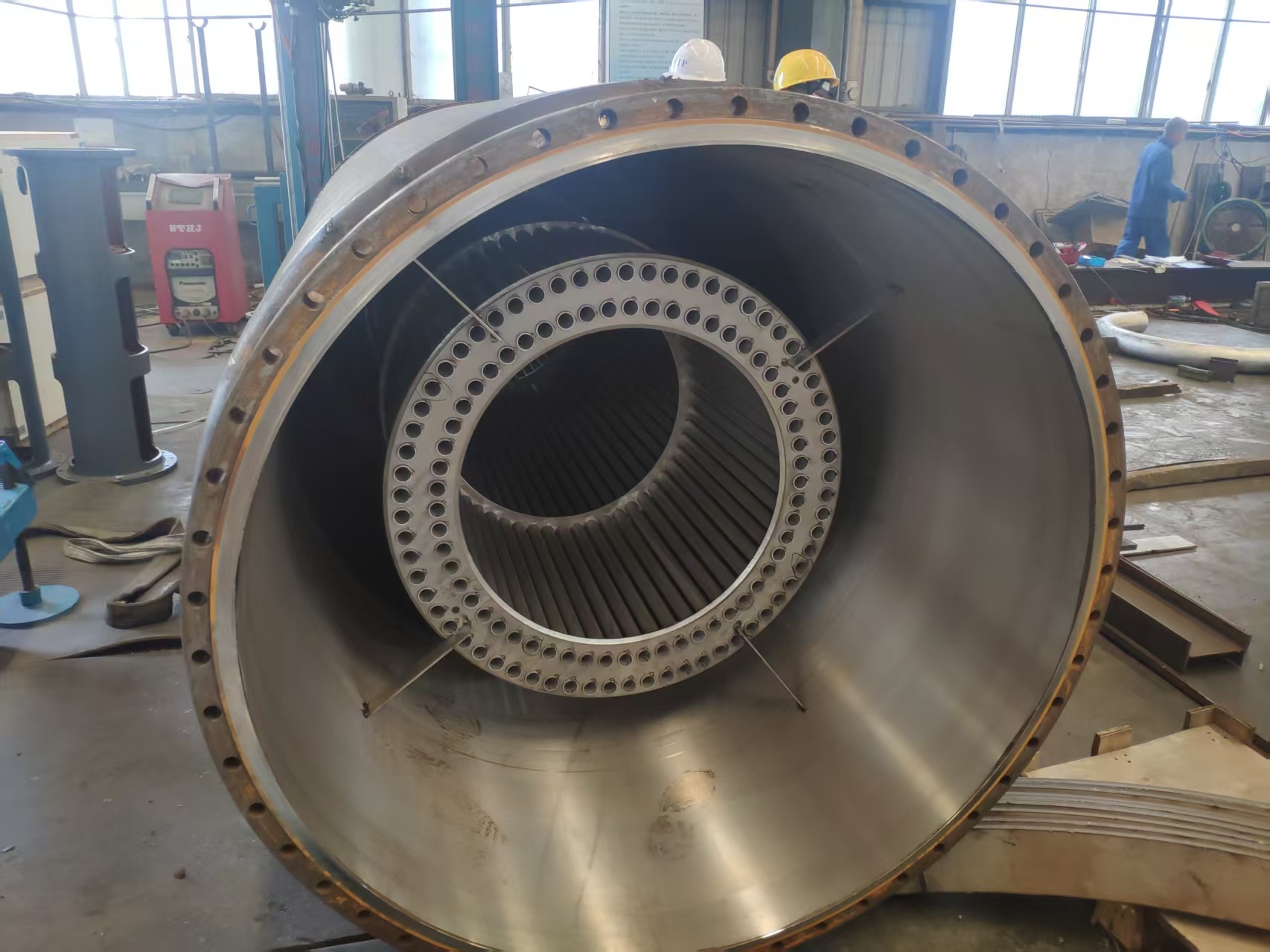

Internal Condenser
● Installed at cylinder center, shell-and-tube or coil type

● Forms fixed short-path evaporation gap with outer heating cylinder

● Core component for capturing and condensing light molecules

● Condenser area: 1.5~3.5 times evaporation area

● Head-type bottom design for dead-space-free discharging

● 15° inclined plates between cylinders for smooth heavy component discharge

● Optional jacket or coil insulation for high-viscosity post-evaporation conditions

Technical Description

Key Advantages:Highest purity, lowest temp, minimal degradation

Parameter

Typical Value/Range

Remarks

Processing capacitye

1-5500 kg/h

Lab/industrial scale

Operating pressure

100mbar~0.001 mbar

Requires multi-stage vacuum pumps

Temperature range

50-300°C

Depends on material thermal sensitivity

Evaporation-condensation distance

2-5 cm

Less than molecular mean free path

Wiper speed

100-600 rpm

Frequency conversion control

Material grade

316L/Hastelloy/Glasses

Complies with GMP or ASME BPE

Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.

Working Principle

Short Path Distillation operates under deep vacuum conditions.

The material flows down the heated evaporation surface and forms a thin film.

Process:

  1. Feed material enters evaporator chamber
  2. Material spreads into a thin liquid film
  3. Vacuum reduces boiling temperature
  4. Light components evaporate quickly
  5. Vapor travels a very short distance
  6. Condensation occurs immediately
  7. High purity fractions are collected

The extremely short vapor path minimizes pressure loss and thermal exposure.

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!

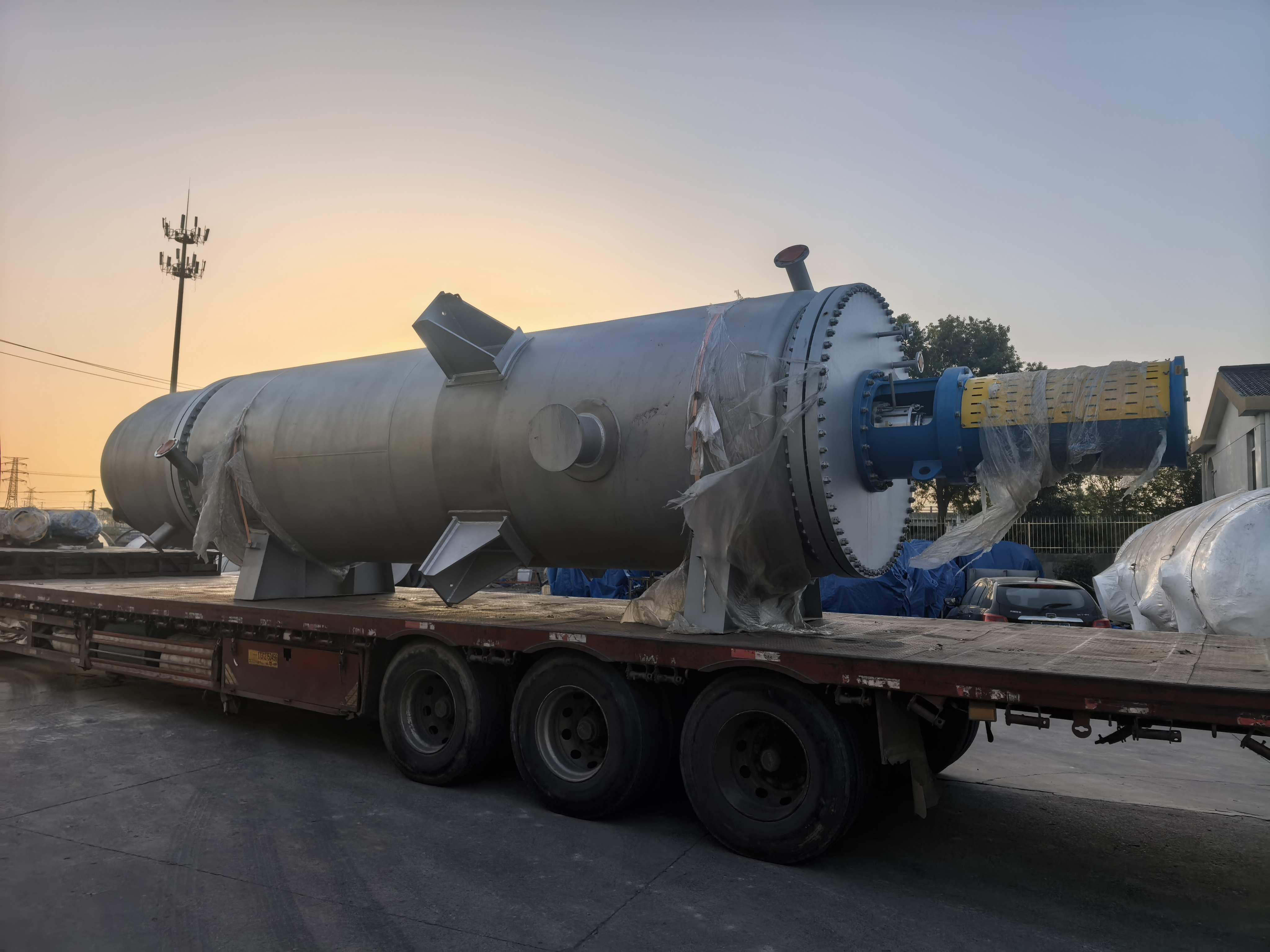

Packaging & Shipping

Industrial Short Path Distillation Equipment For High Purity Separation
