ASME Certified Stainless Steel Short Path Evaporator
ASME Certified Stainless Steel Short Path Evaporator
ASME Certified Stainless Steel Short Path Evaporator
ASME Certified Stainless Steel Short Path Evaporator
ASME Certified Stainless Steel Short Path Evaporator
ASME Certified Stainless Steel Short Path Evaporator
ASME Certified Stainless Steel Short Path Evaporator
ASME Certified Stainless Steel Short Path Evaporator
ASME Certified Stainless Steel Short Path Evaporator
ASME Certified Stainless Steel Short Path Evaporator
Specifications
Supply Ability :
6000sets/Year
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
T/T,L/C
Price :
Negotiation
Usage :
Pharmaceutical, Fine Chemical, Food & Beverage, Biotechnology, New Energy Materials etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Description

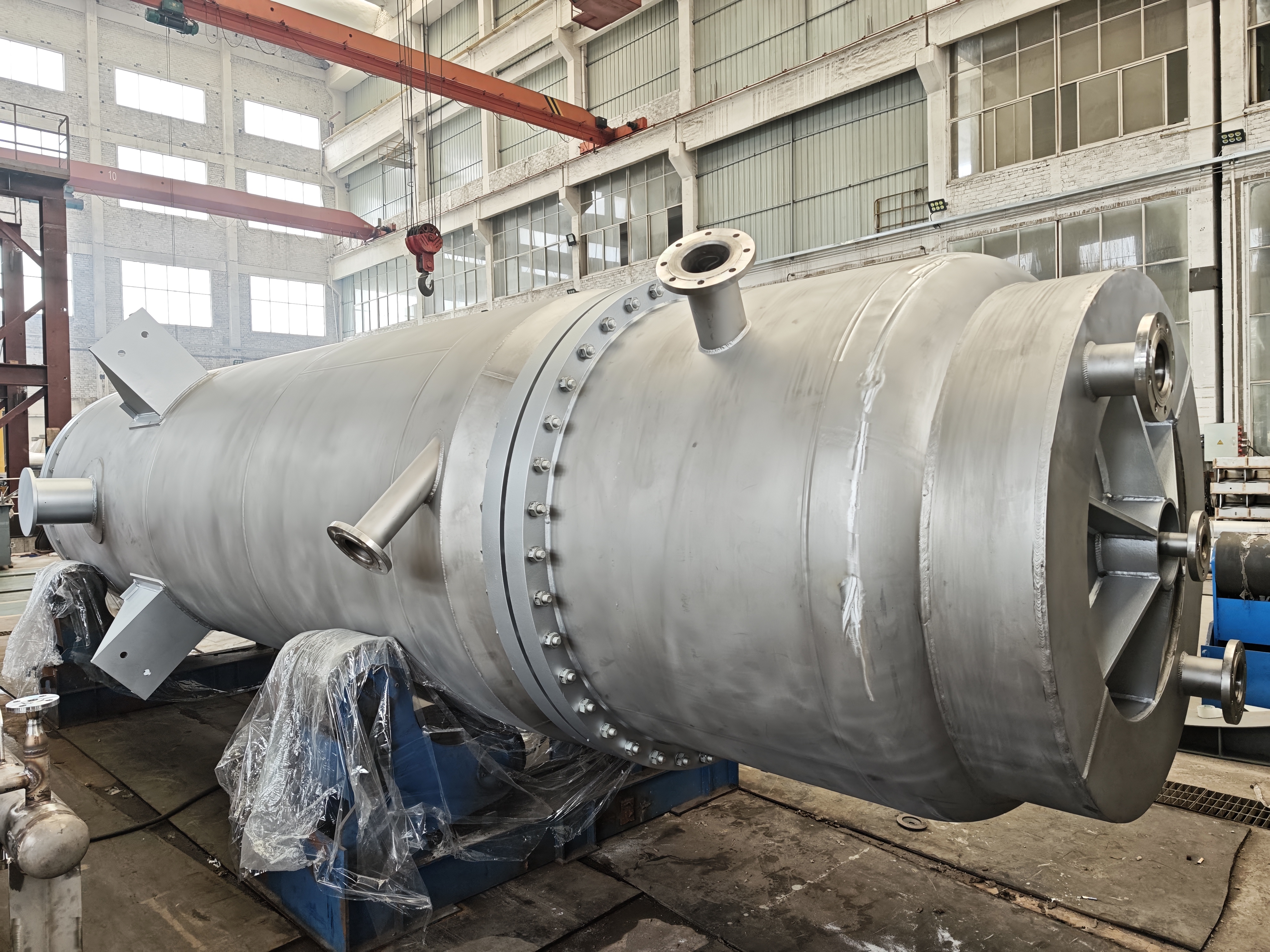

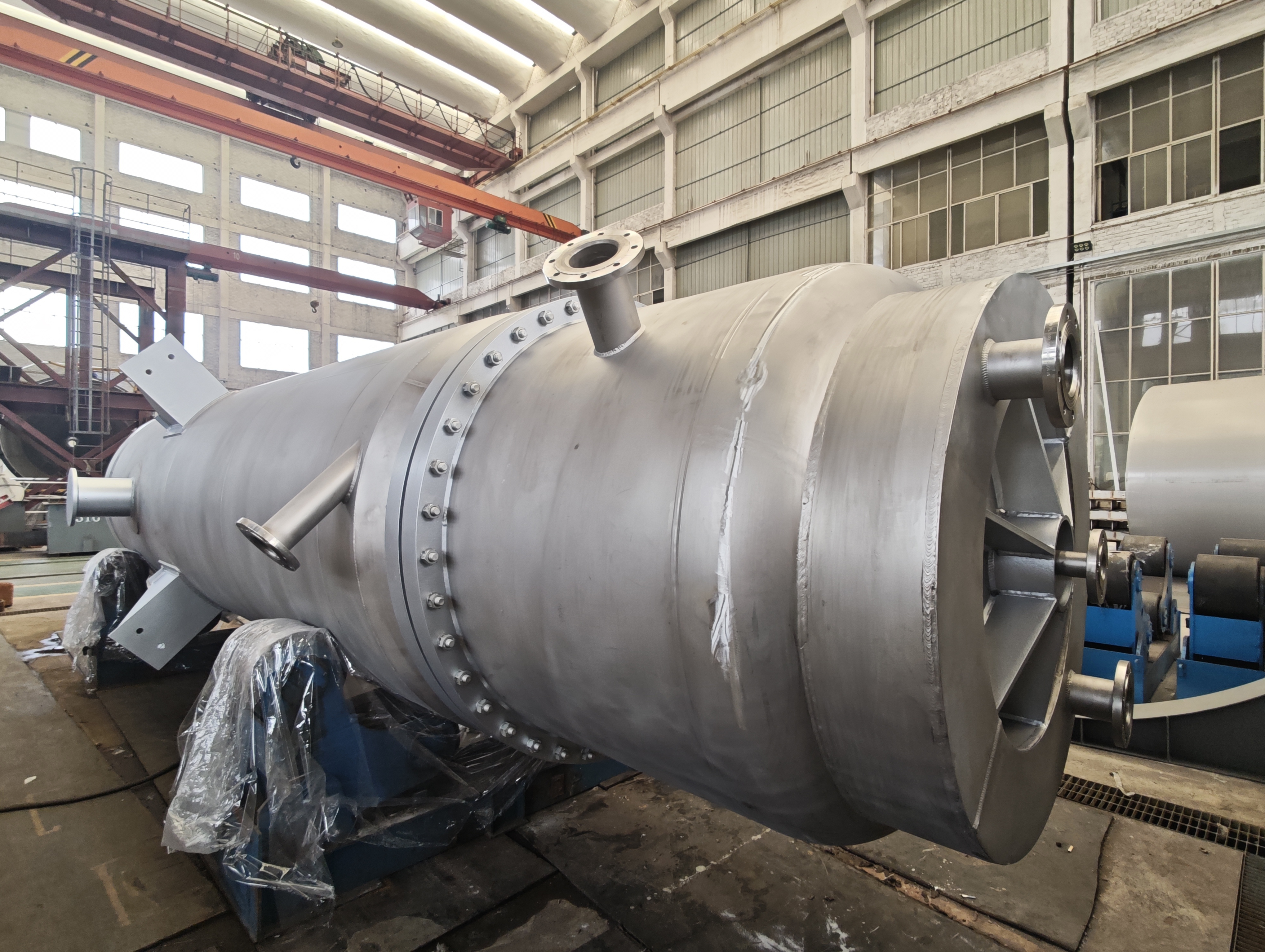

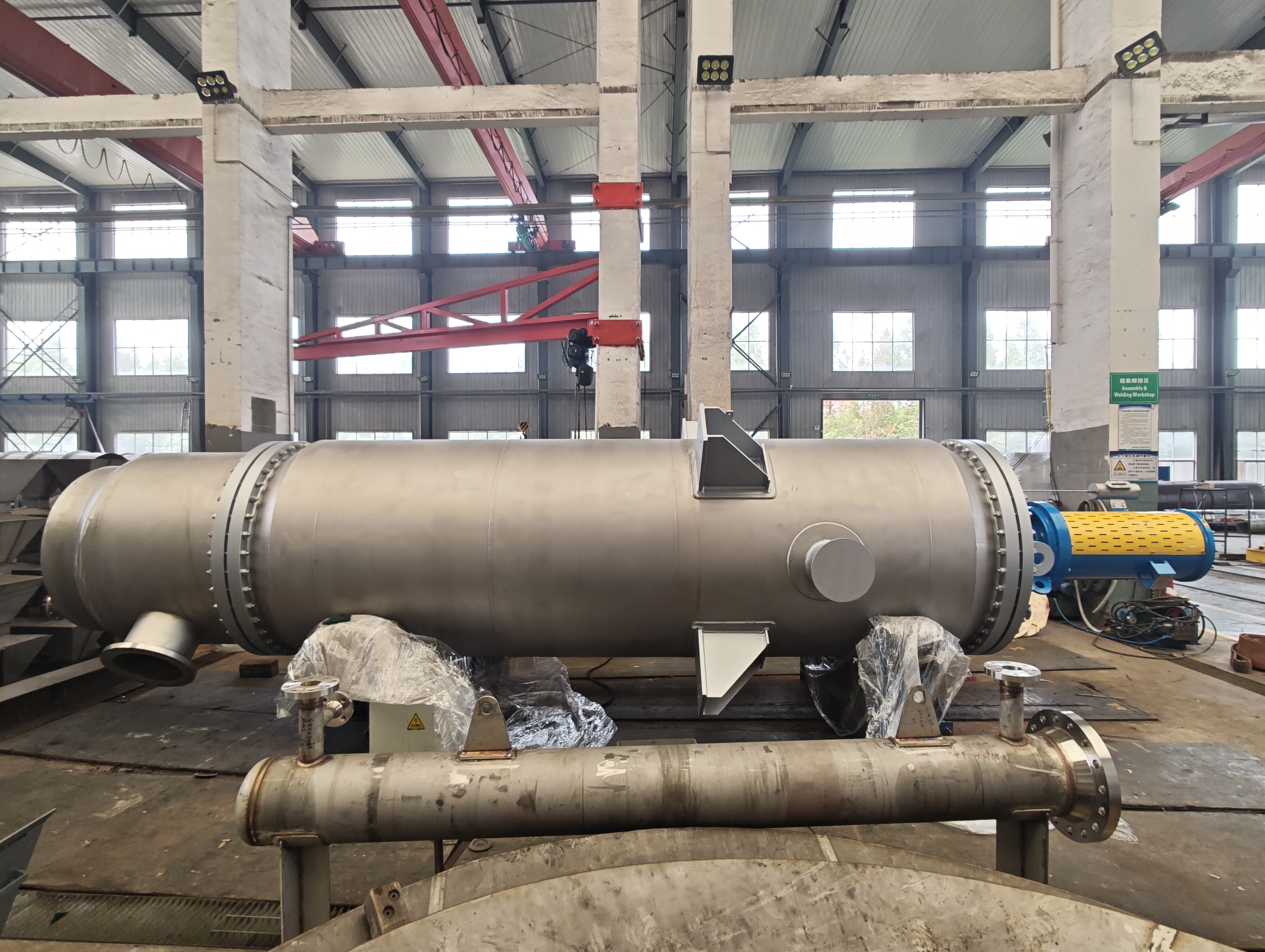

ASME Certified Stainless Steel Short Path Evaporator
Product Description
When undertaking low-temperature purification of high-value heat-sensitive raw materials, manufacturers often choose our durable Short Path Evaporator to realize gentle separation with minimal thermal damage. Paired supporting Short Path Distiller optimizes vapor transmission routes and greatly improves separation precision for high-boiling mixtures.
If your production facility needs pressure vessel certification compliant with North American norms, our ASME Short Path Evaporator undergoes full dimensional inspection and pressure testing in accordance with ASME standards. All-in-one short path distillation equipment integrates wiped film feeding, internal condensation and vacuum control modules, covering mass production needs of nutraceuticals, APIs and plant extracts.
For overseas projects that require official vessel certification to enter the US market, our qualified ASME U Stamp Distillation Equipment provides complete certified separation systems, supporting customized configuration of heat exchange area, material grade and automatic control system to meet various continuous fractionation and solvent recovery production lines.

Core Structure:Internal condenser at center
Operating Pressure:Ultra-high vacuum 0.001 mbar
Viscosity:Low, limited by rotor design

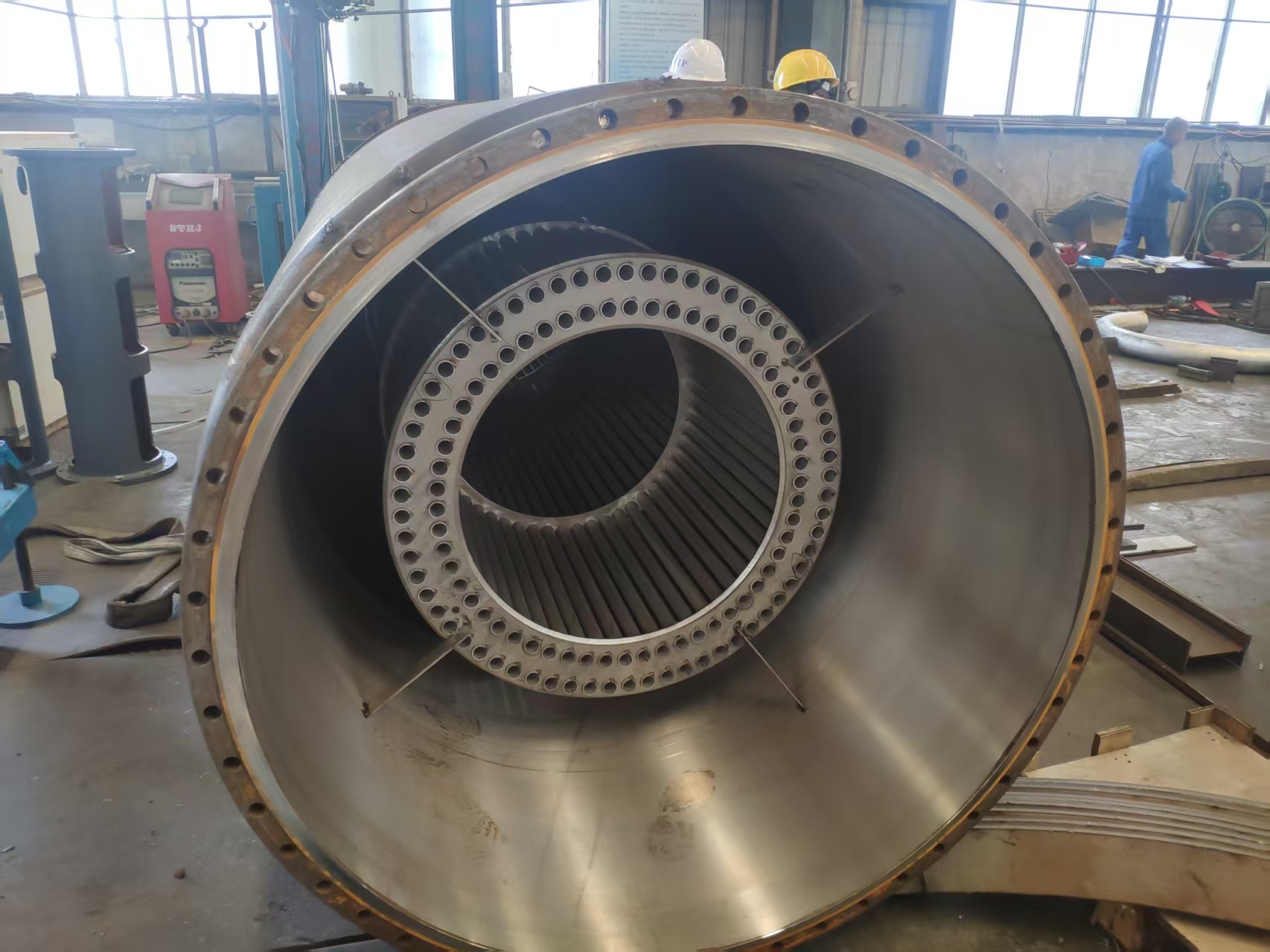

Internal Condenser
● Installed at cylinder center, shell-and-tube or coil type

● Forms fixed short-path evaporation gap with outer heating cylinder

● Core component for capturing and condensing light molecules

● Condenser area: 1.5~3.5 times evaporation area

● Head-type bottom design for dead-space-free discharging

● 15° inclined plates between cylinders for smooth heavy component discharge

● Optional jacket or coil insulation for high-viscosity post-evaporation conditions

Technical Description

Key Advantages:Highest purity, lowest temp, minimal degradation

Parameter

Typical Value/Range

Remarks

Processing capacitye

1-5500 kg/h

Lab/industrial scale

Operating pressure

100mbar~0.001 mbar

Requires multi-stage vacuum pumps

Temperature range

50-300°C

Depends on material thermal sensitivity

Evaporation-condensation distance

2-5 cm

Less than molecular mean free path

Wiper speed

100-600 rpm

Frequency conversion control

Material grade

316L/Hastelloy/Glasses

Complies with GMP or ASME BPE

Wiper Type Structural Features Material & Temp. Clearance/Film Application Scenarios Viscosity Limit Industry
Hinged Wiper Spring-loaded, self-adapting to wall wear PTFE ≤150°C
Enhance PTFE ≤200°C
CF-PTFE ≤250°C
polybenzoate‌ ≤280°C
Copper≤300°C
304 ≤300°C
316L ≤400°C		 General purpose 20,000 cP Glycerol, tire additives, inorganic salts, sugar alcohols, fermentation broth, solvent recovery, waste oil regeneration, high-salinity wastewater, etc.
Sliding Wiper Graphite/PTFE bushings, hydraulic assist / High-precision film control 50,000 cP Vitamins, antibiotics, resins, plant extracts, etc.
Fixed Wiper Rigid connection, no moving parts / Ultra-high viscosity (polymer melts) 100,000 cP food additives, fruit juices, dairy products, etc.
Roller Wiper Equipped with rollers, reducing friction / Materials with solid particles 30,000 cP Foods, polymer resins, syrups, asphalt, rubber liquid, etc.

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!

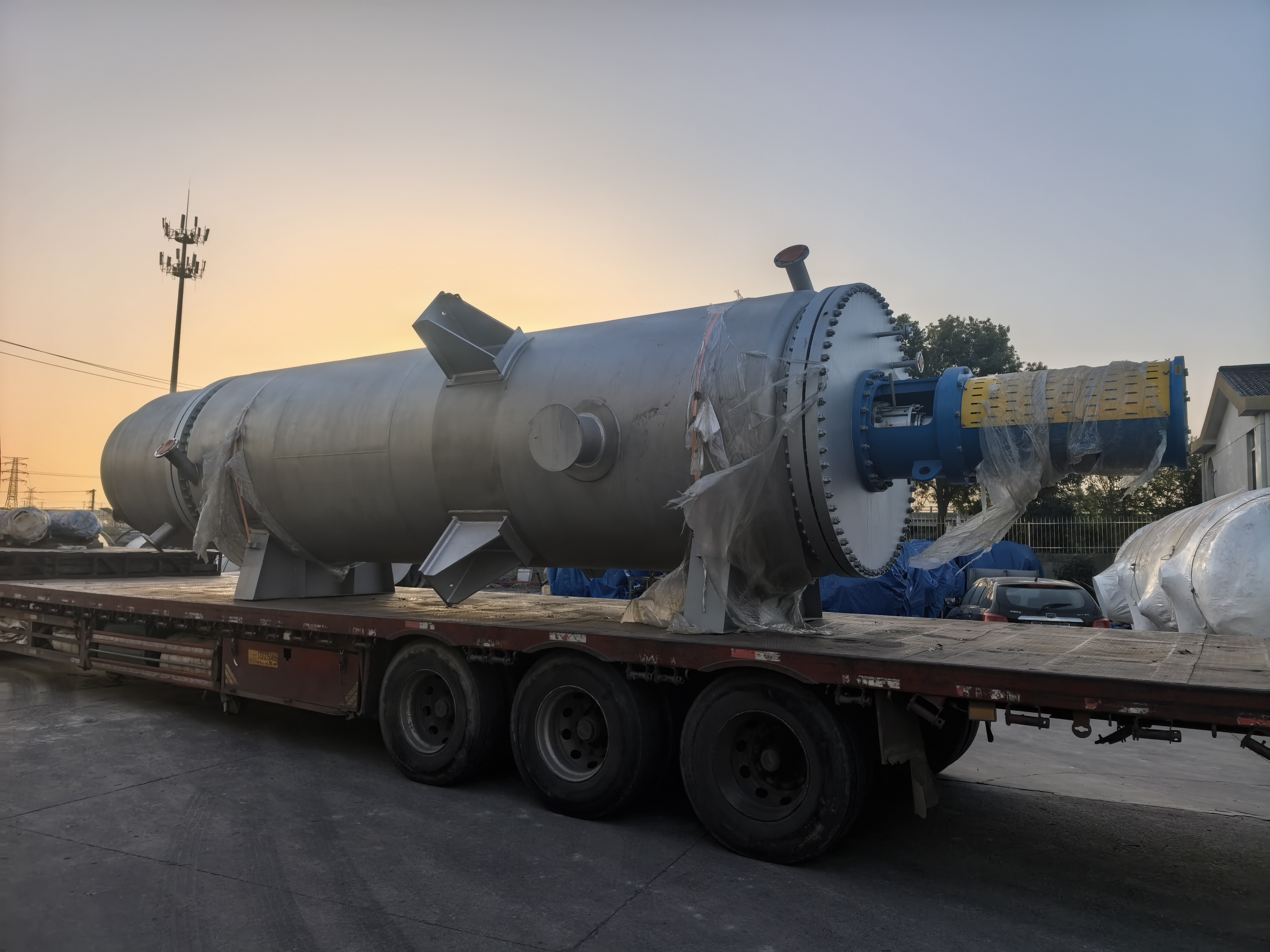

Packaging & Shipping
