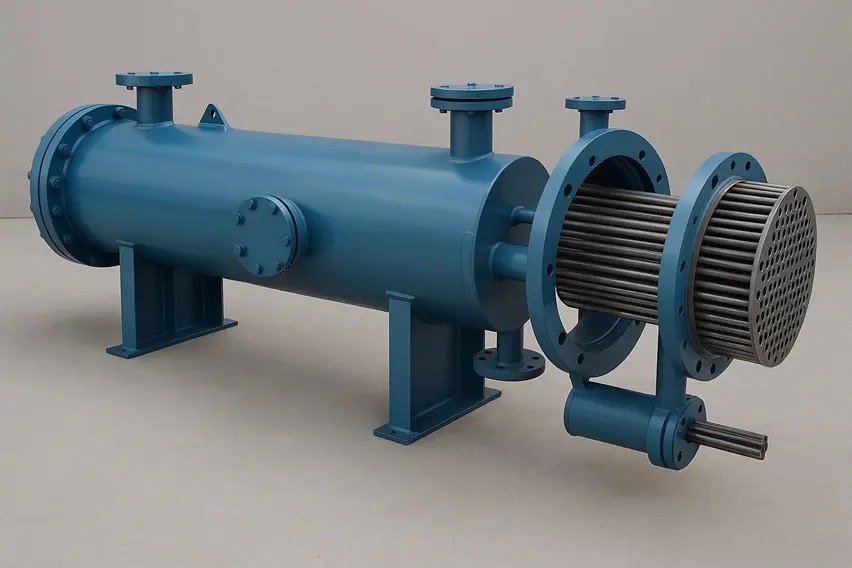

Stainless Steel Floating Head Heat Exchanger For Chemical Processing
Stainless Steel Floating Head Heat Exchanger For Chemical Processing
Specifications
Supply Ability :
6000sets/Year
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
T/T,L/C
Price :
Negotiation
Usage :
Pharmaceutical, Fine Chemical, Food & Beverage, Biotechnology, New Energy Materials etc
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Place of Origin :
Jiangsu China
MOQ :
1set
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Description
Floating Head Heat Exchanger For Chemical Processing
Product Description

Wuxi Yiteng Floating Head Heat Exchanger is a high-performance shell and tube heat transfer solution designed for applications requiring large temperature differences, thermal expansion compensation, and reliable continuous operation.

The floating head structure allows the tube bundle to expand freely under different temperature conditions, reducing thermal stress and improving equipment reliability during long-term industrial operation.

Manufactured according to international pressure equipment standards, the exchanger is widely applied in chemical plants, petrochemical facilities, energy projects, and EPC industrial systems.

Product Highlights

  • Floating head design for thermal expansion compensation
  • Removable tube bundle for easier maintenance
  • Suitable for high temperature and high pressure applications
  • Customized heat transfer area according to process requirements
  • Compatible with various corrosive and demanding media

Technical Description

Parameter Typical Value/Range Remarks
Design Standard GB-T151/ASME VIII Div.1/TEMA/EN13445.TEMA/API660/TR CU 032/2013(ТР ТС 032/2013) International standards
Heat Transfer Area 1~5000m² Custom sizes available
Design Pressure -0.1~35 MPa(-1~350 bar) Ultra-high-pressure models up to 50 MPa
Design Temperature -196°C~+600°C Cryogenic to high-temperature range
Shell Material Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy Corrosion-resistant options
Tube Bundle Material Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy Optional tube typesPlain tube/Finned tube/Threaded tube/Corrugated tube
Tube Diameter/Length φ10~φ60 mm/1~20m U-tube/straight tube options
Tube-Tube Sheet Connection Welded/Tube Expanded/Strength Weldng+Light Expansion Leak-proof design
Number of Tube Passes 1~8 Passes Multi-pass flow for temperature difference optimization
Baffle Type Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut Controls shell-side flow
Connection Standard Flange with ANSI/DIN/GB/JIS Standard DN25~DN1000
Heat exchanger type BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES The exchanger type shall be determined based on customer requirements or thermal calculation.

Why Partner With Us?

International Manufacturing Standards

Supporting global project requirements:

  • ASME VIII Div.1
  • TEMA
  • EN13445
  • GB Standards

EPC Project Experience

We provide engineering cooperation for:

  • EPC contractors
  • Process engineering companies
  • Industrial equipment integrators
  • OEM partners

Flexible Customization

Each Floating Head Heat Exchanger can be customized based on:

  • Heat duty requirements
  • Operating pressure
  • Temperature conditions
  • Corrosion environment
  • Installation space

Complete Documentation Support

Available documents:

  • Material certificates
  • Welding records
  • Inspection reports
  • Pressure test reports
  • Manufacturing drawings

FAQ

Q1: Why choose a floating head heat exchanger instead of a fixed tube sheet exchanger?

A:

Floating head design provides better thermal expansion compensation and is suitable for applications with large temperature differences between shell and tube sides.

Q2: What information is required for heat exchanger quotation?

A:

Customers should provide:

  • Heat duty
  • Fluid information
  • Operating pressure
  • Operating temperature
  • Material requirements
  • Installation conditions

Q3: Can Wuxi Yiteng manufacture according to ASME standards?

A:

Yes. We can manufacture pressure equipment according to ASME VIII Div.1 requirements and provide related inspection documentation.

Q4: What materials can be used for corrosive applications?

A:

Available materials include:

  • SS304
  • SS316L
  • Duplex Stainless Steel
  • Titanium
  • Nickel Alloy

Q5: Can the heat exchanger be integrated into an EPC skid system?

A:

Yes. Customized designs can be supplied for skid-mounted systems and turnkey industrial projects.

Packaging & Shipping

Stainless Steel Floating Head Heat Exchanger For Chemical Processing
