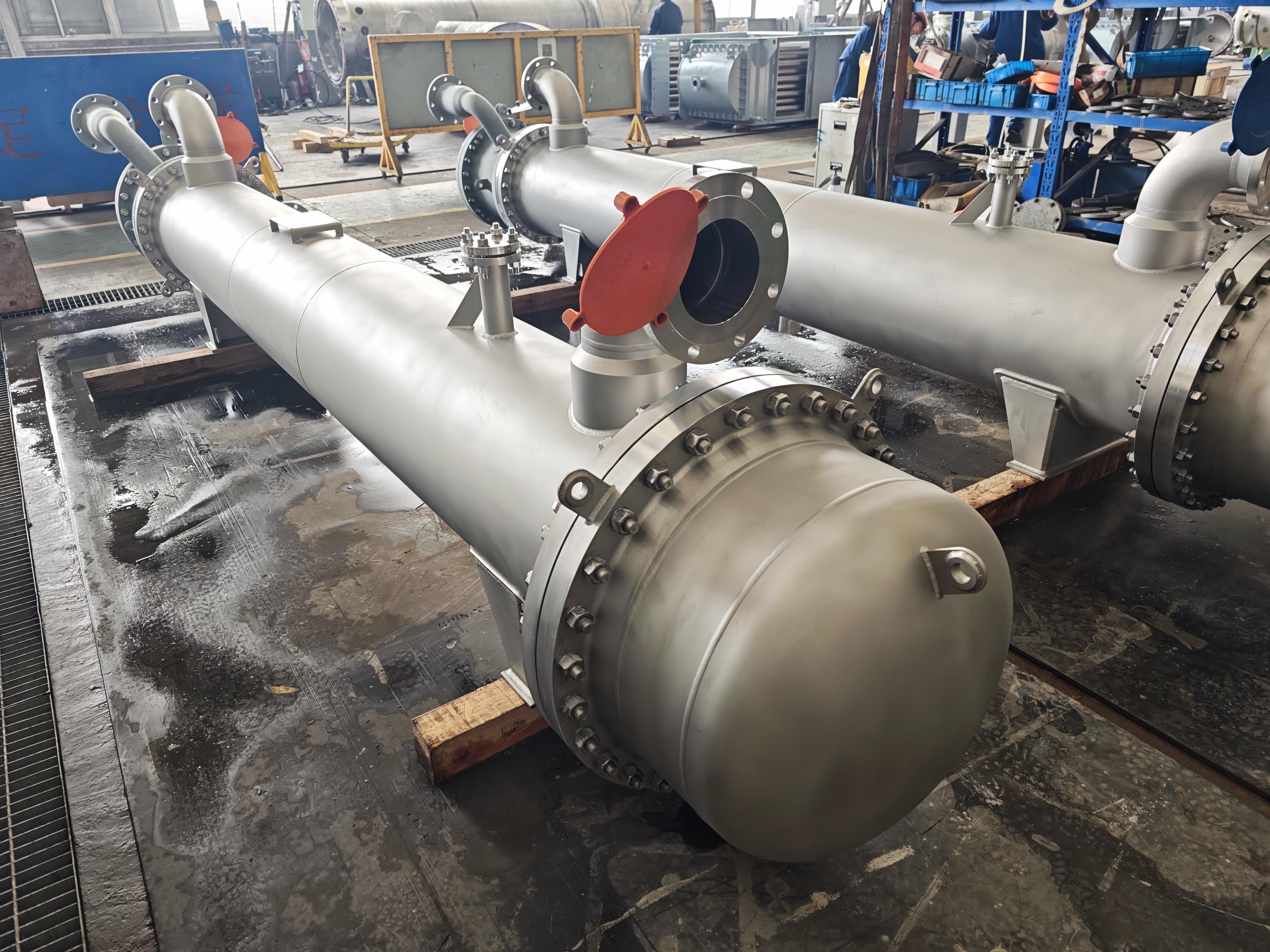

AES Floating Head Heat Exchanger For Fine Electronic Chemicals
AES Floating Head Heat Exchanger For Fine Electronic Chemicals
Specifications
Certification :
ASME U/ISO9001/ ISO45001/ ISO14001/PED/CE/CRTU/DOSH
Material :
Stainless Steel
Model Number :
WFE/SPD/BEM/BES/AES/BEU/TFE
Style :
Steel Type
MOQ :
1 Set
Delivery Time :
45-60 working days
Size :
Customzied
Payment Terms :
T/T,L/C
Price :
Negotiation
Usage :
Pharmaceutical, Fine Chemical, Food & Beverage, Biotechnology, New Energy Materials etc
Supply Ability :
6000sets/Year
Brand Name :
Yiteng
Application :
Thin Film Evaporator, TFE/pharmaceutical distillation equipment/API purification distillation
Packaging Details :
Steel saddle+LDPE foil+Tarpaulin/Wooden box
Place of Origin :
Jiangsu China
MOQ :
1set
Description
Product Description

TEMA AES type floating head shell-and-tube exchanger with removable straight tube bundle. The floating head (S-type) allows free thermal expansion and eliminates differential thermal stress. Front head is A-type (flat cover), shell is E-type (single pass). The entire bundle can be extracted for mechanical cleaning and maintenance, suitable for high temperature difference and severe fouling services.

Technical Description

Parameter Typical Value/Range Remarks
Design Standard GB-T151/ASME VIII Div.1/TEMA/EN13445.TEMA/API660/TR CU 032/2013(ТР ТС 032/2013) International standards
Heat Transfer Area 1~5000m² Custom sizes available
Design Pressure -0.1~35 MPa(-1~350 bar) Ultra-high-pressure models up to 50 MPa
Design Temperature -196°C~+600°C Cryogenic to high-temperature range
Shell Material Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy Corrosion-resistant options
Tube Bundle Material Carbon Steel/Stainless Steel/Duplex Stainless Steel/Titanium Alloy/Nickel-Based Alloy/Copper Alloy Optional tube typesPlain tube/Finned tube/Threaded tube/Corrugated tube
Tube Diameter/Length φ10~φ60 mm/1~20m U-tube/straight tube options
Tube-Tube Sheet Connection Welded/Tube Expanded/Strength Weldng+Light Expansion Leak-proof design
Number of Tube Passes 1~8 Passes Multi-pass flow for temperature difference optimization
Baffle Type Single/Double/Triple segmental/Helical/NTIW/Disk-and-Doughnut Controls shell-side flow
Connection Standard Flange with ANSI/DIN/GB/JIS Standard DN25~DN1000
Heat exchanger type BEM,BEU,BKU,BES,BEW,BFM,BGM,BJM,BHM,BKM,BXM,AEU,AKU,AES The exchanger type shall be determined based on customer requirements or thermal calculation.

Why Partner With Us?

· 1:1 Drawing Optimization: Our engineering team reviews and optimizes your blueprints to reduce production costs.

· Reliable Lead Time: Streamlined manufacturing process ensures your project timeline is protected.

· Global Shipping Experience: Full support for sea freight, customs clearance, and documentation.

Let's discuss your next project!
