Specifications
Brand Name :
ACCPCB
Model Number :
P1085
Certification :
ISO, UL, SGS,TS16949
Place of Origin :
China
MOQ :
1-5PCS
Price :
Negotiable
Payment Terms :
L/C / T/T / Western Union / Paypal
Supply Ability :
30,000SQ.M/PER MONTH
Delivery Time :
12-16days
Packaging Details :
Vacuum packaging
Material :
KBFR4
Holes Copper Thickness :
20um
Min. hole size :
0.15mm
Surface finishing :
LEAD FREE HAL
Copper thickness :
0.5 OZ--2.0OZ
Silkscreen :
white
Description

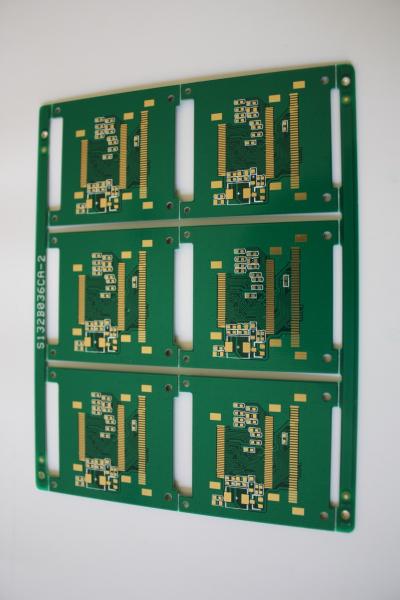

OEM 94v0 Impedance Control PCB 20um of Holes Copper 8layer 1.20mm thickness

Key Specifications/Special Features :

Base Material : KB FR4
Board Thickness : 1.58 mm
Layers : 8 layers
Copper thickness : 1.2 OZ In all layer
Surface Finish : Immersion gold
Copper Thickness in Hole : min 20um
Impedance : 100Ohm
Min. Hole Size : 0.20mm
Min. Line Width : 0.1mm/4mil
Min. Line Spacing : 4/4mil(0.1/0.1mm)

Quality assurance :

Every production process has a special person to test to ensure quality, AOI, E-testing, Flying Probe Test.
Have professional engineers to check the quality
All products have passed CE, FCC, ROHS and other certifications

Application:
Widely used in stage, Industrila control,computer,consuming electronics,security,automotive,power electronics,medical,telecom etc.

Lead Time :

Lead Time 2 /L 4 /L 6/ L 8/ L
Sample Order 3-5days 6-8days 10-12days 12-14days
Mass Production 7-9days 8-10days 12-15days 15-18days

FAQ :

1. How do ACCPCB ensure quality?

Our high quality standard is achieved with the following.

1.1 The process is strictly controlled under ISO 9001:2008 standards.
1.2 Extensive use of software in managing the production process
1.3 State-of-art testing equipments and tools. E.g. Flying Probe,e-Testing, X-ray Inspection, AOI (Automated Optical Inspector) .
1.4.Dedicated quality assurance team with failure case analysis process

2. What kinds of boards can ACCPCB process?

Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.


3. What data are needed for PCB production?

PCB Gerber files with RS-274-X format.


4. What’s the typical process flow for multi-layer PCB?

Material cutting → Inner dry film → inner etching → Inner AOI → Multi-bond→ Layer stack up Pressing → Drilling → PTH → Panel Plating → Outer Dry Film → Pattern Plating → Outer etching → Outer AOI → Solder Mask → Component Mark → Surface finish → Routing → E/T → Visual Inspection.
