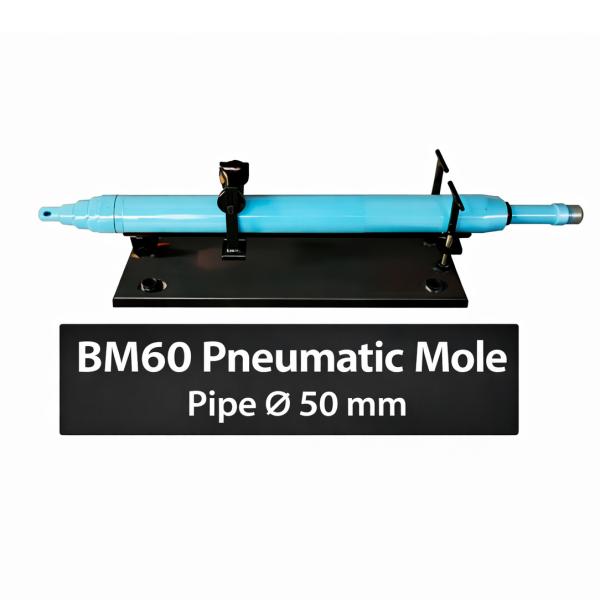

BM60 Pneumatic Impact Mole for Trenchless Pipe Ramming

Product Overview

The BM60 Pneumatic Impact Mole is a compact and efficient trenchless boring tool designed for underground pipe installation without surface excavation. Powered by compressed air, it delivers stable low-frequency impact energy to penetrate soil layers quickly and accurately, making it ideal for short-distance pipe ramming projects in urban and municipal construction.

This model is especially suitable for installing Ø50 mm pipes, with the flexibility to accommodate one size smaller or larger pipe diameters depending on jobsite requirements.

Product series

Key Applications

• Trenchless pipe installation for water, gas, and communication lines

• Road, sidewalk, and railway crossings

• Municipal utility construction

• Small-diameter underground boring projects

• Short-distance pipe ramming (≤ 20 m)

Suitable Soil Conditions

• Clay soil

• Silty clay

• Sandy soil with gravel

• Mixed fill ground

⚠ Not recommended for extremely hard rock or excessively loose formations.

Main Features

• Low-pressure, low-frequency pneumatic impact system

• Simple structure, easy operation, and low maintenance

• High penetration efficiency with minimal ground disturbance

• Compact size, ideal for confined working spaces

• Forward and reverse (retracting) function for obstacle handling

• Cost-effective solution for small to medium trenchless projects

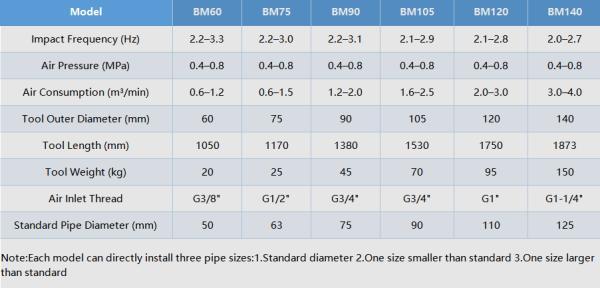

Technical Specifications – BM60

Note:
Each BM60 impact mole can directly install three pipe sizes:

• Standard pipe diameter (50 mm)

• One size smaller than standard

• One size larger than standard

Working Principle

The BM60 Pneumatic Impact Mole operates using compressed air to drive an internal piston, which repeatedly strikes the anvil inside the tool body. The generated impact force propels the mole forward through the soil, forming a straight borehole.

Once the mole exits at the receiving pit, pipes can be installed by:

• Pulling pipes through the borehole using a steel wire rope, or

• Installing pipes simultaneously using a pipe adapter during boring

Standard Supply Scope

• Pneumatic Impact Mole Main Body × 1

• High-pressure air hoses (8 m + 20 m) × 2

• Lubricator × 1

• Hook spanners × 2

• U-shaped shackle × 1

• Special pneumatic lubricating oil × 2 L

Optional Accessories

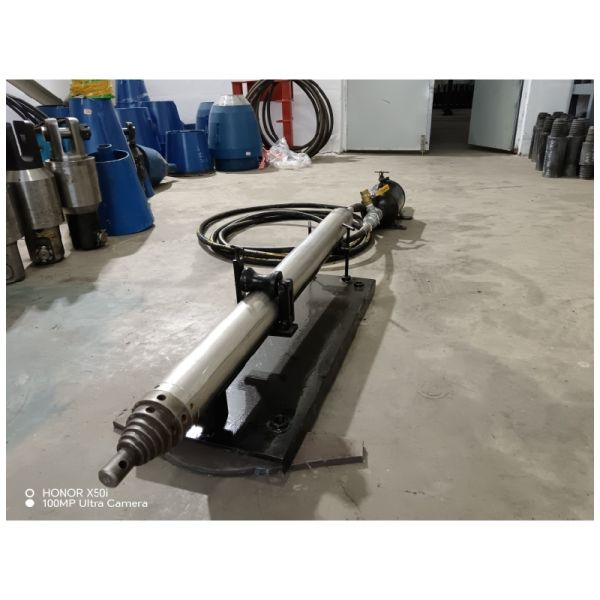

• Launching frame

• Pipe adapter (for PE pipes)

• Winch for pipe pulling

• Customized accessories based on pipe diameter and wall thickness

Operation Advantages

• No open trench required

• Reduced labor and restoration costs

• Minimal impact on traffic and surroundings

• Fast setup and easy relocation

Safety & Maintenance

• Ensure underground utilities are identified before operation

• Maintain proper lubrication using specified oil only

• Never disassemble the tool under pressure

• Clean and oil the tool after each operation to prevent corrosion

Why Choose BM60 Pneumatic Impact Mole?

• Proven BM series design with reliable performance

• Optimized for Ø50 mm trenchless pipe ramming

• Factory-direct supply with technical support

• Suitable for contractors, rental companies, and municipal projects
