Specifications
Brand Name :
Longway
Model Number :
BM50
Certification :
ISO9001
Place of Origin :
China
MOQ :
1
Price :
$716-$821
Payment Terms :
T/T
Supply Ability :
50 sets per month
Delivery Time :
5-8 days
Packaging Details :
carton
Impact frequency :
2.2-3.3Hz
Air pressure :
0.4-0.8Mpa
Air consumption :
0.6-1.0m³/min
Outer diameter of the main unit :
50mm
Length of the main unit :
850mm
Weight of the main unit :
15kg
Interface specification :
G3/8"
Standard pipe diameter :
40mm
Description

Product Description

The BM series pneumatic mole is designed for short-distance horizontal pipe laying in various soil conditions, including layers with few pebbles or some boulders. Its front impact head operates independently of the mole body, delivering forward impact that easily breaks through pebbles and boulders. When encountering impassable obstacles, simply turn the hose to the right to retract the mole.

Operation Principle

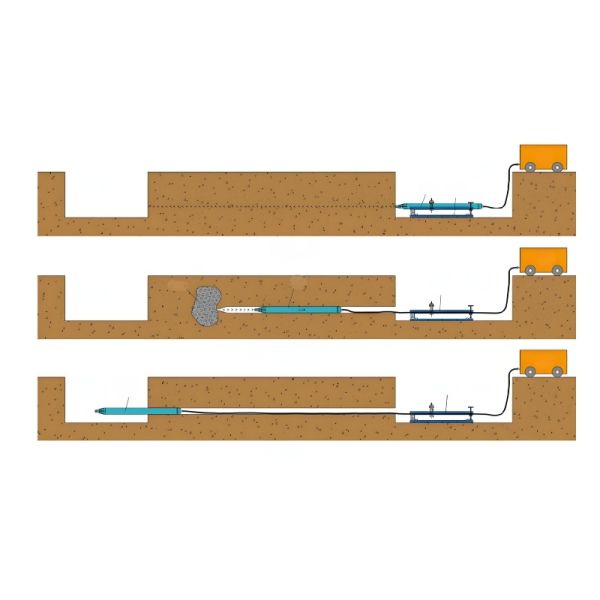

The pneumatic mole is a low-frequency, low-pressure pneumatic impact device powered by compressed air. The compressed air drives the internal hammer to strike the anvil, propelling the mole body through the stratum. After penetration, the mole body is removed, and a steel wire rope is connected to the air pipe. The air pipe is then pulled back to bring the steel wire rope through the hole, which is used to pull the pipeline into place for trenchless pipeline installation.

Impact Moling Pneumatic Piercing Tool For Horizontal BoringImpact Moling Pneumatic Piercing Tool For Horizontal Boring

Technical Specifications

(Custom configurations available upon request.)
Type BM50 BM60 BM75 BM90 BM105 BM120 BM140
Impact frequency 2.2-3.3Hz 2.2-3.3Hz 2.2-3.0Hz 2.2-3.1Hz 2.1-2.9Hz 2.1-2.8Hz 2.0-2.7Hz
Air pressure 0.4-0.8Mpa 0.4-0.8Mpa 0.4-0.8Mpa 0.4-0.8Mpa 0.4-0.8Mpa 0.4-0.8Mpa 0.4-0.8Mpa
Air consumption 0.6-1.0m³/min 0.6-1.2m³/min 0.6-1.5m³/min 1.2-2.0m³/min 1.6-2.5m³/min 2.0-3.0m³/min 3.0-4.0m³/min
Outer diameter of the main unit 50mm 60mm 75mm 90mm 105mm 120mm 140mm
Length of the main unit 850mm 1050mm 1170mm 1380mm 1530mm 1750mm 1873mm
Weight of the main unit 15kg 20kg 25kg 45kg 70kg 95kg 150kg
Interface specification G3/8" G3/8" G1/2” G3/4” G3/4” G1” G1-1/4”
Standard pipe diameter 40mm 50mm 63mm 75mm 90mm 110mm 125mm

Drawings & Dimensions

Impact Moling Pneumatic Piercing Tool For Horizontal Boring
