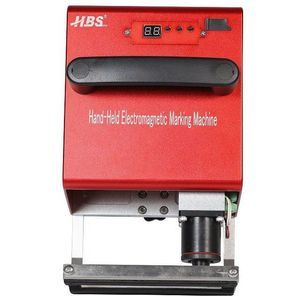

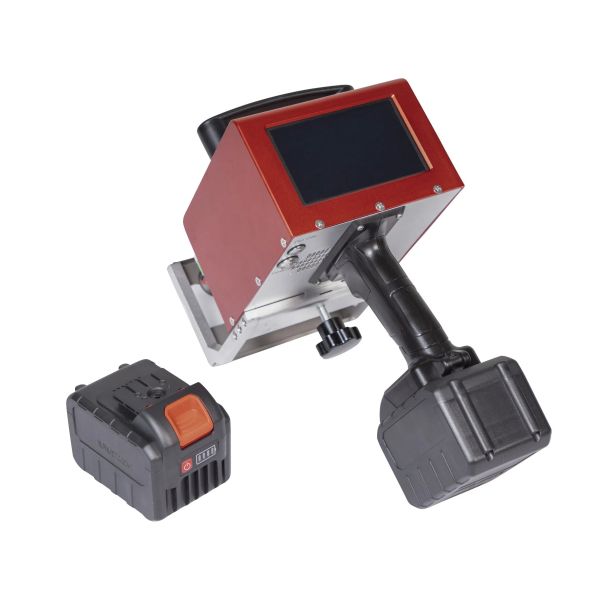

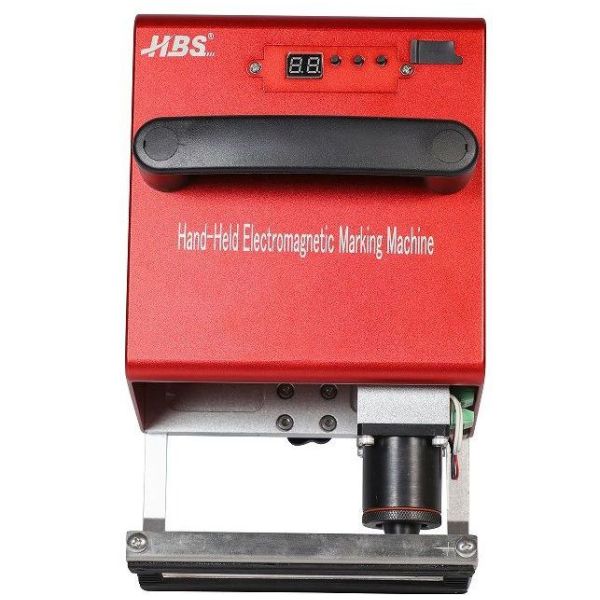

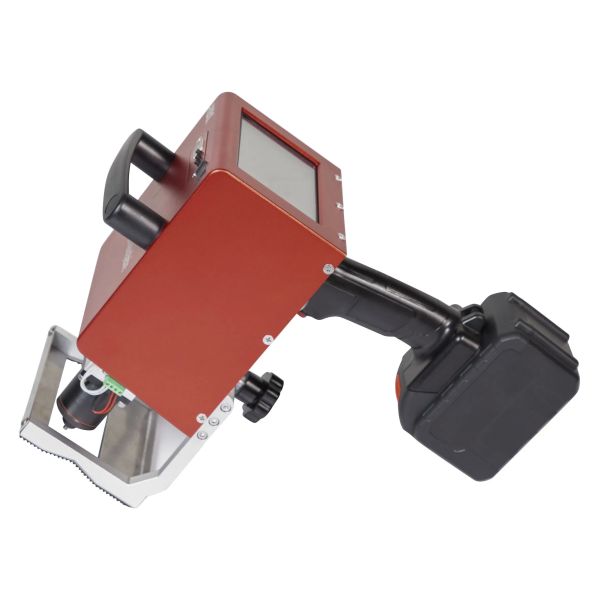

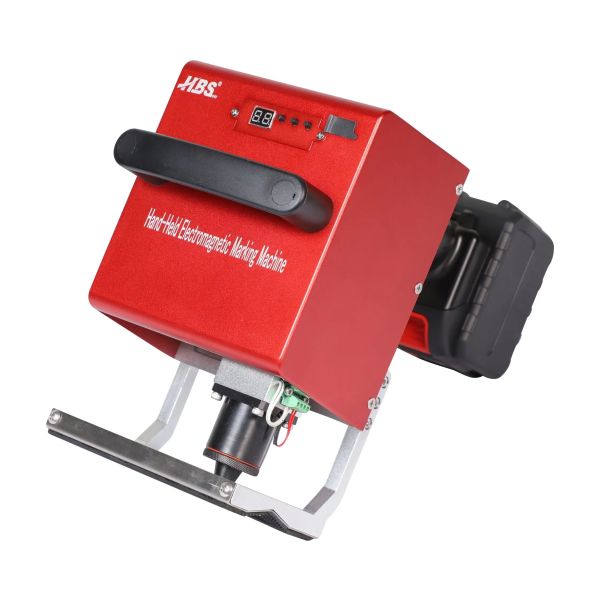

Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
Specifications
Marking Content :
Number, Chinese/English Characters, Graphics
Origin :
Beijing
Trademark :
HBS
Production Capacity :
300/Month
Marking Area :
30*80mm
Model NO. :
HBS-380D1
Specification :
620x290x460mm
MOQ :
1 Piece
Price :
US $1,850-2,150 / P
Transport Package :
Cartons
Power :
Lithium Battery
Marking Depth :
0.1-1.0mm
HS Code :
8479819000
Description

All-in-one electric dot peen marking machine with battery

Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine

1. Product Introduction

HBS-380D(New) is a new presented portable electric dot pin marking machine, there's no need to equip with pneumatic supply. With mini and light weight characters, the machine has wider application indoor and outdoor compared with traditional marking machine.

HBS-380D(New) can mark on metal and some non-metal materials, making the dot-shape marks through hard alloy needle knocking on material in high frequency. The marks will not be rubbed off or faded away.

Recommended reason: light-weighted , Mini and compact structure, portable, integrated software, easy operation and maintenance free

2. Parameters:

Model HBS-380D
Marking area 30x80mm
Marking Frequency Range A-F(fast to slow)
Marking Strength Range 1-9(high and low)
Marking Format dot-matrix font, QR code,DM code,Serial number, LOGO graph,etc
Marking Depth 0-1mm( based on material hardness)
Marking hardness HRC62
Lifespan of marking pin Lifespan of marking pin
Marking Speed 2-5 characters/second
Repeatability ≤0.02mm
Port USB port, WIFI connection (Android)
Languages Chinese, English, Russian, Vietnamese, Korean, Spanish, etc
Font Single line font, Double line font, DOT7x5, DOT5x5(font expandable)
Consumption ≤350W
Working Temperature 0-45ºC
Power Supply Lithium battery 21V/6.8Ah(including two batteries)
Total Weight 4KG

3. Touch Screen Interface

Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine

4. Product Structure Diagram

Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine

5. Marking Sample

Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine

6. Exhibition in IMTS,USA

Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine

7. Company Info:

Founded in 2001, HBS has 17 years experience in laser industry.

HBS has acquired quality certifications such as CE, BV, SGS, ISO9001, which ensures supreme quality.

HBS has provided numerous well-known companies with wide range of solutions and reliable marking equipment.

The price is not expensive considering it's factory price. Welcome to visit our factory!

Lithium Battery Mechanical Punching Equipment Electric Dot Peen Marking Machine
