Specifications
Certification :
FDA, CE
MOQ :
1 Piece
Marking Content :
VIN Code, Graphics, Characters
Model NO. :
HBS-JZ115D
Transport Package :
Carton
HS Code :
8456301090
Origin :
China
Trademark :
HBS
Specification :
620X290X460
Style :
Portable
Using Method :
Portable
Production Capacity :
100000PCS
Price :
US $1,850-2,100 / P
Description
Handheld electric DOT Peen Marking Machine for Brake Disc VIN number marking
Handheld Electric DOT Peen Marking Machine For Brake Disc Vin Number Marking Handheld Electric DOT Peen Marking Machine For Brake Disc Vin Number Marking
Technical Parameter

Model: HBS-380D

Model HBS-380D
Marking Content Line, Arc, Angularity,Dot-Matrix,
Marking Area 30mm x 80mm
Repetition Accuracy 0.05mm
Marking Depth <=0.3mm (Adjustable with different material)
Power Supply AC220V ±10% 50Hz
Power consumption <=350W
COM Port RS232, USB
Marking Speed 2 - 5 Characters Per Second
Marking Options
HBS-130D 30mm x130mm
HBS-6130D 60mm x130mm
Handheld Electric DOT Peen Marking Machine For Brake Disc Vin Number Marking
Packing Details

Dimension(mm): 620X290X460 (marking head: 138X100X50, controller:235X185X190)

Net Weight(kg): 8(machine head: 3.6, controller: 4.4)

Gross Weight(kg): 10

Handheld Electric DOT Peen Marking Machine For Brake Disc Vin Number Marking
Product Introduction
Handheld Electric DOT Peen Marking Machine For Brake Disc Vin Number Marking
  • The latest machine developed by the HBS, function without compressed air supply. It's a pioneer product in China with registered patents. The electromagnetic marking can be used anywhere as long as there is power supply. It can be equipped with battery in case of field work. Compared with pneumatic marking systems, noise level is lower.

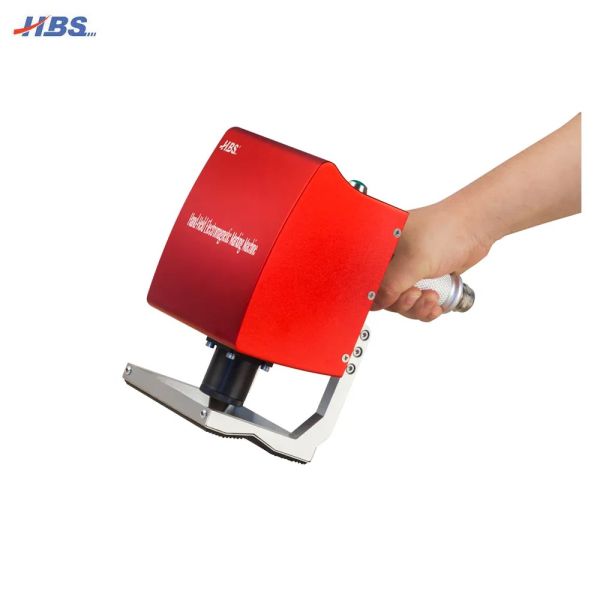

  • The portable marking head is ideal choice for marking on large-scale or heavy work pieces which is difficult to move.
  • Fully off-line operation, user friendly interface, easy to use and simple to operate.

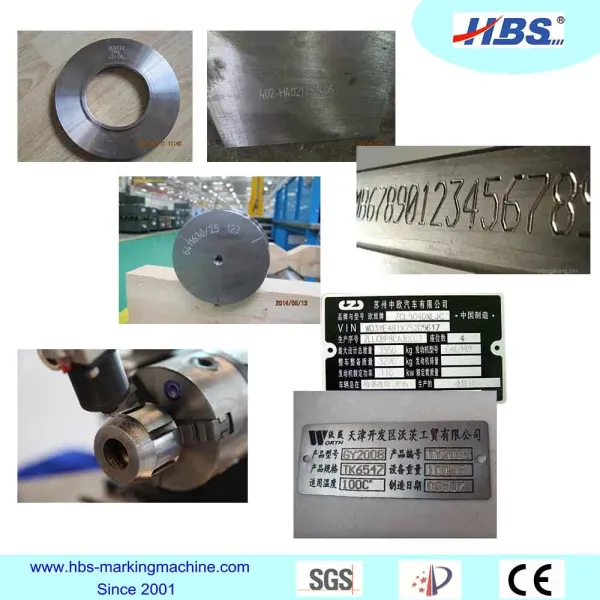

  • Automatic marking of Chinese and English characters, running numbers, VIN code, bitmap font, 2D code, etc.
  • Marking pin is made of typical hard alloy and marking on products with hardness up to HRC62.
  • Anti-interference, strong resistance against radiation and well adapted for harsh environment work.
  • Extremely low failure rate, less maintenance
  • Low power consumption, low cost, low price
Handheld Electric DOT Peen Marking Machine For Brake Disc Vin Number Marking
