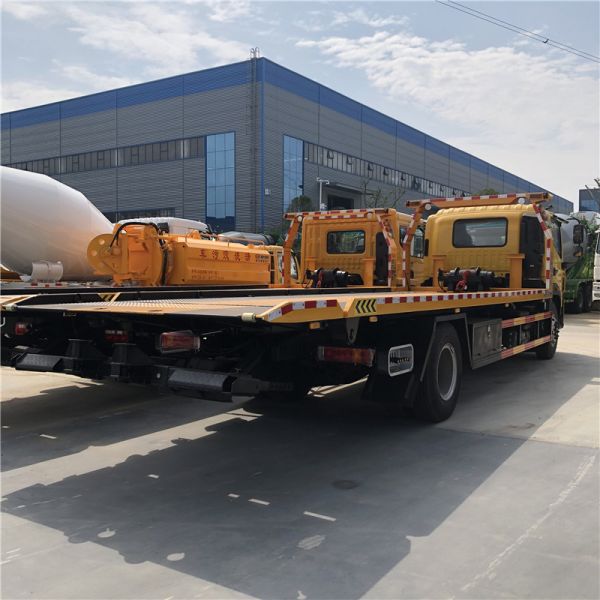

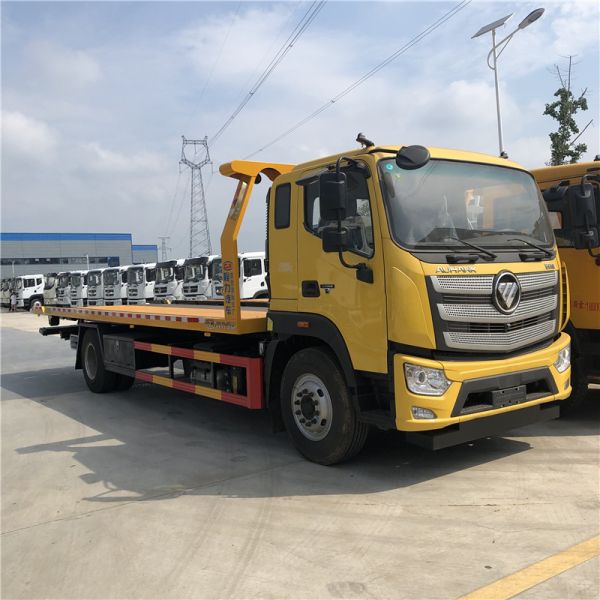

4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
4x2 Euro 3 Foton 8 Tons Tilt Bed Tow Truck Flatbed Tilt Truck
Specifications
Brand Name :
Foton
Place of Origin :
Hubei, China
MOQ :
1
Supply Ability :
30 sets per month
Delivery Time :
15 days
Packaging Details :
Nude
Product name :
Flatbed Wrecker Truck
Dimensions (L x W x H) (mm) :
10300x2550x2800mm
Condition :
New
Main Winch :
8 tons
Underlift :
3 sections, 8 tons
Underlift Tow Rating :
16 Tons
Operation :
Both sides manual
Remote Control :
Optional
Warranty :
1 Year
Bed Dimension :
8000x2500mm
Description
4X2 EURO 3 FOTO 8 TONS TILT BED TRUCK TILT TRAY WRECKER TOW TRUCK
Product Description

The 8 tons flatbed wrecker truck is available in steel, with multiple deck length and width configurations and different structural deck capacity for more strength and durability on the job.

The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4.

Other special requirements you want.

Main Features
1. Bed Length around 8 m. Capacity 8-10 Tons.
2. Optional Hitch Ball. Optional Remote Control.
3. Optional Material from Q235B, Q345, G70, NM500, Hardox 450 etc.
Truck Specs
8 Tons Foton Flatbed Wrecker Truck
Overview
Name 8 Tons Foton Flatbed Wrecker Truck
Dimension(LxWxH) 10050x2500x2855(mm)
Total Mass 16510Kg
Rated Payload 12000Kg
Kerb Weight 4510Kg
Passenger 3
Approach/Departure Angle 30/23
The Parameters of Chassis 　
Manufacture/Model Foton
Driving Type 4*2 LHD/RHD
Wheel Base 5150 mm
Gearbox FAST 8JS85T, eight speed forward and two reverse, manual
Front/Rear Track 1914/1800(mm)
Tyre 10.00R20
The Number of Tyre 6+1(spare tyre)
Front/Rear Suspension 1250/2320(mm)
Leaf Spring Number 4+3
Fuel Tank 260L Aliminum
Power Steer, AC, Air Brake, MP3, ABS, etc Equipped
The Paremeters of Engine
Manufacturer/Model Cummins
Rated Power 210hp
Fuel Type Diesel oil
Displacement/Capacity 5900ml
Emission Standard Euro 3
Cylinder In-line/4/intercooling/turbo charge/Bosch common rail/pressure direct injection
Max. torque 560N.m
Velocity 2800rpm
Body Specs
8 - 10 Tons Slide Type Tilt Tray
General Settings Color

Customizable, electrophoresis

painting is optional
Winch Capacity 8 - 10 tons
Lift Capacity 8 - 10 tons
Extension Capacity 8 - 10 tons
Underlift Capacity 8 tons (towing up to 16 tons)
Platform Material Q235B, 6 -8 mm thick
Platform Type Smooth or checkered
Platform Dimension 8000-9000 x 2500 mm
Wireless Remote Control Equipped
Subframe with Underlift Equipped and match to chassis
Lights Siren Long Lamp with Speaker 1 pcs
Sides Lights 10 pcs
Frame Lights with Lights Seat 8 pcs
Hydraulic System Bed Extension Cylinder with Seat 1 pcs
Bed Lift Cylinder with Seat 2 pcs
Supporting Legs Cylinder 2 pcs
Hydraulic Winch 1 pcs
Hydraulic Pump 1 pcs
Hydraulic Multi Way Valve 1 pcs
Hydraulic Balance Valve 2 pcs (1 for lift and 1 for underlift)
Hydraulic Hose 1 set
Hydraulic Hose Containment 1 set
Hose Sleeve 1 pcs
Manual Control with Stainless Steel Seat 2 sets (on both sides)
Oil Tank 1 pcs
Accessories Wheel Trolleys 2 pcs
Straps 4 pcs
Toolbox 2 pcs
Wheel Grids 2 pcs
L arms 2 pcs
Fence 2 pcs
Mudflap 2 pcs
Lamp Frame 1 pcs
Bed Position Limit 1 set
Frame and Lights Bolts 1 set
Toolbox and Fence Brackets Square Tube 1 set
Container Pins 4 pcs
