Specifications
Brand Name :
Dongfeng
Place of Origin :
Hubei, China
MOQ :
1
Supply Ability :
30 sets per month
Delivery Time :
15 days
Packaging Details :
Nude
Product name :
Full Landing Lay Flat Wrecker Truck
Dimensions (L x W x H) (mm) :
7600x2350x2600mm
Condition :
New
Main Winch :
4 tons
Underlift :
2 sections, 3 tons
Underlift Tow Rating :
6 Tons
Operation :
Both sides manual
Remote Control :
Optional
Warranty :
1 Year
Bed Dimension :
5600x2350mm
Description

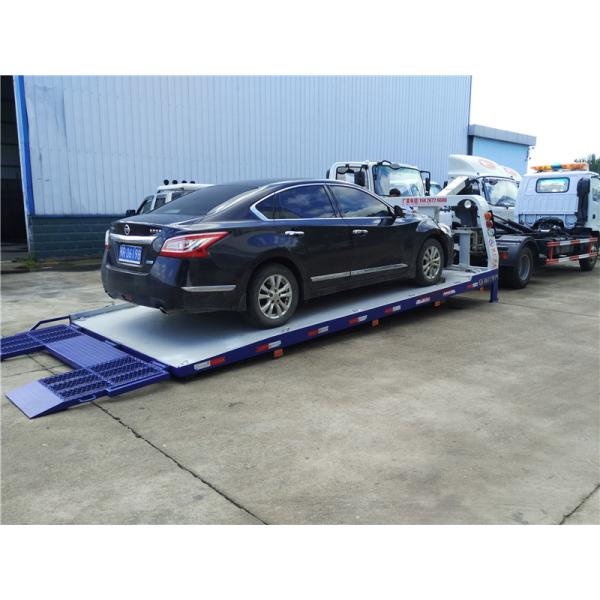

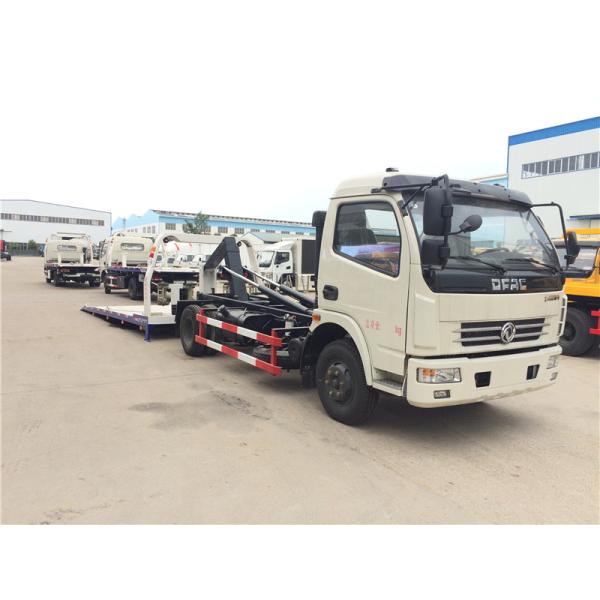

4 TONS DONGFENG 120HP FULL LANDING 0 DEGREE FLATBED WRECKER TOWING TRUCK
Product Description

The 4 tons Dongfeng flatbed wrecker truck is available in steel, with multiple deck length and width configurations and different structural deck capacity for more strength and durability on the job.

The truck brand options also available with ISUZU, Dongfeng, HOWO, JAC, FOTON, JMC, FAW, SHACMAN, IVECO, etc.

With Euro 2, Euro 3, Euro 5, Euro 6 emission.

With RHD, LHD.

With 4x2, 4x4.

Other special requirements you want.

Main Features
1. Bed Length 5.6 m. Capacity 4 Tons.
2. Optional Hitch Ball. Optional Remote Control.
3. Optional Material from Q235B, Q345, G70, NM500, Hardox 450 etc.
Truck Specs
4 Tons Lay Flat Bed Wrecker
Overview
Name 4 Tons Lay Flat Bed Wrecker
Dimension (LxWxH) 7600x2350x2600(mm)
Total Mass 10495 Kg
Rated Payload 5000 Kg
Kerb Weight 5495 Kg
Passenger 3
The Parameters of Chassis 　
Manufacture/Model Dongfeng
Driving Type 4*2 left hand drive
Wheel Base 3800 mm
Gearbox Five speed forward and one reverse, manual
Front/Rear Track 1835/1640(mm)
Tyre 7.50R16
The Number of Tyre 6+1(spare tyre)
Front/Rear Suspension 1180/1715(mm)
Leaf Spring Number 11/9+7
AC, Air Brake, Power Steer, Central Locking, Power Windows, etc. Equipped
The Parameters of Engine
Manufacturer/Model YuChai
Rated Power 120hp
Fuel Type Diesel oil
Displacement/Capacity 3856ml
Emission Standard Euro 3
Cylinder Straight/4/intercooling
Max. torque 450N.m
Velocity 2500rpm
Body Specs
5 Tons Lay Flat Type Tilt Tray
General Settings Color

Customizable, electrophoresis

painting is optional

Winch Capacity 5 tons
Lift Capacity 5 tons
Extension Capacity 5 tons
Underlift Capacity 3 tons (can tow up to 6 tons)
Platform Material Q235B, 4mm thick
Platform Type Checkered or smooth
Platform Dimension 5000-7000 x 2500 mm, as required
Wireless Remote Control Optional, extra USD500
Subframe with Underlift Match to chassis
Lights Siren Long Lamp with Speaker 1 pcs
Sides Lights 8 pcs
Frame Lights with Lights Seat 6 pcs
Hydraulic System Bed Extension Cylinder with Seat 1 pcs
Bed Lift Cylinder with Seat 2 pcs
Underlift lift Cylinder 2 pcs
Underlift Extension Cylinder 1 pcs
Hydraulic Winch 1 pcs
Hydraulic Pump 1 pcs
Hydraulic Multi Way Valve 1 pcs
Hydraulic Balance Valve 2 pcs (1 for lift and 1 for underlift)
Hydraulic Hose 1 set
Hydraulic Hose Containment 1 set
Hose Sleeve 1 pcs
Manual Control with Stainless Steel Seat 2 sets (on both sides)
Oil Tank 1 pcs
Accessories Trolleys 2 pcs
Straps 4 pcs
Toolbox 2 pcs
Wheel Grids 2 pcs
L arms 2 pcs
Fence 2 pcs
Mudflap 2 pcs
Lamp Frame 1 pcs
Bed Position Limit 1 set
Frame and Lights Bolts 1 set
Toolbox and Fence Brackets Square Tube 1 set
