Specifications
Brand Name :
HT
Model Number :
12 inch Flange Hastelloy B3 ASTM B564 UNS: N10675
Certification :
ISO,BV,SGS
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram,30% T/T IN ADVANCE 70% BEFORE SHIPMENT, L/C
Supply Ability :
10000 PIECES PER YEAR
Delivery Time :
15-20 Working Days
Packaging Details :
Woodcase, pallet, woven bag etc. or as per your requirement
Size :
12"
Process :
Forged
Class Rating :
150#
Sealing Face :
RF
Face Finish :
Smooth /Stock Finish
Application :
Chemical /Oil/Gas/Energy
Standard :
ASME B16.5
Material :
Nickle Alloy Steel
Description

NECK FLANGE ASTM B564 UNS: N10675 ASME B16.5 GROOVED RF 150PSI SCH10S 12"

Pipe Flange Specification Hub Data Raised Face Drilling Specification
Norminal
Pipe
Size		 A B C D E F G H I J
Outside
Diameter		 Overall
Diameter		 Inside
Diameter		 Flange
Thickness
min		 Overall
Length		 Diameter at
weld bevel		 Hub
Diameter		 Face
Diamter		 Number of
Holes		 Bolt Hole
Diameter		 Diameter
of Circle
of Holes
in
mm		 in
mm		 in
mm		 in
mm		 in
mm		 in
mm		 in
mm		 in
mm		 in
mm		 in
mm
12 12.75
323.8		 19.00
482.6		 12.88
327.1		 1.250
31.75		 4.500
114.3		 12.75
323.8		 14.38
365.3		 15.00
381.0		 12 1.000
25.40		 17.00
431.8

Forged RF Nickel Alloy Flanges 12

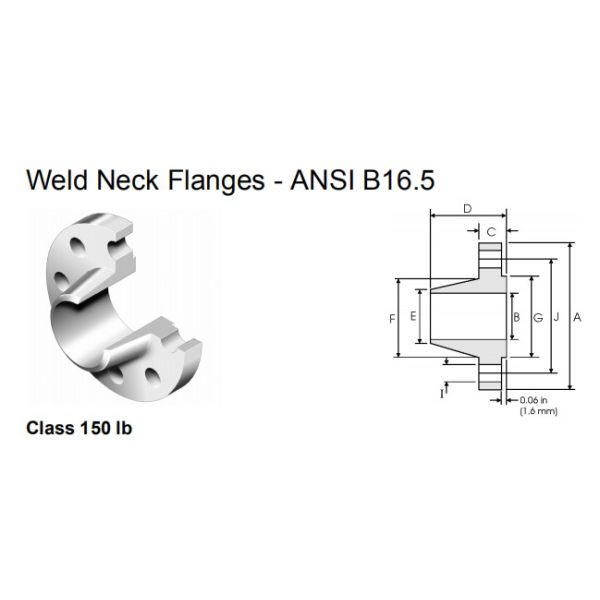

1. Flange Specification:

Forged RF Nickel Alloy Flanges 12

2. Hastelloy B3 Datasheet:

  • Specifications

UNS: N10675

ASTM: B 333, B 335, B 619, B 622, B 626, B 366, B 472

ASME: SB-333, SB-335, SB-619, SB-622, SB-626, SB-366

  • Chemical Composition
Ni Cr Mo Mn Cu Si C S P Ti Al Co Nb V Fe
MIN 65.0 1.0 27.0 – – – – – – – – – – – 1.0
MAX – 3.0 32.0 1.0 0.2 0.1 0.01 0.01 0.03 0.2 0.5 3.0 0.2 0.2 3.0
  • Features

A. Resists hydrochloric acid at all concentrations and temperatures

B. Withstands wet HCl gas, sulfuric, acetic and phosphoric acids

C. Excellent resistance to pitting and to stress corrosion cracking

  • Applications

A. Acetic acid production, initial phase in presence of iodide catalyst

B. Methyl methacrylate production with hot 98 H2SO4

C. Production of herbicides, insecticides, ethylene glycol, ethyl benzene

  • Physical Properties

Density: 0.333 lb/in3 Melting Range: 2500- 2585°F Electrical Resistivity: 651 Ohm-circ mil/ft

Temperature, °F 200 400 600 800 1000 1200 1400 1600
Coefficient* of Thermal Expansion, in/in°F x 10-6 5.7 6.1 6.3 6.5 6.6 6.5 7.1 7.6
Modulus of Elasticity Dynamic, psi x 106 30.9 30.1 29.3 28.3 27.2 26.5 24.9 23.3

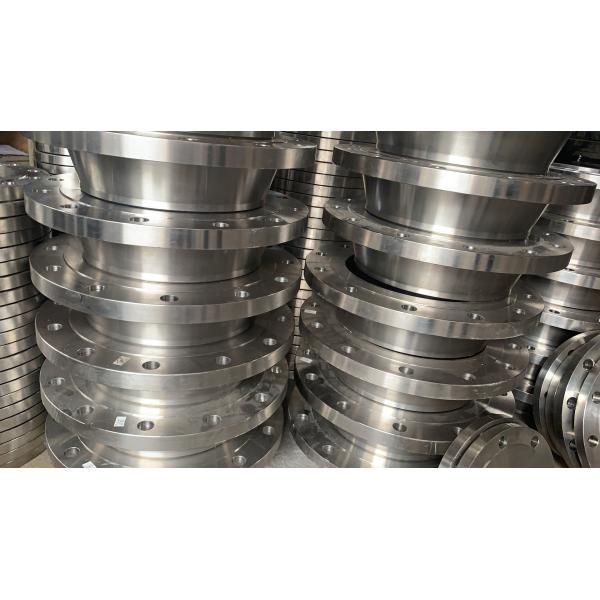

3. Product Showcase:

Forged RF Nickel Alloy Flanges 12

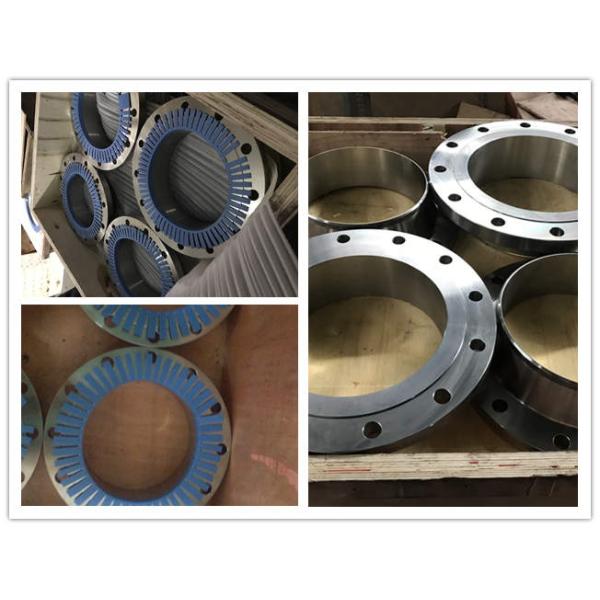

4. Packaging Details

Forged RF Nickel Alloy Flanges 12

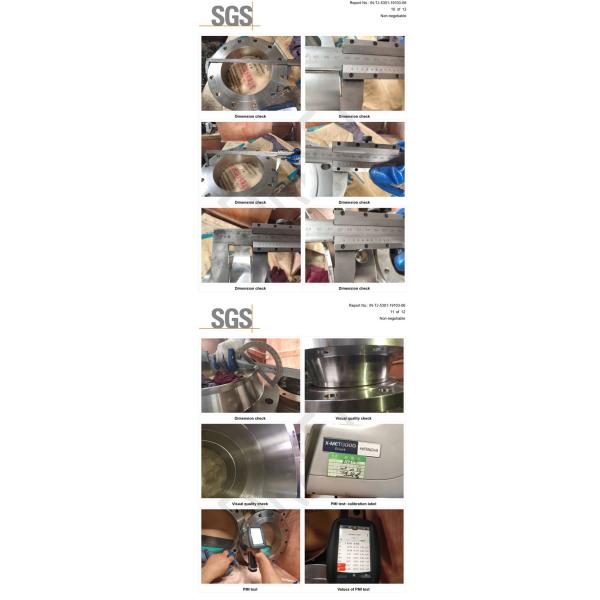

5. Quality Assurance

Forged RF Nickel Alloy Flanges 12
