Threaded Nickel Alloy Flanges 900# 1500# 2500# 1 / 2 - 24 For Oil / Gas Industry
Threaded Nickel Alloy Flanges 900# 1500# 2500# 1 / 2 - 24 For Oil / Gas Industry
Threaded Nickel Alloy Flanges 900# 1500# 2500# 1 / 2 - 24 For Oil / Gas Industry
Threaded Nickel Alloy Flanges 900# 1500# 2500# 1 / 2 - 24 For Oil / Gas Industry
Specifications
Brand Name :
HT
Model Number :
ASTM B564 UNS N10675 HASTELLOY B-3 ALLOY B-3 DIN 2.460
Certification :
ISO,BV,SGS
Place of Origin :
CHINA
MOQ :
1 PIECE
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram,30% T/T IN ADVANCE 70% BEFORE SHIPMENT, L/C
Supply Ability :
10000 PIECES PER YEAR
Delivery Time :
15-20 WORK DAYS
Packaging Details :
WOODCASE,PALLET ,WOVEN BAG ETC.OR AS PER YOUR REQUIRMENTS.
SIZE :
1/2" - 24"
PROCESS :
FORGED
CLASS RATING :
150#300#600#900#1500#2500#
SEALING FACE :
RF FF RTJ
FACE FINISH :
SMOOTH /STOCK FINISH
PRODUCT NAME :
NICKEL ALLOY STEEL ASME B16.5 FORGED RF FF RTJ HASTELLOY B-2 DIN 2.4617 FLANGE
APPLICATION :
CHEMICAL /OIL/GAS/ENERGY
Description

900#1500#2500# 1/2"-2 1/2" ALLOY B-3 RF ASME B16.5 THREADED FLANGE FOR OIL&GAS INDUSTRY

Hastelloy B3 FLANGE

N10675, ASTM B366, ASME SB366, WPHB3-W, ASME B16.9, ANNEALED, MERCURY FREE, EN 10204-3.1 (W/O X-RAY), ASTM B335, ASME SB335, ASTM B564, ASME SB564, DIMENSIONS PER ASME B16.5, ASTM B462, ASME SB462, ASME B16.5, COLD DRAWN, HOT FINISHED, ASTM B626, ASME SB626, B/SB626 CLASS III, ASTM B333, ASME SB333, COLD ROLLED, HOT ROLLED, Werkstoff 2.4600

Hastelloy B3 Specifications

Specifications ASTM B564 / ASME SB564
Size 1/2″NB TO 60″NB
Standards ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
Class / Pressure 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
Standard ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.

Other Hastelloy B-3 Flanges we have

Standard Type Class Size
ASME B16.5 WN/LWN/SO/Blind/Lap Joint 150#-2500#

1/2"-24"

(Except Blind Flange 2500lb 1/2"-12")
SW flange 150#-1500#

1/2"-3"

(Except 1500# 1/2"-2 1/2")
Threaded 150#-900# 1/2"-24"
1500# 2500# 1/2"-2 1/2"
ASME B16.47 Series A WN/blind flange 150# -900#

22"-48"

(Except 900# Size:26"-48")
ASME B16.47 Series B WN/blind flange 75#-300# 26"-48"
400# 600# 900# 26"-36"
DIN2527 Blind flange PN6-PN100 DN10-DN1000
DIN2543 SO flange PN16 DN10-DN1000
DIN2544 SO flange PN25 DN10-DN1000
DIN2545 SO flange PN40 DN10-DN500
DIN2565 Threaded flange with Neck PN6 DN6-DN200
DIN2566 Threaded flange with Neck PN16 DN6-DN150
DIN2567 Threaded flange with Neck PN25 PN40 DN6-DN150
DIN2568 Threaded flange with Neck PN64 DN10-DN150
DIN2569 Threaded flange with Neck PN100 DN10-DN150
EN1092-1:2002

Plate flange for welding/

loose plate flange with weld-on plate collar or for lapped pipe

end/Blind Flange/WN flange

 PN2.5-PN100 DN10-DN4000
JIS B2220

Welding flange,

lap joint flange,

threaded flange

 PN6-PN100 DN10-DN1500
BS4504 BS10 TableD/E

Plate Flange for welding/

WN flange/blank Flange

 PN6-PN100 DN10-DN1500
Other Products

Anchor/swivel/girth/l

ap joint/reducing/orifice

Spectacle blind/paddle blind/

spacer ring/orifice plate/bleed ring

Special Products: rings/

forgings/disc/shaft sleeves
Sealing Surface RF FF RTJ TF GF LF LM
Flange Face Finish

Stock finish/spiral serrated/

concentric serrated/smooth finish

(Ra 3.2 and 6.3 micrometers)
125-250 AARH(it is called smooth finish)
250-500 AARH(it is called stock finish)
Coating Vanish, yellow paint, anti-rust oil, galvanizing etc
Material Grade Nickel Alloy Steel

ASTM/ASME B/SB564 UNS N02200(NICKEL 200),

UNS N04400(MONEL 400),
UNS N08825( INCOLOY 825),UNS N06600(INCONEL 600),

UNS N06601(INCONEL 601), UNS N06625(INCONEL 625),

UNS N10675(HASTELLOY C276),

ASTM/ASME B/SB160 UNS N02201(NICKEL 201),

ASTM B/SB472 UNS N08020(Alloy 20)
Copper Alloy

ASTM/ASME B/SB151 UNS C70600(CuNi 90/10),

C71500(CuNi 70/30)
Stainless Steel

ASTM/ASME A/SA182 F304,304L,304H,309H,310H,

316,316H,316L,316LN,
317,317L,321,321H,347,347H
Duplex and Super Duplex Steel

ASTM/ASME A/SA182

F44,F45,F51,F53,F55,F60,F61
Carbon steel ASTM /ASME A/SA105(N)
Low Temp Carbon Steel ASTM/ASME A/SA350 LF2
High Yield Carbon Steel ASTM/ASME A/SA694 F52,F56 F60, F65, F70
Alloy Steel

ASTM/ASME A/SA182 GR F5,

F9, F11,F12,F22,F91
Titanium ASTM/ASME B/SB381 Grade 2, Grade 5, Grade 7

Type of Hastelloy B-3 Flanges

Hastelloy B-3 Slip On Flanges Hastelloy B-3 Raised Face Slip On Flanges
B-3 Alloy Slip On Plate Flanges
Hastelloy B-3 Slip On Flanges
Hastelloy UNS N10675 Slip On Flanges
Hastelloy WERKSTOFF NR. 2.4600 45 SORF Flanges
ASME SB564 Alloy B-3 Slip On Flanges
Hastelloy B-3 Weld Neck Flanges Hastelloy B-3 Raised Face Weld Neck Flanges
B-3 Alloy Weld Neck Flanges
B-3 Hastelloy Weld Neck Flange
Hastelloy UNS N10675 Weld Neck Flanges
Hastelloy WERKSTOFF NR. 2.4600 Weld Neck Flange
ASTM B564 Hastelloy B-3 WNRF Flange
Hastelloy B-3 Blind Flanges Hastelloy B-3 Raised Face Blind Flanges
B-3 Alloy Blind Flanges
Hastelloy B-3 Blind Flange
Hastelloy UNS N10675 Blind Flanges
Hastelloy WERKSTOFF NR. 2.4600 Blind Flange
ASTM B564 Hastelloy B-3 BLRF Flanges
Hastelloy B-3 Orifice Flanges Alloy B-3 Orifice Flanges
B-3 Hastelloy Orifice Flanges
B-3 Hastelloy Orifice Flanges
Hastelloy UNS N10675 Orifice Flanges
Hastelloy WERKSTOFF NR. 2.4600 Orifice Flanges
B564 B-3 Hastelloy Orifice Flanges
Hastelloy B-3 Socket weld Flanges Alloy B-3 Socket weld Flanges
B-3 Hastelloy Socket weld Flanges
B-3 Alloy Socket weld Flanges
Hastelloy UNS N10675 Socket weld Flanges
Hastelloy WERKSTOFF NR. 2.4600 SWRF Flanges
ASME B16.5 B-3 Hastelloy Socket weld Flanges
Hastelloy B-3 Threaded Flanges Hastelloy B-3 Threaded Flanges
B-3 Alloy Threaded Flanges
B-3 Hastelloy Threaded Flanges
Hastelloy UNS N10675 Threaded Flanges
Hastelloy WERKSTOFF NR. 2.4600 Threaded Flanges
ASTM B564 Hastelloy B-3 Threaded Flanges
Hastelloy B-3 Long weld Neck Flanges Hastelloy B-3 Long weld Neck Flanges
B-3 Alloy Long weld Neck Flanges
B-3 Hastelloy Long weld Neck Flanges
Hastelloy UNS N10675 Long weld Neck Flanges
Hastelloy WERKSTOFF NR. 2.4600 Long weld Neck Flanges
ASTM B564 Hastelloy B-3 Long weld Neck Flanges
Hastelloy B-3 RTJ Flanges Hastelloy B-3 Ring Type Joint Flanges
B-3 Alloy Ring Type Joint Flange
B-3 Hastelloy RTJ Flanges
Hastelloy UNS N10675 RTJ Flanges
Hastelloy WERKSTOFF NR. 2.4600 RTJ Flanges
BS4504 Hastelloy B-3 RTJ Flanges
Hastelloy B-3 Reducing Flanges Hastelloy B-3 Reducing Flanges
B-3 Alloy Reducing Flanges
B-3 Hastelloy Reducing Flange
Hastelloy UNS N10675 Reducing Flanges
Hastelloy WERKSTOFF NR. 2.4600 Reducing Flange
ASTM B564 Hastelloy B-3 Reducing Flanges
Hastelloy B-3 Forged Flanges Hastelloy B-3 Forged Flanges
B-3 Alloy Forged Flange
B-3 Hastelloy Forged Flange
Hastelloy UNS N10675 Forged Flanges
Hastelloy WERKSTOFF NR. 2.4600 Forged Flanges
ASTM B564 Hastelloy B-3 Forged Flanges

About Hastelloy B-3 Flanges

Hastelloy Alloy B-3 Pipe Flanges Chemical Composition

Grade Ni Mo Cr Fe W Mn C Al Ti Si
Hastelloy B3 65.0 min 28.5 1.5 1.5 3.0 max 3.0 max 0.01 max 0.50 max 0.2 max 10 max

Hastelloy B-3 Plate Flanges Mechanical Properties

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
9.2 g/cm3 1370 °C (2550 °F) Psi – 1,15,000 , MPa –760 Psi – 52,000 , MPa – 350 40%

Equivalent Grades for B-3 Hastelloy Industrial Pipe Flanges

STANDARD WERKSTOFF NR. UNS
Hastelloy B3 2.4600 N010675

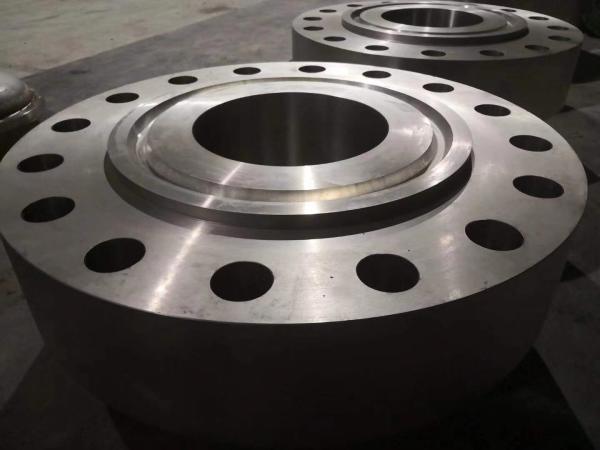

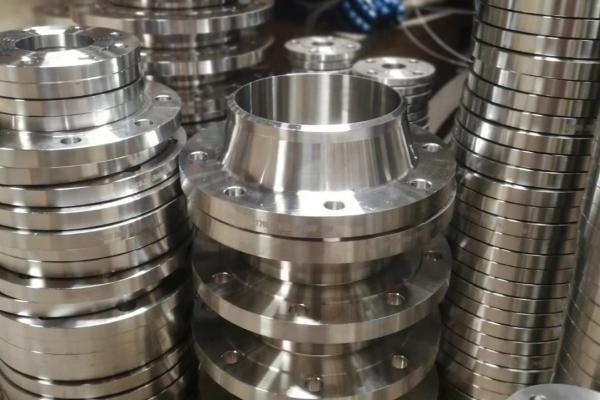

PICTURE OF HASTELLOY B-3

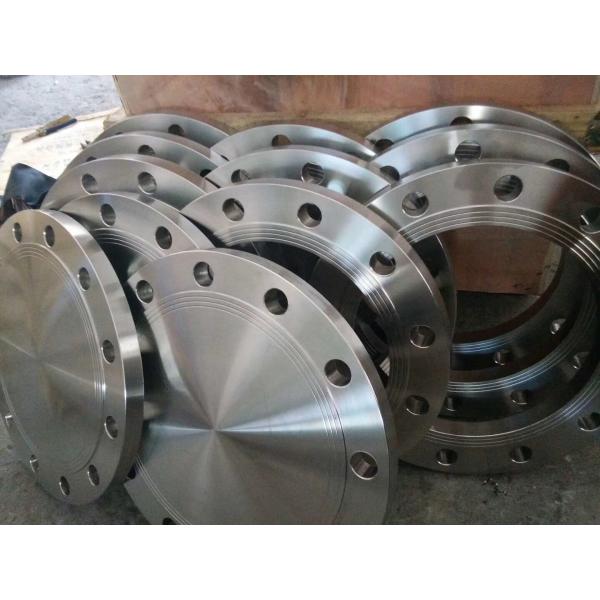

Threaded Nickel Alloy Flanges 900# 1500# 2500# 1 / 2

Hastelloy B-3 Flanges Packaging

Hastelloy B-3 Flanges are widely used in various industries including petrochemical, oil and gas, power generation, bulk liquid transportation, chemicals, pharmaceuticals, pulp and paper manufacturing, textiles and others. All our Alloy B-3 Flange are manufactured in accordance with international standards. Hastelloy B-3 Pipe Flange are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Hastelloy B-3 Plate Flanges are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on B-3 Hastelloy Flanges.

APPLICATION:

CHEMICAL /OIL/GAS/ENERGY

Why Choose Us

1.One-Stop Service,One Single Source.

2.No MOQ.

3.Best quality,competitive price

4.Fast Reply.

5.On-Time Delivery

6.Professional sales and technical team .
