Torx Drive Pan Head Thread Forming Metal Tapping Screws For Soft Metal
Torx Drive Pan Head Thread Forming Metal Tapping Screws For Soft Metal
Torx Drive Pan Head Thread Forming Metal Tapping Screws For Soft Metal
Torx Drive Pan Head Thread Forming Metal Tapping Screws For Soft Metal
Torx Drive Pan Head Thread Forming Metal Tapping Screws For Soft Metal
Torx Drive Pan Head Thread Forming Metal Tapping Screws For Soft Metal
Specifications
Brand Name :
Runtai
Model Number :
Tapping Screws
Certification :
ISO9001/TS16949
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
50000
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5ton/day
Delivery Time :
14-21 days
Packaging Details :
Poly bag+Cartoon Box+ Wooden Pallet
Products Name :
Zinc Plated Steel Torx Drive Pan Head Thread-Forming Screws for Soft Metal
Material :
Stainless Steel Brass Copper Aluminum Alloy Steel
Standard :
DIN,ANSI,JIS,ASTM,GB
Size :
M1-M30 for choose
Surface Treatment :
Zinc Plated, Nickel Plated, Zinc-Nickel Plated, Black Oxide
Grade :
4.8 8.8 10.9 12.9 for choose
Description

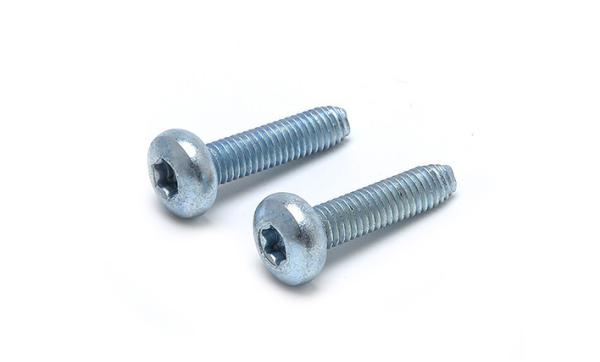

Zinc Plated Steel Torx Drive Pan Head Thread-Forming Screws for Soft Metal

Products Description

These screws have a triangular shank that presses tightly as it forms threads, so screws resist loosening in soft metals such as brass,aluminum, and copper. Also known as Taptite screws, they have a Torx drive that allows you to apply extra force with less slippage or damage to the recess. Made from steel, they're zinc-plated steel to resist corrosion in wet environments.Length is measured from under the head.

Products Specification

Material Zinc-Plated Steel
Thread Size M3
Screw Size M3
Length 10 mm
Head, mm
Diameter 5.45
Height 2.3
Drive Size T10
Drive Style Torx
Thread Direction Right Hand
Threading Fully Threaded
Thread Type Metric
Thread Spacing Coarse
Thread Pitch 0.5 mm
Tapping Method Thread Forming
Head Type Rounded
Rounded Head Profile Standard
Rounded Head Style Pan
Tip Type Blunt
Shank Cross Section Tri-Lobe
System of Measurement Metric
For Use In Aluminum, Brass, Copper
RoHS Compliant

Note: Material, Size and Surface Treatment for choose.

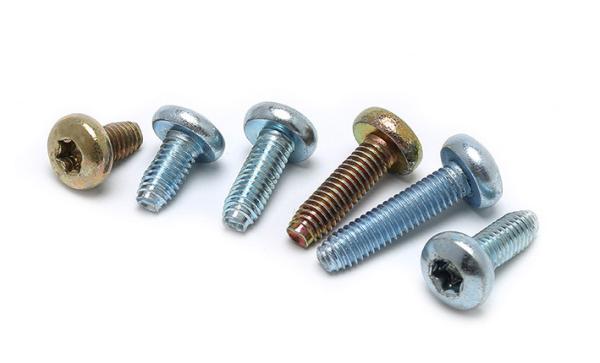

More Products Pictures

Torx Drive Pan Head Thread Forming Metal Tapping Screws For Soft MetalTorx Drive Pan Head Thread Forming Metal Tapping Screws For Soft Metal
