Specifications
Brand Name :
Caterpillar
Model Number :
E6300F
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1
Price :
$80000
Payment Terms :
L/C, D/A, D/P
Supply Ability :
negotiable
Delivery Time :
8 work days
Packaging Details :
bare bones
Operating Weight :
29300 kg
Bucket capacity :
1.4 m³
Working hours :
1600
Year :
2021
Machine Weight :
29300 kg
Product name :
Used Crawler Excavator
Power :
170 KW
Maximum Digging Height :
9620mm
Maximum Digging Depth :
6830mm
Max Digging Radius :
10160mm
Description
China Famous Brand SDLG 30 Ton Medium Excavator E6300F Crawler Excavator with Attachments for Sale
Overall dimension
Overall width of upper assembly
2890mm
Overall width
3190mm
Overall height
3430mm
Tail swing radius
3050mm
Overall height of engine hood
3030mm
Ground clearance of counterweight
1145mm
Wheelbase
4015mm
Crawler length
4870mm
Crawler gauge
2590mm
Crawler pad width
600mm
Min. ground clearance
480mm
Overall length
10500mm
Overall height of boom
3430mm
Overall parameters
Bucket capacity
1.4m³
Overall operating weight
29300kg
Max. excavation force
193.5KN
Slew speed
10.7r/min
Traveling speed (low/high)
3.4/5.4km/h
Average ground pressure
56.3kPa
Max. digging radius
10160mm
Max. digging depth
6830mm
Max. digging height
9620mm
Max. dumping height
6690mm
Min. front slewing radius
4220mm

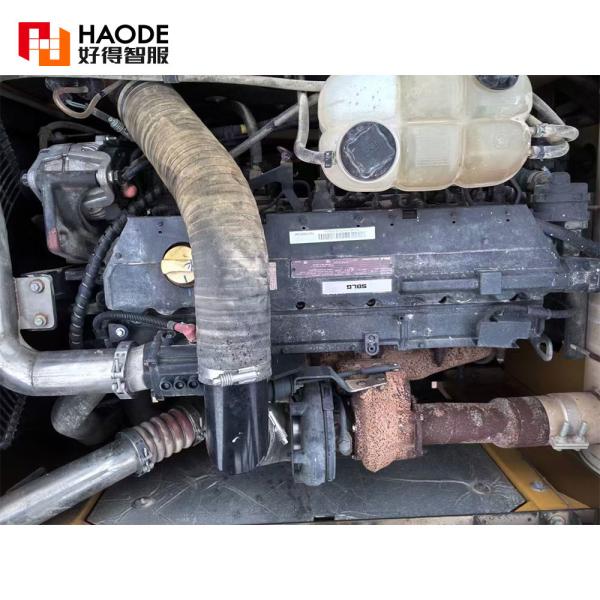

Engine
Model
E6300F
Type
Four-stroke,inter-cooled, supercharged
Rated Power@Revolution Speed
170kW
Displacement
7146mL
Cylinder bore × stroke
108*130mm
Emission standard
GB20891-2014 China Phase III
Rated fuel consumption
230g/kw.h
Max. torque
1080N.m
Traveling/swing system
Qty. of carrier rollers (single side)
2
Qty. of track rollers (single side)
9
Traveling brake type
Wet disc brake
Swing mode
Hydraulic drive internal tooth
single-row ball-bearing
Swing brake type
Wet disc brake
Hydraulic system
Hydraulic control type
Pilot proportional control valve
Hydraulic system type
Dual pump constant power negative flow control system
Max. flow
2*263+18L/min
Operating pressure
330kgf/cm2
Fill capacity
Fuel
470L
Engine oil
26.5L
Hydraulic oil
370L
Antifreeze
2×3.5L
