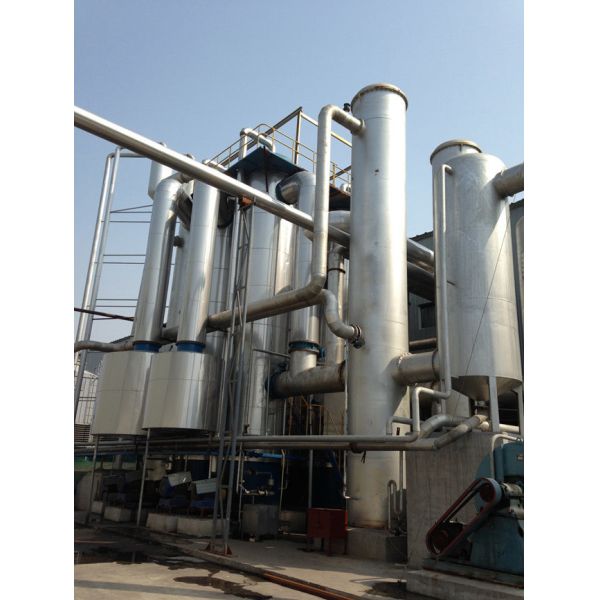

High efficient Double effect crystallization system for multiple salts
High efficient Double effect crystallization system for multiple salts
High efficient Double effect crystallization system for multiple salts
High efficient Double effect crystallization system for multiple salts
High efficient Double effect crystallization system for multiple salts
High efficient Double effect crystallization system for multiple salts
Specifications
Brand Name :
Hanpu
Model Number :
MVR
Certification :
CE ISO
Place of Origin :
China
MOQ :
1sets
Price :
USD18,0000-USD65,0000
Supply Ability :
1sets per months
Delivery Time :
45-60 working days
Packaging Details :
standard exported wooden case
Name :
Double effect crystallization system for multiple salts
Key sales points :
Energy saving
Application :
multiple salts
Power Source :
steam
Voltage :
customized
Dimension(L*W*H) :
customized
Condition :
New
Description
High-Efficient Double-Effect Crystallization System for Multiple Salts
Hanpu designs and supplies double-effect evaporation & vacuum crystallization systems for multi-salt applications such as NaCl, KCl, (NH4)2SO4, Na2SO4, sodium acetate, and mixed brines. Our compact two-effect layout delivers strong energy savings, precise crystal size control, and reliable operation for both new plants and brownfield upgrades.
High efficient Double effect crystallization system for multiple salts
High efficient Double effect crystallization system for multiple salts
Technology Parameters
Model DE-500 DE-1000 DE-1500 DE-2000
Evaporation (kg/h) 500 1000 1500 2000
Steam Consumption (kg/h) ≤250 ≤500 ≤750 ≤1000
Dimensions L×W×H (m) 4×1.5×3.3 5×1.6×3.5 6×1.6×3.7 6.5×1.7×4.3
Cycle Water Consumption (t/h) 6 12 15 18
Operating Ranges (common to all models)
Evaporation Temperature — First Effect (°C) 80–90
Evaporation Temperature — Second Effect (°C) 55–70
Vacuum — First Effect (MPa) 0.02–0.04
Vacuum — Second Effect (MPa) 0.05–0.06
Steam Pressure (MPa) <0.25
Concentration Ratio 1.2–1.3
Energy Efficiency
Typical steam economy of ~1.8–2.2 kg water/kg live steam (higher with TVR), cutting utility cost vs. single-effect systems.
Crystal Quality
Tight control of supersaturation, magma density, residence time, and seeding to hit target PSD and purity.
Low Fouling & Easy CIP
Optimized velocities and heat flux reduce scaling on heat surfaces; automated CIP quickly restores U-value.
Flexible to Multiple Salts
Process recipes switchable for chloride, sulfate, phosphate, and acetate systems; compatible with upstream RO/NF and downstream centrifuges/dryers.
How the Double-Effect Crystallization Works
  1. Preheat & Deaerate: Feed is preheated using condensate/flash vapors; non-condensables removed to stabilize boiling points.
  2. Effect 1 (Higher T/P): Falling-film or forced-circulation evaporation raises concentration near the metastable zone.
  3. Effect 2 (Lower T/P, Vacuum): Secondary vapor from Effect 1 heats Effect 2; controlled flash cooling and/or evaporative cooling develop supersaturation.
  4. Crystallizer: OSLO/FC or draft-tube-baffle configuration manages magma density and growth, limiting fines.
  5. Solid–Liquid Separation: Centrifuge or pressure filter recovers crystals; mother liquor is recycled or purged based on impurity build-up.
  6. CIP & Turnaround: Automated alkaline/acid cycles with conductivity endpoints; short downtime between campaigns.
Delivery Workflow
Feed analysis & targets → Thermal design & heat/mass balance → Pilot validation (as needed) → Detailed engineering → Fabrication & FAT → Installation & commissioning → Performance testing & training → Lifecycle service & spares.
Performance figures are indicative. Final design is confirmed by laboratory data, BPE/viscosity curves, corrosion/scaling assessment, and site utility conditions.
