HP-A30 High Speed Online Coating Machine With 1000mm/s Max Speed Dual Valve Versatility
HP-A30 High Speed Online Coating Machine With 1000mm/s Max Speed Dual Valve Versatility
Specifications
Online Programming :
Intuitive instructional programming for quick setup
Certification :
CE,ISO9001
Dual-Valve Versatility :
H-A01 spray + H-Y01 piezoelectric jet for complete process flexibility
SMEMA Interface :
Seamless integration with SMT lines
MOQ :
1 unit
Payment Terms :
T/T
CCD Visual Alignment :
Automatic calibration and error correction for perfect registration
Comprehensive Alarming :
Menu + sound/light alerts for fault notification
UV Inspection :
Built-in light source for real-time quality verification
Place of Origin :
China
Delivery Time :
30 working days
Packaging Details :
Wooden case with vacuum package inside
Brand Name :
Haipai
Ultra-High Speed :
1000mm/s X/Y movement for maximum throughput
Model Number :
HP-A30
High Precision :
±0.02mm repeatability with servo motor + precision lead screw drive
Description
HP-A30 High-Speed Online Coating Machine
Ultra-High-Speed Performance for Maximum Throughput
The HP-A30 Online Coating Machine establishes new industry standards with its exceptional 1000mm/s maximum X/Y axis movement speed, delivering the fastest coating cycles available for high-volume manufacturing operations. This superior speed capability enables manufacturers to achieve significantly higher throughput compared to conventional coaters, substantially reducing cycle times and enhancing overall equipment effectiveness.
The high-performance servo motor combined with precision lead screw drive maintains exceptional ±0.02mm repeatability even at maximum operational speeds, ensuring that production quality remains uncompromised regardless of throughput demands.
Key Features & Benefits
  • Integrated steel motion plane provides rigid, stable foundation minimizing vibration during high-speed operation

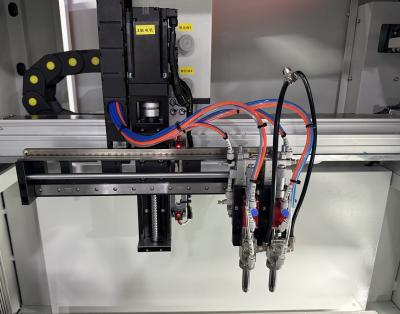

  • Dual-valve configuration (H-A01 spray + H-Y01 piezoelectric jet) ensures maximum process flexibility
  • Automatic width adjustment (50-450mm) accommodates diverse production requirements
  • SMEMA interface enables seamless production line integration
  • Built-in automatic cleaning system and UV detection light source
  • Industrial PC with motion control card for reliable operation
Technical Specifications
Parameter Specification
Model HP-A30
External Dimensions (L*W*H) L910mm * W1510mm * H1700mm
Control Method Industrial PC + Motion Control Card
Programming Method Online instructional programming
CCD Visual Alignment Automatic calibration and error correction
PCB Transfer Height 910±20mm
Conveyor Speed 0.5-3.5 m/min adjustable
Automatic Width Adjustment 50-450mm
Conveyor Type Chain conveyor (35B 5mm extended pin belt baffle stainless steel chain)
Transfer Motor Dual stepper motors, independent control
Component Clearance 100mm max
X, Y, Z Drive Servo motor + precision lead screw
X/Y Maximum Speed 1000mm/s
Repeatability Precision ±0.02mm
Coating Travel Range X=450mm, Y=460mm, Z=100mm
Valve Configuration 1x H-A01 precision atomization valve + 1x H-Y01 piezoelectric injection valve
Fluid System 10L stainless steel pressure tank + 2L stainless steel cleaning tank
Cleaning Function Built-in automatic cleaning
Lighting Built-in LED lighting
Inspection Built-in UV detection light source
Alarm System Menu + sound and light alarm
Motion Plane Integrated steel plane
Power Supply AC220V 50-60Hz
Air Supply 4-6 kgf/cm²
Total Power 3KW
Interface SMEMA
