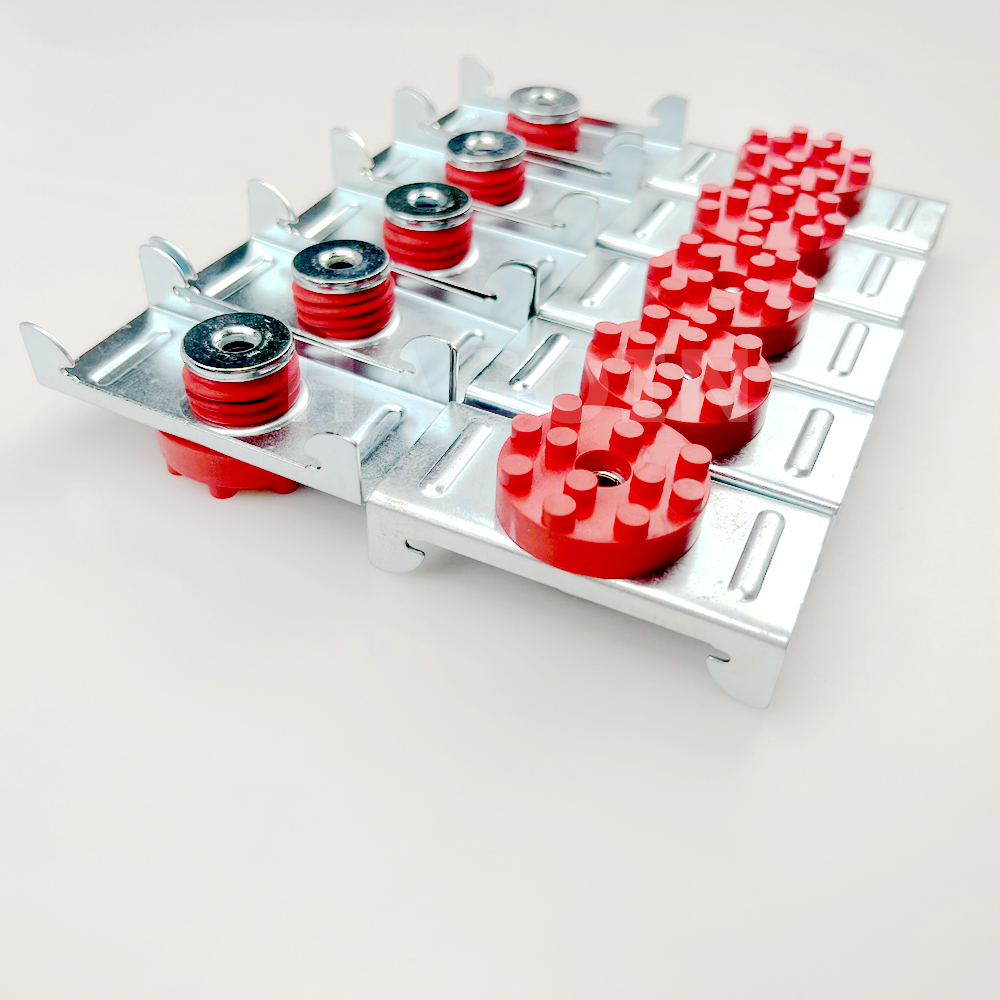

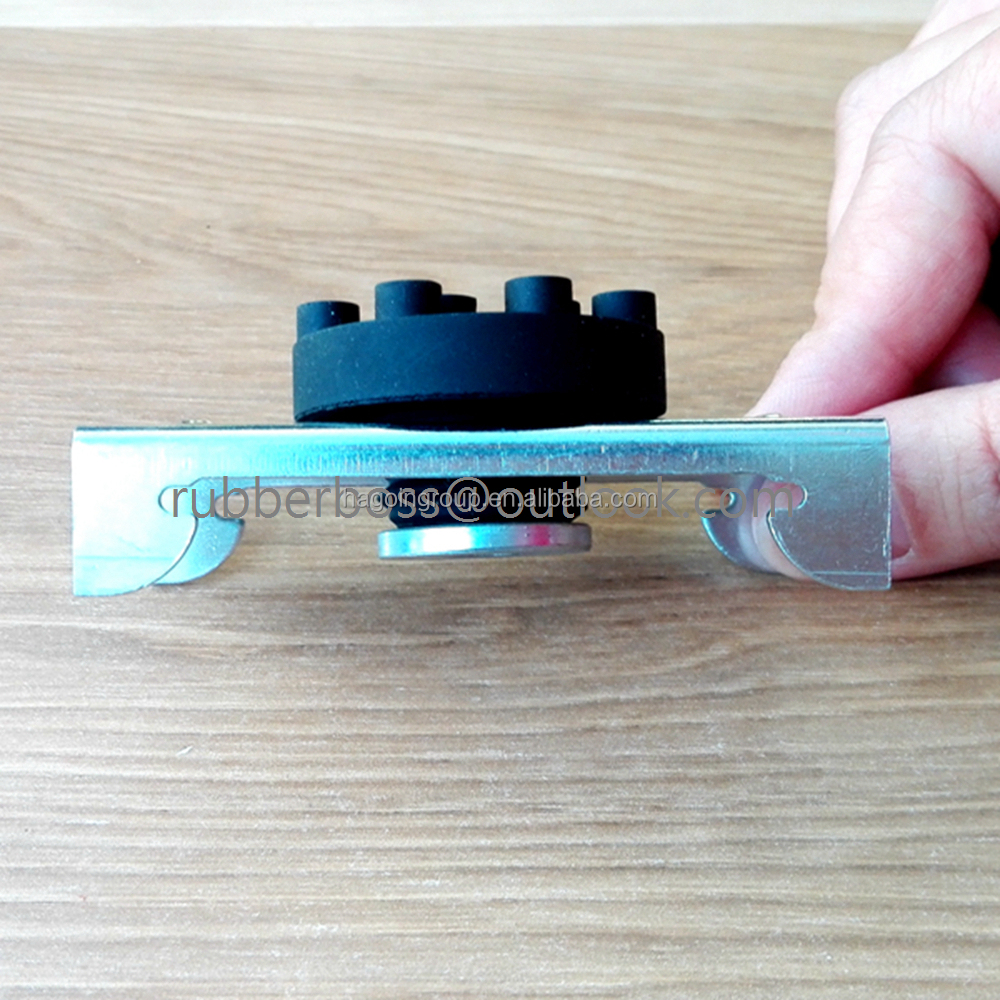

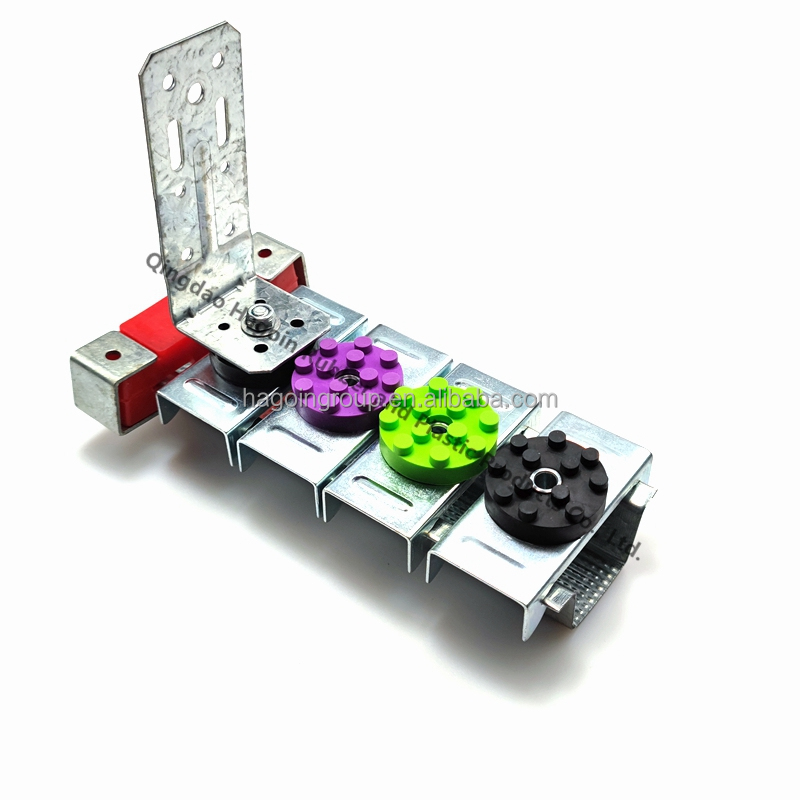

Resilient Mount Rsic 1 Clips Installation Rubber Zinc Plated Sound Clips Drywall

Specifications

Design Style :

Modern

Certificate :

CE,ISO9001,LFGB, ROHS,

Feature 3 :

resilent

Delivery Time :

With 15 days

Type :

resilient

Packing :

Plastic bag, nylon bag, carton or according to customer requirement.

Packaging Details :

cartons and pallet

Supply Ability :

1000 pieces per day

Place of Origin :

Shandong, China

Material :

Rubber, rubber+zinc plated metal

Feature 5 :

easy assembly

Project Solution Capability :

graphic design, 3D model design

Size :

According to the Drawing

Feature 4 :

vibration isolation

MOQ :

1000

Application :

Villa

Feature 1 :

elastic and long life

Price :

$0.28-0.60

Payment Terms :

T/T

Feature 2 :

stock

Model Number :

RSIC-1

Brand Name :

HAGOIN

After-sale Service :

Online Technical Support, Return and Replacement

Feature :

noise isolation

Warranty :

5 year

Description

Resilient Mount Clip Rubber Zinc Plated Metal Vibration/Noise Isolation Acoustic Wall/Ceiling Systems Easy Assembly Modern

Product Description

Specification

item	value
Warranty	5 years
After-sale Service	Online technical support, Return and Replacement
Project Solution Capability	graphic design, 3D model design
Application	Fit for 1-5/8 inches from supporting structure, when 7/8-inch drywall furring channels
Design Style	Modern
Place of Origin	China
	Shandong
Brand Name	Hagoin
Model Number	RSIC-1
Type	resilient
Material	rubber+zinc plated metal
Size	According to the Drawing
Delivery Time	With 15 days
Packing	Plastic bag, nylon bag, carton or according to customer requirement.
Certificate	CE,ISO9001, UL94, ROHS,
Feature 1	elastic and long life
Feature 2	stock
Feature 3	resilent
Feature 4	Reduce vibration
Feature 5	easy assembly

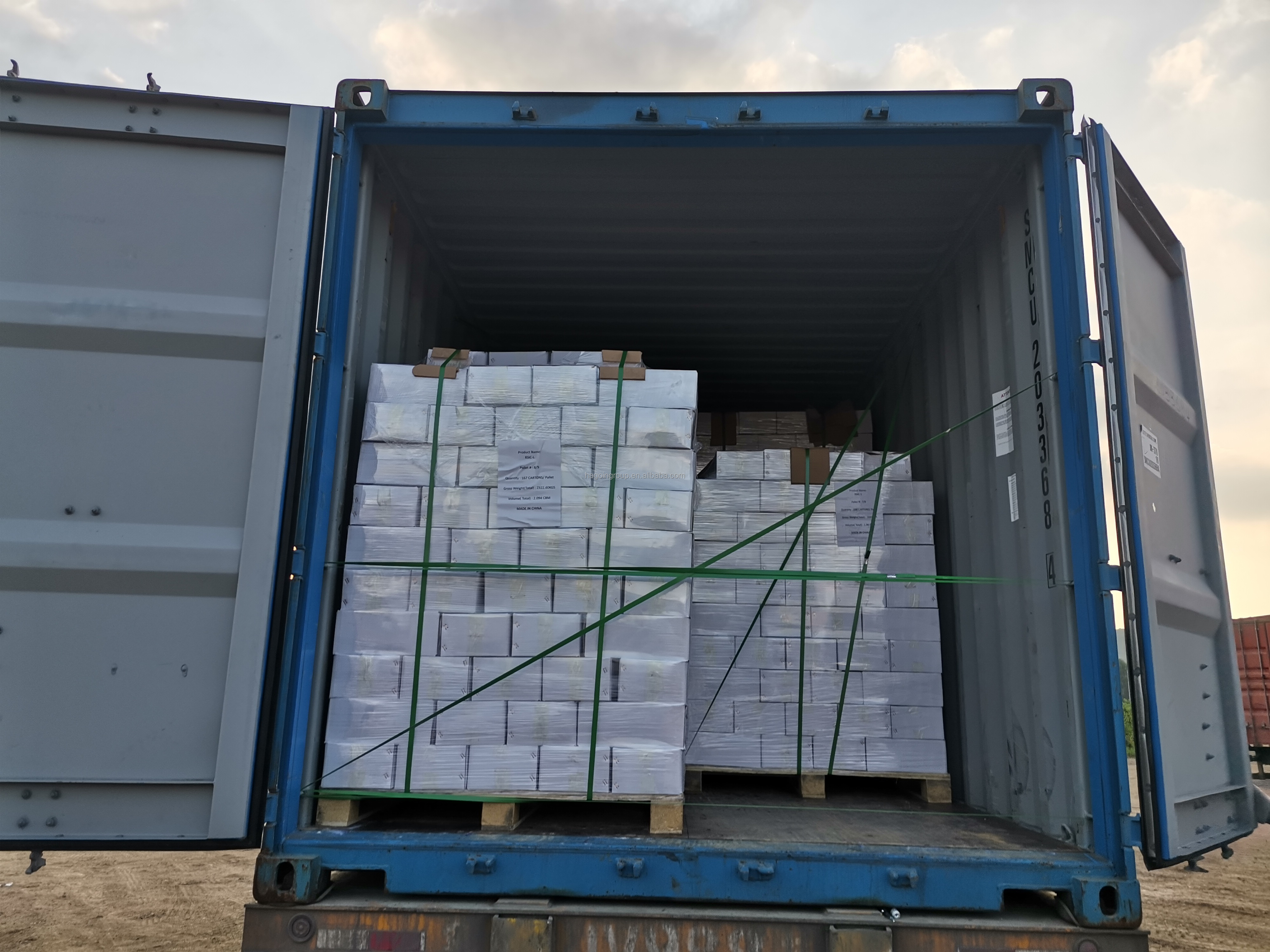

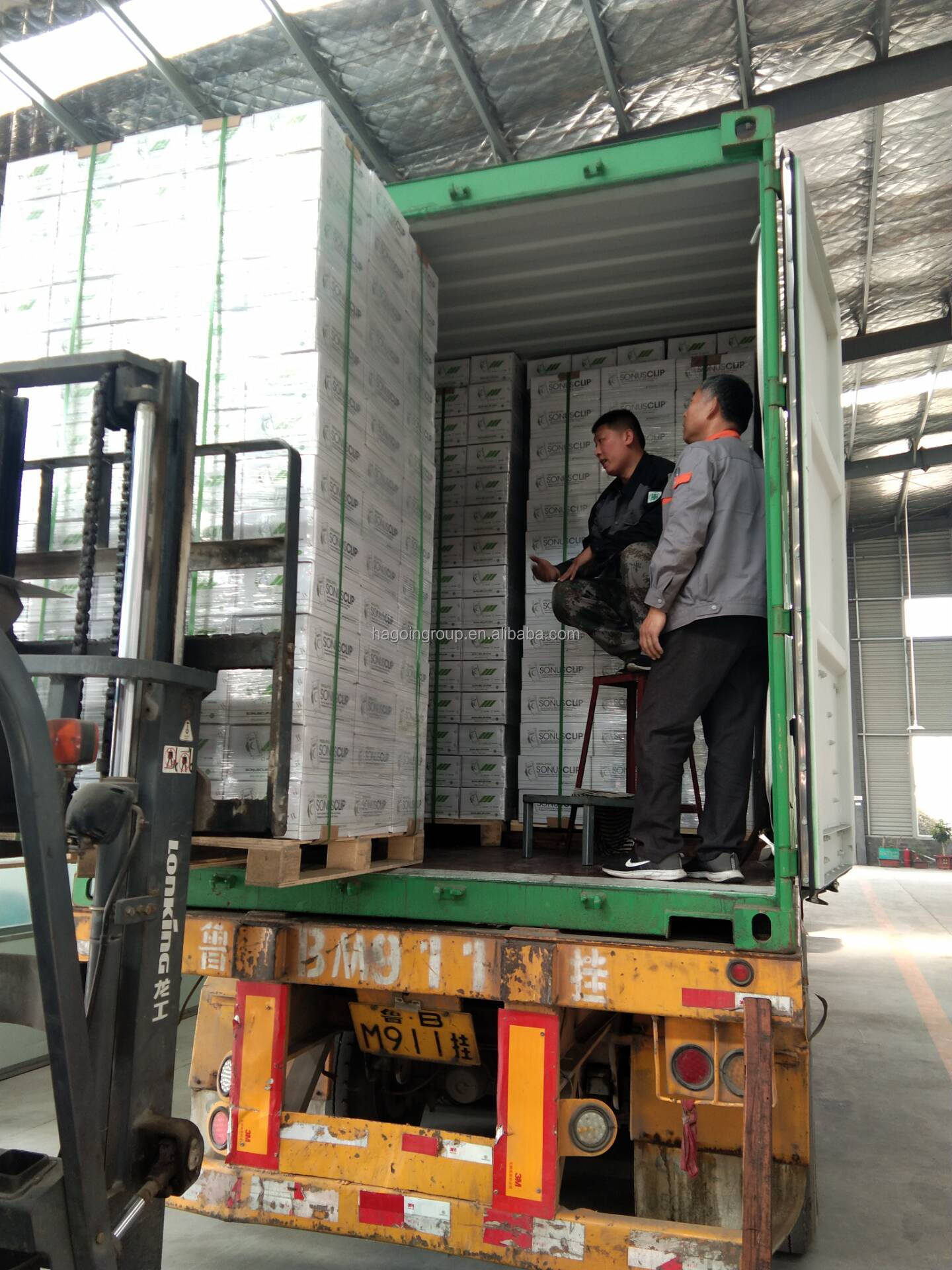

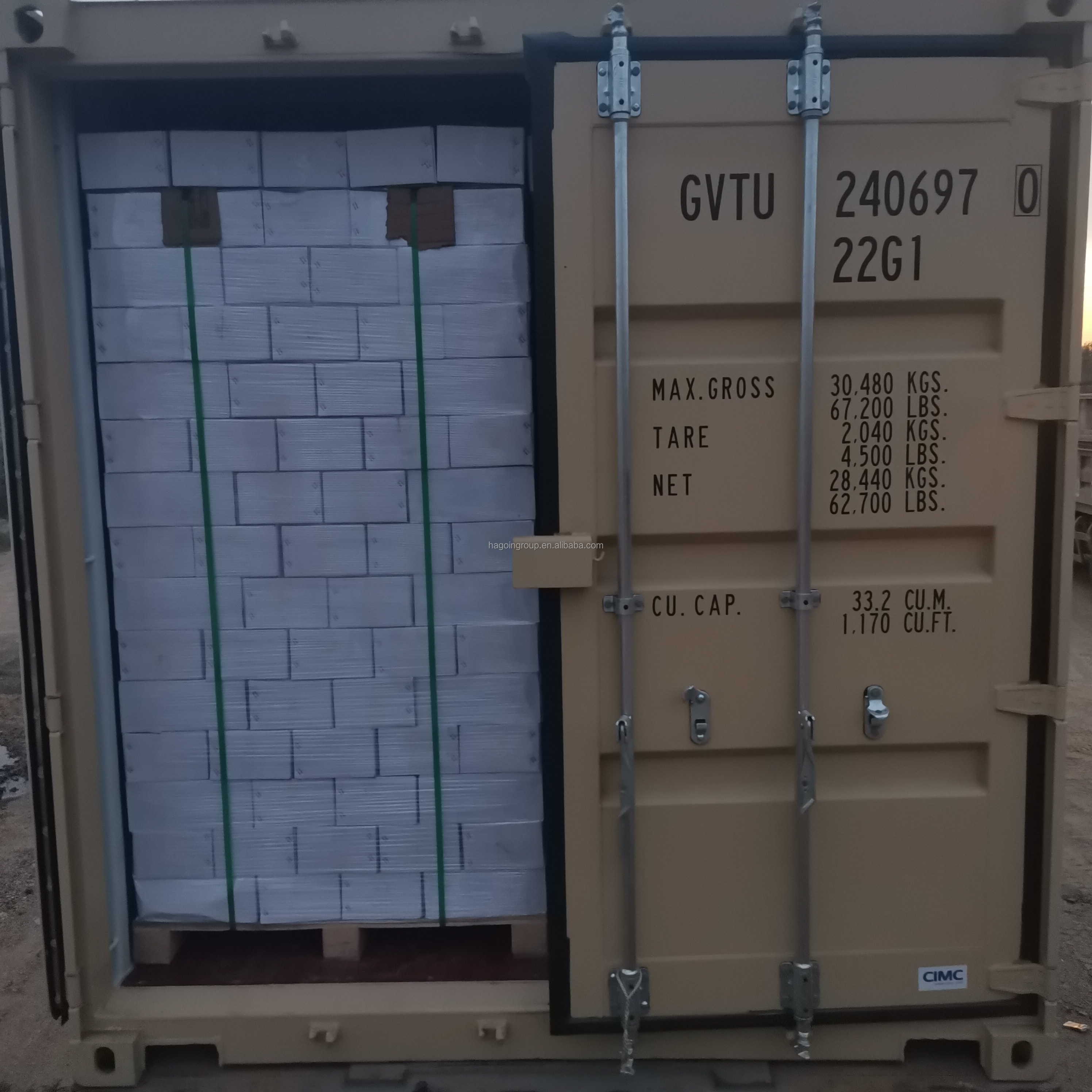

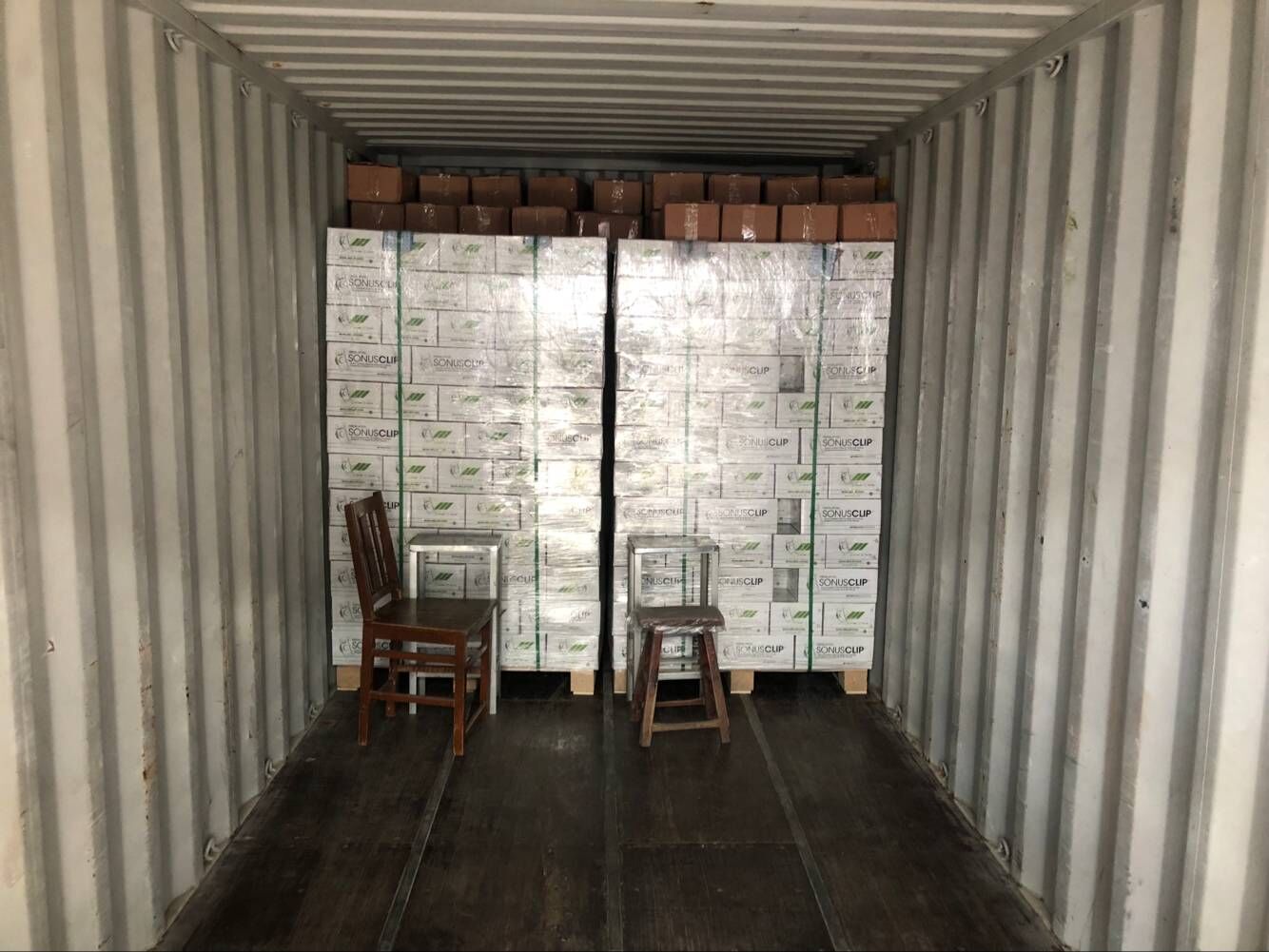

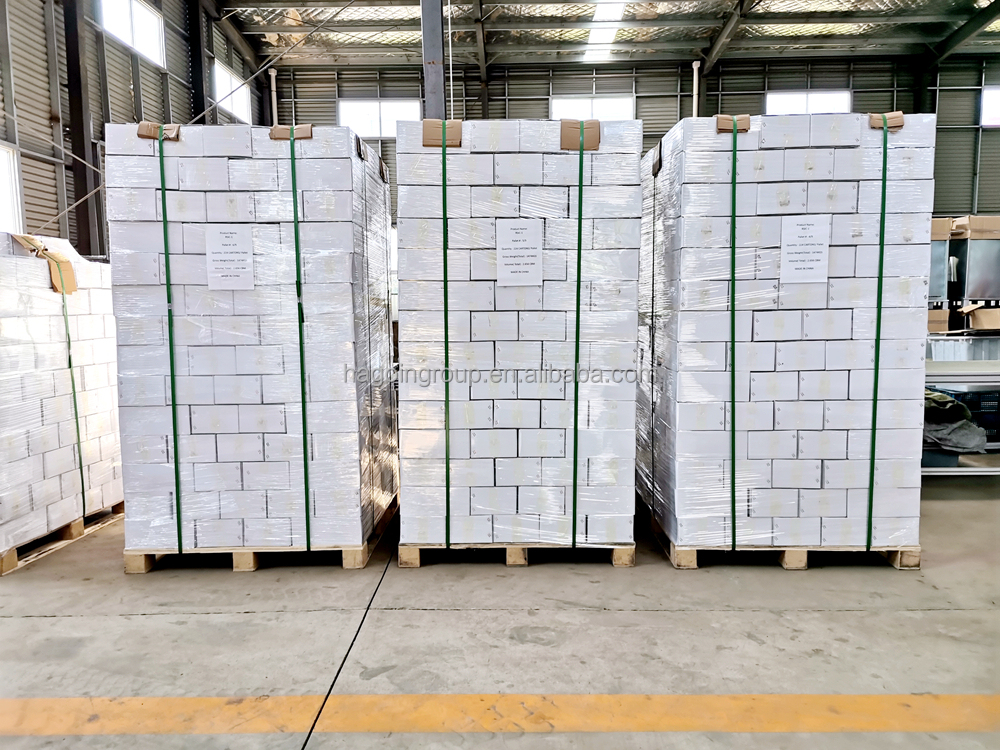

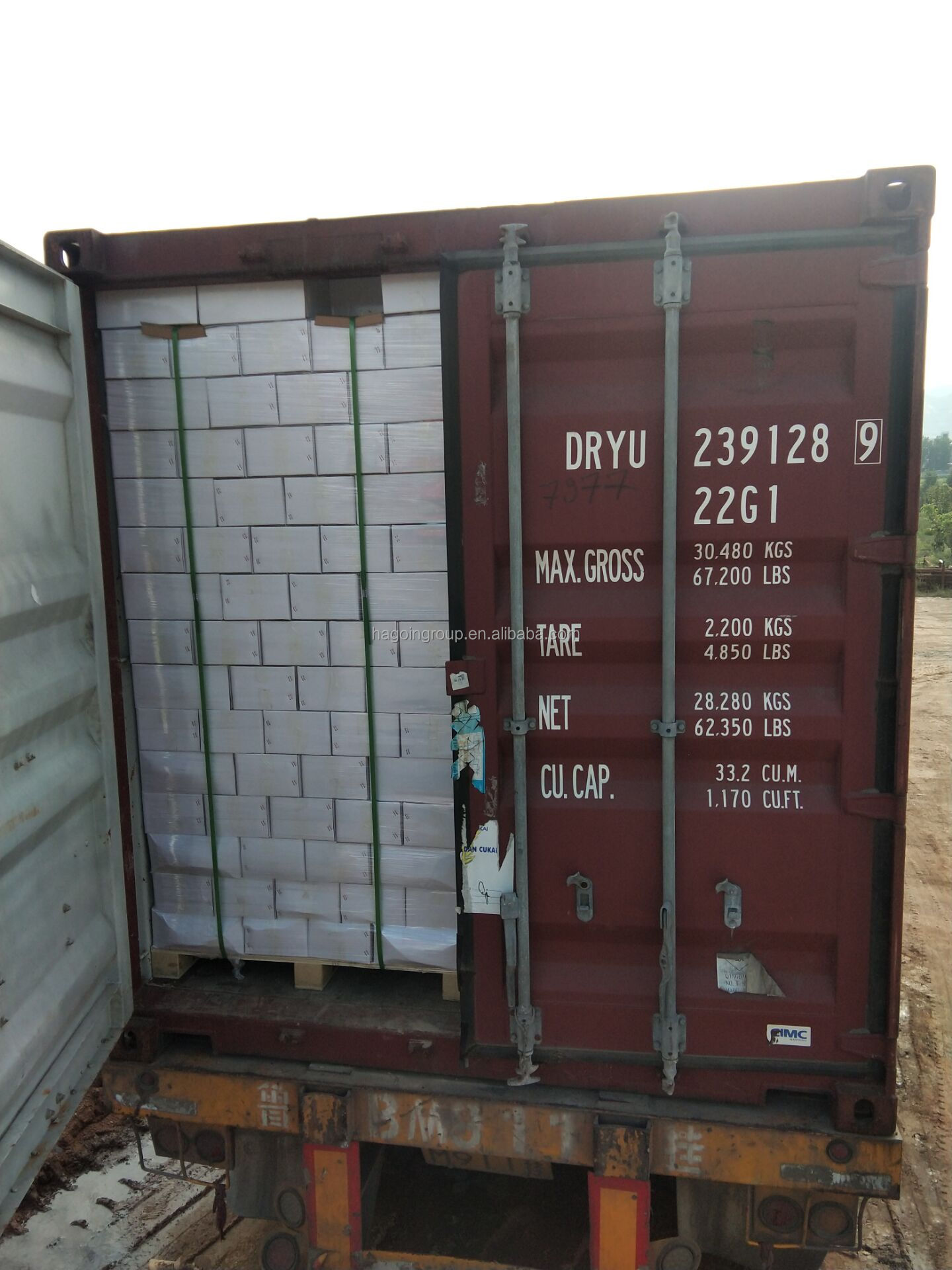

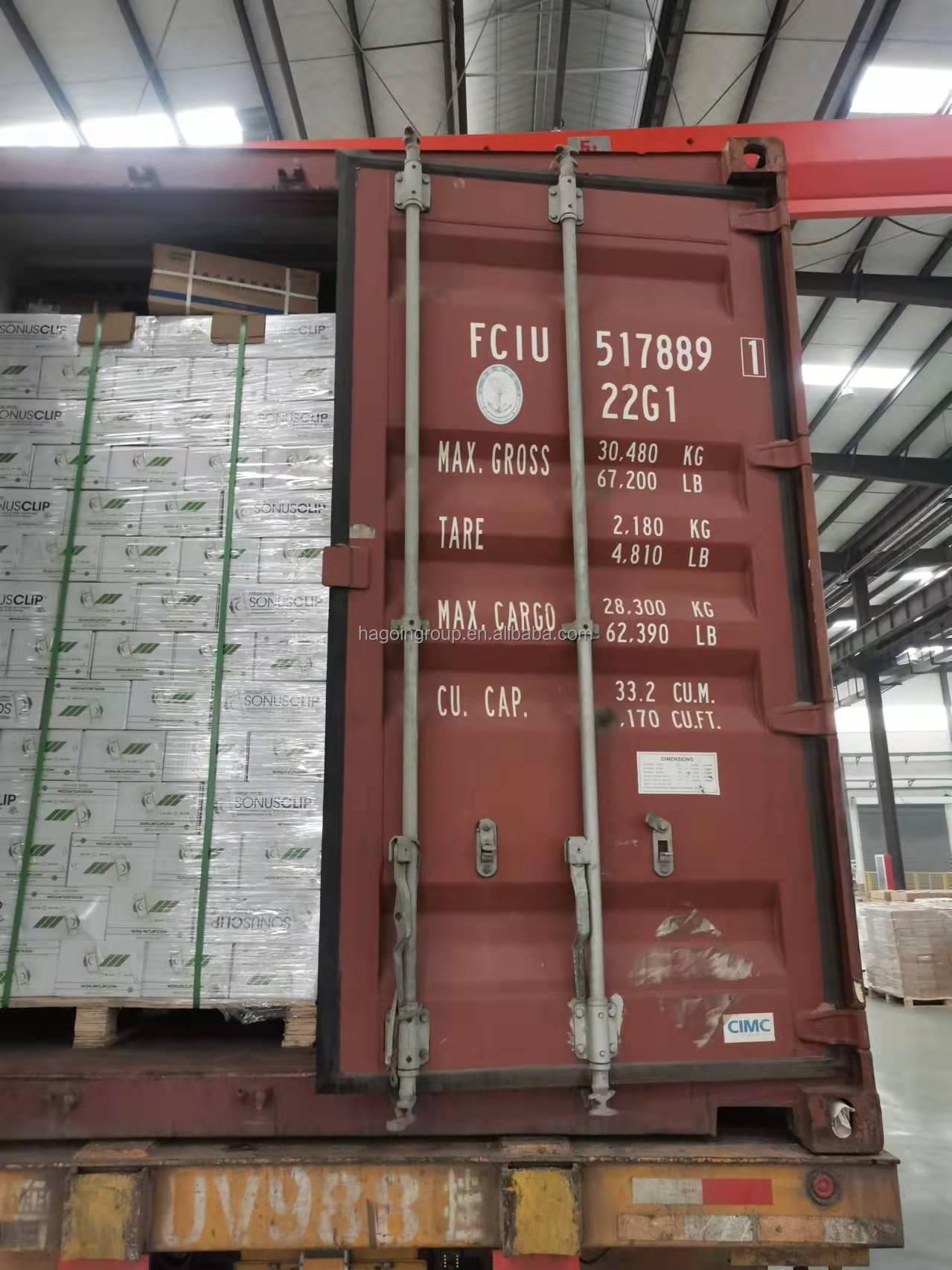

Packing & Delivery

100 pcs / Carton; Carton Size: 33cmx22cmx14cm ; 6.5 kgs / carton ; 224 cartons / pallet

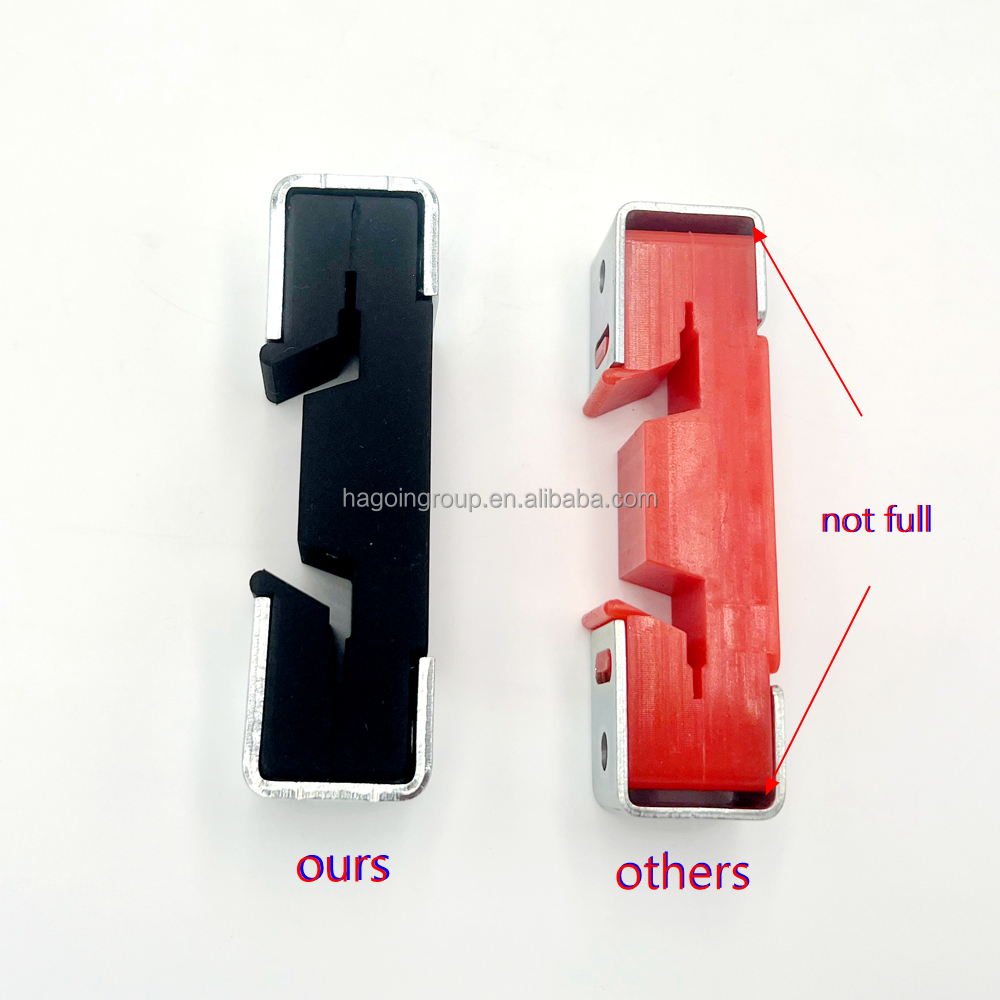

Rubber Material

* made of high resilient rubber, soft touch * UL94 V-0 approval.

* Low quality rubber becomes sturdy after 30 days, lose resilience.

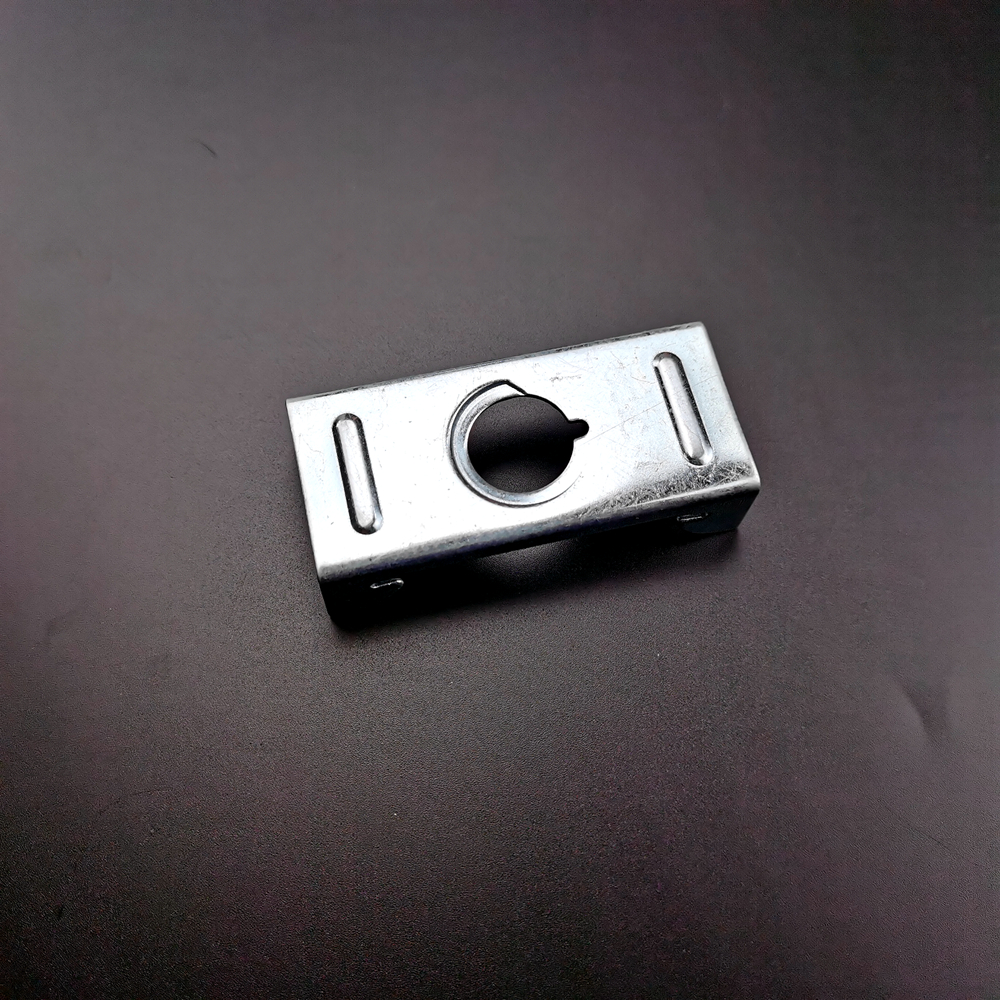

Steel Parts

* Made of high strength steel * thicker zinc plated, 48 hours salt spray test approval

* low quality steel will be bent and get rusty easily

Features

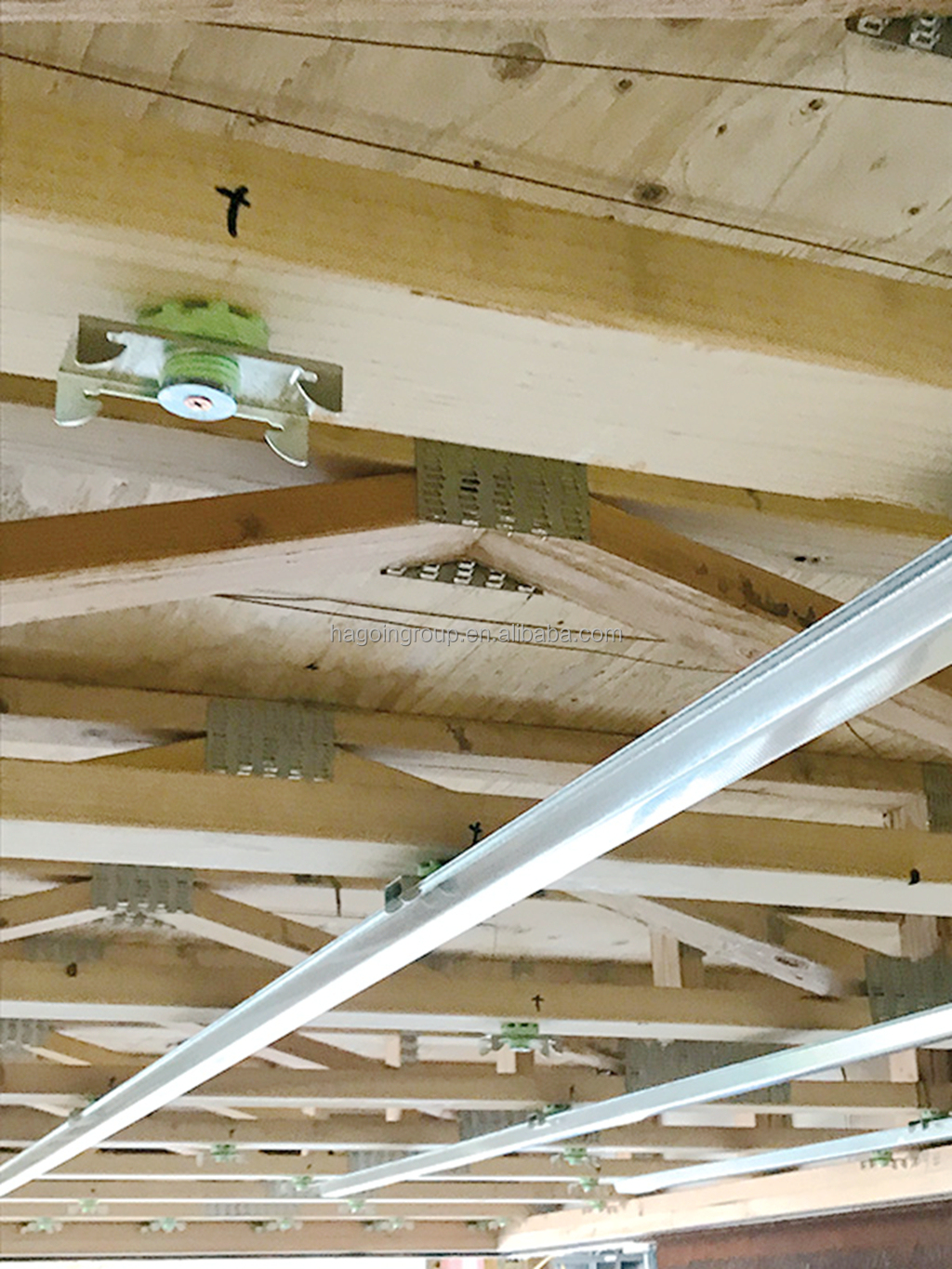

* For use in wall and ceiling construction assemblies
* Reduces sound and vibration
* For use in new and retrofit construction

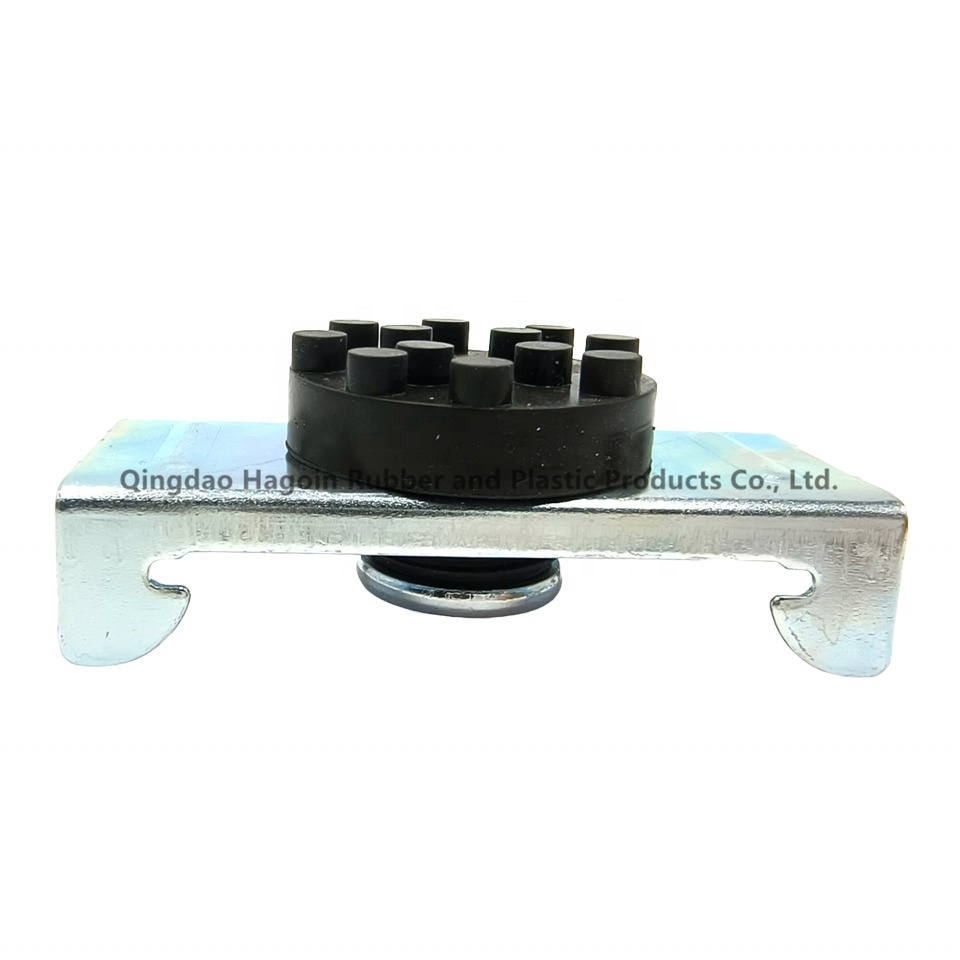

Technical Information

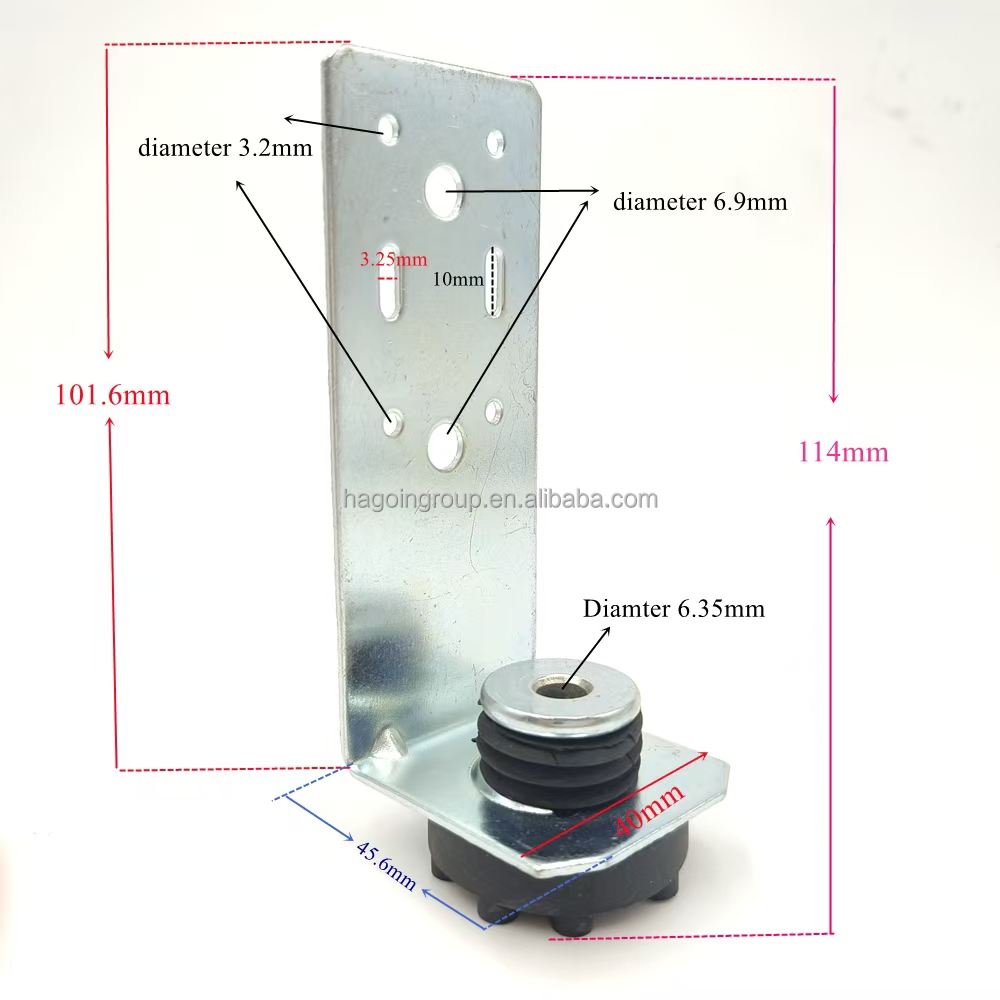

* Size: 3″ x 1-1/4″ x 1-7/16″ nominal

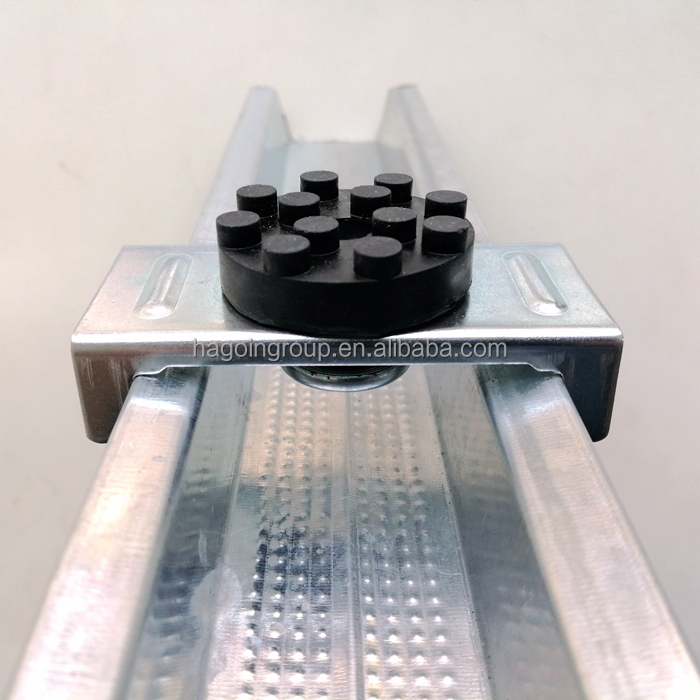

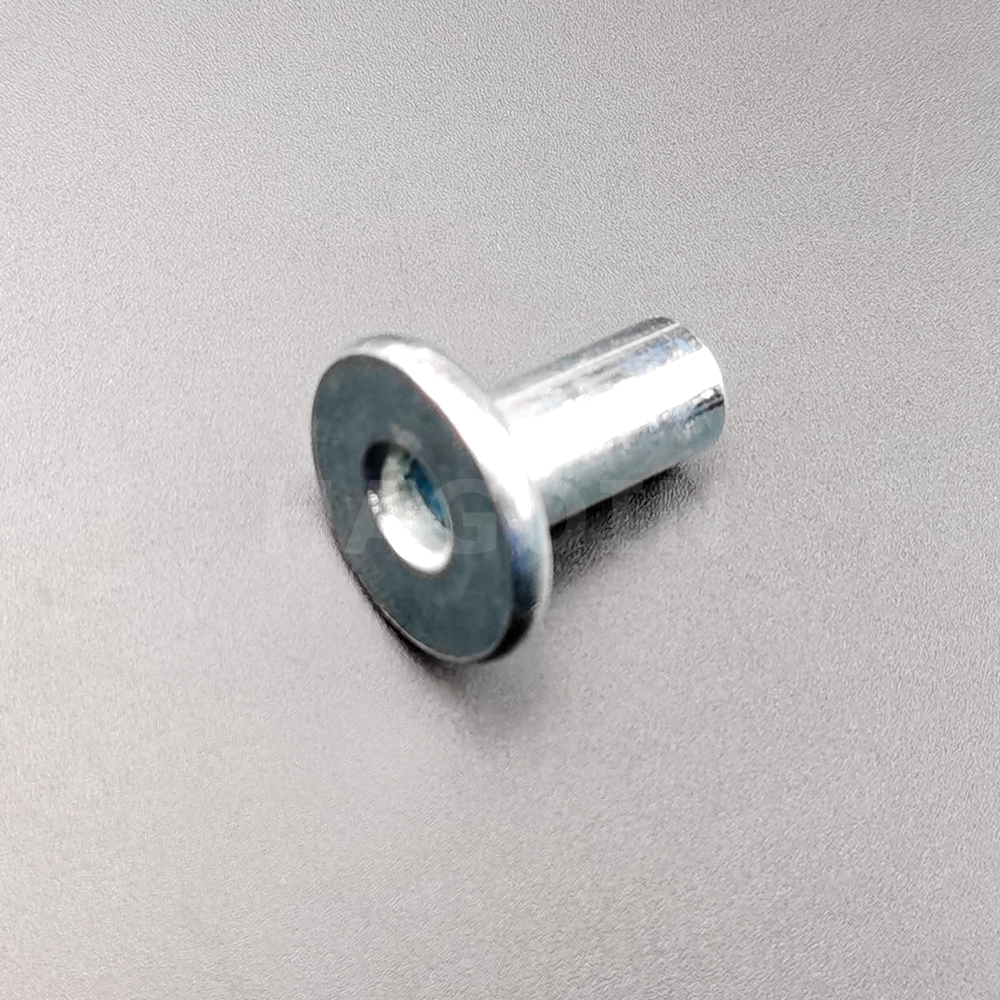

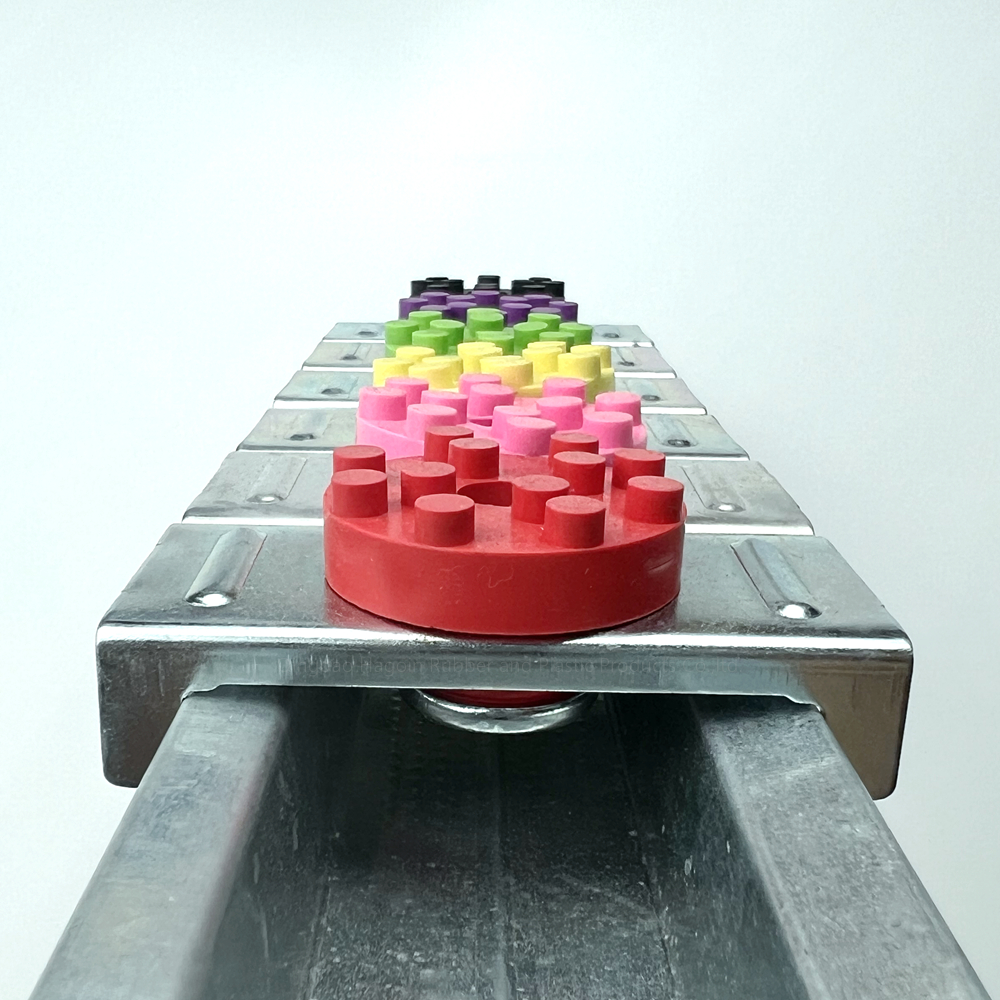

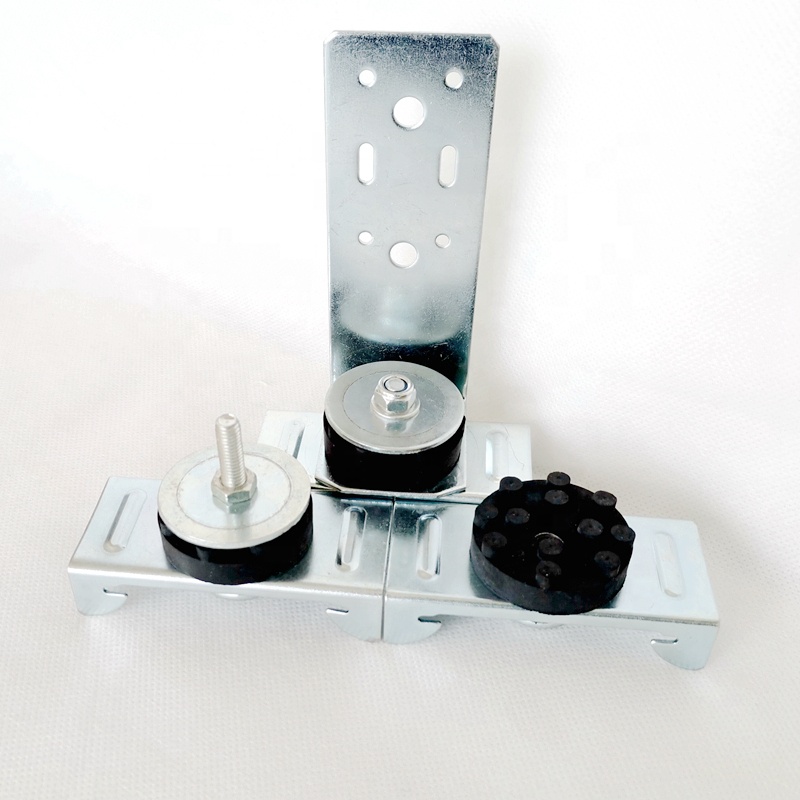

* Construction: Natural and manufactured rubber molded to isolate ferrule (zinc-electroplated steel) from 16 gauge galvanized or aluminum-zinc coated clip. Minimum of 12 micro-vibration controlling pedestals at point of contact with framing member.
* Projection: 1-5/8 inches from supporting structure, when 7/8-inch drywall furring channels are used.
* Intended use: For use with wall and ceiling construction assemblies to prevent sound and vibration transmission to improve STC
and IIC ratings
* Dead or Shear Load: Maximum design load of 36 pounds per each resilient sound isolation clip.
* Total Deflection: 3 mm
* Double Deflection: Yes (1.5 mm)

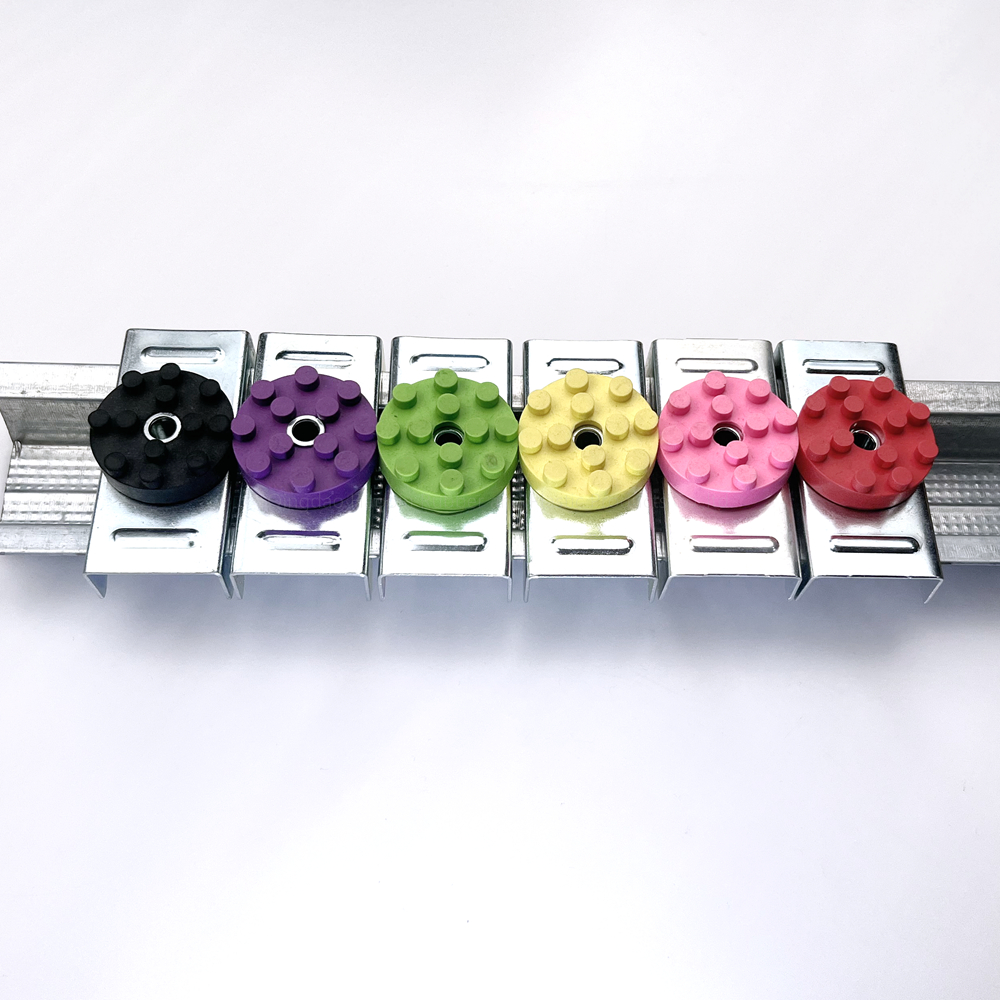

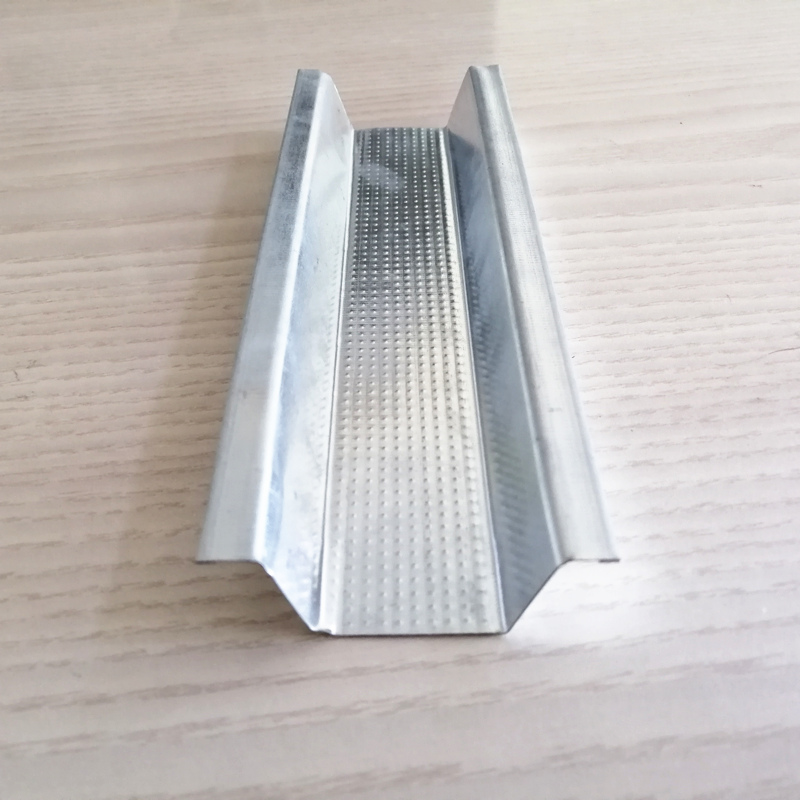

Ralated products - hat track

Fit for 1-5/8 inches from supporting structure, when 7/8-inch drywall furring channels
