Specifications
Design Style :
Modern
Size :
10*6*12.8CM
Product name :
RSIC-1 EXT04 Clips Resilient Sound Isolation Clip
Packing :
Plastic Bag+carton
Packaging Details :
cartons and pallet
Feature :
noise isolation, Shock absorption and sound insulation
Place of Origin :
Shandong, China
After-sale Service :
Other
Payment Terms :
T/T
Price :
$0.90-1.30
Warranty :
3 Years
Material :
Rubber, Galvanized steel+ Rubber
Model Number :
ext04
Application :
Apartment, Hotel,Apartment,Gym,Bar.etc
Certification :
CE,ISO9001,LFGB, ROHS,UL
Delivery Time :
20 days
Project Solution Capability :
Others
Color :
Black,Green,Yellow.etc
MOQ :
1000
Type :
Ceiling Grid Components
Supply Ability :
1000 pieces per day
Brand Name :
HAGOIN
Description
RSIC-1 EXT04 Clips Resilient Sound Isolation Clip Ceiling Hanger for Deep Drywall Furring Channel
Product Description
Green RSIC-1 Resilient Sound Isolation Clips 12.8CM Noise Isolation Hat Channel

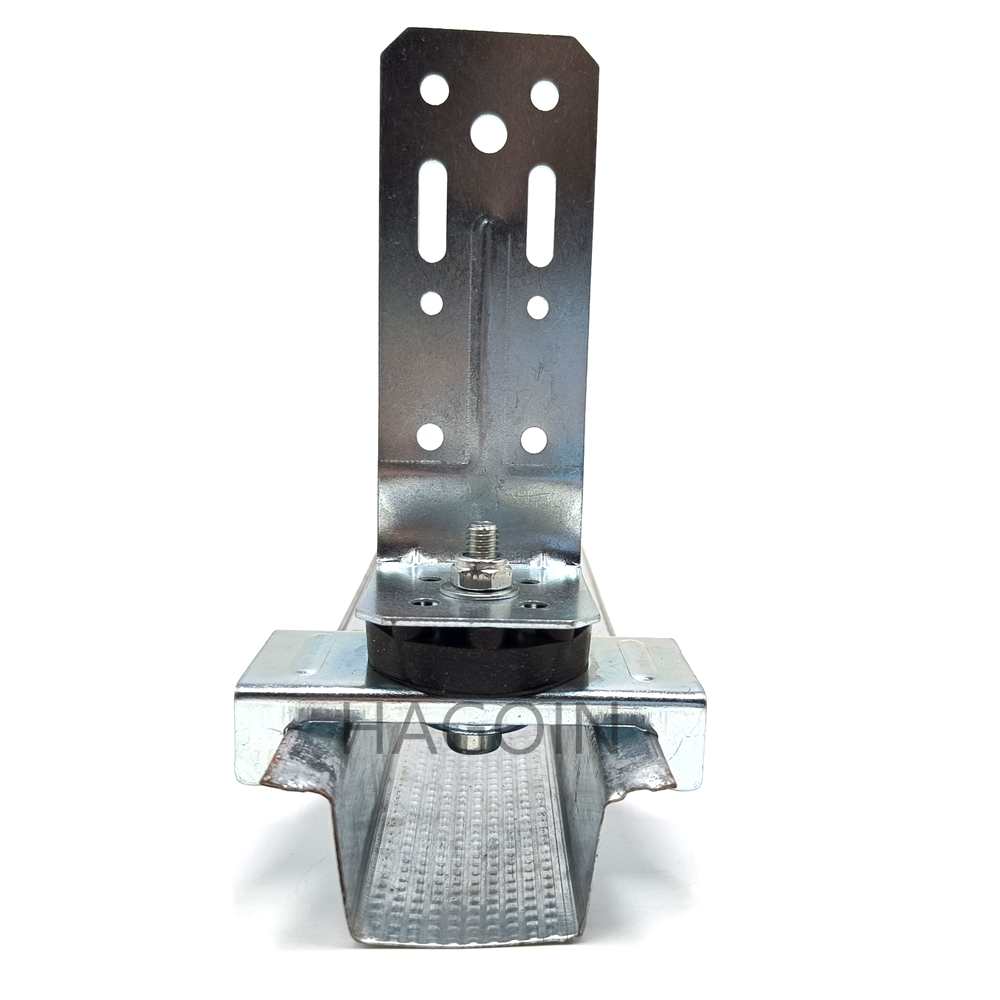

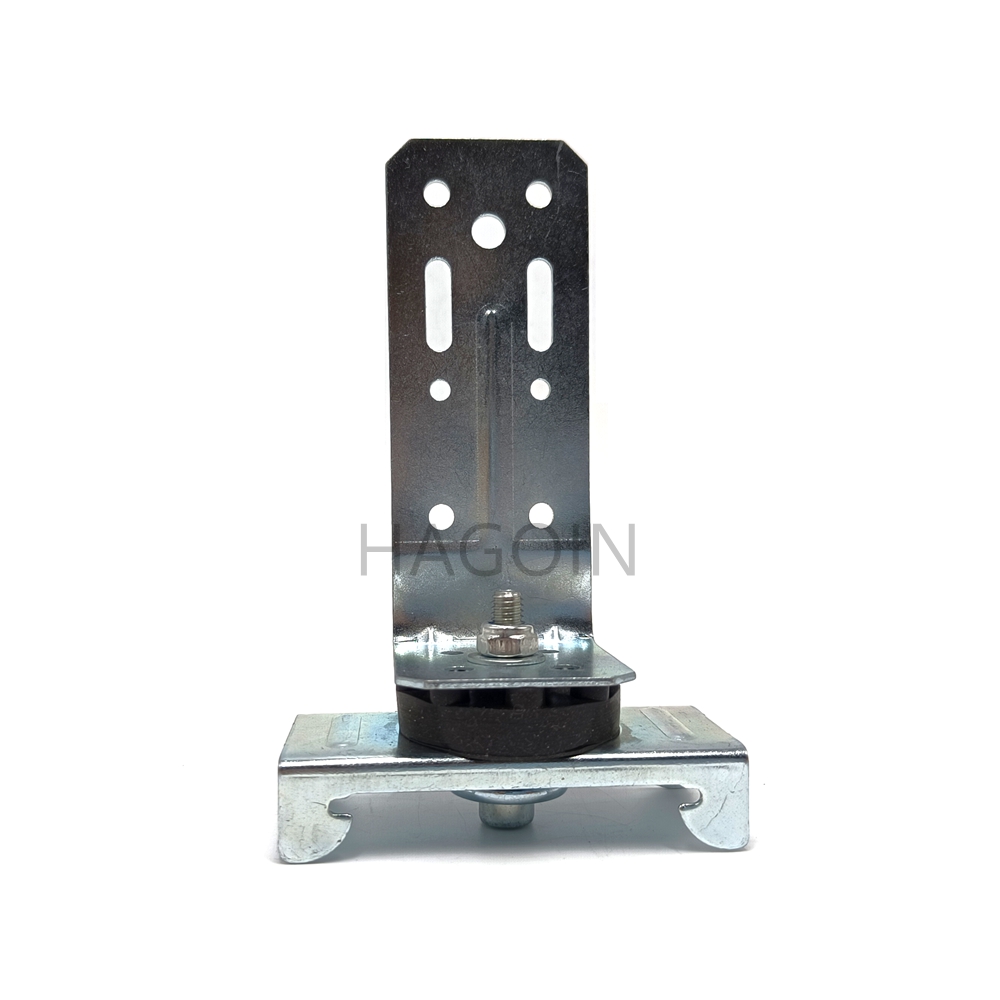

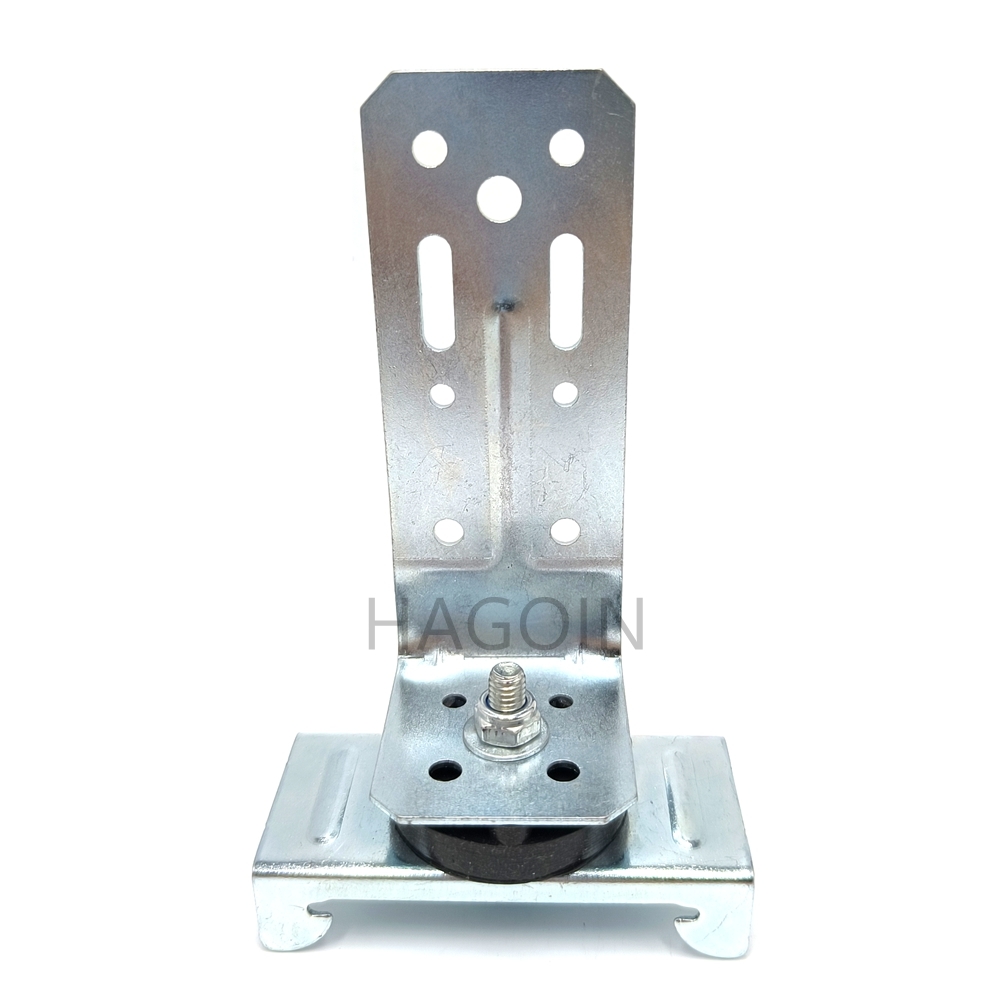

Resilient Sound Isolation Clip (RSIC1-EXT04)

The RSIC-1 EXT04 is designed for use where an additional drop for HVAC, Plumbing, or Electrical Chases is needed. This clip gives you the flexibility to drop a ceiling as much as 4” from its original height. The RSIC-1 EXT04 is also used to level out uneven floor joists. This clip has proven to be very popular with the Home Theater industry. It creates a dropped ceiling, allowing an open chase for the new wires, all while retaining the superior acoustical performance of the RSIC clips.

Specification
Green RSIC-1 Resilient Sound Isolation Clips 12.8CM Noise Isolation Hat Channel

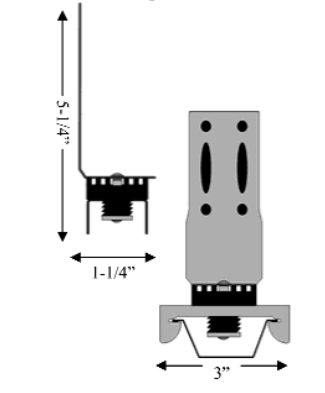

RSIC-1 EXT04 Dimensions:
  • RSIC-1 EXT04 clip 3" wide.
  • RSIC-1 EXT04 and Drywall Furring Channel 5-5/8" deep.
  • RSIC-1 EXT04 clip 1-1/4" deep.
Green RSIC-1 Resilient Sound Isolation Clips 12.8CM Noise Isolation Hat Channel

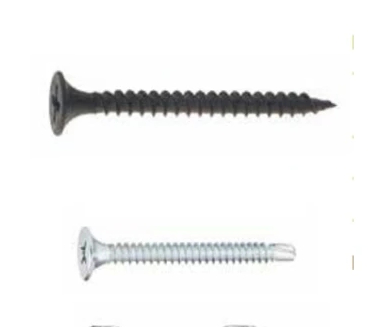

Fasteners:
  • RSIC-1 EXT04 to Wood: #8 x 1-1/2 inch minimum size coarse thread screw. (Recommended #12 or 10 x 2-1/2 inch hex head).
  • RSIC-1 EXT04 to Steel: #8 x 1 inch minimum size fine thread screw. (Recommended #12 or #10 x 1-5/8 inch hex head).
Size
Green RSIC-1 Resilient Sound Isolation Clips 12.8CM Noise Isolation Hat Channel
RSIC-1 EXT04 specifications:
Acoustical design load 36 Lbs
Total deflection 3 mm
Double deflection Yes (1.5mm)
Made with Recycled content Yes
Low VOC Treated Yes
Adjustable No
Cavity Min 1/2’’
Cavity Max 4’’
Adjustable limit 3-*1/2''
Use on ceiling Yes
Use on walls No
New Construction Yes
Retro Fit Yes
Made in China Yes
Certifications
Green RSIC-1 Resilient Sound Isolation Clips 12.8CM Noise Isolation Hat Channel
Packing & Delivery
Green RSIC-1 Resilient Sound Isolation Clips 12.8CM Noise Isolation Hat Channel
Green RSIC-1 Resilient Sound Isolation Clips 12.8CM Noise Isolation Hat Channel

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
