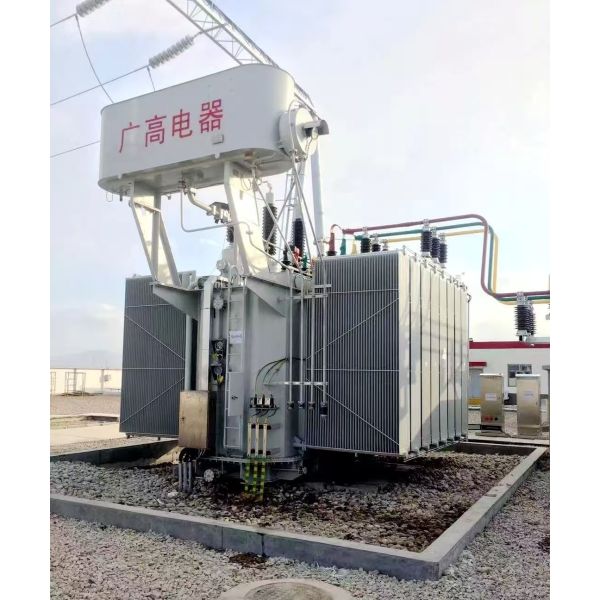

IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity
IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity
IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity
IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity
IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity
IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity
IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity
IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity
Specifications
Brand Name :
GuangGao
Model Number :
D
Certification :
ISO CESI UL KEMA
Place of Origin :
Guangzhou
MOQ :
3
Payment Terms :
T/T L/C
Packaging Details :
Export Standard Package
Name :
Oil Immersed Power Transformer
Phase :
3
Warranty :
2 years
Rated Capacity :
25MVA
Vector Group :
Yd11、YNd11
Winding Material :
Copper / Aluminum
Standard :
IEC Standard
Application :
Power
Description
110kV Oil Immersed Power Transformer 25MVA Capacity
Product Specifications
110kV Oil Immersed Power Transformer 25MVA Capacity
Rated Capacity (kVA) Level 1 Level 2 Level 3 Short - circuit Impedance (%)
No - load Loss (kW) Load Loss (75 °C) (kW) No - load Loss (kW) Load Loss (75 °C) (kW) No - load Loss (kW) Load Loss (75 °C) (kW)
6300 4.4 32 5.2 32 6.4 33 10.5 - 18
8000 5.3 38 6.2 38 7.7 40
10000 6.2 45 7.3 45 9 48
12500 7.4 53 8.7 53 10.7 56
16000 8.9 66 10.5 66 12.9 69
20000 10.6 79 12.5 79 15.4 84
25000 12.5 94 14.8 94 18.2 99
31500 14.9 111 17.6 111 21.6 117
40000 17.8 140 21 140 25.8 148
50000 21 175 24.8 175 30.6 184
63000 25 209 29.5 209 36.3 220

* Above specification may be changed to improve performance.

* Transformer of other specification than listed above can be made to order.

Product Overview
  • Scenario-Specific Adaptability
This transformer excels in scenarios where grid stability and energy compatibility are paramount: it supports the seamless integration of new energy sources (e.g., connecting solar parks to the main grid by mitigating voltage fluctuations from variable sunlight), ensures uninterrupted power for energy-intensive industrial processes (e.g., smelting or manufacturing), and meets the high-reliability demands of urban core areas (where power outages would cause significant economic and social impact). Its low-loss design also contributes to regional carbon reduction goals by cutting annual electricity waste, aligning with the transition to cleaner, more efficient power systems.
Professional Equipment

IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity

Application

IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity

Export

IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity

Certificate(Power transformers with CE, ISO, KEMA, UL certificates and test reports.)

IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity

Target Market

IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity

Company Profile

Guanggao Transformer is a professional transformer manufacturer. We produce single-phase, three-phase, dry-type, distribution, and high-voltage transers (110 kV and above). We meet IEEE/ANSI/UL/CSA and IEC standards. Guanggao Transformer has nearly 25 years of transformer export experience. The company has modern laboratory construction, such as high-voltage test hall, within which there is a 3000kV lightning impulsforme testing device, and some advanced testing equipment, such as CA-21 moisture analyzer from Mitsubishi, American Fluke Ti30 infrared image detector, American RM-3WE three dimensional vibration. And it was identified as the national power transformer energy efficiency testing laboratories in 2011.

The company has undertaken the National Olympic Security Power Project, the National 851 project, the whole construction of the Guangzhou Asian Games, Guangzhou BRT and other important security power projects. The products used in the above projects are highly safe and in a reliable operation throughout the country. Also, these products are exported to Myanmar, Madagascar, Malaysia,other countries. Enjoying a good reputation on the electromechanical market, "Guanggao Brand"was identified as Guangdong famous brand, the product was identified as the National Energy Efficiency Star Products and Brand-Name Products in Guangdong Province.If you have transformer needs, please contact us.

IEC Standard 110kV Power Transformer Oil Immersed Type 25MVA Capacity
