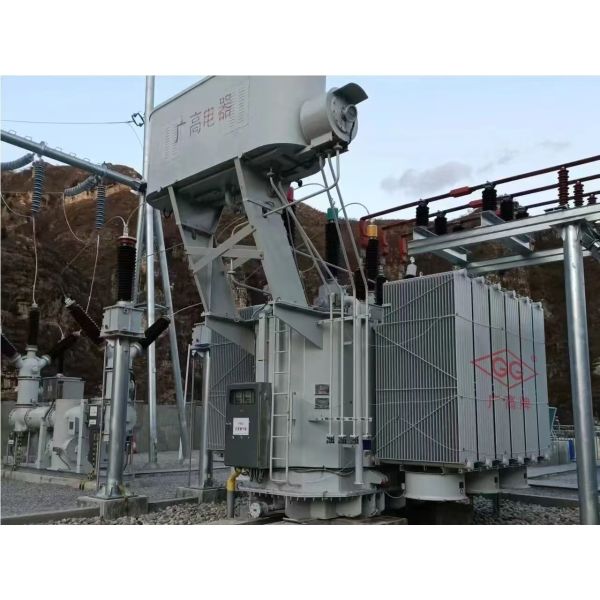

Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding
Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding
Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding
Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding
Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding
Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding
Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding
Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding
Specifications
Brand Name :
GuangGao
Model Number :
D
Certification :
ISO CESI UL KEMA
Place of Origin :
Guangzhou
MOQ :
3
Payment Terms :
T/T L/C
Packaging Details :
Export Standard Package
Name :
16 MVA Power Transformer
Phase :
3
Warranty :
2 years
Rated Capacity :
16MVA
Vector Group :
Yd11、YNd11
Winding Material :
Copper / Aluminum
Standard :
IEC Standard
Application :
Power
Description
110kV Oil Immersed Power Transformer 16MVA Capacity
Product Specifications
110kV Oil Immersed Power Transformer 16MVA Capacity
Rated Capacity (kVA) Level 1 Level 2 Level 3 Short - circuit Impedance (%)
No - load Loss (kW) Load Loss (75 °C) (kW) No - load Loss (kW) Load Loss (75 °C) (kW) No - load Loss (kW) Load Loss (75 °C) (kW)
6300 4.4 32 5.2 32 6.4 33 10.5 - 18
8000 5.3 38 6.2 38 7.7 40
10000 6.2 45 7.3 45 9 48
12500 7.4 53 8.7 53 10.7 56
16000 8.9 66 10.5 66 12.9 69
20000 10.6 79 12.5 79 15.4 84
25000 12.5 94 14.8 94 18.2 99
31500 14.9 111 17.6 111 21.6 117
40000 17.8 140 21 140 25.8 148
50000 21 175 24.8 175 30.6 184
63000 25 209 29.5 209 36.3 220

* Above specification may be changed to improve performance.

* Transformer of other specification than listed above can be made to order.

Product Overview
  • Smart Grid Synergy & Operational Reliability
This transformer is fully compatible with modern smart grid systems: its online monitoring data can be seamlessly integrated into regional grid dispatch platforms, providing real-time insights for load balancing and fault diagnosis. For new energy scenarios, it adjusts voltage dynamically to accommodate intermittent power input from renewable sources, preventing grid instability. In urban and industrial settings, its robust short-circuit resistance and stable voltage output ensure uninterrupted power supply for critical infrastructure and production lines—minimizing economic losses from outages. By combining high efficiency, durability, and smart functionality, it delivers sustained value throughout its lifecycle while supporting the digital transformation of regional power grids.

Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding

Production Process

Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding

Factory

Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding

Application

Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding

Exhibition(Dubai exhibition, US exhibition, Thailand exhibition, Philippines exhibition……)

Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding

Certificate(Power transformers with CE, ISO, KEMA, UL certificates and test reports.)

Durable 110kV 16 MVA Power Transformer Oil Immersed Type With Copper / Aluminum Winding

Company Profile

Guanggao Transformer is a professional transformer manufacturer. We produce single-phase, three-phase, dry-type, distribution, and high-voltage transers (110 kV and above). We meet IEEE/ANSI/UL/CSA and IEC standards. Guanggao Transformer has nearly 25 years of transformer export experience. The company has modern laboratory construction, such as high-voltage test hall, within which there is a 3000kV lightning impulsforme testing device, and some advanced testing equipment, such as CA-21 moisture analyzer from Mitsubishi, American Fluke Ti30 infrared image detector, American RM-3WE three dimensional vibration. And it was identified as the national power transformer energy efficiency testing laboratories in 2011.

The company has undertaken the National Olympic Security Power Project, the National 851 project, the whole construction of the Guangzhou Asian Games, Guangzhou BRT and other important security power projects. The products used in the above projects are highly safe and in a reliable operation throughout the country. Also, these products are exported to Myanmar, Madagascar, Malaysia,other countries. Enjoying a good reputation on the electromechanical market, "Guanggao Brand"was identified as Guangdong famous brand, the product was identified as the National Energy Efficiency Star Products and Brand-Name Products in Guangdong Province.If you have transformer needs, please contact us.
