12 Slot Swapping Stations EV Battery Exchange Station Cabinet Customized
12 Slot Swapping Stations EV Battery Exchange Station Cabinet Customized
12 Slot Swapping Stations EV Battery Exchange Station Cabinet Customized
12 Slot Swapping Stations EV Battery Exchange Station Cabinet Customized
Specifications
Brand Name :
GT
Model Number :
B04
Place of Origin :
Guangdong, China
MOQ :
1-50 sets
Price :
850-1805 usd/set
Payment Terms :
L/C,D/A,D/P,Western Union,MoneyGram,T/T
Supply Ability :
3000/month
Delivery Time :
20-30 days
Packaging Details :
Fumigation-Free Wooden Box
Specification :
L1110*W670*H1652mm
Warehouse size :
L252*W230*H420mm
Number of Charging Circuits :
12 Circuits
Overall Machine Output Power :
≤ 9KW
Single Output Power :
≤ 750W
Standby Power :
≤50W
Input Voltage Range :
Single phase AC 220V±20%
Description

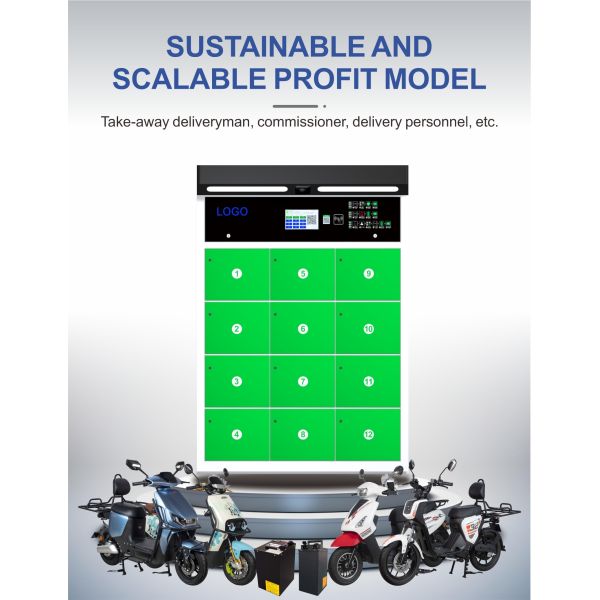

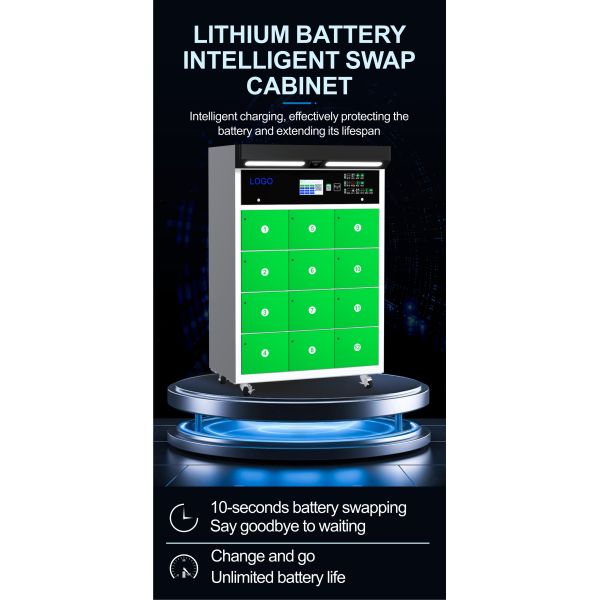

Intelligent Battery Swapping Cabinet For Electric Motorcycle 12 Warehouse Standard Style OEM/ODM
The power swap cabinet is a power swap system specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.). The system allows users to quickly replace a depleted battery with a fully charged one without having to wait for a lengthy charging process.
Product Parameters
Specification Value

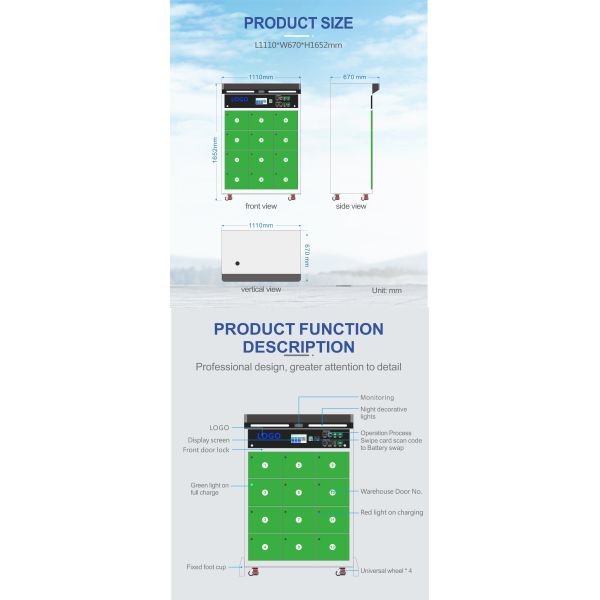

Dimensions L1110*W670*H1652mm
Warehouse size L252*W230*H420mm
Number of Charging Circuits 12 Circuits
Display Specifications 7 Inches
Overall Machine Output Power ≤ 9KW
Single Output Power ≤ 750W
Maximum Current of Each Warehouse 10A
Standby Power ≤50W
Charging Energy ≥93%
Input Voltage Range Single phase AC 220V土20%
Voltage Frequency 50Hz 1Hz
Adapt to The Battery Lithium battery (with 485 communication)
Payment Methods APP/IC Card
Protection Level IP53/IP54
Key Features
  • Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.
  • Intelligent management: Built-in intelligent management system monitors battery status including remaining power and health status, ensuring charging safety and automatic battery distribution.
  • Safe and reliable: Multiple safety mechanisms prevent overcharge, short circuit and other problems during battery replacement.
  • Easy to operate: Equipped with touch screen or mobile application for intuitive user operation.
  • Energy saving and environmental protection: Reduces power waste and extends battery life while achieving zero emissions.
  • Network connection: Supports remote monitoring and management of each battery swap station.
Application Scenarios
Power swapping cabinets are widely used in urban transportation, especially for urban residents who rely on electric vehicles. They are typically installed in high-traffic areas such as transportation hubs, business centers, and residential areas for convenient access.
