RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V
Specifications
MOQ :
1
Price :
1700
Model NO. :
YLJ-012
Overall Machine Output Power :
≤4kw
Single Output Power :
≤1000W
Maximum Current of Each Charging Compart :
15A
Standby Power :
≤50W
Input Voltage Range :
176V-264V
Voltage Frequencyl :
50Hz/60Hz
Charging Energy Efficiency :
≥93%
Adapt to The Battery :

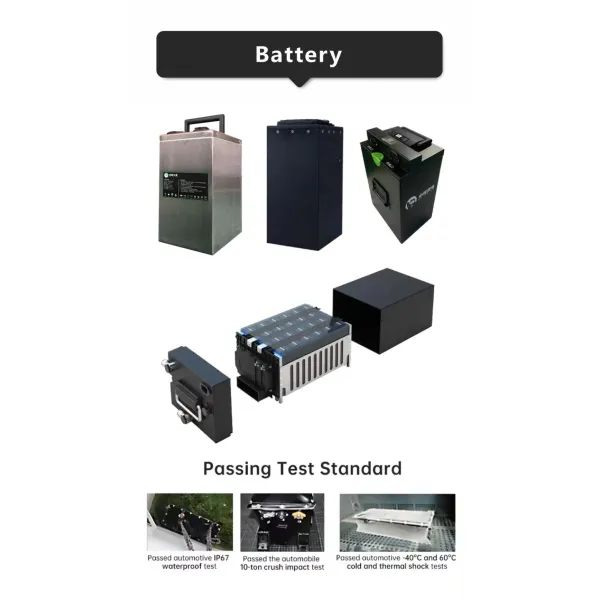

Can or 485 Communication Lithium Battery
Heat Dissipation Method :
Thermostatic Fan Cooling/Industrial Air Conditione
Customer Use and Payment :
APP/IC Car
Network Connection Method :
4G/WiFi
Protection Level :
IP54
Material and Appearance Craftsmanship :
Thickened Galvanized Steel Plate Electrostatic Pow
Transport Package :
Fumigation-Free Wooden Box
Specification :
945*670*1710mm
Trademark :
Hupp green energy(HP green energy)
Origin :
China
HS Code :
8537109090
Production Capacity :
10000
Description

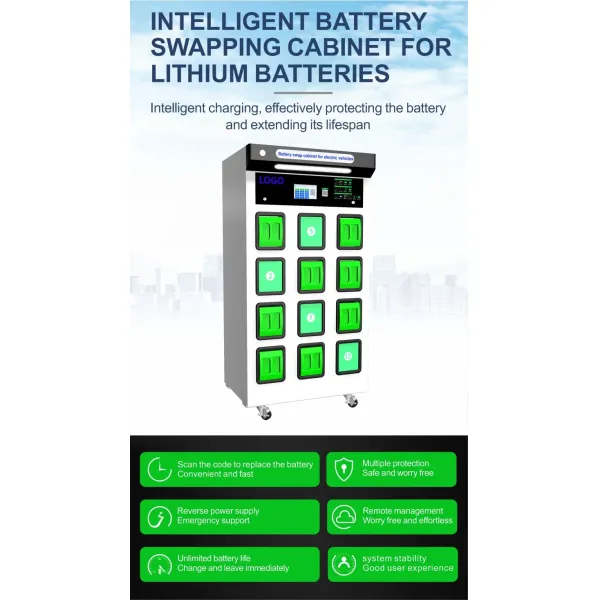

Custom 12-slot Smart Urban Battery Swap Cabinet For 2/3/4-wheelers
The power swap cabinet is a power swap system specifically designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, and electric low-speed four-wheelers). The system allows users to quickly replace a depleted battery with a fully charged one without waiting for a lengthy charging process.

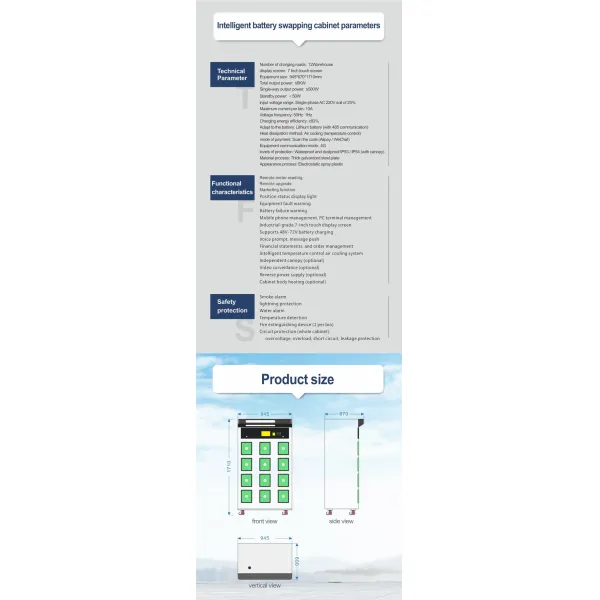

Product model HP-HD06 HP-HP08 HP-HP10 HP-HP12
Number of charging roads 6 PCS 8 PCS 10 PCS 12 PCS
Display screen 7/10/21-inch industrial touch screen
Equipment size 850*670*1785mm 820*600*1666mm 820*600*1786mm 11340*600*1747mm
Battery compartment size 250*230*410mm
Total output power ≤4800W ≤6400W ≤8000W ≤9600W
Single-way output power ≤800W
Charging power (other) 1000W/1200W/1400W
Key Features
  • Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.
  • Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
  • Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit, and other problems.

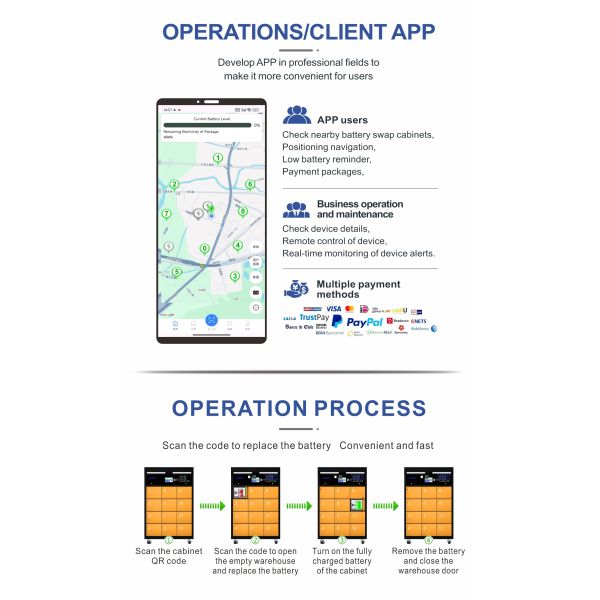

  • Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
  • Energy saving and environmental protection: Helps reduce the power waste caused by battery charging while extending battery life.
  • Network connection: Supports networking function, which can remotely monitor and manage the situation of each battery swap station.
Application Scenarios
Power swapping cabinets are widely used in urban transportation, especially for urban residents who rely on electric vehicles as their main means of transportation. They are usually set up in places with high traffic volume such as transportation hubs, business centers, and residential areas, making it easy for users to find and use them at any time.
