Specifications
Brand Name :
GT
Model Number :
B07
Place of Origin :
Guangdong, China
MOQ :
1-50 sets
Price :
610-810 usd/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000/month
Delivery Time :
20-30 days
Packaging Details :
Fumigation-Free Wooden Box

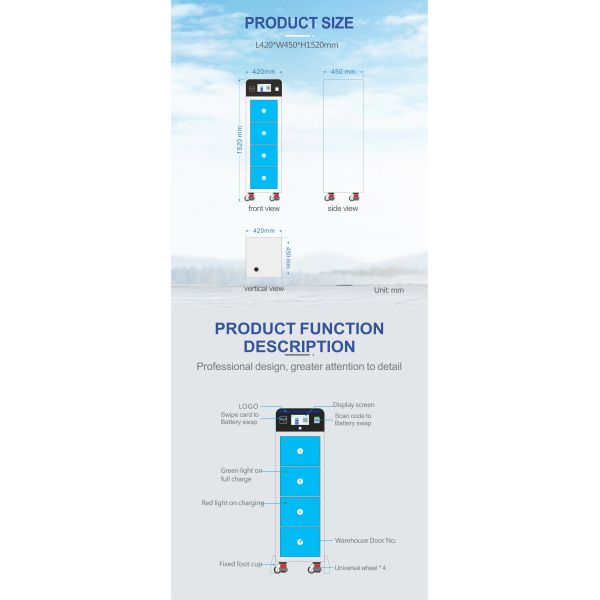

Specification :
L420*W450*H1500mm
Warehouse size :
L252*W230*H420mm
Number of Charging Circuits :
4 Circuits
Color :
Blue
Overall Machine Output Power :
≤ 3KW
Single Output Power :
≤ 750W
Input Voltage Range :
Single phase AC 220V±20%
Description
Intelligent Battery Swapping Cabinet for Electric Motorcycle - 4 Warehouse Charge In 30 Mins

This power swap cabinet is a specialized system designed for electric low-speed vehicles including electric tricycles, motorcycles, and low-speed four-wheelers. The system enables users to quickly exchange depleted batteries for fully charged ones, eliminating lengthy charging wait times.

Key Specifications
Parameter Value
Warehouse size L252*W230*H420mm
Number of Charging Circuits 4 Circuits
Display Specifications 7 Inches
Overall Machine Output Power ≤ 3KW
Single Output Power ≤ 750W
Maximum Current of Each Warehouse 15A
Standby Power ≤40W
Charging Energy ≥93%
Input Voltage Range Single phase AC 220V±20%
Voltage Frequency 50Hz ±1Hz
Battery Compatibility Lithium battery (with 485 communication)
Payment Methods APP/IC Card
Protection Level IP53/IP54
Advanced Features
  • Rapid battery exchange: Enables quick battery swaps, significantly reducing user wait times
  • Smart management system: Monitors battery status including charge level and health, ensuring safe charging and automated battery distribution
  • Enhanced safety: Multiple protection mechanisms prevent overcharging, short circuits, and ensure operational safety
  • User-friendly interface: Features touch screen or mobile app for intuitive operation
  • Energy efficient: Reduces power waste during charging while extending battery lifespan
  • Network connectivity: Supports remote monitoring and management of battery swap stations
  • Eco-friendly solution: Zero-emission operation with lower per-kilometer costs than fuel-powered alternatives
Ideal Applications

These battery swapping cabinets are ideal for urban transportation networks, particularly in high-traffic areas such as transportation hubs, commercial centers, and residential districts where electric vehicles are primary transportation methods.
