Specifications
Specification :
L630*W600*H1710mm
Warehouse size :
L158*W192*H270mm
Number of Charging Circuits :
10 Circuits
Display Specifications :
7 Inches
Overall Machine Output Power :
≤ 7.5KW
Single Output Power :
≤ 750W
Input Voltage Range :
Single phase AC 220V Plus-minus 20%
Brand Name :
GT
Model Number :
B09
Place of Origin :
Guangdong, China
MOQ :
1-50 sets
Price :
850-1505 usd/set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
3000/month
Delivery Time :
20-30 days
Packaging Details :
Fumigation-Free Wooden Box
Description

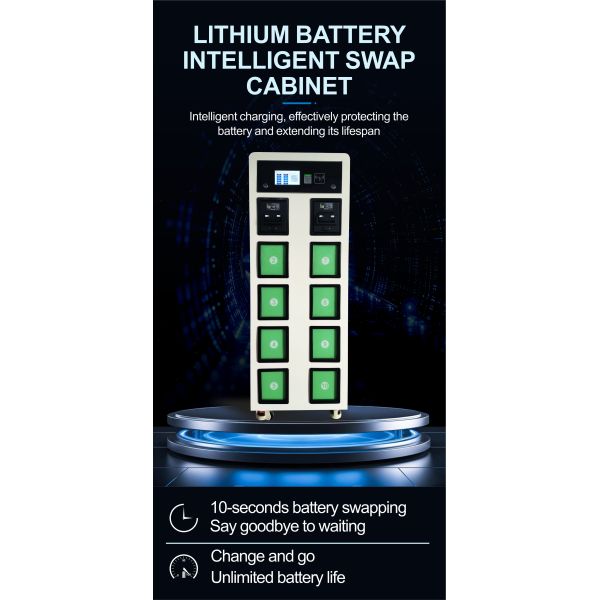

Intelligent Battery Swapping Cabinet for Electric Motorcycle - 10 Warehouse
The power swap cabinet is a specialized system designed for electric low-speed vehicles including electric tricycles, motorcycles, and low-speed four-wheelers. This innovative solution enables users to quickly exchange depleted batteries for fully charged ones, eliminating lengthy charging wait times.
Key Features
  • Quick battery replacement: Dramatically reduces user waiting time compared to conventional charging
  • Intelligent management: Built-in system monitors battery status including charge level and health, ensuring charging safety with automatic sorting
  • Safety mechanisms: Multiple protections prevent overcharge, short circuits, and ensure safe battery handling
  • User-friendly operation: Touchscreen interface and mobile app provide intuitive controls
  • Network connectivity: Remote monitoring and management capabilities for entire battery swap station network
  • Eco-friendly solution: Zero emissions with significantly lower operating costs than fuel-powered alternatives
Technical Specifications
Specification Details

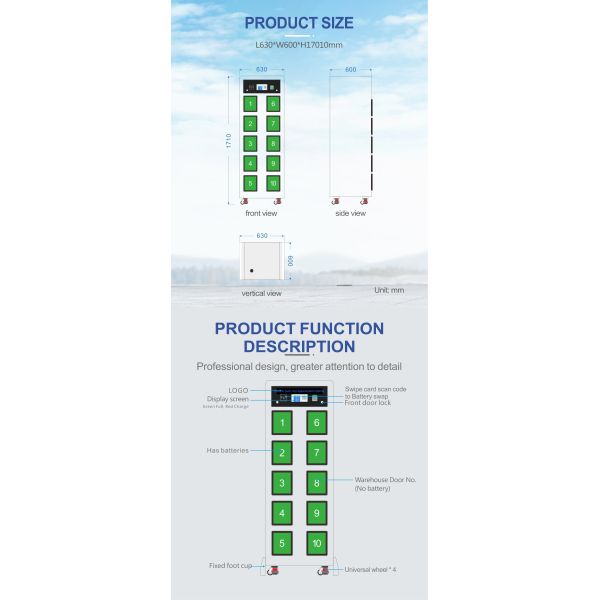

Dimensions L630 * W600 * H1710mm
Warehouse Size L158 * W192 * H270mm
Charging Circuits 10 Circuits
Display 7 Inches
Output Power ≤ 7.5KW (Total), ≤ 750W (Single)
Maximum Current 10A per warehouse
Standby Power ≤50W
Charging Efficiency ≥93%
Input Voltage Single phase AC 220V ±20%
Voltage Frequency 50Hz ±1Hz
Battery Compatibility Lithium battery (with 485 communication)
Payment Methods APP/IC Card
Protection Level IP53/IP54
Ideal Applications
These battery swapping cabinets are ideal for urban transportation networks, particularly in high-traffic areas such as transportation hubs, business districts, and residential communities. They provide convenient access for users who rely on electric vehicles as their primary mode of transportation.
