Specifications
Dimensions :
1055*750*1600mm
Model Number :
S05
Pack Method :
16S6P
MOQ :
1
Delivery Time :
20-30work days
Energy :
96460.8Wh
Max.charge current :
600A
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Discharge cut-off voltage :
43.2V
Cydle life :
>8000times
Cooling method :
Air-cooled
Price :
5500
Charge cut-off voltage :
58.4V
Output power :
12 kW
Supply Ability :
1000/month
Standard charge current :
188A
Max. continues discharge current:600A :
600A
Brand Name :
GT
Type :
LiFePO Battery
Standard discharge current :
188A
Certification :
CE
Nominal capacity :
1884Ah
Place of Origin :
Guangdong,China
Nominal voltage :
51.2V
Description
Type Photovoltaic power plant parameters other
Product model HP-GD30KW For more parameters or customizationrequirements, please contact customer service
Type Main parameters
Total output power 12KW
average daily power generation >30KW
Photovoltaic power station scale 4600*9200mm
Store power 28KW
Output voltage range 220V
Heat dissipation method of energy storage cabinet Temperature controlled air cooling/Industrial air conditioner
Type Battery exchange cabinet parameters other
Product model HP-HP06 For more parameters or customizationrequirements, please contact customer service
Type Main parameters
Number of charging roads 6 PCS
display screen 7/10/21-inch industrial touch screen
Equipment size 850*670*1785mm
Battery compartment size 250*230*410mm
Total output power ≤4800W
Single-way output power ≤800W
Charging power (other) 1000W/1200W/1400W
Type Charging pile parameters other
Product model HP-CZ14 For more parameters or customizationrequirements, please contact customer service
Type Main parameters
Number of charging roads 1PCS
display screen 7-inch industrial touch screen
Single-way output power 50A
Total output power ≤4000W
Single-way output power ≤4KW
Charging power (other) 11KW/22KW/6.6KW

The power swap cabinet is a power swap system specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.). The system allows users to quickly replace a depleted battery with a fully charged one without having to wait for a lengthy charging process.

feature
Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.
Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit and other problems.
Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
Energy saving and environmental protection: Helps reduce the power waste caused by battery charging while extending battery life.
Network connection: Supports networking function, which can remotely monitor and manage the situation of each battery swap station.
Energy saving and environmental protection: Electric motorcycles use intelligent power swap cabinets, which not only achieve zero emissions and reduce environmental pollution, but also have far lower operating costs per kilometer than fuel motorcycles, significantly saving money for users.
Application scenarios
Power swapping cabinets are widely used in urban transportation, especially for urban residents who rely on electric vehicles as their main means of transportation. They are usually set up in places with high traffic volume such as transportation hubs, business centers, and residential areas, making it easy for users to find and use them at any time.

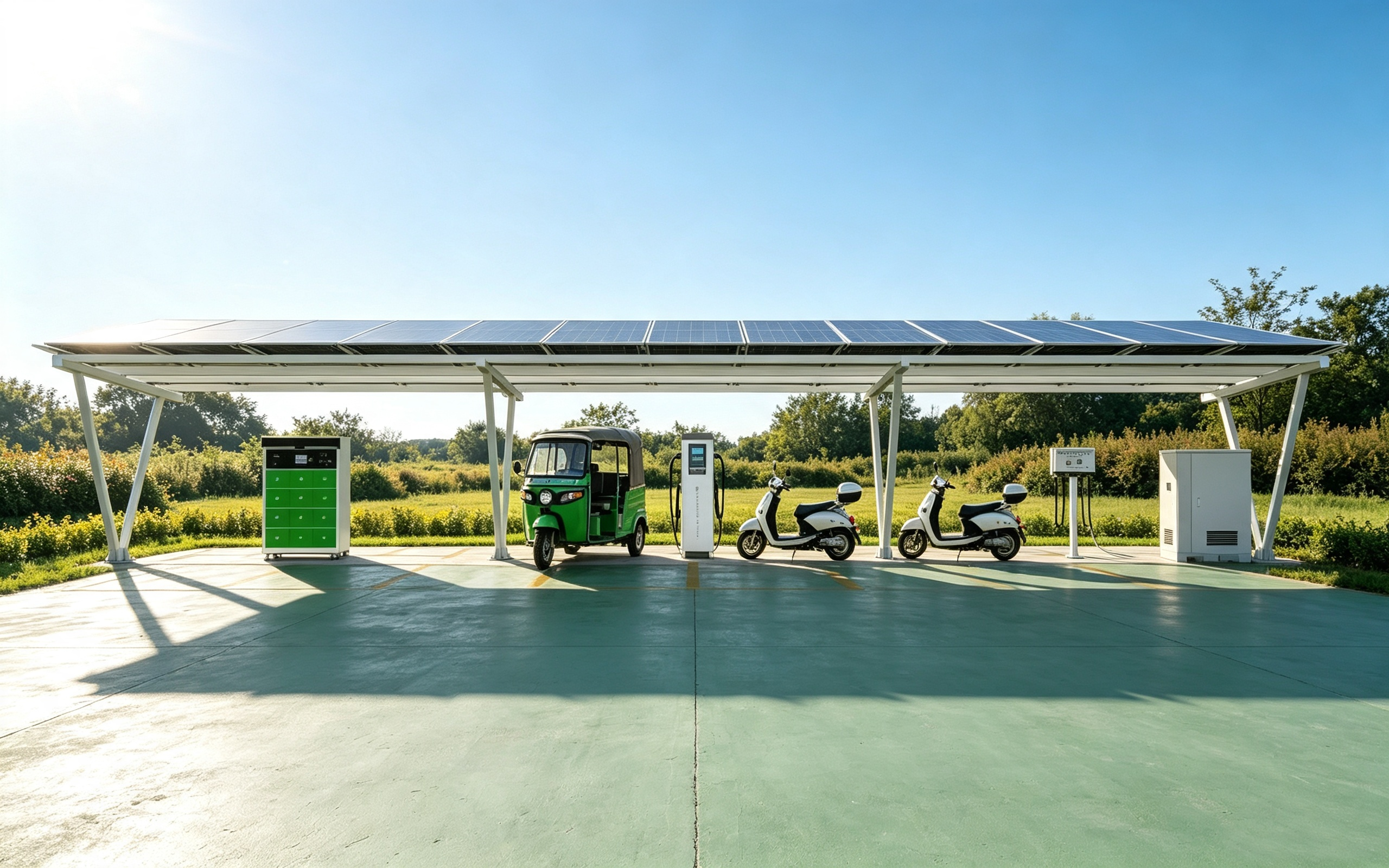

Solar Photovoltaic 6‑Bay Battery Swap Station For Electric Motorcycle Tricycle Charging Station 48V250A
