Specifications
Supply Ability :
1000/month
Pack Method :
16S6P
Output power :
12 kW
Dimensions :
1055*750*1600mm
Model Number :
S05
Standard charge current :
188A
Cooling method :
Air-cooled
MOQ :
1
Delivery Time :
20-30work days
Discharge cut-off voltage :
43.2V
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Nominal capacity :
1884Ah
Charge cut-off voltage :
58.4V
Price :
5500
Nominal voltage :
51.2V
Energy :
96460.8Wh
Standard discharge current :
188A
Certification :
CE
Cydle life :
>8000times
Place of Origin :
Guangdong,China
Max. continues discharge current:600A :
600A
Type :
LiFePO Battery
Brand Name :
GT
Max.charge current :
600A
Description
Type Photovoltaic power plant parameters other
Product model HP-GD50KW For more parameters or customizationrequirements, please contact customer service
Type Main parameters
Total output power 12KW
average daily power generation >50KW
Photovoltaic power station scale 7200*7850mm
Store power >45KW
Output voltage range 220V
Heat dissipation method of energy storage cabinet Temperature controlled air cooling/Industrial air conditioner
Type Battery exchange cabinet parameters other
Product model HP-HP08 For more parameters or customizationrequirements, please contact customer service
Type Main parameters
Number of charging roads 8PCS
display screen 7/10/21-inch industrial touch screen
Equipment size 820*600*1666mm
Battery compartment size 250*230*410mm
Total output power ≤6400W
Single-way output power ≤800W
Charging power (other) 1000W/1200W/1400W
Type Charging pile parameters other
Product model HP-CZ24 For more parameters or customizationrequirements, please contact customer service
Type Main parameters
Number of charging roads 2PCS
display screen 7-inch industrial touch screen
Single-way output power 50A
Total output power ≤16KW
Single-way output power ≤4KW
Charging power (other) 11KW/22KW/6.6KW

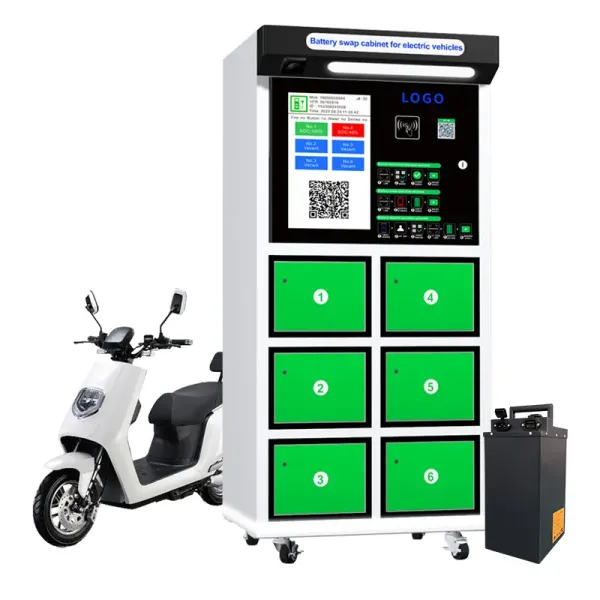

The power swap cabinet is a power swap system specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.). The system allows users to quickly replace a depleted battery with a fully charged one without having to wait for a lengthy charging process.

feature
Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.
Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit and other problems.
Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
Energy saving and environmental protection: Helps reduce the power waste caused by battery charging while extending battery life.

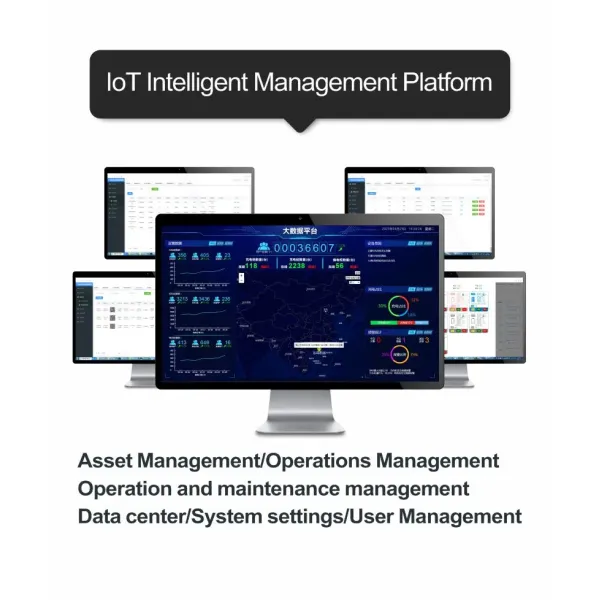

Network connection: Supports networking function, which can remotely monitor and manage the situation of each battery swap station.
Energy saving and environmental protection: Electric motorcycles use intelligent power swap cabinets, which not only achieve zero emissions and reduce environmental pollution, but also have far lower operating costs per kilometer than fuel motorcycles, significantly saving money for users.

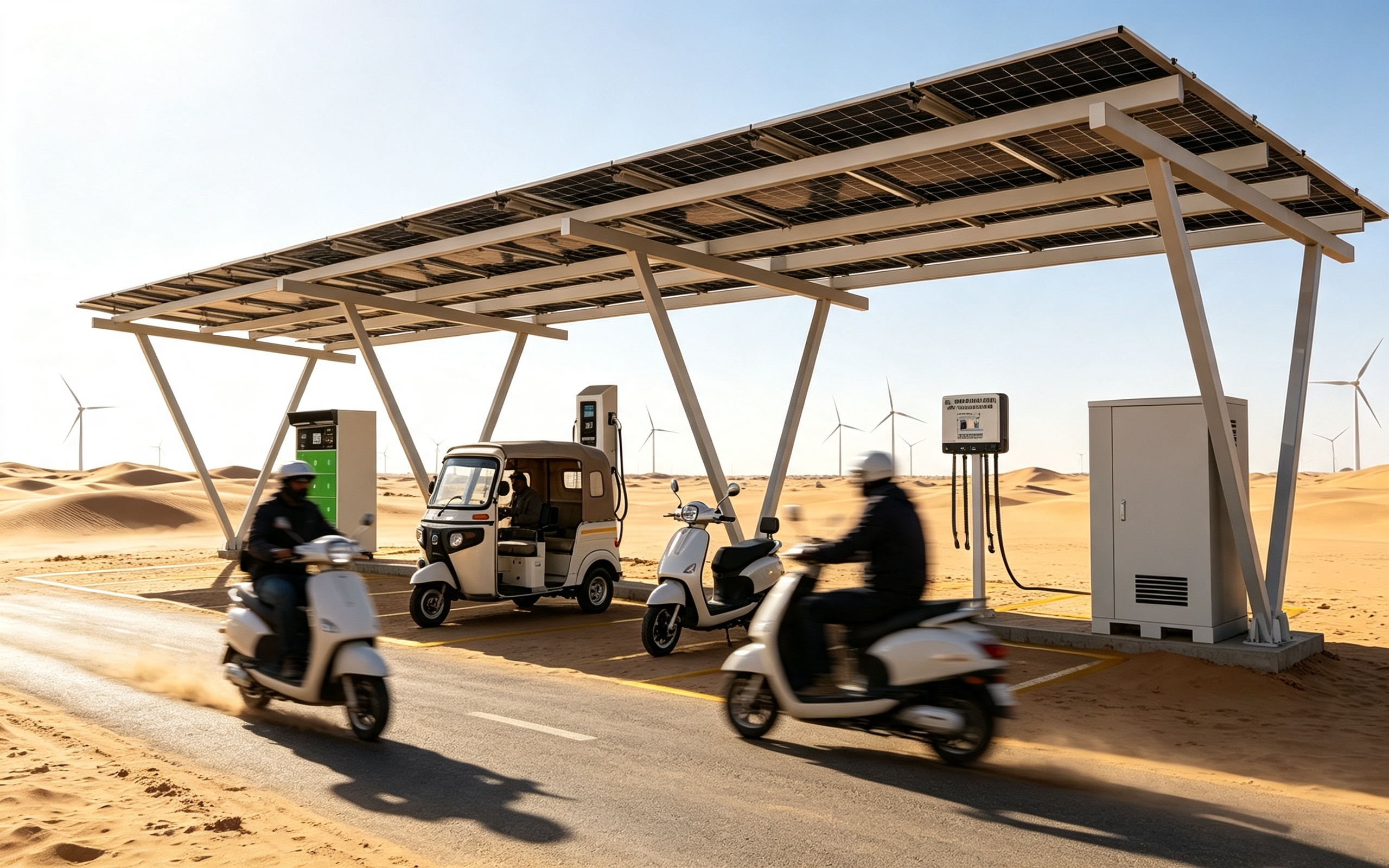

Application scenarios
Power swapping cabinets are widely used in urban transportation, especially for urban residents who rely on electric vehicles as their main means of transportation. They are usually set up in places with high traffic volume such as transportation hubs, business centers, and residential areas, making it easy for users to find and use them at any time.
