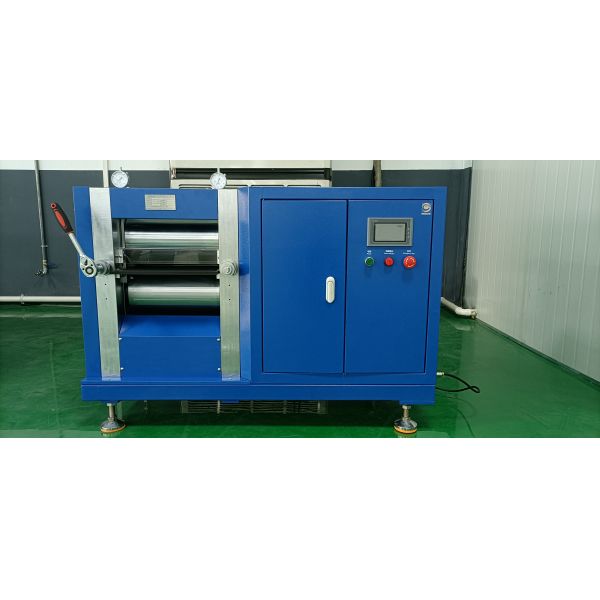

Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Hydraulic press Heat Calendering Battery Electrode Roll Press Machine
Specifications
Place of Origin :
China
Brand Name :
GERUISI
Payment Terms :
T/T, Western Union
Roller cylindricity :
≤±2.5um
Tablet width :
0 ~ 300mm
Heat temperature :
120℃
Compressed air :
0.5-0.8MPa
Rolling force Pressure max :
25T (customizable)
Rolling accuracy :
2.5 μ M
Temperature :
120 ℃
Speed :
Max.6m/min
Description
Product Description
1. Rolling purpose: Rolling battery materials coated on the surface of aluminum or copper foil; 2. Maximum opening thickness of the rolling mill: 2mm Technical parameters: *Rolling force: Max.25t (customizable to increase); *Mechanical speed: Max.6m/min; *Work roll: diameter Ф 200mm; Material 9Cr3Mo; *Surface hardness HRC62-68, internal hardness HRC60-62, roughness Ra ≤ 0.4, and circular runout better than ± 2 μ M; *Roll surface width: 300mm; *Pressing type: hydraulic; *Rolling accuracy: ± 2.5 μ M; *Maximum opening of rolling mill: 1mm; *Reducer and gear box: combination type; *Rolling mill motor: AC variable frequency motor; *Heating method: electric heating roller; *Surface temperature uniformity of the roller: ± 2 ℃; *Maximum heating temperature: 120 ℃; *The single reduction of lithium electrode sheet is 20%~30%, and multiple rolling is required to make it thinner (5 M/time); *Usage environment: It is recommended to have an ambient temperature of 25 ± 3 ℃ and a humidity of 30-90RH, without vibration or electromagnetic interference; *External installation dimensions: 1500mm long * 600mm wide * 1300mm high; *Voltage: 380V, 4KW; *0.5-0.8MPa compressed air *Weight: approximately 1T
Specification
Rolling force
Max.25t (customizable)
Material
9Cr3Mo
Mechanical speed
Max.6m/min
Surface hardness
HRC62-68
Work roll
diameter Ф 200mm
internal hardness
HRC60-62
roughness
Ra ≤ 0.4
circular runout
better than ± 2 μ M
Roll surface width
300mm
Rolling accuracy
2.5 μ M
Maximum heating temperature
120 ℃
0.5-0.8MPa compressed air
