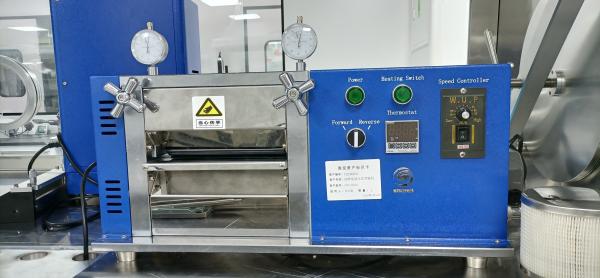

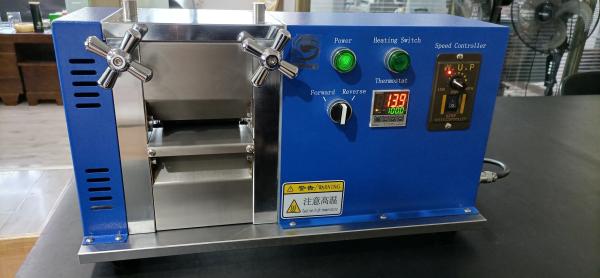

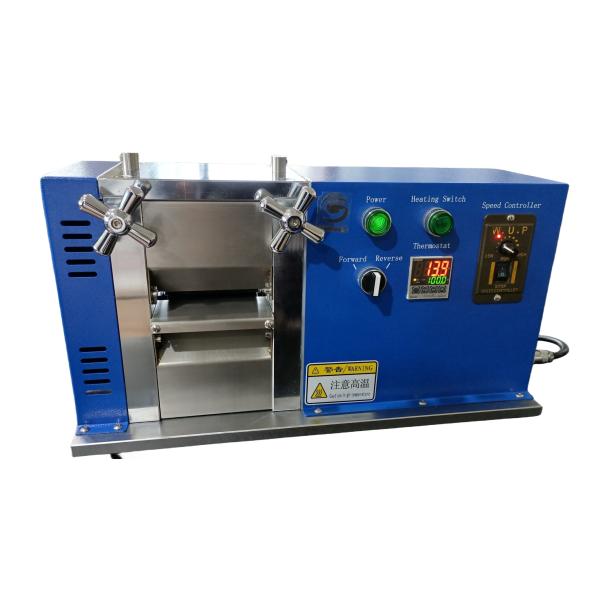

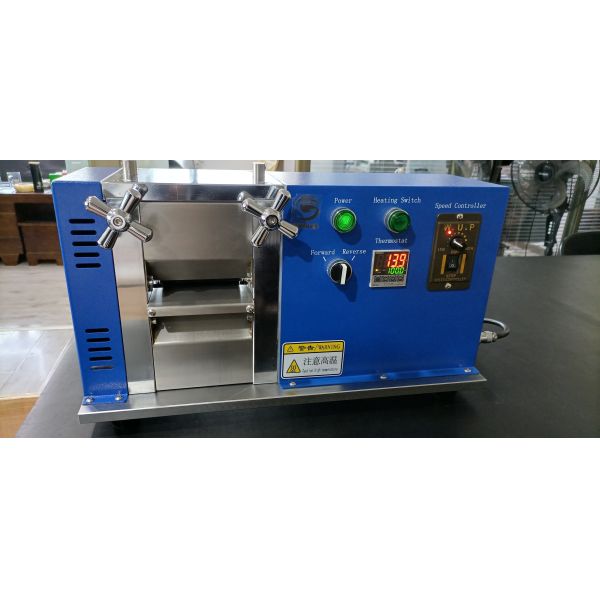

Electric Heat Rolling Press for Lithium Battery Electrode Calendering Machine 55KG
Electric Heat Rolling Press for Lithium Battery Electrode Calendering Machine 55KG
Electric Heat Rolling Press for Lithium Battery Electrode Calendering Machine 55KG
Electric Heat Rolling Press for Lithium Battery Electrode Calendering Machine 55KG
Electric Heat Rolling Press for Lithium Battery Electrode Calendering Machine 55KG
Electric Heat Rolling Press for Lithium Battery Electrode Calendering Machine 55KG
Specifications
Place of Origin :
China
application :
battery roll press
Description
Specification
Roller diameter
2- Φ96mm
Roller hardness
HRC62
Roller finish
>0.4
Rolling thickness
0~ 2mm gap adjustable
Heating width
100mm
Roll placement
Vertical placement
Rolling temperature
Room temperature~130 ℃ adjustable,
digital display value operation mode electric
Operation mode
Horizontal placement
Voltage and frequency
AC220V/50Hz
power
800W
Feed speed
0 * 40mm/s adjustable speed
Overall dimensions
L500mm*W220mm*H6320mm
Weight

55KG
Optional
Rewind and unwind roll
Product Description
The heating electric vertical roller counter machine is mainly suitable for electric rolling of battery materials, small amounts of precious metal materials such as gold and silver, and nonferrous materials such as copper and aluminum at a certain thermal temperature in the laboratory. The rolling thickness is adjustable, and the operation is simple. Especially suitable for cleaning and increasing the density of lithium battery plates made of energy materials.
Features:
1.Heating and rolling, the temperature controller controls the adjustable temperature and displays it digitally.
lchoose to work with or without heating
2. Vertical design facilitates the feeding and rolling of sheet and strip materials
lThe inclined block is used to adjust the pressing gap, which has good self locking performance and high adjustment accuracy.
3.The motor can be rotated forward and backward, making it convenient to return materials if problems are found during operation;
The base pressing thickness and speed can be adjusted, making it convenient to use
4.Gear meshing rotation is adopted to achieve roller pressing
