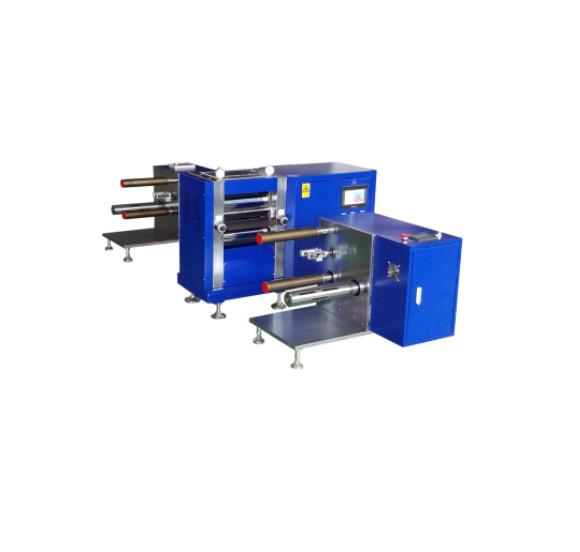

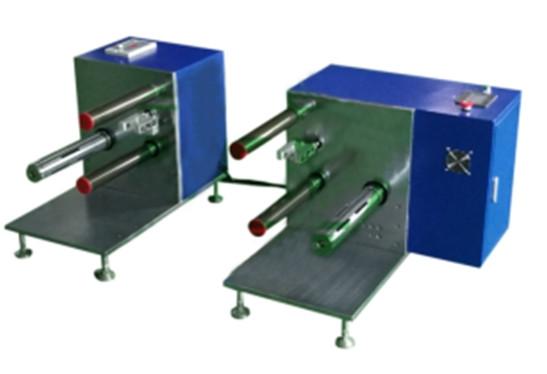

Battery Electrode Calendering Machine Winding Part 500W
Battery Electrode Calendering Machine Winding Part 500W
Battery Electrode Calendering Machine Winding Part 500W
Battery Electrode Calendering Machine Winding Part 500W
Specifications
Brand Name :
GERUISI
Model Number :
GRS-FSJ300
Place of Origin :
China
Payment Terms :
Western Union, T/T
Speed : :
Max.6m/min
Tension control :
0 ~ 50N
Description

Technical parameter

* Active winding, automatic tension control;

* Winding design correction function, good winding uniformity;

* The device comes with independent electrical control system;

* Unwinding and winding two-part separate structure;

* Passive unwinding, tension adjustment;

Equipment technical parameters:

* Tension control :0 ~ 50N

* Winding diameter :250mm

* Winding diameter: 60mm

* Winding accuracy :±0.5mm

* Installation dimensions: uncoil W450mm*D900mm*H615mm, receive W800mm*D900mm*H615mm

* Weight about 200Kg winding, about 237Kg winding

* Power supply voltage single-phase 220VAC±10%(110VAC can be customized), frequency 50Hz/60Hz, * power 500W

* Conveyor mode: continuous operation

* Width of guide roller :350mm

* Mechanical speed :Max.6m/min
