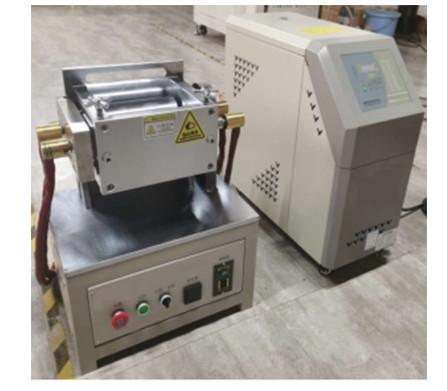

150mm Electric Oil Heated Roller Press Horizontal Machine For Battery Electrode
150mm Electric Oil Heated Roller Press Horizontal Machine For Battery Electrode
Specifications
Brand Name :
GERUISI
Model Number :
GRS-DGWR150
Place of Origin :
China
Payment Terms :
Western Union, T/T
Heating :
Maximum temperature 200℃, continuous heating temperature: 160℃
Rolling thickness :
0~ 2mm gap adjustable
Electrode width :
0 ~ 150mm(Customised)
Description

Technical parameter

Power supply/Total power AC220V/50HZ 200W

The diameter of the roller is 96mm

Sheet thickness 0-2mm (customizable)

Roll width 0-150mm (customizable)

Roll speed 0-50mm/s (adjustable)

Heating temperature Maximum temperature 200℃, continuous heating temperature: 160℃

Heating mode The maximum power of the oil temperature machine is 4KW

Roller surface hardness HRC60 or above

Roller surface roughness below 0.8

Overall dimensions 300(L)x280(W)x335(H)mm

Weight 57KG
