Specifications
Place of Origin :
China
Payment Terms :
T/T, Western Union
Brand Name :
GERUISI
Model Number :
GRS-MQ350
Maximum die-cutting speed :
30-55 rate/min
Inquired air compress :
0.5~ 0.7Mpa
Incoming material size: :
≤ width 300, diameter ≤￠400
Electrode range: :
350X350mm
Incoming material thickness: :
20-180um
Qualified rate of equipment products: :
≥98%
Equipment failure rate: :
≤5% (only caused by equipment failure)
Punching dimensional accuracy :
≤0.1mm, burr ≤0.015mm
Description
Product Description

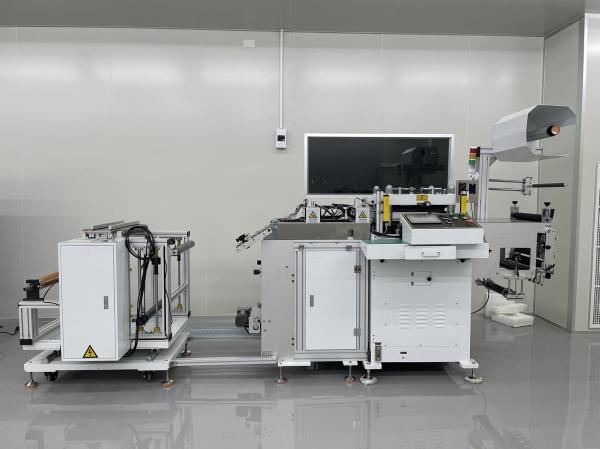

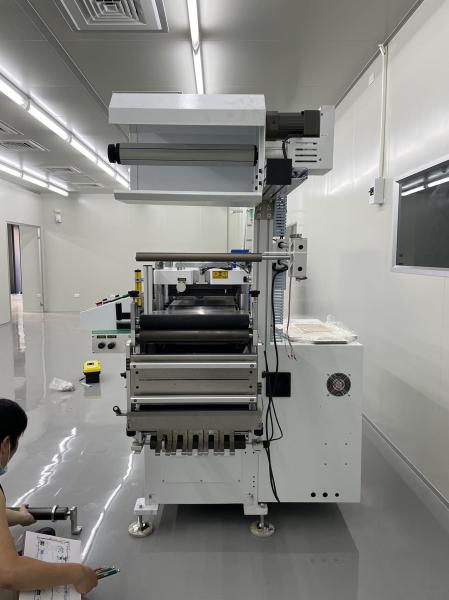

The 350 series fully automatic electrode die-cutting machine is mainly used for the fully automatic die cutting and molding of llithium battery electrode materials, as well as the manual sheet receiving process. The equipment reaches the current industry's advanced control technology and optimized design, with a reasonable and compact structure and rigid strength advanced advantages.

Operation process:

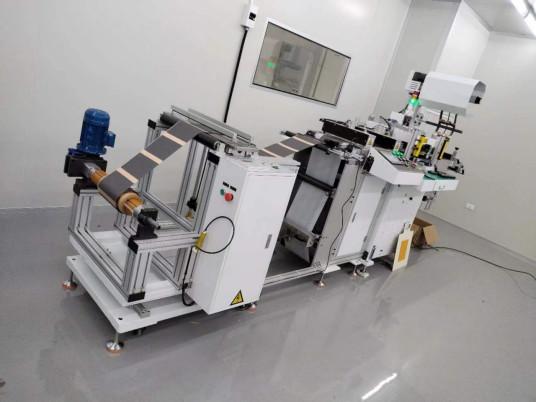

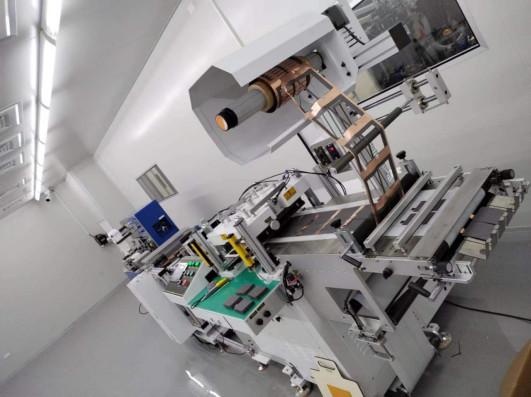

The coil material of the battery electrode piece is controlled by the variable frequency motor. After the tension float roller and the precision correction mechanism, the circulating conveyor belt of the highland wheat paper driven by the servo motor is sent to the die-cutting machine. After the die-cutting, the edge material is collected by the edge material receiving mechanism, and the pole piece automatically flows into the tray.

Specification

1. Incoming material size: ≤ width 300, diameter ≤￠400;

2. The equipment can produce the product specification range: 350X350mm

3. Incoming material thickness: 20-180um

4. Qualified rate of equipment products: ≥98%

5. Equipment production speed :30-55 times/min;

6. Equipment failure rate: ≤5% (only caused by equipment failure);

7. Punching dimensional accuracy ≤0.1mm, burr ≤0.015mm

8. Equipment electrical: voltage AC220±10%, power ≤4.5KW;

9. Compressed air: ≥0.6MPa;

10. Weight: 2,0T

11. Dimensions: 3000x1200x1400 (L x W x H)
