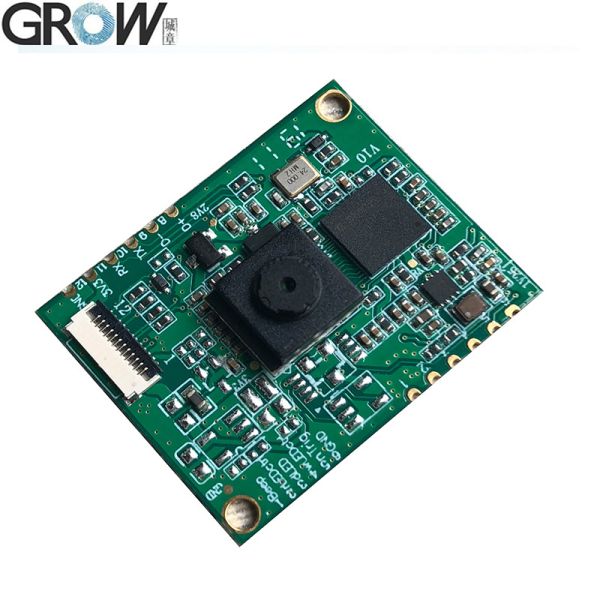

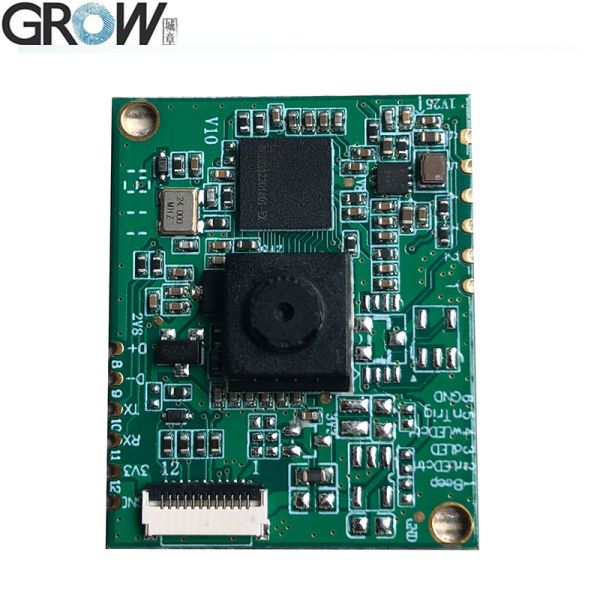

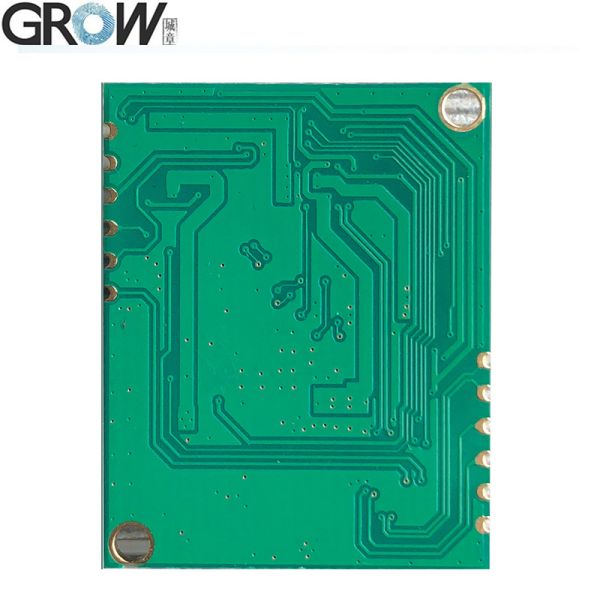

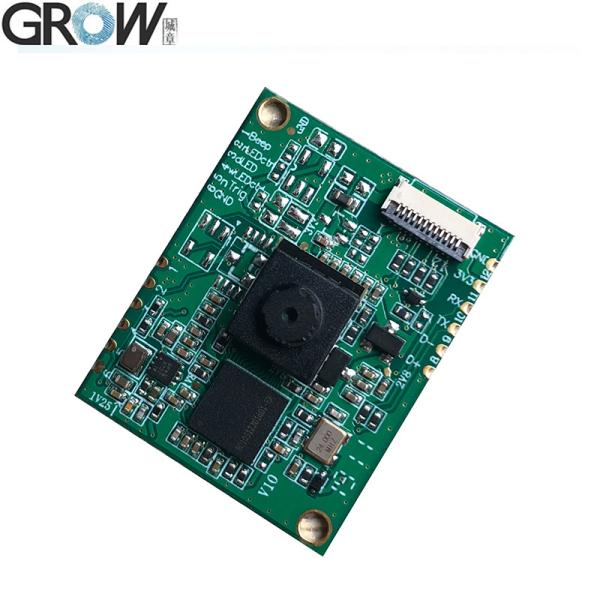

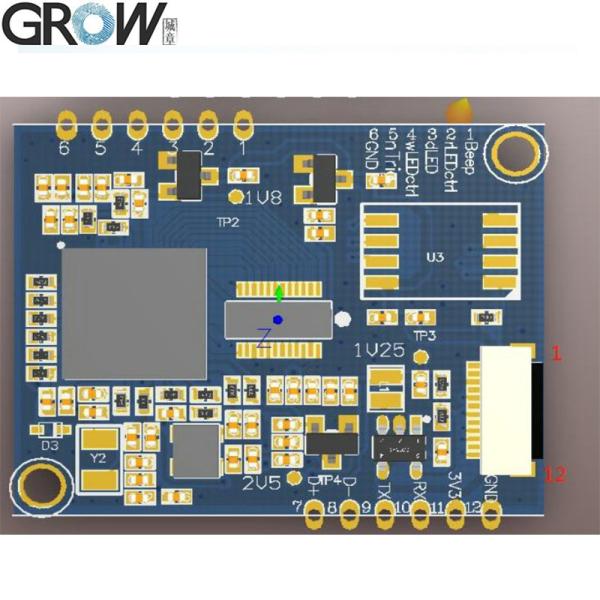

GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
Specifications
Place of Origin :
China
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms :
T/T,PayPal
Supply Ability :
5000
Model NO. :
GM68
Operating Current :
100mA
Reading Distance :
30 - 150mm
Interface :
USB/Uart
Resolution :
6mil
Weight :
6g
Transport Package :
Standard Export Carton Package
Specification :
30*24*7mm
Trademark :
GROW
Origin :
China
HS Code :
8473309000
Interface Type :
Uart, USB
Scan Element Type :
CMOS
Operating Voltage :
3.3V
Samples :
US$ 21.5/Piece 1 Piece(Min.Order) |
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Payment Method :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

GROW GM68 1D 2D USB2.0/UART Bar Code Qr Code Scanner Reader Module Barcode
Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with USB and UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

·Decoding Ability:

1D: EAN- 8,EAN-13,UPC-A,UPC-E,Code 39,Code 93,Code 128,EAN128,Codebar,industrial 2 of 5,Interleave 2 of 5,Matrix 2 of 5,MSI,postal code ect.

2D: PDF417,QR Code ,Data Matrix , Maxicode, Aztec

·Resolution: 6mil
·Reading Distance :30 - 150mm
·Interfaces: USB2.0 UART
·Operating Voltage :3.3V
·Operating Current :100mA
·Weight:6g

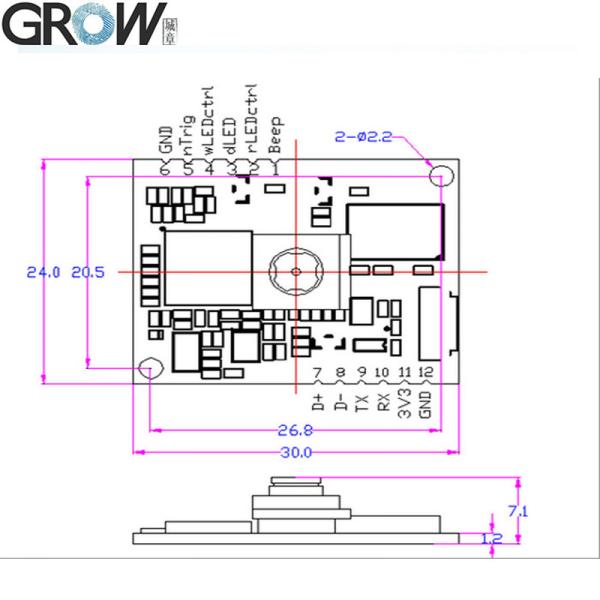

·Size:30*24*7mm

·Type of Illuminant: 617nm LED(Aimer), 6500K LEDs(Illumination)

·Scan Angle: Roll:0-360°, Pitch:±65°or greater, Yaw:±60°or greater

·Scanning angle Inclination angle: 34°, Elevation angle 26° Print Contrast 30% minimum reflective difference

·LED Indicator:Buzzer and bi-color light: Red-power, Blue-decoding Successfully

·Operating Temperature:-20 degrees to 55 degrees

·Storage Temperature:-40 degrees to 65 degrees

·Temperature Humidity:5% to 95% Relative humidity, Non-condensing

·Light Levels:0-85000LUX

Files

·Provide User Manual
