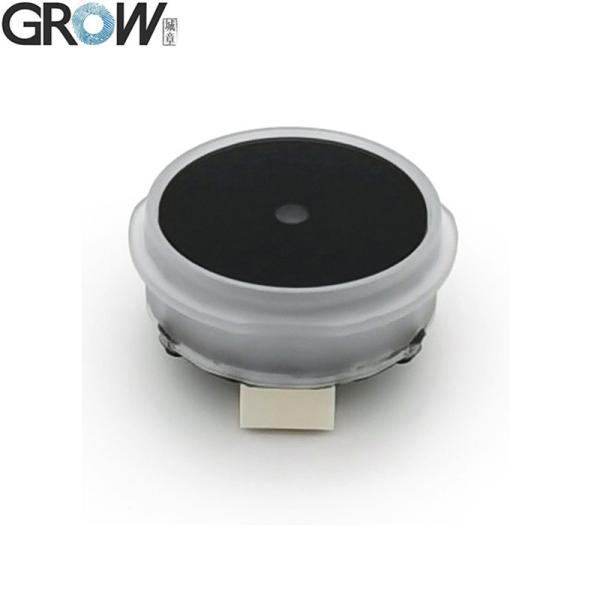

GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
Specifications
Place of Origin :
China
Certification :
CE
MOQ :
1
Packaging Details :
Carton
Delivery Time :
Peak Season Lead Time: within 15 workdays Off Season Lead Time: within 15 workdays
Payment Terms :
T/T,PayPal
Supply Ability :
5000
Operating Current :
70mA
Scan Mode :
640*480
Interface :
Uart
Resolution :
5mil
Weight :
2g
Serial Baud Rate(Uart) :
57600
Transport Package :
Standard Export Carton Package
Specification :
Diameter 21 (mm)
Trademark :
GROW
Origin :
China
HS Code :
8473309000
Interface Type :
RS232
Scan Element Type :
CMOS
Operating Voltage :
3.3V
Samples :
US$ 14.6/Piece 1 Piece(Min.Order) |
Customization :
Available | Customized Request
Shipping Cost :
about shipping cost and estimated delivery time.
Payment Method :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Description

GROW GM60-S Ring Indicator Light Can Controlled Small Round UART Interface 1D/2D Bar Code QR Code Barcode Reader Module
Description

1. USB wired barcode scanner to capture 1D, 2D code on labels, paper, mobile phone or computer.

2. High-efficiency recognization and high upload speed for improving your working efficiency.

3. With buzzer for reminding you that the scanning successfully or not.

4. Compatible with UART interface.

5. Over 180 configurable options

6. Macro support replace a string in the bar code with another

7. Programmable preamble postamble and termination strings

8.Superior reading performance utilizing advanced decoding algorithms

Specifications

SPECIFICATION
Model GM60-S
Type Barcode Scanner
Decoding Ability QR Code, Data Matrix, PDF417,EAN13,UPC,Code 39,Code 93,Code 128,UCC/EAN 128
Scan Mode 640*480
Interface UART
Resolution 5mil
Serial Baud Rate(UART) 57600
Operating Voltage 3.3V
Operating Current 70mA
Contrast ≥25%
Weight 2g
Size Diameter 21mm Height 12mm
Scan Angle Roll 360°, Pitch 55°, Yaw 55°
Viewing Angle 69°(Inclination), 56°(Elevation)

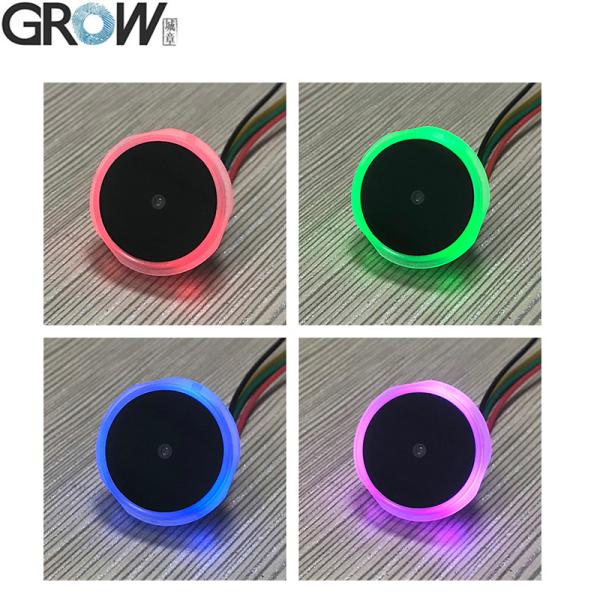

Light Colorful indicator/green light flashing prompt reading success
Operating Temperature -30 degrees to 70 degrees
Storage Temperature -30 degrees to 85 degrees
Temperature Humidity 5% to 95% Relative humidity, Non-condensing

Files

·Provide User Manual
·CE Certificate
