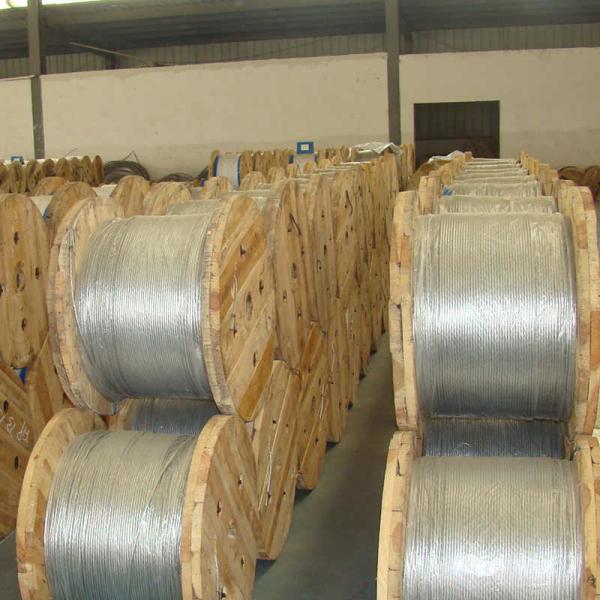

1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
1/2 EHS 7 Galvanized Steel Wire Strand ASTM A 475
Specifications
Brand Name :
Global
Model Number :
GS-191119
Certification :
ISO-9001-2008
Place of Origin :
Anhui,China
MOQ :
10tons
Price :
discuss
Supply Ability :
20000tons/year
Packaging Details :
standard export packing on reel
Material :
high carbon wire rod
Surface treatment :
Hot-dipped Galvanized
Structure :
1x7
Specification :
9/16"
Packing :
1524m/reel
Standard :
ASTM A 475 Class
Grade :
EHS
Description

1/2" EHS 7 wires Galvanized Steel Wire Strand as per ASTM A 475

Product Description

Concentric-lay stranded conductors made of Zinc-coated Steel wires (Forming multi strand wire rope).

Application:

Guy Strands, Messenger Wires, Span Wires

Overhead ground wire strand for power transmission lines

Messenger strand for telephone and CATV lines

Guy strand for power distribution poles, telephone poles and microwave and radio towers

Wind bracing in pre-engineered buildings

Barrier cable and guard rail strand

Other bulk steel cable guying applications where small size, high strength and corrosion resistance are necessary avoiding rust and degradation of your steel wire rope.

Specifications

ASTM A475 - This specification covers the five grades of class A zinc-coated steel wire strand, Utilities, Common, Siemens-Martin, High-Strength, and Extra High-Strength, suitable for use as guy and messenger wires.

ASTM A363 - This specification covers concentric lay stranded steel wire composed of three or seven wires with a Class A coating specifically intended for use as overhead ground/shield wires for transmission lines.

ASTM B498 - This specification covers round, class A zinc-coated, steel core wire used for the reinforcement of ACSR conductors.

General Specificztion as per ASTM A 475

Galvanized Steel Wire Strand ASTM A-475
Number of Wire(Dia.) Approx.Strand
Dia.		 Siemem Martin Grade High Strength Grade Extra-high
Strength Grade
Approx.Weight
Inch mm KN KN KN kg/km
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352
19/5.08 1 25.4 209.066 325.61 464.839 2384
37/3.63 1 25.4 205.508 319.827 456.832 3061
37/4.09 11/8 28.58 262 407.457 581.827 4006
37/4.55 11/4 31.75 324.72 505.318 721.502 4833
3/2.64 7/32 5.56 10.409 15.569 21.796 131
3/3.05 1/4 6.35 13.523 21.04 29.981 174
3/3.05 1/4 6.35 - - - 174
3/3.30 9/32 7.14 15.035 23.398 33.362 204
3/3.68 5/16 7.94 18.193 28.246 40.479 256
3/4.19 3/8 9.52 24.732 37.187 52.489 328
7/1.04 1/8 3.18 4.048 5.916 8.18 49
7/1.32 5/32 3.97 6.539 9.519 13.078 76
7/1.57 3/16 4.76 8.452 12.677 17.748 108
7/1.65 3/16 4.76 - - - 118
7/1.83 3/16 5.56 11.387 17.126 24.02 145
7/2.03 7/32 6.35 14.012 21.129 29.581 181
7/2.36 1/4 7.14 18.905 28.469 39.812 243
7/2.64 9/32 7.94 23.798 35.586 49.82 305
7/2.77 5/16 7.94 - - - 335
7/3.05 3/8 9.52 30.915 48.04 68.503 407
7/3.68 7/16 11.11 41.591 64.499 92.523 594
7/4.19 1/2 12.7 53.823 83.627 119.657 768
7/4.78 9/16 14.29 69.837 108.981 155.688 991
7/5.26 5/8 15.88 84.961 131.667 188.605 1211
19/2.54 1/2 12.7 56.492 84.961 118.768 751
19/2.87 9/16 12.49 71.616 107.202 149.905 948
19/3.18 5/8 15.88 80.513 124.995 178.819 1184
19/3.81 3/4 19.05 116.543 181.487 259.331 1719
19/4.50 7/8 22.22 159.691 248.211 354.523 2352

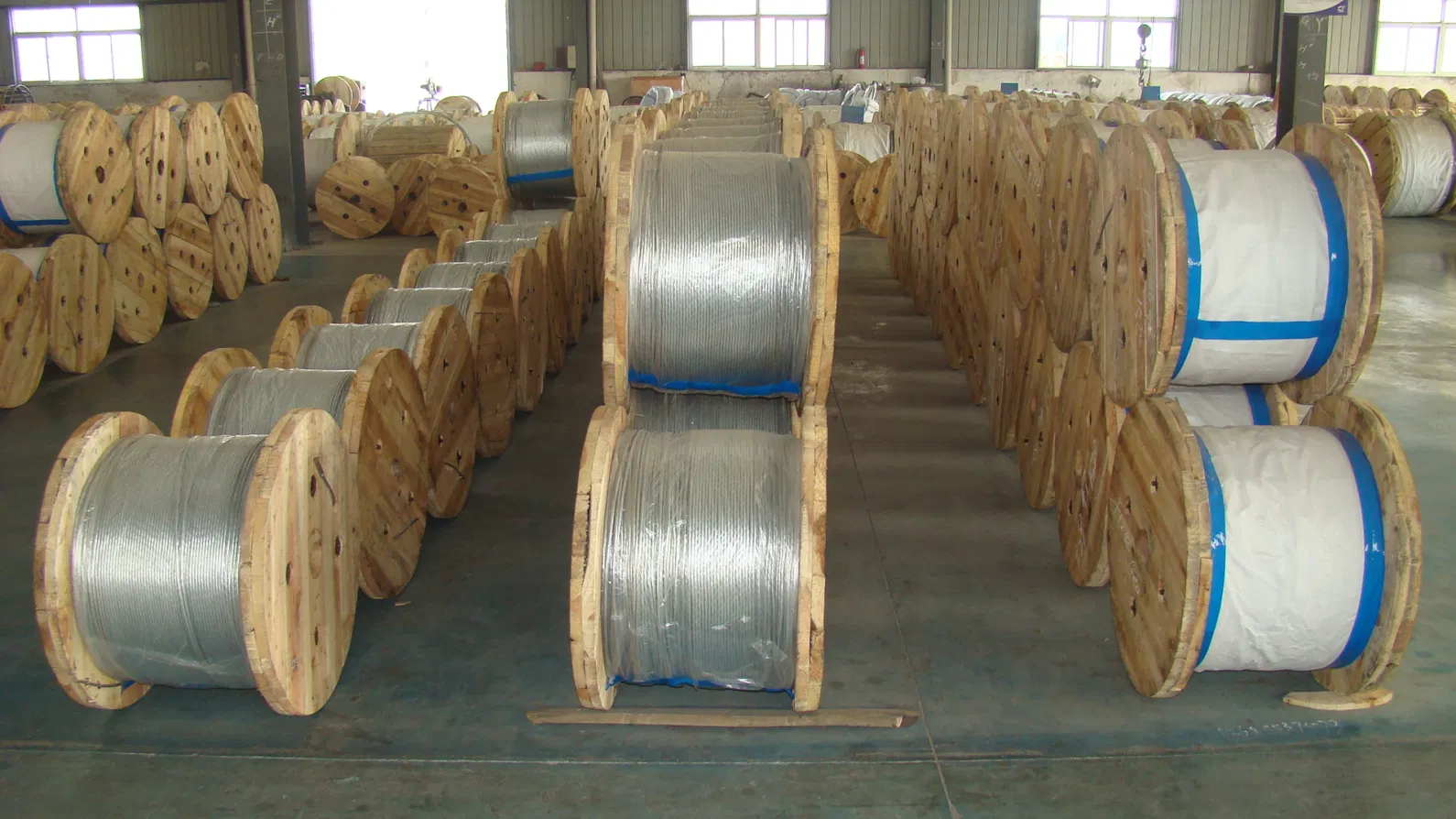

Packing
1/2
