Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved
Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved
Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved
Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved
Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved
Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved
Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved
Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved
Specifications
Place of Origin :
Anhui,China
Brand Name :
Litong Global
Model Number :
LT-150708
Certification :
ISO9001&SGS
Price :
Negotiable
Packaging Details :
by customized
Delivery Time :
10days after confirmed Galvanized steel wire strand orders
Payment Terms :
TT/LC at sight
Supply Ability :
400tons/day
MOQ :
Negotiable
Material: :
High Carbon Wire Rod
Min.zinc-coating: :
100-350g/m2
Min.Tensile Strength: :
1000-1750Mpa
Main single wire size: :
1.0mm-4.8mm
Main construction: :
1*7,1*19
Max.Loading capacity: :
25tons/20"
Description

HOT-DIPPED GALVANIZED STEEL WIRE FOR GENERAL ENGINEERING PURPOSES

Size range : 1.00 mm to 4.8 mm
Packing : 100 kgs-300 kgs,
Coil I/D : 400 mm
Coil O/D : 700 mm
Application : ACSR Conductor,guy wire,messenger,stay wire ,overhead transmission line ,Wire mesh, chain link fence, barbed wire, tying and engineering parts

Tolerance on wire diameter

Wire Diameter(mm)

Tolerance(mm)

Over 1.0,up to and including 1.25

±0.03

Over 1.25,up to and including 1.6

±0.04

Over 1.60,up to and including 2.0

±0.05

Over 2.0,up to and including 2.5

±0.06

Over 2.5,up to and including 3.15

±0.08

Over 3.15,up to and including 5.5

±0.1

Limits for ranges of tensile strength values


Condition of supply

Limits on tensile strength range
(N/mm2)

Lower

Upper

Finally Galvanized

950

1750


Coating requirements

Nominal Diamater
(mm)

Minimum mass of coating(g/m2)

Heavily Galvanized

Standard Galvanized

1.2-1.39

180

100

1.7-1.64

195

150

1.65-1.84

205

160

1.85-2.14

210

180

2.15-2.49

230

220

2.5-2.79

240

230

2.8-3.19

260

250

3.2-3.79

265

260

3.8-4.39

270

265

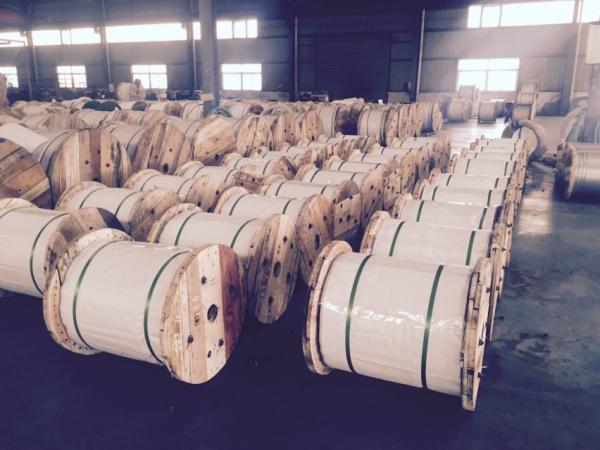

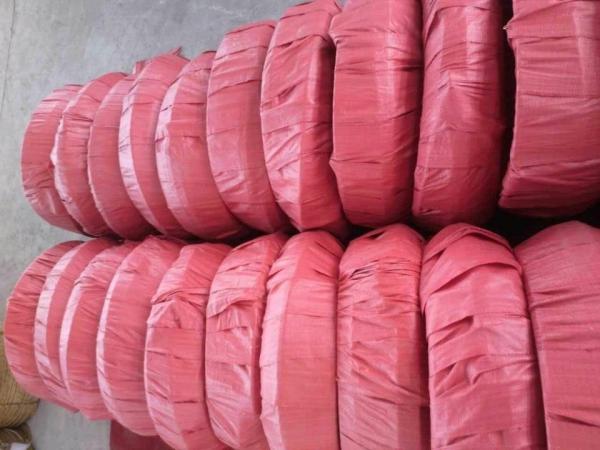

Packaging & Shipping

See the photos of the below
Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved
Application
Clear Surface Galvanized Steel Wire Strand Metal Cable Wire With Stress Relieved

Contact us:

Attn:Ms Nancy

Mobile:86-13855514957

E-mail:greatsteelwirecable@yahoo.com
13855514957@163.com

Skype:nancylsl

Web:www.greatsteelwirecable.com
