A3/8(1*7)ASTM A 475 Zinc-coated Steel Wire Strand with packing 5000ft/drum(1520m/drum)
A3/8(1*7)ASTM A 475 Zinc-coated Steel Wire Strand with packing 5000ft/drum(1520m/drum)
A3/8(1*7)ASTM A 475 Zinc-coated Steel Wire Strand with packing 5000ft/drum(1520m/drum)
A3/8(1*7)ASTM A 475 Zinc-coated Steel Wire Strand with packing 5000ft/drum(1520m/drum)
Specifications
Brand Name :
Litong Global
Model Number :
LT-028
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Packaging Details :
Standard export packing on drum
Steel Grade :
High Carbon Wire Rod
Wire Gauge :
1.0-4.8mm
Type :
Galvanized
Alloy Or Not :
Non-alloy
Special Use :
Free Cutting Steel
Application :
stay wire,guy wire,overhead tansmission line,ACSR Conductor etc.
Standard :
AISI|ASTM|BS|DIN|GB|JIS
Description

Specifications

Galvanzied steel wire strand
Galvanized steel wire strand for ground wires, steel core for ACSR, Stay wires ,Guy wires

GALVANIZED STEEL WIRE STRAND SPECIFICATION AS BELOW:

1. Galvanzied steel wire strand for

ground wires, steel core for ACSR, Stay wires ,Guy wires, Messengers

2. Galvanized steel wire strand Specification: 1X7, 3.00---12.60MM

1X19, 5.00---19.00MM

3. Galvanized steel wire strand Standard: ASTM-A475(03), BS 183

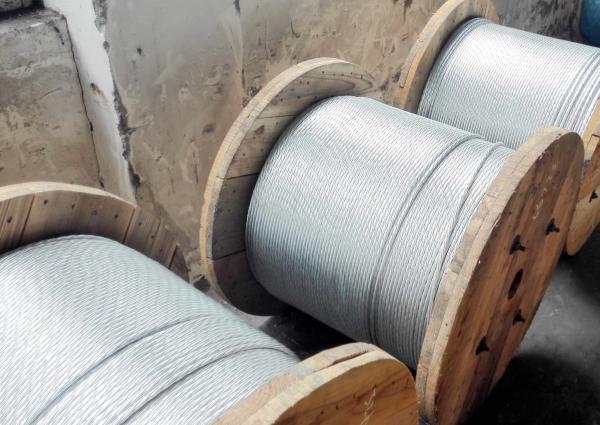

4. Galvanized steel wire strand packing: 5000ft/1524mts/reel

ASTM A 475-2003
Norminal Diameter No.of wires Diameter of wire Tolerance of wiere Weight Zinc coating Broken Loading
Inch mm pcs mm ± mm Kgs/100M G/M2 Lbf Kn
1/8" 3.18 7 1.04 0.05 48 122 1830 8.14
5/32" 3.97 7 1.32 0.05 76 122 2940 13.078
3/16" 4.76 7 1.57 0.08 109 153 3990 17.748
7/32" 5.56 7 1.83 0.08 146 153 5400 24.02
1/4" 6.35 7 2.03 0.08 180 183 6650 29.581
9/32" 7.14 7 2.36 0.10 244 214 8950 39.812
5/16" 7.94 7 2.64 0.10 305 244 11200 49.82
3/8" 9.52 7 3.05 0.10 407 259 15400 68.503
7/16" 11.11 7 3.68 0.13 595 275 20800 92.523
1/2" 12.7 7 4.19 0.13 770 275 26900 119.657
9/16" 14.29 7 4.78 0.13 1000 305 35000 155.688
5/8" 15.88 7 5.26 0.13 1211 305 42400 188.605

Trade Terms:
Min Order Qty: 1FCL / 25T
Delivery Time: 10-15 days
Price Terms: FOB CFR CIF
Payment Terms: TT / LC
