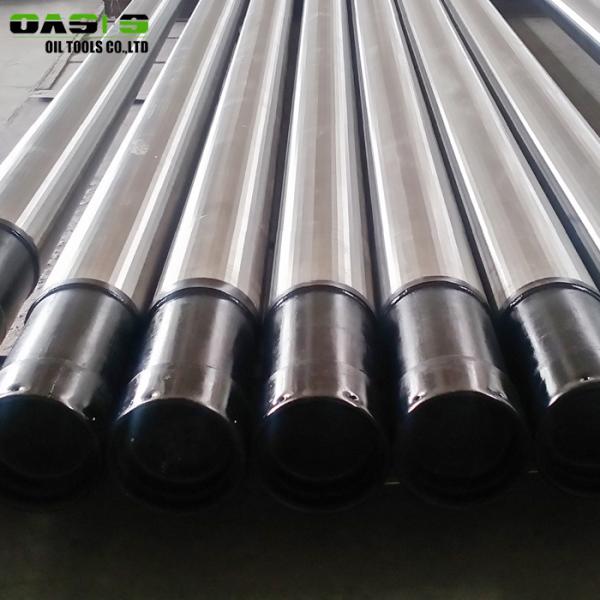

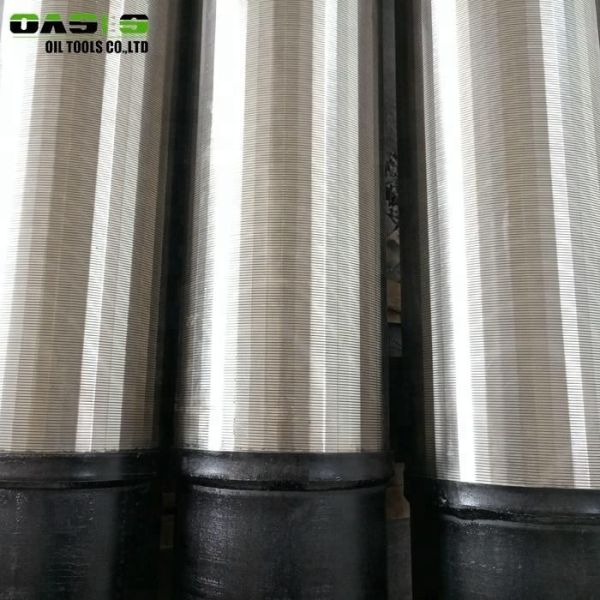

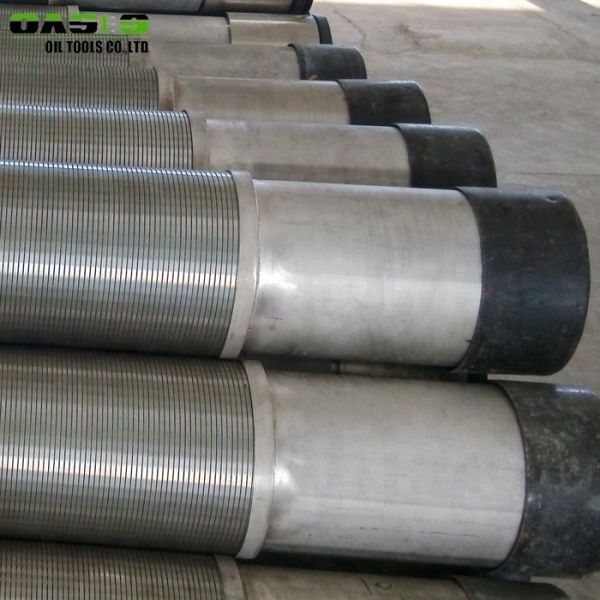

12inch Pipe Based Screen with Johnson Type Wire Wrapped Mesh Screens

Oasis pipe based well screens

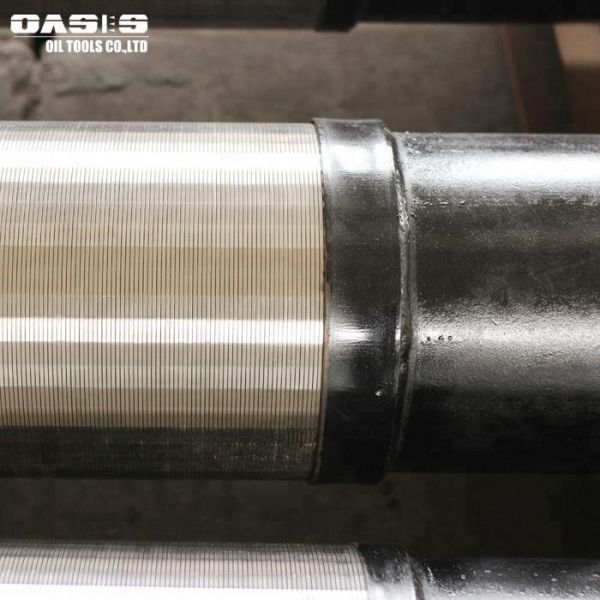

Pipe based well screens consist of base pipe, all-welded wedge wire screen and supporting rod. The base pipe is perforated or slotted API casing pipe,

the base pipe can be stainless steel or carbon steel API 5CT casing. The all-welded wedge wire screens are welded together with base pipe by supporting rod.

Features of 12inch Pipe Based Screen with Johnson Type Wire Wrapped Mesh Screens

1. Higher filtering accuracy: all-welded wedge wire screens as screen jacket with vee opening design makes the filtering accuracy higher, which can control sand better.

2. Excellent strength and resistance to deformation: The base pipe inside, the outside can be protected with the protection jacket added according to requirements, the integrated strength of the perforated base pipe only decreases 2~3% compared with the standard casing/oil tubing, so the pipe based well screens have enough integrated strength to resist to the pressure caused by strata. Even if some part of the well screens deformed, the slot of this part will not be widened, which makes higher sand control reliability.

3. More choice: the material of screen jacket can be stainless steel or carbon steel, the material can be chosen as per customers’ requirement.

4. The smaller slot will increase the oil and gas production.

5.The excellent technique makes the mass production with high efficiency and low cost available.

Packaging & Delivery

Packing details: stainless steel pipe based well screen/two layers water well screen/ reinforced johnson screen are packed with woven bags or bubble bags; up to your requirements

Delivery time: stainless steel pipe based well screen/two layers water well screen/ reinforced johnson screen are delivered within 30 days or according to your quantity by sea, air, train, or express, etc

Company Information

Oasis located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City. Oasis now has more than 150 staff, among them 6 persons are senior engineer. Since founded, OASIS always adhere to the “development on innovation, development on efficiency and treat customers with honesty” business philosophy. After many years’ efforts, now OASIS has developed into a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens, passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.

Certifications

Our Service:

Why choose OASIS pipe based well screens?

1) World Class Quality: OASIS provide our clients with high quality water well screens and related products.OASIS had passed ISO9001:2008 quality control system.

2) Third party inspection: The productive process of OASIS screen is controlled by third party test company such as BV,SGS,etc. or client's representative.

3) Non Standard Screens: We OASIS can supply customer designed and engineered screens according to our clients’ requirements.

4) Quick Delivery: OASIS can prepare stock for our regular clients to meet clients' requirement at any time.

5) Lower Maintenance of the well: The water can pass freely around coarse particles and enters the well. So low maintenance costs with minimal encrustation or build-up of scale.

6) Environmentally safe: OASIS has signed the file to protect the environment with our local Environmental Protection Administration.

High Quality, Small Oder Acceptable, Great Service, Promptly Delivery
