Product Information

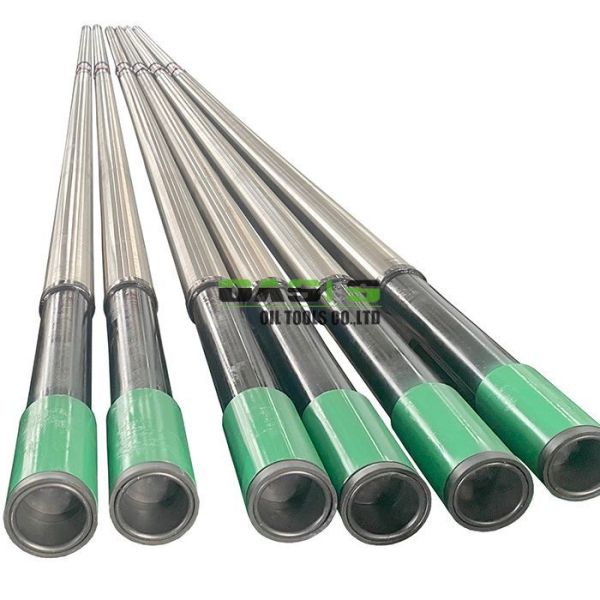

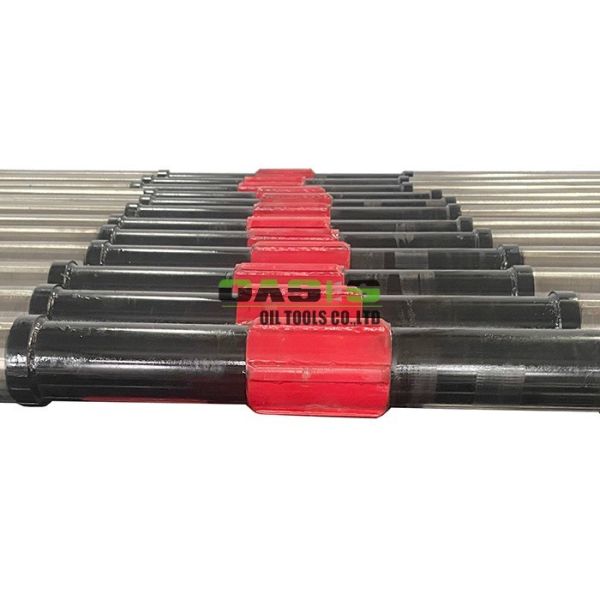

This Pipe-based Wire Wrap Screen, in an extended 7149mm length, is engineered for demanding large-diameter or deep-well applications. It integrates a perforated API 5CT base pipe with a precision-welded, V-wire screen jacket, offering superior sand control and inflow management across extended well intervals. Custom configurations are available.



Specifications

Characteristics

• Extended Robust Construction: A 7149mm assembly made from high-grade stainless or carbon steel, offering exceptional structural integrity for deep-well environments.

• Superior Sand Control: The all-welded wedge wire screen with V-shaped openings provides precise, consistent filtration and excellent resistance to clogging.

• High Strength & Stability: Supporting rods and a robust base pipe create a rigid structure that resists collapse and deformation under high pressure.

• Customizable Protection: Optional outer protection jackets safeguard the screen assembly from abrasive damage during installation and operation.

Technology

Our manufacturing relies on skilled manual welding techniques. Each longitudinal support rod is welded to the wedge wire individually by experienced welders. Every weld point is strictly controlled and tested to meet or exceed the required tensile strength standards, ensuring a permanent and robust bond. This meticulous, weld-by-weld process guarantees the structural integrity and uniform quality of the screen over its entire 7149mm length.




Service

We provide comprehensive technical support, from screen specification and custom length design (like this 7149mm variant) to installation guidance. Our service includes performance analysis, material selection consultancy, and after-sales support to ensure the screen delivers optimal longevity and filtration efficiency in your specific application.



FAQ


Q1: What's the advantage of this screen type?
A1: Superior strength from its two-layer pipe-and-wire construction and precise filtration from the V-shaped wedge wire slots.

Q2: Can the 7149mm length be customized?
A2: Yes, screen length and diameter can be fully customized to fit specific well requirements.

Q3: What materials are used?
A3: Typically stainless steel (304/316) for corrosion resistance or carbon steel (API 5CT) for high strength.

Q4: How does the V-wire design help?
A4: The tapered slot prevents clogging by allowing fine particles through while blocking sand grains.

Q5: What affects the screen's lifespan?
A5: Material choice, slot sizing accuracy, weld quality, downhole conditions, and proper installation.



Related Products





Company Profile




Oasis based in Xinxiang High-tech Industrial Park, is a specialized manufacturer of well screens and filtration products. With over 20,000㎡ of facilities and a team of 150+ employees including 6 senior engineers, we integrate R&D, production, and sales.

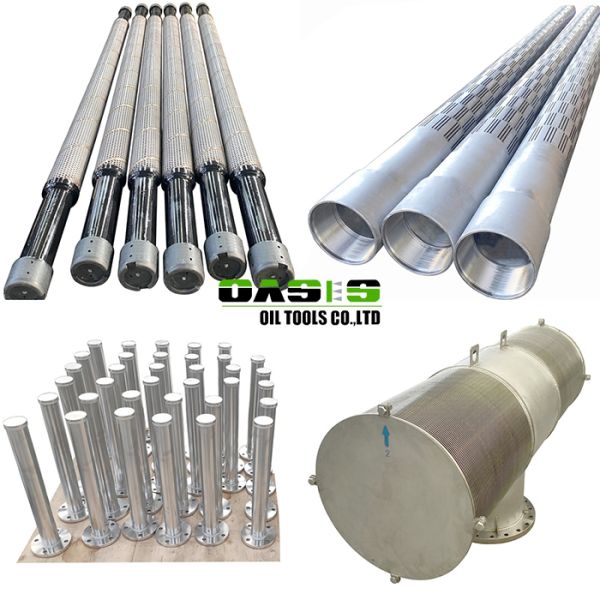

Equipped with automated CNC systems and German-inspired technology, we produce over 20 types of precision screens including:

• Water/oil well screens (stainless/carbon/duplex steel)

• Pipe-based, slotted, and perforated screens

• Sand control & gravel-packed screens

• Industrial filters & screen plates

• API/ISO casing & pipes

• Custom surface treatments (galvanizing/powder coating)

Our products serve water wells, oil/gas wells, and industries like paper and chemicals. We export independently to 30+ countries including Russia, Saudi Arabia, Canada, and Indonesia.
Guided by "A good screen makes a good well," we prioritize innovation, quality, and customer partnership for mutual success.


Please contact with us for more details.
Our techinical team will give you the best choice.
