Product Information

Operation Method

1. Pre-Running Inspection & Preparation

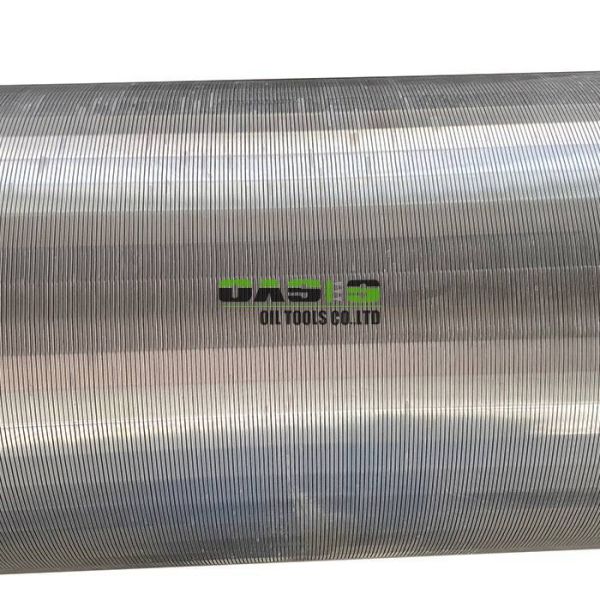

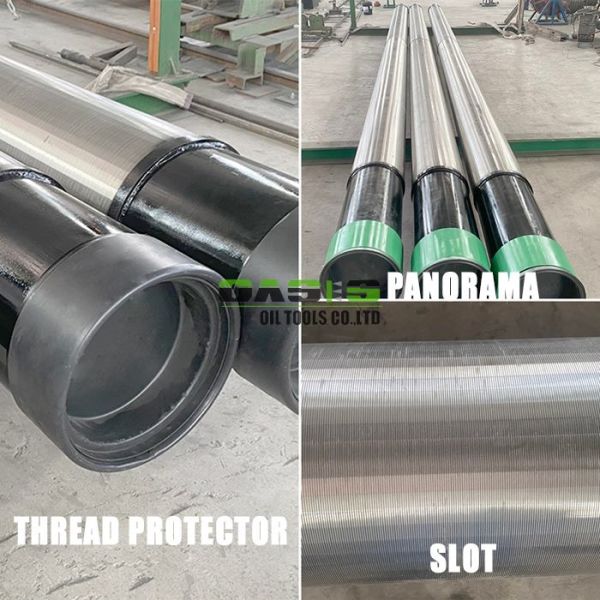

   Before running into the well, carefully check the screen appearance to ensure no damage to the wedge wire surface, no deformation of the slot, and intact thread. Verify the overall length, outer diameter, slot size and connection type against the order documents. Keep the thread protectors installed until the formal connection operation to avoid thread damage.
2. Handling & Lifting Specifications

   Use special soft slings for lifting and handling. It is strictly forbidden to use steel wire rope to directly contact the screen filtering surface to prevent scratch, deformation and welding joint damage. Do not drop, bump or squeeze the screen during transportation and handling, and avoid heavy impact on the end of the pipe.
3. LTC Thread Make-up Operation

   Before connection, thoroughly clean the LTC male and female threads and coupling, remove all impurities, dust and burrs, and evenly apply API standard thread compound on the entire thread surface. Use a calibrated hydraulic torque tong for make-up, strictly follow the API 5CT recommended make-up torque for 13 3/8” J55 LTC casing. Avoid over-torque (which may cause thread damage) or under-torque (which may cause sealing failure).

Our Service

1. Customized Solution Service
   We provide fully customized products according to your actual well conditions, including slot opening size, base pipe steel grade, wrap wire material, length and connection type, to meet the needs of different sand control completion projects.
2. Full-Process Quality Assurance
   All products are produced in strict accordance with API standards, with a complete quality control system for the whole production process. We provide MTC (Material Test Certificate), quality inspection report and relevant certification documents for each batch of products.
3. Professional Technical Support
   Our experienced engineering team provides one-to-one pre-sales technical support, including formation sand analysis, screen type selection, and completion program optimization. We also provide 24/7 online after-sales technical guidance for on-site operation.
4. Global Logistics & Delivery Service
   We have rich experience in international trade and logistics, and can provide door-to-door delivery service including customs clearance and commodity inspection, ensuring the safe and timely arrival of products to the designated location.
5. Warranty Service
   We provide a standard warranty for all our products. For product quality problems caused by non-human factors within the warranty period, we provide free replacement or maintenance solutions.
